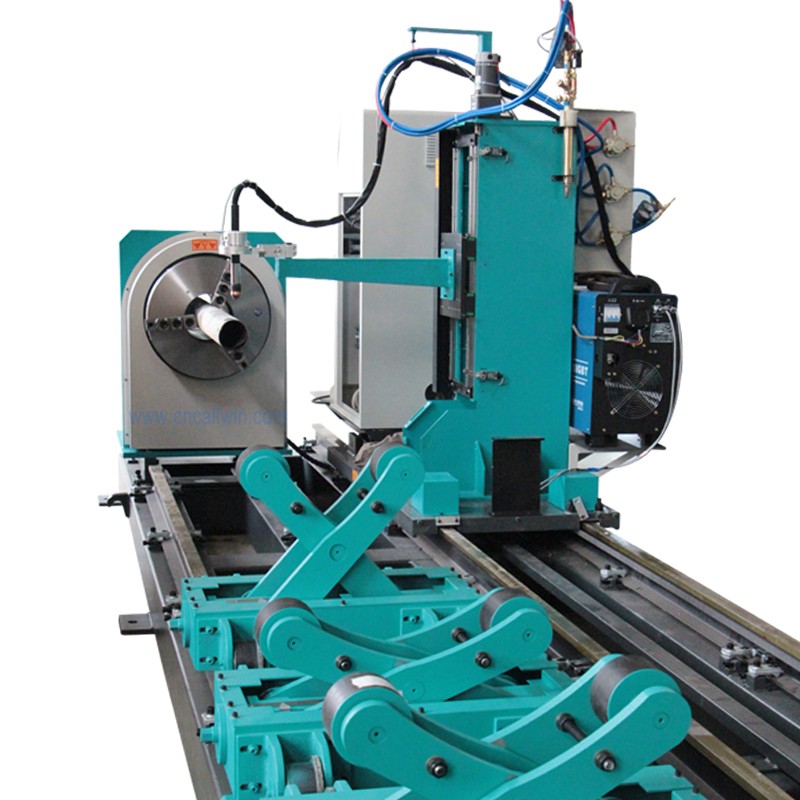

5 Axis CNC Plasma and Flame Automatic Big Pipe Beveling Cutting Machine Large Diameter Roller Pipe
Manufacturing & Processing Machinery Industrial Processing Machinery
MOQ:1 Piece(s)
Payment Method : L/C T/T D/P Western Union Paypal
Keywords:cnc plasma cutter cnc plasma cutting machine plasma cutter cnc portable plasma cutter plasma metal cutter metal cutting machine Stainless steel cutter plasma cutter prices
| Product Category: | Manufacturing & Processing Machinery > Industrial Processing Machinery | Trademark: | Allwin cnc |
| Product Package: | plywood boxes | Specifications: | 1530/2040 (customized ) |
| Place of Origin: | Jinan China | Port: | Qingdao |
welcome visit our website www.cncallwin.com

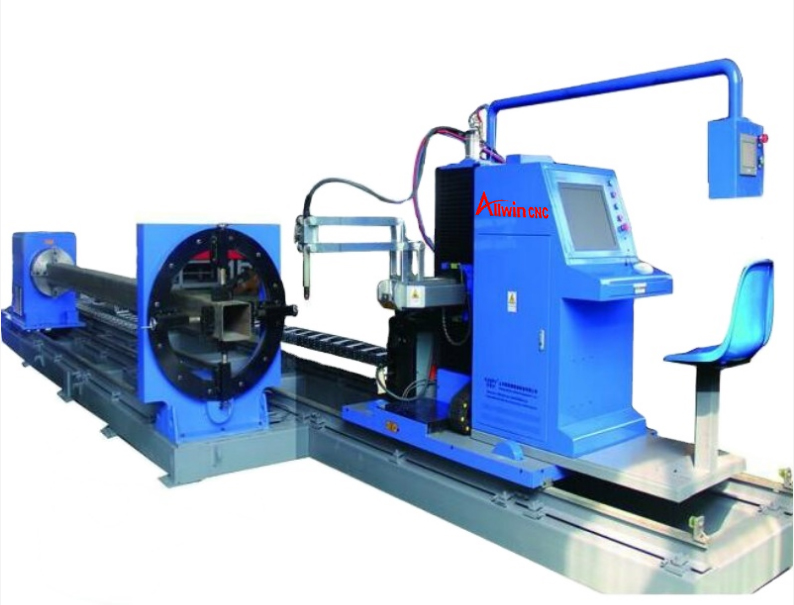

5 Axis CNC Plasma and Flame Automatic Big Pipe Beveling Cutting Machine Features

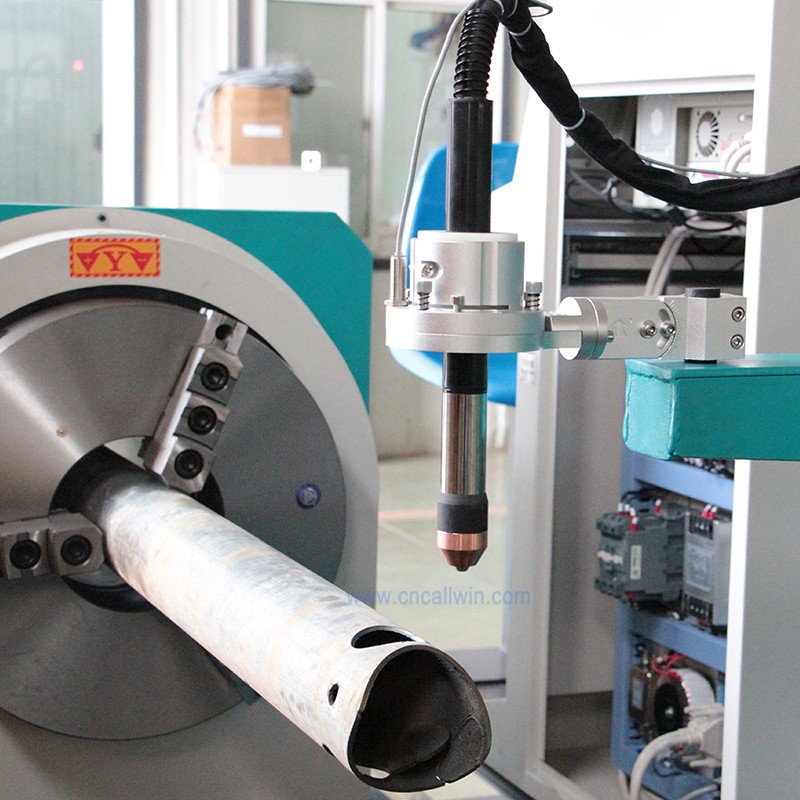

The CNC plasma tube cutter adopts a CNC system to achieve automatic calculation and cutting equipment for metal pipes. plasma pipe cutting machine can cut round, square, v-shaped grooves and other shapes on the pipe; the operation of cnc plasma tube cutter is very simple, and cnc tube cutter is suitable for large quantities of professional metals. plasma tube cutter: high production efficiency, smooth cut, stable performance, accuracy can reach 0.1 mm, this plasma qeupment is widely used in the cutting and processing of pipeline structural parts in water pipe manufacturing, chemical industry, shipbuilding, petroleum and other industries;
Advantages of industrial-grade CNC plasma tube cutter machine:
1. CNC tube plasma cutting machine is easy to operate. You only need to set the parameters and select the shape to be cut, and the cutting of each mouth shape of the entire pipe can be automatically completed. It saves the traditional scribing, test cutting and other tedious work, greatly improves the cutting efficiency and reduces the labor cost.
2. Allwin CNC plasma cutting machine supports a variety of third-party nesting software, with automatic optimization and typesetting functions, thereby reducing the number of on-site welding and reducing the workload of welders.
3. The plasma pipe cutter can calculate the most suitable length of raw materials through drawings under the condition that the customer does not know the engineering quantity. Purchasing raw materials through the given length can save 2% of raw materials, which saves time and money.
4. The CNC plasma tube cutter has small cutting deformation, fast cutting speed, and can cut any shape of incision. Especially suitable for industrialized pipe production and cutting.
5. The cut is smooth and flat without secondary processing.
5 Axis CNC Plasma and Flame Automatic Big Pipe Beveling Cutting Machine Technical specification
| Model | AP3 CNC plasma tube cutter |
| Machine size | 7800*1800*1650mm( customized ) |

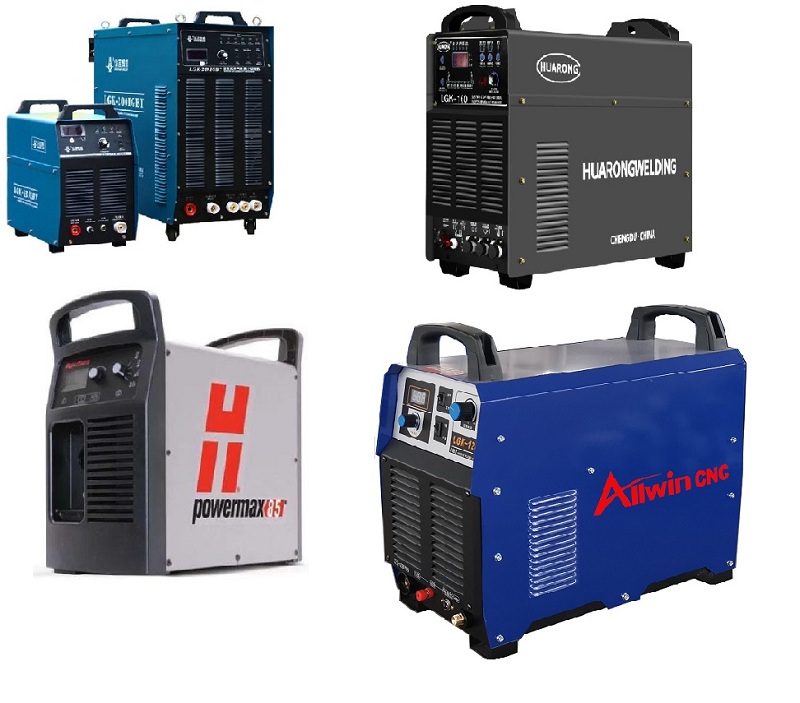

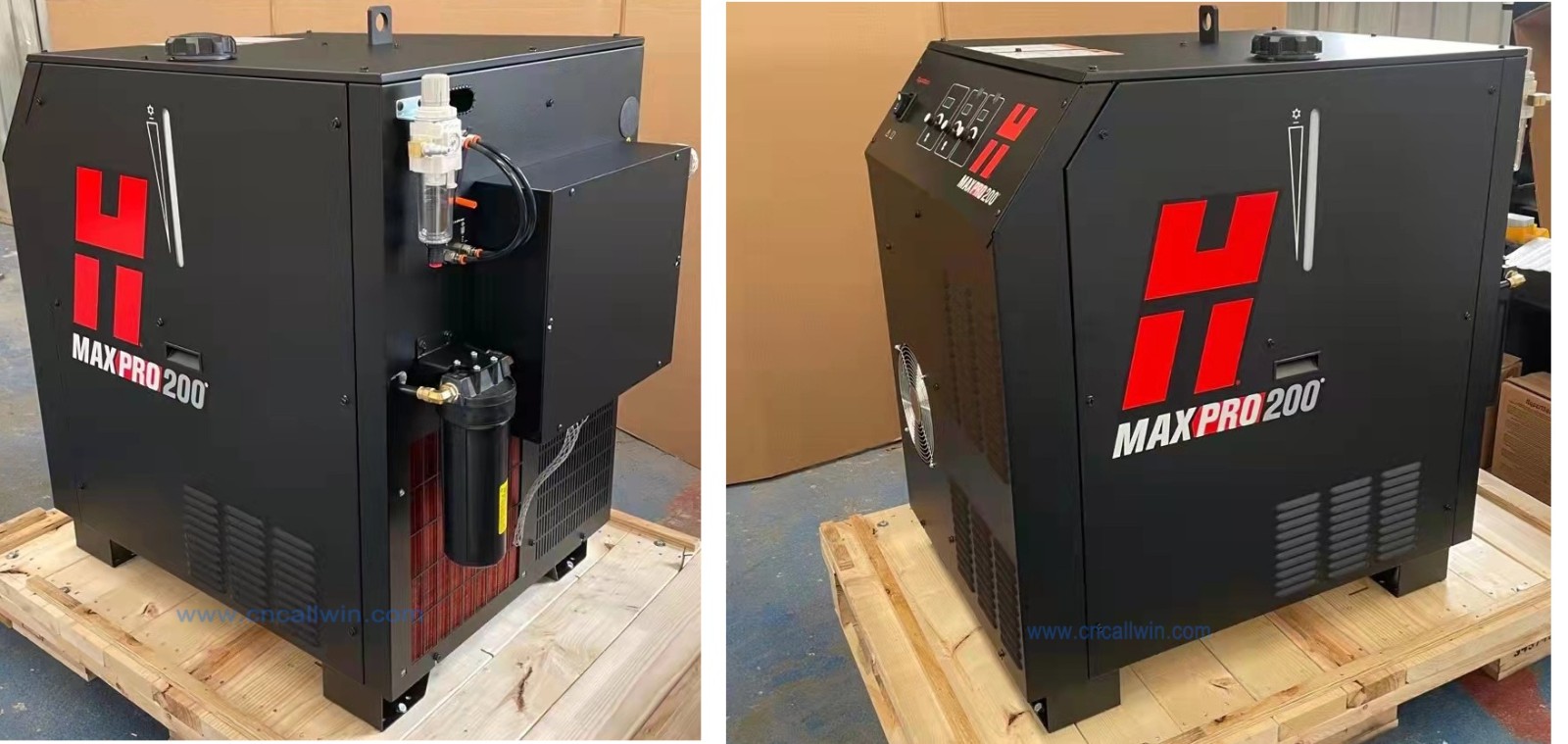

| Plasma Power | USA Hypertherm Power: 45A, 65A, 85A, 105A, 125A, 200AChinese Huayuan Power: 63A, 100A, 120A, 160A, 200A |
| Cutting range | 6m 9m 12m( customized ) |
| Cutting method | Flame/plasma |
| Flame cutting speed | 20—700mm/min |
| Plasma cutting speed | 500-3500mm/min |
| Control system | Advantech industrial computer |
| Plasma Max. hole thickness | 20mm |
| Plasma Max. edge cutting thickness | 30mm |
| Plasma torch anti-collision system | yes |
| Driving mode | servo |
| Working pressure of compressed gas | Above 7mpa |
| Required gas flow of plasma | 4500L/H |
| Working environment | Ventilation, no concussion |
| Power wattage | 5KW |
| Types of gas | Acetylene propane |
| Transmission | Taiwan Hiwin Square rail and Rack transmission |
| Drive Motor | Leadshine stepper motor and driver |
| Working voltage | 220V for machine, 380V for power supply (63A with 220V i |
| Optional Parts | Rotary device, Flame head, Drilling head, Marking head, A |
| Consumable Parts | Cutting nozzle and electrode |

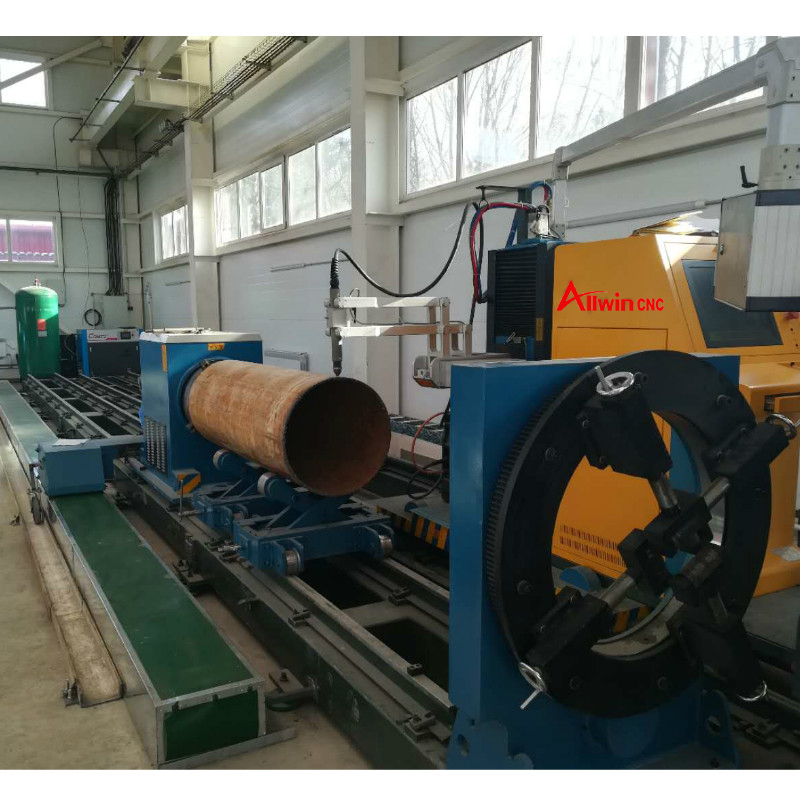

Allwin CNC plasma tube cutter is widely used in the cutting and processing of pipeline structural parts in water pipe manufacturing, chemical industry, shipbuilding, petroleum and other industries;

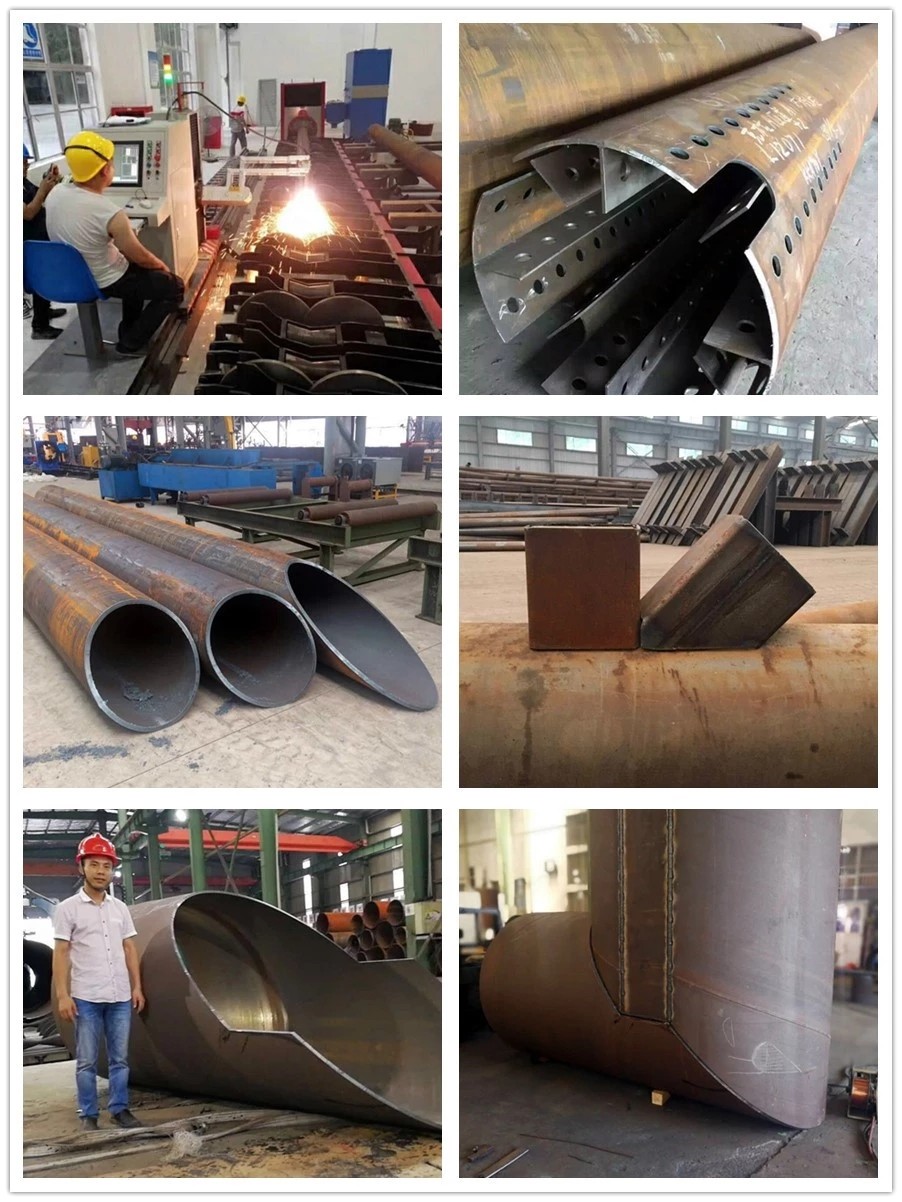

5 Axis CNC Plasma and Flame Automatic Big Pipe Beveling Cutting Machine Applications
View More Information Click Here

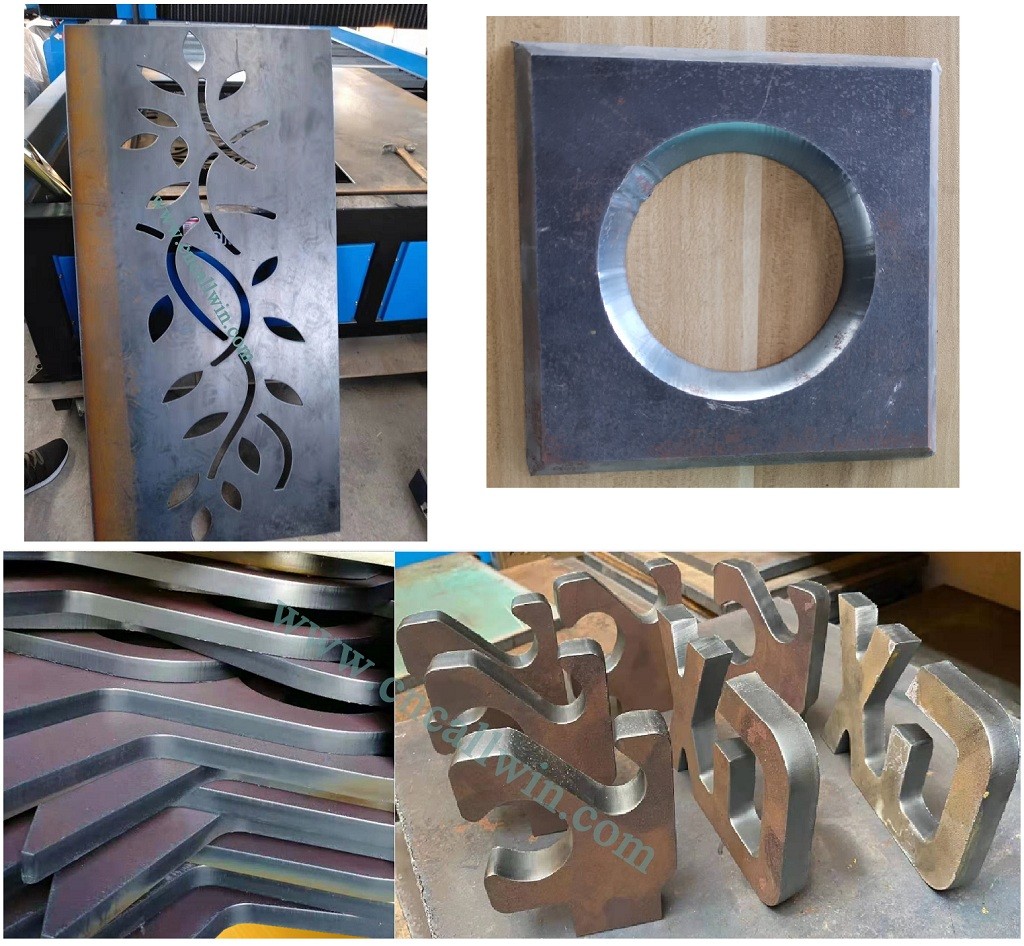

Plasma Cutting Capacity of portable Plasma cutter
| China Huayuan Power | USA Hypertherm Power | ||
| Power supply | Cutting thickness | Power supply | Cutting thickness |
| 63A | 8mm | 45A | 8mm |
| 100A | 15mm | 65A | 10mm |
| 120A | 20mm | 85A | 12mm |
| 160A | 30mm | 105A | 18mm |
| 200A | 40mm | 125A | 25mm |
| 200A | 30mm | ||

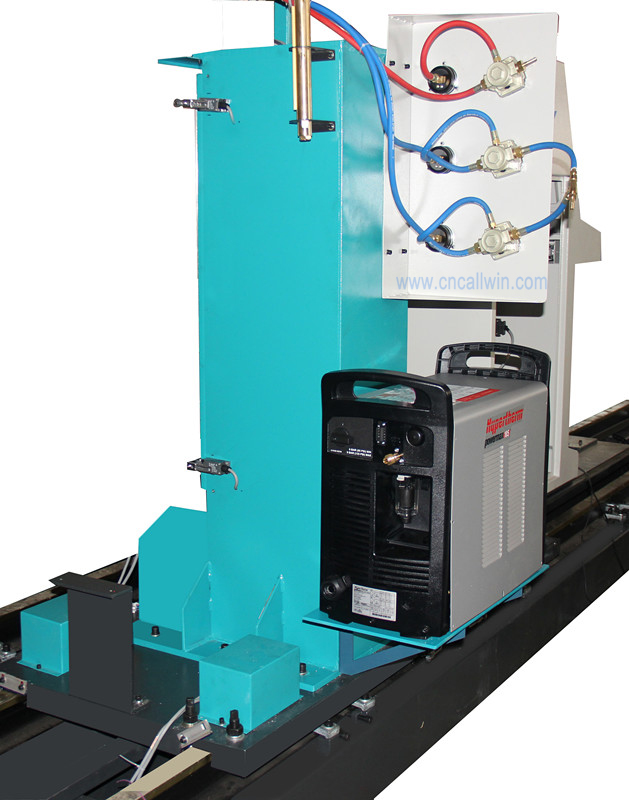

Portable cnc Plasma cutter Details
