Product features:

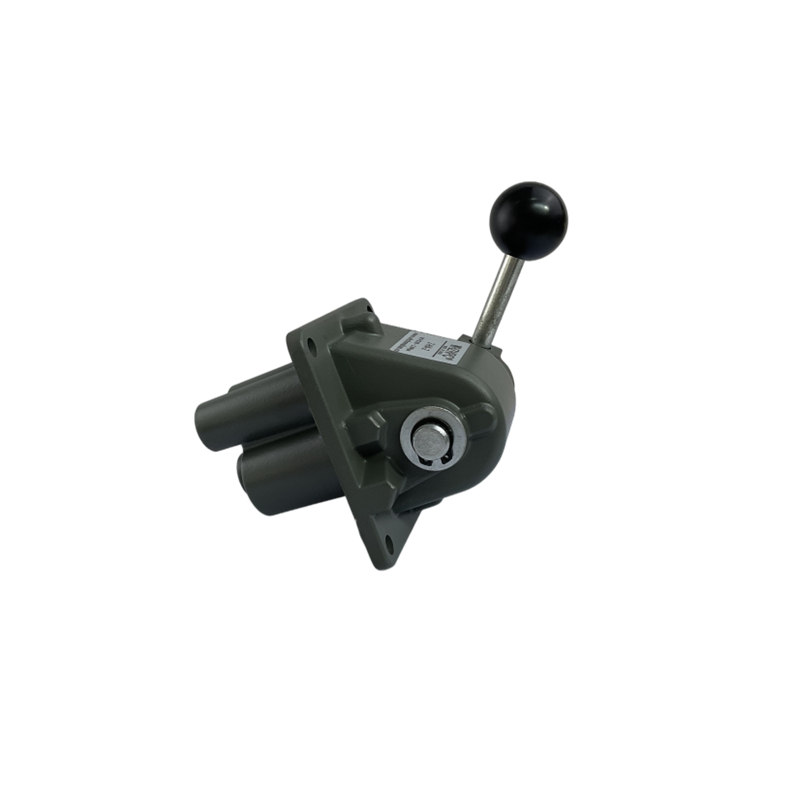

The 2-HA-2  Valves are panel-mounted, 2, 3 and 5 position valves with one inlet and two outlet ports. Available with detents in each handle position, a latching handle that requires manual release to insure against unintentional operation,  or spring return to center position. All ports are 1/4" NPT.
The Panel-Mounted  Valve is a poppet-type pneumatic directional control valve consisting of a cam housing portion and a valve portion containing from one to four 3-way valve units.

Operating Versatility
Versatility has been designed into the operating cams. By reversing, rotating and rearranging these all-purpose cams, all the listed combinations can be made with a minimum of parts. Single unit valves for 3-way operation may be normally open or normally closed. The two unit valves have two, three, or five positions of operation as do the three and four unit valves. Detents can be had for two, three or five positions, or handle may be spring returned to center for three position operation.

Operation
In release position, as shown, the valve disc seats on the inlet valve seat and seals the passage from the inlet to the outlet port. The outlet port is vented to atmosphere through the center of the plunger.
As the plunger is forced downward by the cam force it seats on the valve disc. This seals the passage between the outlet port and atmosphere.
Further downward travel of the plunger unseats the valve disc from the inlet valve seat and allows inlet air pressure to flow to the outlet port.

Parameter：
