HC-2 series combined pressure regulator

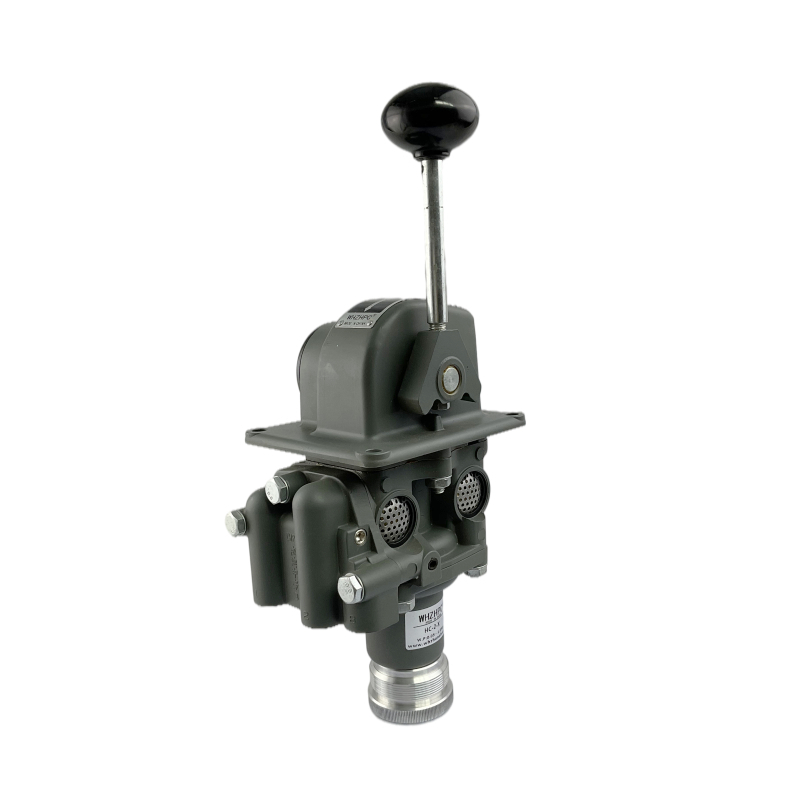

The H C-2 combination regulator is a three-bit five-pass reversing valve operated by a handle lever with pressure adjustment.It consists of two two-bit three-way reversing valves and a three-pass regulating valve.The pressure regulating valve provides air intake to the reversing valve.The two changing directions connect 1 output junction ports and 3 output junction ports respectively.

The joystick lever rotates from the "off" position to the increased throttle direction, the 1 coupling port "output" pressure source.The lever is further moved, the mouth pressure increases at the handle angle, and the pressure gradually increases to the rated maximum output pressure.

In reverse operation, the No.3 connection outlet "outlet" air source, the handle lever is further moved, the port pressure with the handle corner increases, the pressure is gradually increased to the rated maximum output pressure.

The HC-2 combination valve is used to control two clutches, two brakes, one clutch, and one brake, two single-action cylinders, or one dual-action cylinder.Retain with one handle lever to achieve multiple controls.
