ecnomoic fiber laser cutting machine 1500W carbon steel stainless steel fiber laser 3000W
Manufacturing & Processing Machinery Industrial Processing Machinery
MOQ:1 Piece(s)
Payment Method : L/C T/T Western Union Paypal Money Gram
Keywords:2000w FIBER LASER CUTTER metal laser cutter fiber laser cutter fiber laser cutting machine metal laser cutter 1530 1500W laser cutting machine cnc laser cutter 2000w fiber laser cutter 1000W fiber laser cutter 1500W fiber metal cutter 3000W
| Product Category: | Manufacturing & Processing Machinery > Industrial Processing Machinery | Trademark: | ALLWIN |
| Product Package: | wooden case | Specifications: | 3000mm*1500mm |
| Place of Origin: | CHINA | Port: | QINGDAO |
welcome visit our website www.cncallwin.com
Features FOR FIBER LASER CUTTING MACHINE 2000W
1.Low cost,laser power consumption only 0.5-1.5kw per hour.
2.China best quality laser source,high performance,stability and service lifespan over 100,000hours,free of maintenance.High speed ,high efficiency,thin plate cutting can be over 10 meters per minute.
3.Automatic height sensor on laser head for uneven pieces.
4.Imported ball screw and linear guide rail driving system.
5.Easy and efficient CNC software for fast programming.
Tips: Cnc Fiber Laser Cutting Machine (Optional)
1. Fiber laser cutter power: 500W, 750W, 800W, 1000W, 1500W, 2000W, 3000W, 4000W, 6000w, 10000w, 12000w, etc.
2. Fiber laser generator: JPT, RAYCUS, MAX, IPG etc.
3. Fiber laser cutter materials: Iron, aluminum, carbon steel, stainless steel, copper, hardware and another metal sheet materials.
4. optional parts can be chosen, such as, rotary axis, exchange working table, full cover, etc.
5. working area is 1500mm*3000mm and 15000mmx6000mm.. we could customize working size acoording to customer request. For new user..
you must inform us what thickness of metal?What working area?
| No. | machine model:ALLWIN-1530-2000W | ||||
| 1 | max working area | 1500mmx3000mm | |||
| 2 | Packing dimension | 2200mmx3700mmx1700mm | |||

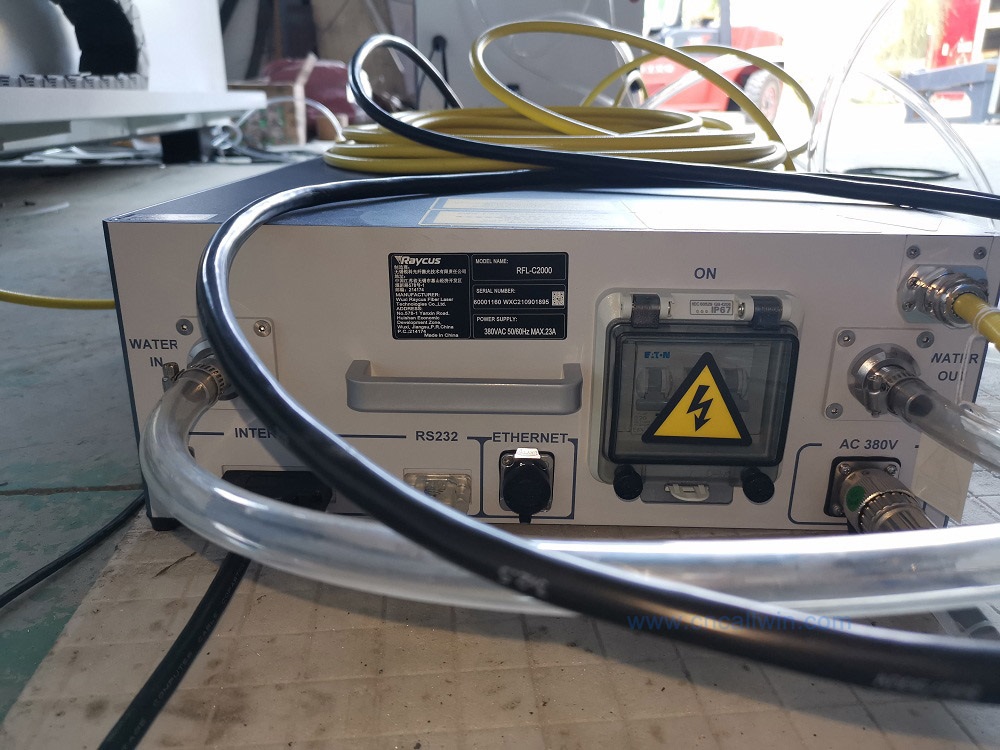

| 3 | Laser source | 2000W RAYCUS fiber laser | |||
| 4 | laser head | Swiss RAYTOOLS with auto focus | |||
| 5 | software | Professional FSCUT2000 with Cypcut software | |||
| 6 | motor and driver | Japanese YASKAWA servo motors 850W | |||
| 7 | Reducer | Japan SHIMPO reducer | |||

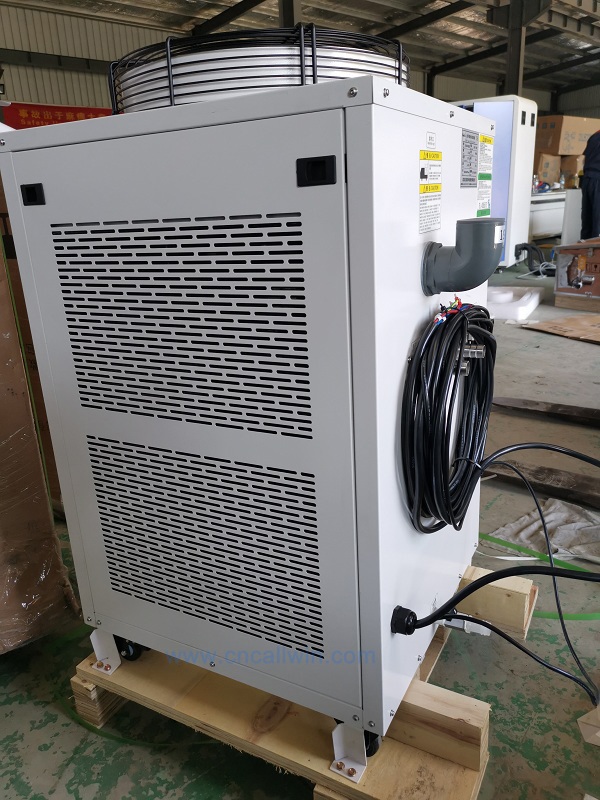

| 8 | Water chiller | S&A brand with Dual temperature,dual control | |||
| 9 | Rack and pinion | Taiwan brand T-WIN rack and pinion | |||
| 10 | Guild rails | HIWIN GUILDER RAIL | |||
| 11 | Exhaust fan | Blower Exhaust fan | |||
| 12 | motor and driver | Japanese YASKAWA servo motors 850W | |||
| 13 | Air compressor | YES | |||
| 14 | voltage stabilizer | YES | |||
| 15 | Accessories included | 1 SET RAYCUS FIBER LASER SOURCE 2000W | |||
| 1 SET RAYTOOLS LASER HEAD(AUTOMATIC FOCUS) | |||||
| 1 SET WATER CHILLER | |||||
| CYPCUT SOFTWARE | |||||
| INDUSTRIAL COMPUTER | |||||
| FAN | |||||
| LASER PROTECTION GLASSES | |||||
| FIBER LASER CUTTING BED | |||||
