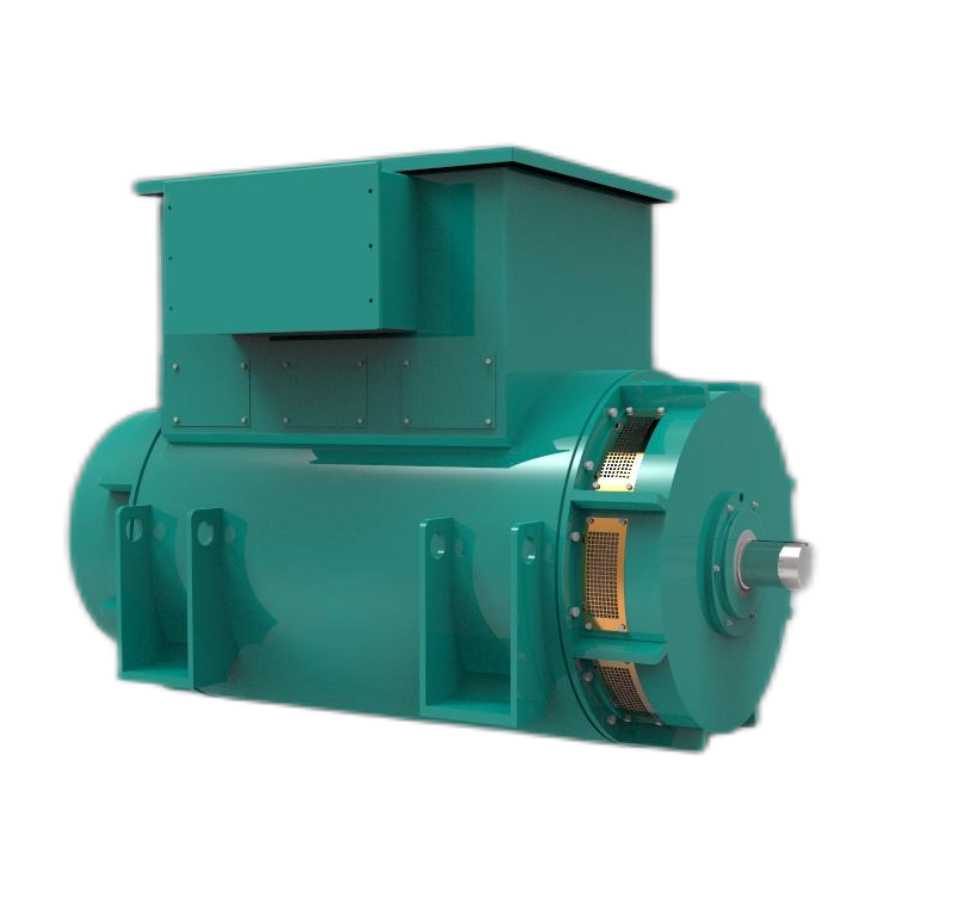

High Voltage Generator

Electrical & Power Energy Generators

FOB Price:US$ 30,000.00 / Set(s)

MOQ:1 Set(s)

Payment Method : T/T

Keywords:发电设备 发电机 高压发电机

Add to Favorites

Product Category: Electrical & Power Energy > Generators Trademark:
Product Package: General for simple packaging, export packaging according to export requirements Specifications: 50~5000kVA
Place of Origin: LIUZHOU,CHINA Port: GUANGZHOU

Product description

JFG, JFGT series high-voltage generator is our company in digest and learn from Germany Siemens 1FC6 series generator technology, and combined with the production of 1FC6 series generator more than 20 years of experience, as well as more than 10 years of high-voltage generator production experience, a new generation of high voltage generator. The motor is equipped with digital pressure regulating plate and permanent magnet mode, and can be driven by internal combustion engine, gas turbine, steam turbine, water turbine and electric motor electric generator, it can be used as the main distribution equipment in ship power station, mobile power station, fixed power station, small hydropower station and so on.

Selection configuration:

Rated voltage: 3kV~13.8kV

Rated frequency: 50Hz/60Hz

Power factor: 0.8 (lag) poles: 4, 6, 8, 10, 12

Protection grade: IP23, IP44, IP54,

 special point:

       using the electromagnetic design scheme of Siemens Germany.

       The windings are immersed in VPI vacuum paint and baked in a constant temperature oven to ensure the extremely high insulation performance of the generator.

       The generator has sufficient calibrated power, low temperature rise and strong overload capacity. The insulation structure of stator winding adopts less glue insulation structure. Adopt high voltage anti-corona technology and measures.

       The full damping winding hidden pole rotor structure is adopted, which can bear larger three-phase unbalanced load.

       The generator is equipped with the original imported Basler or ABB digital automatic voltage regulator to realize digital and intelligent control: the generator has four operation modes: automatic operation (AVR), manual adjustment (FCR), constant power factor (PF) and constant reactive power (VAR).         The generator has slope adjustable soft start and voltage control in AVR mode.


       Generator has adjustable low frequency protection (V/Hz), generator has adjustable reactive power drop compensation when parallel operation in AVR mode;

       Generator has protection functions such as generator overvoltage, generator detection voltage loss, excitation overvoltage, excitation overcurrent and so on;

      Remote control and local control can be carried out through PC communication and MODBUS protocol.


Contact Name: Miss Ping Huang Contact Email: hp****1@sina.com
Contact Job Title: Manager Contact Mob: 181***766
Contact Tel: Contact Fax:
Address: NO.8 ,WEIXING ROAD, LUOWEI INDUSTRIAL PARK,LIUZHOU,GUANGXI,CHINA Website: http://www.lzjldj.com

        LiuZHou  JiaLi ELEC.Machinery  CO.,LTD (formerly Liuzhou Motor Factory), founded in 1956, is the largest professional generator design, manufacturing, sales and service provider in Guangxi. After more than 60 years of hard work and development, Jiali Motor has become one of the most influential brands in the domestic motor industry, and it is the first enterprise in China to introduce 1FC6 series Siemens generator technology. The company focuses on the design, R & D and production of medium and high power, high and low speed, high and low voltage generators for internal combustion engines. The company has a skilled R & D team, received professional and technical training from Siemens, mastered a full set of core technologies such as Siemens generator design, process, manufacturing process and quality control, and accumulated more than 20 years of manufacturing experience. through digestion, absorption and independent innovation, we took the lead in developing and launching a series of high-voltage generator products to the market in 2006. The company takes high voltage generators, 1FC6 series Siemens land generators and 1FC6 series Siemens marine generators as core products.

Wide power range: 50kW~5000kW

Multi-pole, multi-speed (4 to 12 poles), can meet the matching needs of different host customers The first domestic enterprise to research and develop high voltage generator and successfully popularize and apply it, fusing Siemens core technology gene.

Design and manufacturing experience in a variety of environments (high altitude, extreme heat, extreme cold, high corrosion, etc.) High-voltage generator has a long history, superior product performance, stable and reliable quality, and its technical quality level is in a leading position among similar domestic products, which can be comparable to and replace similar international products. The characteristic products can be customized according to the needs of users.

 Jiali  products(Generator) have won awards from the Ministry of Machinery Industry, Guangxi Autonomous region and Liuzhou City for their reliable quality and excellent performance as well as the trust of customers. The series of generator products produced by the company have been supported by hundreds of different domestic enterprises, sold all over the world, and participated in the construction of key projects at home and abroad. Products are widely used in construction machinery, oil exploitation, biomass power generation, environmental gas power generation, mobile power stations, data centers, shipping, engineering ships, telecommunications, railways, civil and other fields, playing an important role in energy saving and environmental protection.
