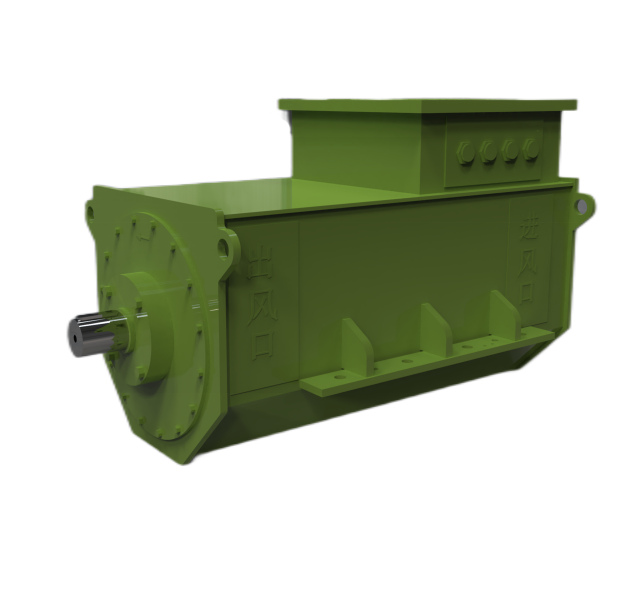

Siemens 1FC6 Low Voltage Generator

Electrical & Power Energy Generators

FOB Price:US$ 13,932.00 / Set(s)

MOQ:1 Set(s)

Payment Method : T/T

Keywords:Siemens Low Voltage Generator Land Low Voltage Generator

Add to Favorites

Product Category: Electrical & Power Energy > Generators Trademark:
Product Package: Specifications: Capacity: 50~5000kVA
Place of Origin: Port: 广州

Product description:

1FC6 series Siemens low voltage generator is a self-excited brushless constant voltage Synchronize generator, with electronic voltage regulator excitation device, as the main equipment and backup equipment of land power station and marine power system, it can be driven by internal combustion engine, gas turbine, steam turbine, hydraulic turbine and motor. The products have superior technical performance, stable performance, long-lasting, low noise and low vibration, and have been recognized by the market for decades.

Product selection and configuration:

 Capacity: 50~5000kVA

 Rated Frequency: 50HZ, 60HZ

 Rated Speed: 1500r/min, 1000r/min, 750r/min,600r/min,500 r/min

 Voltage Grade: 400V ~1140V

 Protection Grade: IP23, IP44, IP54, in line with the IEC standard

 Protection grade insulation grade: F, H

 Technical performance:

Wiring Method: three-phase four-wire (Y connection) product characteristics the product features superior technical performance, stable performance, durable, low noise and low vibration, which has been recognized by the market for decades. Generator windings are made of special enamelled wire with high hydrolysis resistance or flat copper wire wrapped with mica foil. The standard winding of 1FC6 generator adopts DURIGNIT?2000 insulation system registered by Siemens, which can meet the requirements of class F insulation of VDE0530 standard. The insulating material used in the system has the characteristics of non-moisture absorption, high dielectric strength, and can withstand severe temperature changes. The standard insulation adopts the VIP impregnation process of special resin, and the finished winding has high mechanical strength, high shock resistance and excellent insulation strength, which ensures that the winding can operate normally for a long time under various climatic and environmental conditions stipulated in the DIN50019 standard.

Contact Name: Miss Ping Huang Contact Email: hp****1@sina.com
Contact Job Title: Manager Contact Mob: 181***766
Contact Tel: Contact Fax:
Address: NO.8 ,WEIXING ROAD, LUOWEI INDUSTRIAL PARK,LIUZHOU,GUANGXI,CHINA Website: http://www.lzjldj.com

        LiuZHou  JiaLi ELEC.Machinery  CO.,LTD (formerly Liuzhou Motor Factory), founded in 1956, is the largest professional generator design, manufacturing, sales and service provider in Guangxi. After more than 60 years of hard work and development, Jiali Motor has become one of the most influential brands in the domestic motor industry, and it is the first enterprise in China to introduce 1FC6 series Siemens generator technology. The company focuses on the design, R & D and production of medium and high power, high and low speed, high and low voltage generators for internal combustion engines. The company has a skilled R & D team, received professional and technical training from Siemens, mastered a full set of core technologies such as Siemens generator design, process, manufacturing process and quality control, and accumulated more than 20 years of manufacturing experience. through digestion, absorption and independent innovation, we took the lead in developing and launching a series of high-voltage generator products to the market in 2006. The company takes high voltage generators, 1FC6 series Siemens land generators and 1FC6 series Siemens marine generators as core products.

Wide power range: 50kW~5000kW

Multi-pole, multi-speed (4 to 12 poles), can meet the matching needs of different host customers The first domestic enterprise to research and develop high voltage generator and successfully popularize and apply it, fusing Siemens core technology gene.

Design and manufacturing experience in a variety of environments (high altitude, extreme heat, extreme cold, high corrosion, etc.) High-voltage generator has a long history, superior product performance, stable and reliable quality, and its technical quality level is in a leading position among similar domestic products, which can be comparable to and replace similar international products. The characteristic products can be customized according to the needs of users.

 Jiali  products(Generator) have won awards from the Ministry of Machinery Industry, Guangxi Autonomous region and Liuzhou City for their reliable quality and excellent performance as well as the trust of customers. The series of generator products produced by the company have been supported by hundreds of different domestic enterprises, sold all over the world, and participated in the construction of key projects at home and abroad. Products are widely used in construction machinery, oil exploitation, biomass power generation, environmental gas power generation, mobile power stations, data centers, shipping, engineering ships, telecommunications, railways, civil and other fields, playing an important role in energy saving and environmental protection.
