Prefabricated Light Steel Structure Prefab House Labor Camp for Construction Site
Construction & Decoration Building Structural Material
MOQ:200 Square Meter(s)
Payment Method : L/C T/T Others
Keywords:labor camp container house prefabricated house Prefab Houses temporary building
| Product Category: | Construction & Decoration > Building Structural Material | Trademark: | LIDA |
| Product Package: | Specifications: | ||
| Place of Origin: | Shandong fo China | Port: | Qingdao of China |
| Type | With or without steel chassis | Type one: without steel chassis, build on concrete strip foundation |
Storey | One storey or two storey or three storey are available | |

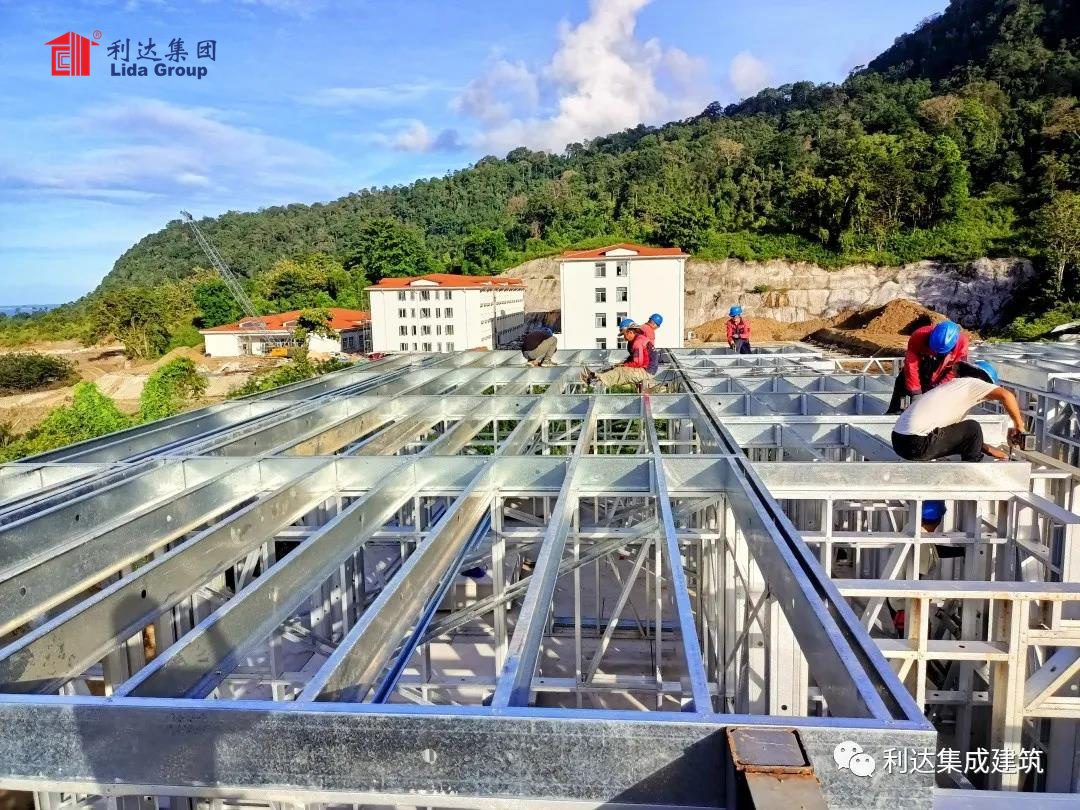

Frame system | Steel column | Q235 Steel, 100*100*2.5 square tube, alkyd painting, twice primer paint & twice finish paint |
Steel roof truss | C100*40*15*2.0, welding and galvanized | |
Roof and wall purlin | C100*40*15*2.0, galvanized | |
Cross bracing | Q235 Steel, L40*3 angle steel, alkyd painting, twice primer paint & twice finish paint | |
Chemical bolt | M16, chemical bolt | |
Ordinary bolt | 4.8S, galvanized | |
Steel chassis or 1st floor system | Main beam | HN250*125*5.5*8, Q235 Steel, alkyd painting, twice primer paint & twice finish paint |
Secondary beam | C100*40*15*2.0 galvanized | |
Floor structure board | 18/20mm plywood and fiber cement board | |
Flooring | PVC floor leather and ceramic tiles are available | |
Wall and Roof system | Wall panel | Sandwich panel: Rock wool, Glass wool, EPS, PU are available |
Roof panel | Sandwich panel: Rock wool, Glass wool, EPS, PU are available | |
Ceiling system | Dry room | 600*600*6mm gypsum board,with framework |
Wet room | 600*600*5mm calcium silicate board, with framework | |
Door and window system | Door | Fire resistant steel single/double door, emergency door with panic bar, aluminum glass door, MDF door are available |
Window | PVC, Aluminum sliding window with single/double glazed glass, with mosquito screen, with louver are available | |
Electric and Plumbing system | Electric units | Electric wire, conduit, socket, switch, light, distribution box |
Sanitary units | Shower, closestool, basin, water pipe |
| Contact Name: | Mr Qingchun Wang | Contact Email: | sa****s@lidajituan.com |
| Contact Job Title: | Manager | Contact Mob: | 151***720 |
| Contact Tel: | Contact Fax: | ||
| Address: | 5th Floor, Building A, Darron Center, No.180, Haier Road, Qingdao, 266000, China | Website: | www.lidamodularhouse.com |
Lida Group was established in 1993, is a leading manufacturer in China for temporary camp building with prefabricated buildings and container houses. ? Lida Group has achieved ISO9001, ISO14001, ISO45001, EU CE certification (EN1090) and passed SGS, TUV, and BV inspection. The main products of Lida Group contain large-scale of the labor camps, Steel structure buildings, Container houses, prefab houses, and other integrated buildings.
