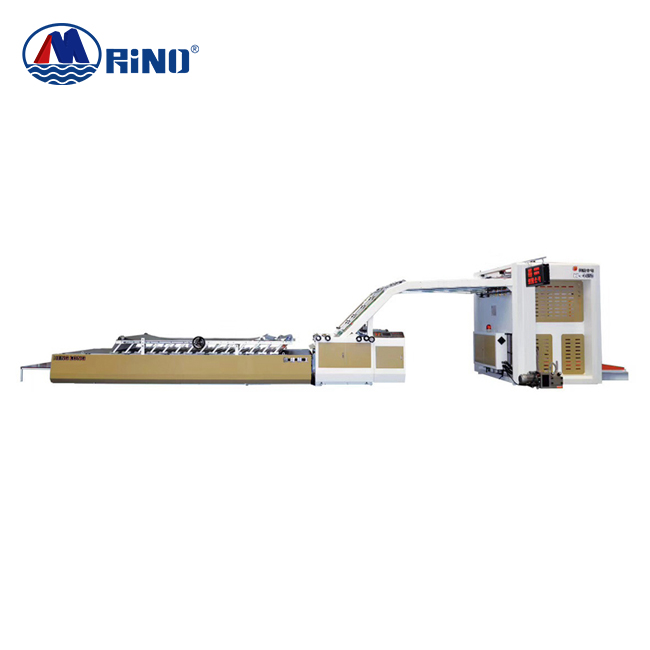

Automatic Front Gauge Flute Laminating Machine 6000pcs/H
Manufacturing & Processing Machinery Corrugated carton packing machine
MOQ:1 Set(s)
Payment Method : L/C T/T
Keywords:Flute Laminating Machine Automatic Flute Laminator Flute Laminator Machine Front Gauge Laminator Flute Pasting Machine Flute Laminator 6000 pcs/h Flute Laminator Carton Laminating Machine Corrugated Flute Laminator
| Product Category: | Manufacturing & Processing Machinery > Corrugated carton packing machine | Trademark: | Rino |
| Product Package: | Plastic film wrapped with iron wire fixed in the container | Specifications: | HF-A1300 |
| Place of Origin: | China | Port: | Tianjin |
Basic Configuration of Flute Laminating Machine
1. Suitable for laminating of cardboard and corrugated cardboard in 150-600 g/m2 .
2. The vacuum suction-type feeding system can lead the paper accurately into the machine;cycle stacking planes in a state of non-stop the next batch of paper stack well, so that more efficient.
3. Using suction automatic feeding of bottom sheet, according to the main machine operating speed, continuous automatic tracking.
4. The machine operation is stable, surface paper with corrugated paper joint very accurate. The corrugated paper never pull ahead, surface paper's location is easy adjust.
5. Machine uses touch-screen/PLC/servo motor control system, double frequency control type , the circuit system is stable, and can automatically display the failure alarm.
6. Automatic gluing, and the glue can be used circulatory, avoid glue waste.
Main Parameter of Flute Laminating Machine
| Model | HF-A1300 | HF-A1400 | HF-A1500 | HF-A1600 |
| Max laminating size | 1300mm×1250mm | 1400mm×1250mm | 1500mm×1250mm | 1600mm×1250mm |
| Min laminating size | 400mm×400mm | 400mm×400mm | 400mm×400mm | 400mm×400mm |
| Economic speed | 0-100sheets/min | 0-100sheets/min | 0-100sheets/min | 0-100sheets/min |
| Laminating precision | ±1.5 | ±1.5 | ±1.5 | ±1.5 |
| Power | 10kw | 12kw | 12kw | 12kw |
| Size | 13.5m×2m×2.4m | 13.5m×2.05m×2.4m | 13.5m×2.15m×2.4m | 13.5m×2.25m×2.4m |
| Weight | About 4.8t | About 5t | About 5.2t | About 5.4t |
| Bottom paper thickness | A/B/C/E/F flute,2/ 3/4/5/7/ layer , less than 12mm thickness | |||
| Surface paper gram weight | 150-600 g/m2 | |||
Main Units
 |
Top feeding unit
|
 |
Electrical unit
According to the European CE standard design, to ensure that the whole machine is stable, high efficiency, low failure, combined with the man-machine interface and PLC to warn, detection the fault, operating speed and other information displayed on the screen.
|
