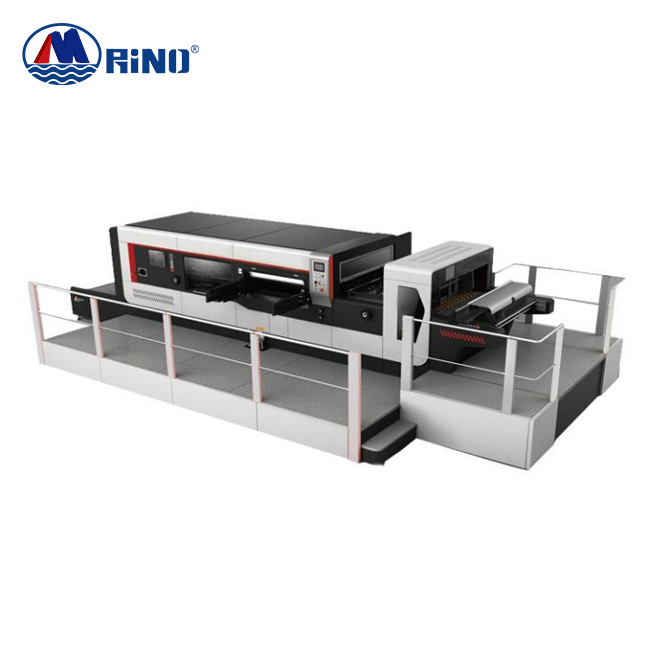

Automatic Flat Bed Die Cutting Machine Die Punching Machine Lead Edge Feeding
Manufacturing & Processing Machinery Corrugated carton packing machine
MOQ:1 Set(s)
Payment Method : L/C T/T
Keywords:Die Cutting Machine Automatic Die Cutter Lead Edge Die Cutter Flatbed Die Cutting Machine Die Cutting Creasing Machine Die Cutting With Stripping Die Punching Machine
| Product Category: | Manufacturing & Processing Machinery > Corrugated carton packing machine | Trademark: | Rino |
| Product Package: | Plastic film wrapped with iron wire fixed in the container | Specifications: | HD-L1450 |
| Place of Origin: | China | Port: | Tianjin |
Carton Box Die Cutting Machine Introduction
* The whole machine wallboard and platform are all made of high-strength ductile iron to ensure large die cutting pressure
* Imported PLC control, touch screen adjustment, all adjustments are adjusted by motor, saving time and effort
* Automatic counting and non-stop paper-out design, with hydraulic lifting platform feeding system, convenient for non-stop paper feeding and paper-out
Carton Box Die Cutting Machine Parameter
| Model | HD-L1450 |
| Max. paper size | 1480*1080mm |
| Min. paper size | 600*500mm |
| Max.die-cutting pressure | 300T |
| Max. die-cutting speed | 4500sheets/h |
| Max. feeding pile height | 1100mm (above the level) |
| Total power | 33.7KW |
Weight
| 23.5T |

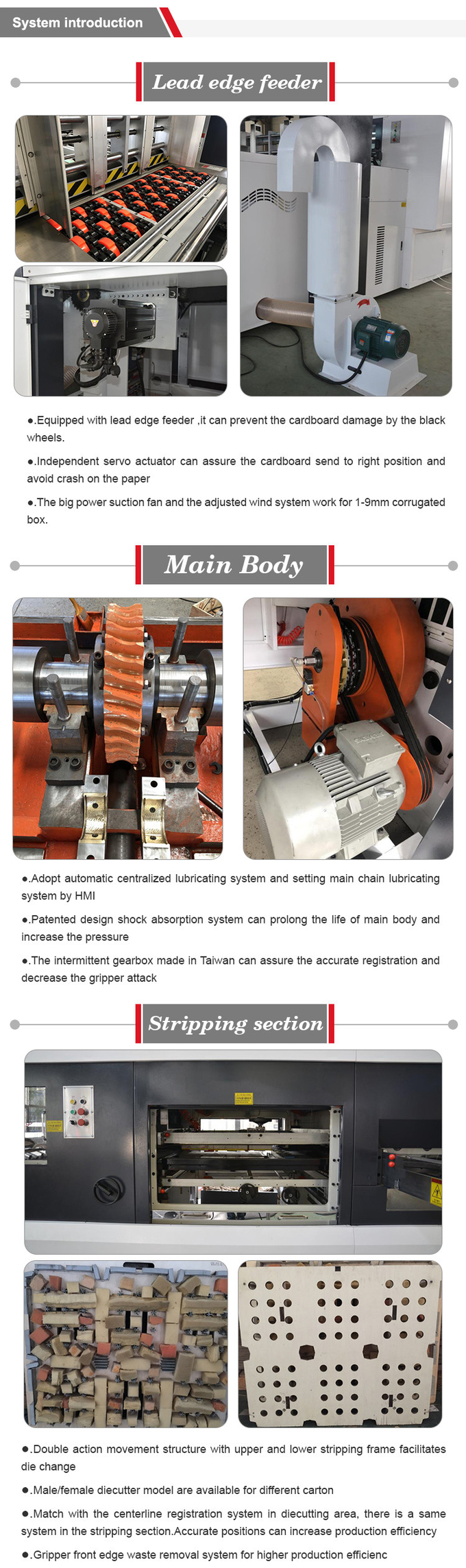

Main Units
 |

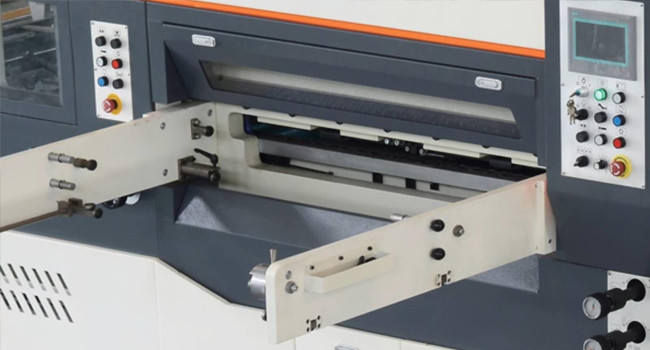

Paper feeding unit
Use high-power high-pressure fan to ensure smooth delivery of warped cardboard, air volume can be adjusted by micro-machine to adapt to 3-9mm corrugated paper
|
 |

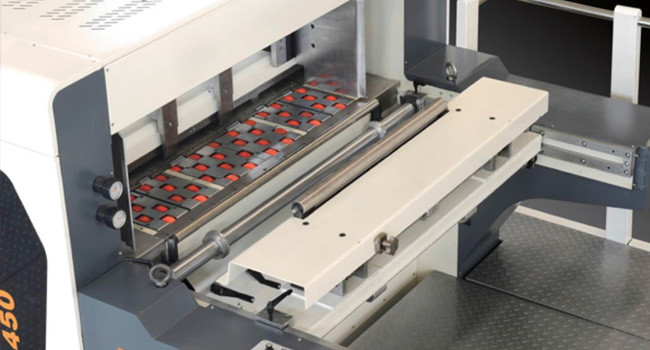

Die cutting unit
* The die-cut steel plate is made of 70Cr material, which is more durable; the upper part is provided with a floating air floating device, which makes the die-cutting board easy to enter and exit
* Die-cut protective window design for safer operation
|
 |

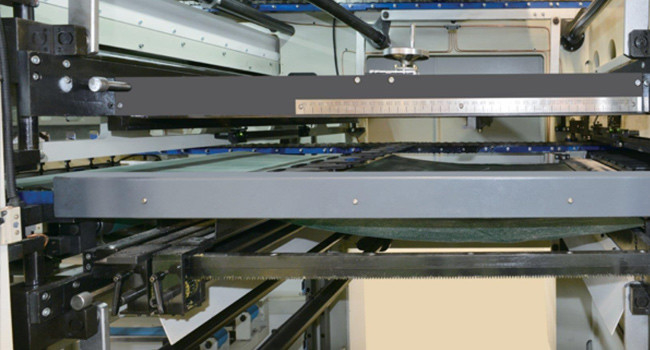

Stripping unit
The complete waste removal system can automatically remove waste materials around and in the middle to ensure clean, neat waste removal and high production efficiency.
|
 |

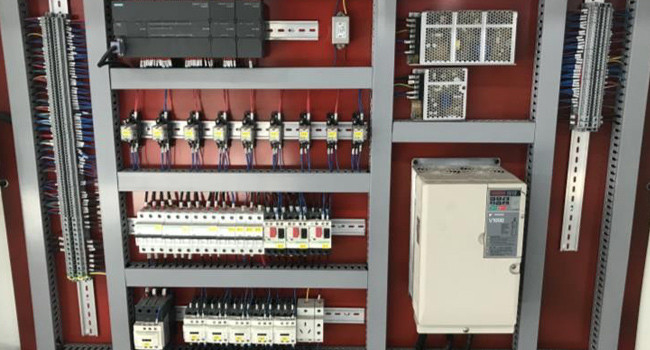

Electrical unit
The whole machine adopts PLC centralized control system Adopt Japan Yaskawa inverter
|
Finished Products
Main Electrical Appliances
| Equipment | Brand |
| Timing belt | Obi, Gates, EP |
| Mold spring | |
| Crankshaft material and processing | Japanese special steel |
| Vortex material and processing | Japanese special steel |
| Vortex material and processing | Japanese special steel |
| Cam material and processing | Japanese special steel |
| Encoder | Ikea, Switzerland |

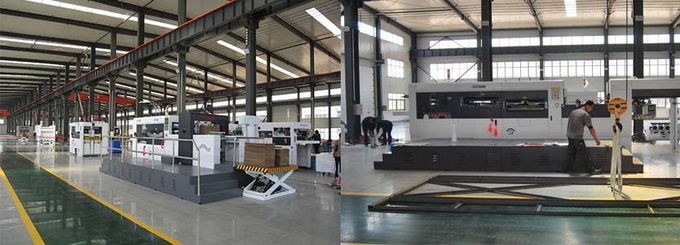

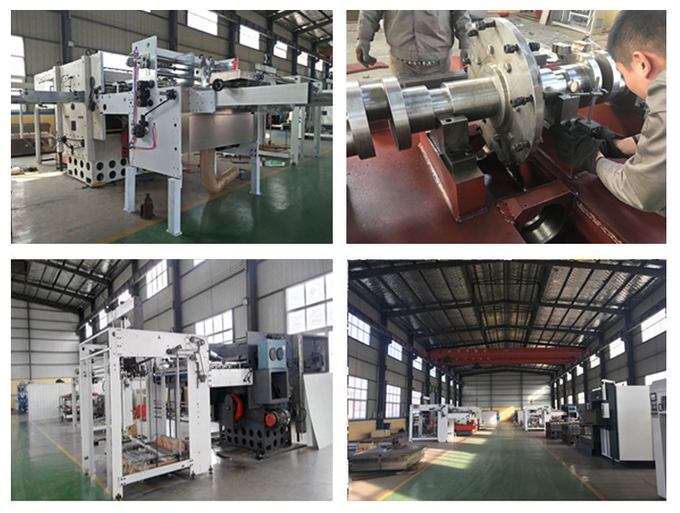

Our Factory
