4000 Pieces/Hour Carton Box Folder Gluer Machine Folding Gluing Machine For Boxes
Manufacturing & Processing Machinery Corrugated carton packing machine
MOQ:1 Set(s)
Payment Method : L/C T/T
Keywords:Folder Gluer Machine Folding Gluing Machine Double Pieces Folder Gluer 4000pcs/h Folder Gluer Semi-auto Folder Gluer Machine Carton Box Folder Gluer Cardboard Folder Gluer Corrugated Folder Gluer
| Product Category: | Manufacturing & Processing Machinery > Corrugated carton packing machine | Trademark: | Rino |
| Product Package: | Plastic film wrapped with iron wire fixed in the container | Specifications: | HF-GD2400 |
| Place of Origin: | China | Port: | Tianjin |

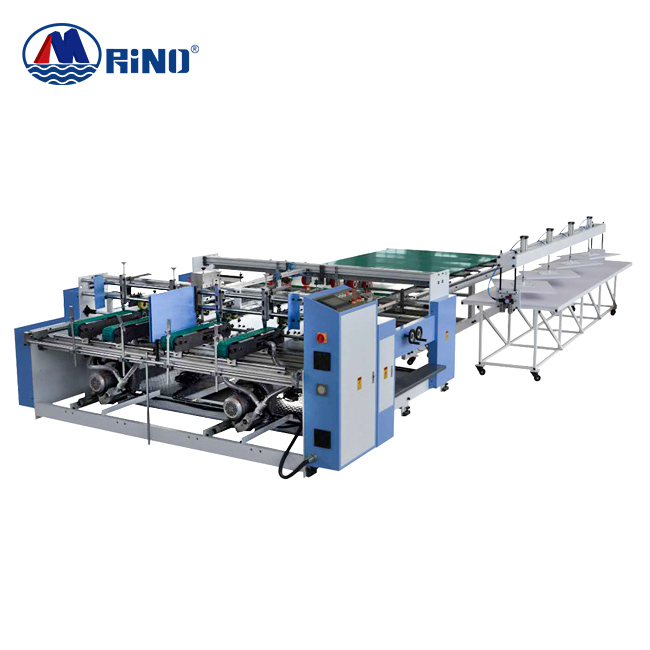

High Speed Double Pieces Carton Box Folder Gluer Machine Folding Gluing Machine
Introduction Of Carton Box Folder Gluer Machine
HF- 2400 / 2900 / 3300A series semi-automatic carton box folder gluer for double pieces is a high-speed feeling, efficient and precise performance developed by our company based on the products of domestic and foreign customers, deeply understanding and researching the manufacturing and production process, the two-piece paste box machine.
Carton Box Folder Gluer Machine Features
1. The machine frequency conversion speed regulation, PLC centralized control, can choose two-piece single-chip production mode one-button switching to complete.
2. The paper is equipped with double suction, double feed, independent control, single side, three belts, automatic paper feed function to avoid paper warpage and synchronous paper ejection of two sheets of paper boxes; it also does not cause slippage on the surface of the paper box, which greatly improves paper feeding efficiency and stability.
3. The two-piece carton is spliced and bonded in the middle, and the mechanical roller is used for glue coating, and the two types of bonding methods are divided into cold and hot glue. The cold glue acts as a bonding agent, and the hot glue acts as an instant bonding and setting, and does not shift, and the double bonding fastness is stronger, ensuring 100% adhesion after the product container and the cold storage.
Parameter
| Model | HF-GD2400 | HF-GD2900 | HF-GD3300 |
| Max. Size | 1200×1200 mm | 1450×1200mm | 1650×1200mm |
| Min size | 470×300mm | 470×300mm | 470×300mm |
Applicable | A-E corrugated board | A-E corrugated board | A-E corrugated board |
| Max speed | 0-4000 pieces/hour | 0-4000pieces/hou | 0-4000 pieces/hour |
| Total power | 11 kw | 11 kw | 11kw |
| Weight | 3300 KG | 3500kg | 4000KG |
| Dimensions | 8000×4500×1400 | 8000×5300×1400 | 8000×5500×1400 |

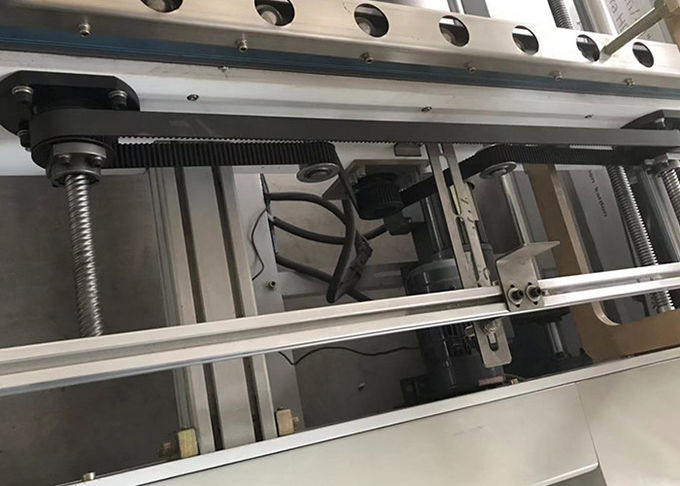

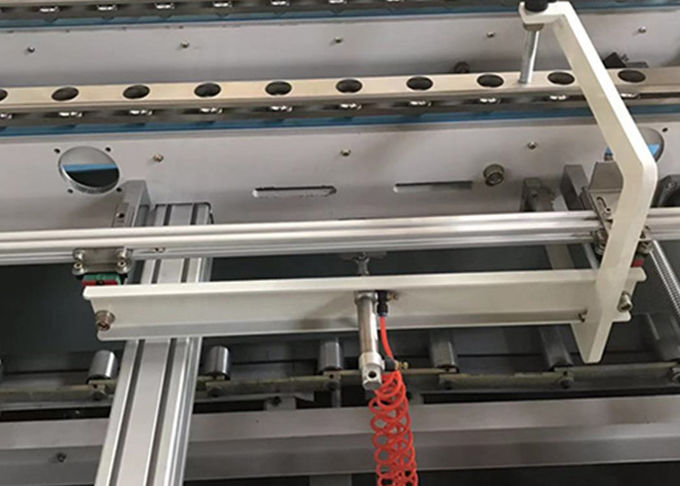

Machine details
 |  |
Parts List
| PARTS NAME | BRAND |
| MAIN MOTOR | SEIMENS |
| FEEDING MOTOR | ZHONGDA (ZD CHINA) |
| FEEDING PUMP | NAXIDE (CHINA ) |
| LINEAR GUIDEWAY | KOREA IMPORTED |
| GUIDE SCREW | HIWIN TAIWAN |
| SOLENOID VALVE | AIRTAC TAIWAN |
| INVERTER | TAIWAN DELTA |
| SERVO MOTOR | DELTA TAIWAN |
| HUMAN MACHINE INTERFACE | TAIWAN DELTA |
| POWER | TAIWAN DELTA |
| PROGRAM CONTROLLER | TAIWAN DELTA |
| FASTENERS | TAIWAN JINYI, PENGCHI, CYZ, EG |
| RELAY | JAPAN IMPORTED |
