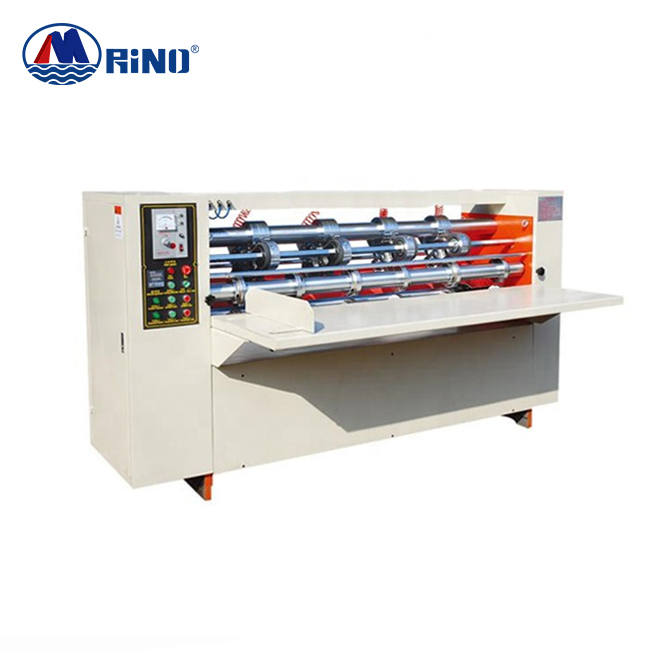

2500mm Thin Blade Slitter Scorer Machine Cardboard Slitter Machine
Manufacturing & Processing Machinery Corrugated carton packing machine
MOQ:1 Set(s)
Payment Method : L/C T/T
Keywords:Thin Blade Slitter Scorer Cardboard Slitter Machine Thin Blade Machine Carton Thin Blade Slitter Corrugated Slitter Scorer 2500mm Thin Blade Slitter Corrugated Board Thin Blade
| Product Category: | Manufacturing & Processing Machinery > Corrugated carton packing machine | Trademark: | Rino |
| Product Package: | Plastic film wrapped with iron wire fixed in the container | Specifications: | HT-BM2500 |
| Place of Origin: | China | Port: | Tianjin |
Corrugated Box Thin Blade Slitter And Scorer Cardboard Machine
Thin Blade Slitter Scorer Machine Introduction
Corrugated cardboard thin blade slitter and scorer machine widely used in carton box making machine .Thin balde slitter and scorer machine function is slitting corrguated paperboard to narrow pieces and creasing bending line for carton box making . Slitting blade and creasing wheels can be made according to customer request.
Parameter of Thin Blade Slitter Scorer Machine
| Model | HT-BM1800 | HT-BM2000 | HT-BM2200 | HT-BM2500 | |
| Qty. of blade | pcs | 4 or 5 blades or as customer's requirement | |||
| Qty. of scorer | pcs | 6 or 8 scorers or as customer's requirement | |||
| Max slitting width | mm | 1800 | 2000 | 2200 | 2500 |
| Min slitting width | mm | 140 | 140 | 140 | 140 |
| Min scoring distance | mm | 30 | 30 | 30 | 30 |
| External diameter of blades | mm | Φ200 | Φ200 | Φ200 | Φ200 |
| Thickness of blades | mm | 1.3 | 1.3 | 1.3 | 1.3 |
| Power | KW | 4 | 4 | 4 | 4 |
| Overall dimension(L*W*H) | mm | 3000*1600*1500 | 3200*1600*1500 | 3400*1600*1500 | 3700*1600*1500 |
