RINO 1600mm Corrugated Box Slotting And Creasing Machine Chain Feeding
Manufacturing & Processing Machinery Corrugated carton packing machine
MOQ:1 Set(s)
Payment Method : L/C T/T
Keywords: Slotting Machine Box Slotting Machine Slotting And Creasing Chain Feeding Slotting Carton Slotting Machine RS4
| Product Category: | Manufacturing & Processing Machinery > Corrugated carton packing machine | Trademark: | Rino |
| Product Package: | Plastic film wrapped with iron wire fixed in the container | Specifications: | HR-S4900 |
| Place of Origin: | China | Port: | Tianjin |

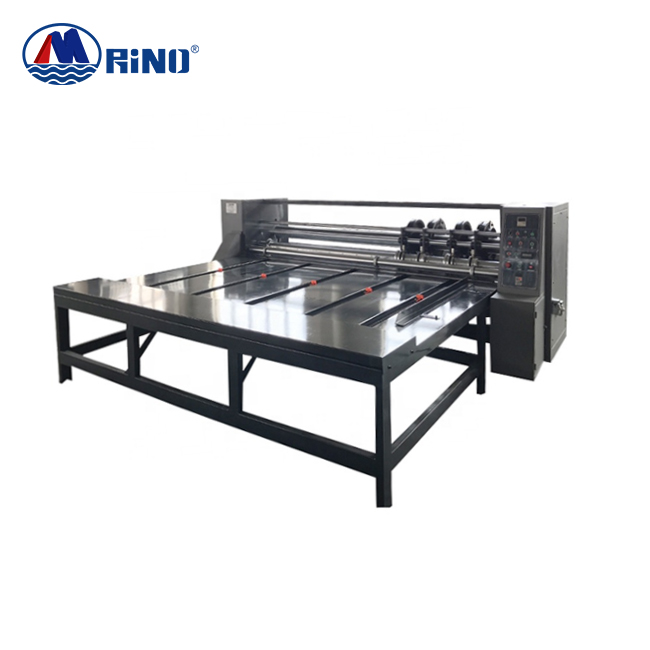

1600 Corrugated Cardboard Rotary Slotter Machine RS4 Box Slotting Cutting Machine
Machine Introduction of Corrugated Rotary Slotter Machine
1) This machine adopts chain feeding type, bilateral blocking positioning, to ensure that feed accurately.
2) Box height adjust is four knife synchronization, the length adjustment, the knife and the line pressing on the top and the bottom the paper cutter and the paper pressure rod, linkage shift, save the time of order transformation.
3) The phase adopts structure of planetary gear type electric 360°adjustment digital display.
4) The machine transmission uses cross slide block structure, uses automatic spray type lubrication circulating oil supply, the gear adopts free key connection, remove the link clearance.
5) The electrical appliances adopts international famous brand, the bearing adopts rolling bearing from Harbin, high speed and has stable performance.
6) The punching and the clasp hands device and the free plate quad die cutting device is optional.
Corrugated Rotary Slotter Machine Parameter
| Model | The Max. Feeding Area (mm) | The Max. Working Speed (sheet/min) | The Slotting Width (mm) | The Main Motor power (KW) |
HR-S4900 | 900*2600 | 60 | 7.5 | 4 |
HR-S41200 | 1200*2600 | 60 | 7.5 | 4 |
HR-S41400 | 1200*2600 | 60 | 7.5 | 4 |
HR-S41600 | 1600*2600 | 60 | 7.5 | 4 |

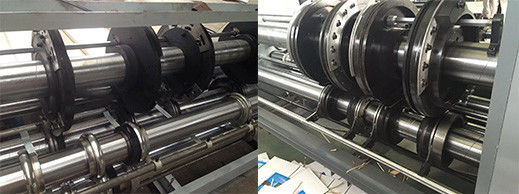

Detailed Picture
FAQ
1. Q: What is the machine warranty?
A :one year.
2. Q: What is the production time while placing order?
A: About 20 days
3. Q: What is the delivery time?
A: 40-60 days after get the payment.
4. Q: Can your company handle shipping for customers?
A: Yes, just give us destination sea port or container yard
5. Q: Does the packing strong?
A: Yes, all packages are double-checking before delivery
