Light Truck and bus wheels rim 16*6.0
Auto,Parts & Accessories Wheels & Tires Accessories
MOQ:450 Piece(s)
Payment Method : L/C T/T Others
Keywords: Tubeless steel wheels truck wheels
| Product Category: | Auto,Parts & Accessories > Wheels & Tires Accessories | Trademark: | joyoway |
| Product Package: | in bulk or in pallet | Specifications: | 10 holes or 6 holes or 5 holes |
| Place of Origin: | Shandong province,China | Port: | qingdao |

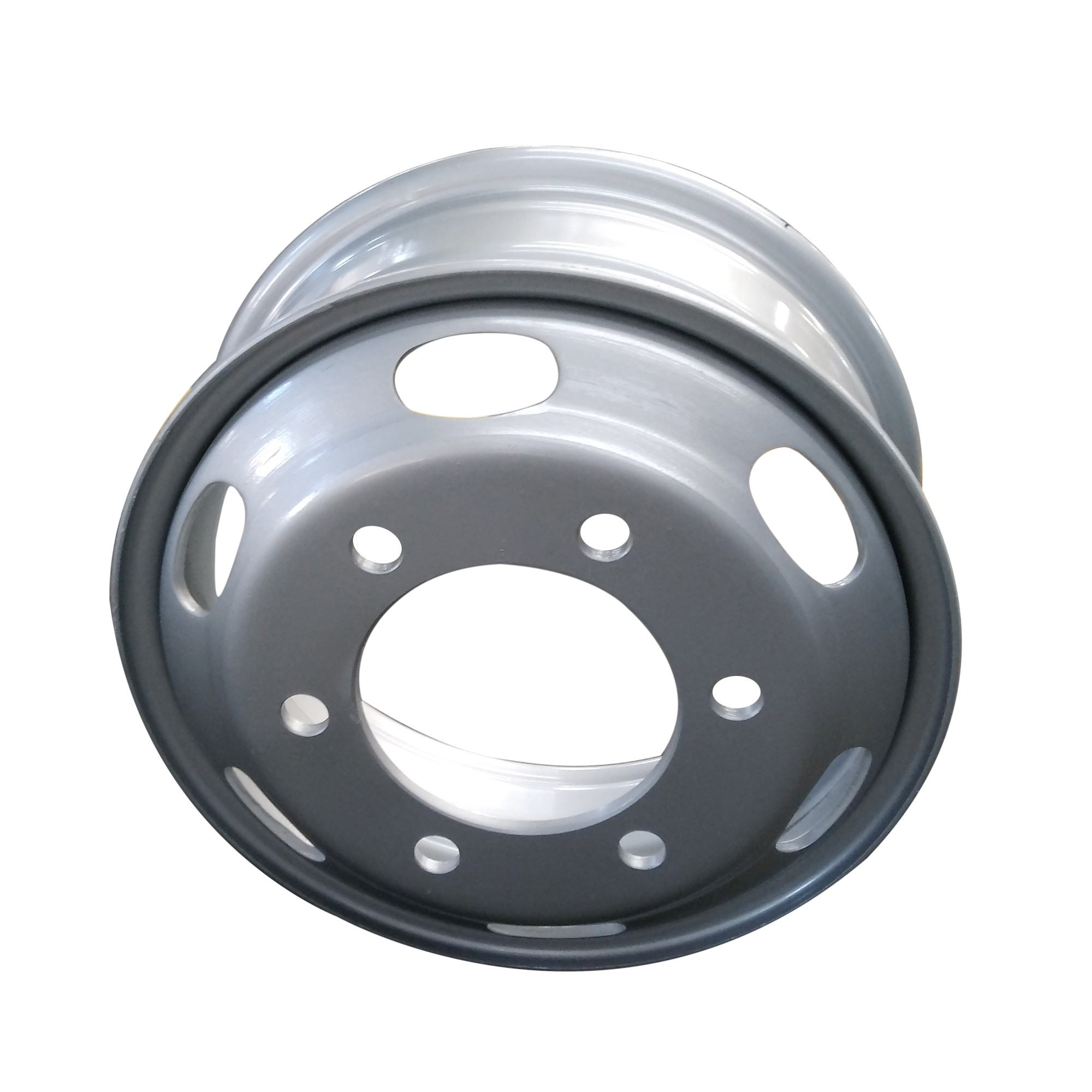

1. Name: Steel Tubeless truck Wheels 16*6.0
2. Brand: JOYOWAY
3. Product description: 16*6.0 steel tubeless truck wheels are suitable for medium and long distance light trucks and buses.
4. Process and material: 16*6.0 steel tubeless truck wheels are made of 380CL and 440CL special steel with high strength and strong toughness. The disc is thinned from top to bottom by spinning process, and the steel density is enhanced. The rim is rolled by flash seamless welding process. Zero gap pressing submerged arc welding is used to improve the dynamic balance effect of the wheel. The semi-finished product coating process after finishing grinding adopts the double layer baking process of pickling phosphating cathodic electrophoresis, and the film thickness of the finished product is uniform and the gloss is good. The color and thickness can be varied with the custom-made styles of customers, and the outer packaging of products is flexible. The newly developed lightweight high-strength wheels are made of 540cl and 590cl high-strength steel. The weight is reduced by 20% under the same load capacity, and the cost performance is better than that of the same type of aluminum wheel.
5. Parameters are listed separately.
Steel Tubeless Truck Wheels 16*6.0
| 产品编号PART NO. | 螺孔数BOLT HOLE QTY. | 螺孔直径 BOLT HOLE DIA. (mm) | 螺孔形状 BOLT HOLE TYPE | 分布圆P.C.D (mm) | 中心孔C.B(mm) | 偏距OFFSET (mm) | 厚度 (mm) | 载重MAXLOAD(KG) | 配套轮胎TIRE |
| 5 | 5 | 32.5 | SR22 | 203.2 | 146 | 125 | 10 | 1450 | 7.5R16 |
| 6 | 6 | 32.5 | SR22 | 222.25 | 163 | 125 | 10 | 1450 |

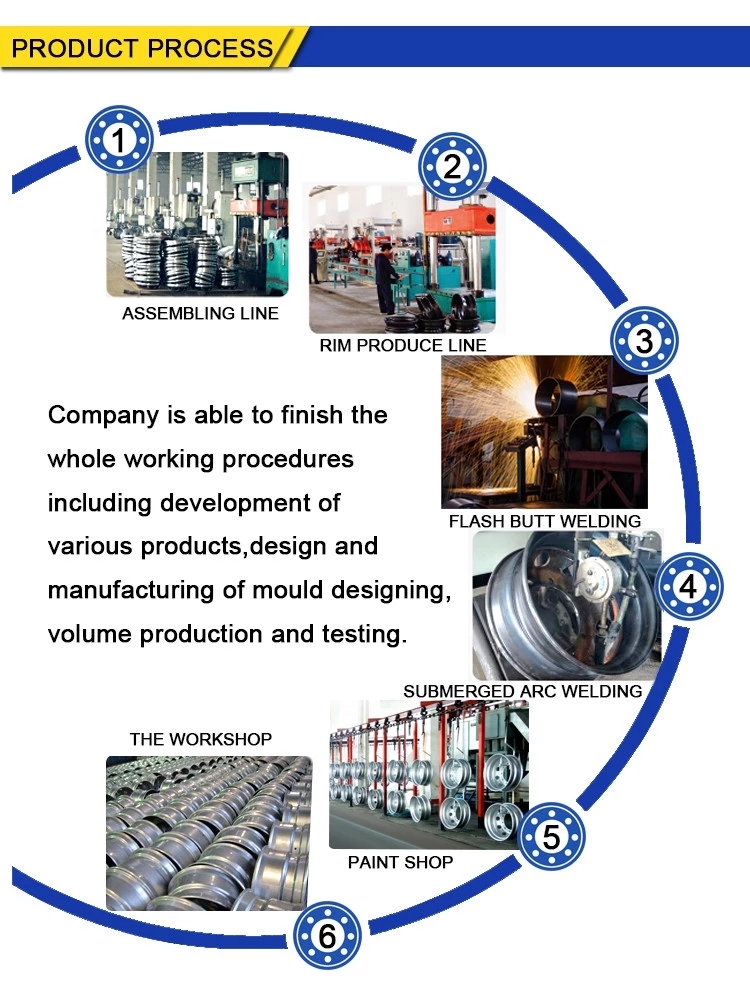

6. Production Process

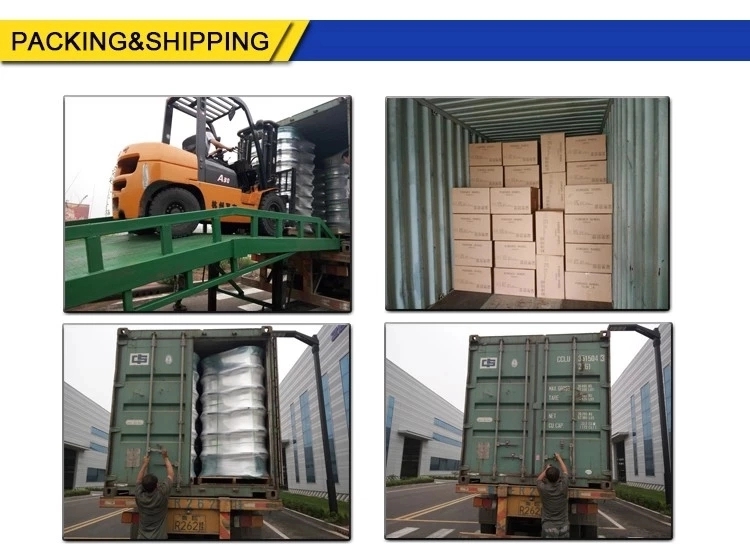

7.Packing and Ship
8. Contact Information:
| Contact Name: | Mrs Lisa Wang | Contact Email: | li****a@joyowheel.com |
| Contact Job Title: | Manager | Contact Mob: | 159***218 |
| Contact Tel: | Contact Fax: | ||
| Address: | Website: |
Our company is a sales company of Shandong Zhengyu Aluminium Industry Co., Ltd and Shandong Yujie Wheel Co., Ltd. Our company was established in 2004. It is mainly engaged in the production of truck and bus wheels with an annual output of 1.2 million pieces light and heavy truck steel wheels. In 2012, we built two production lines of forged aluminum magnesium alloy wheels with an annual output of 1 million pieces.
