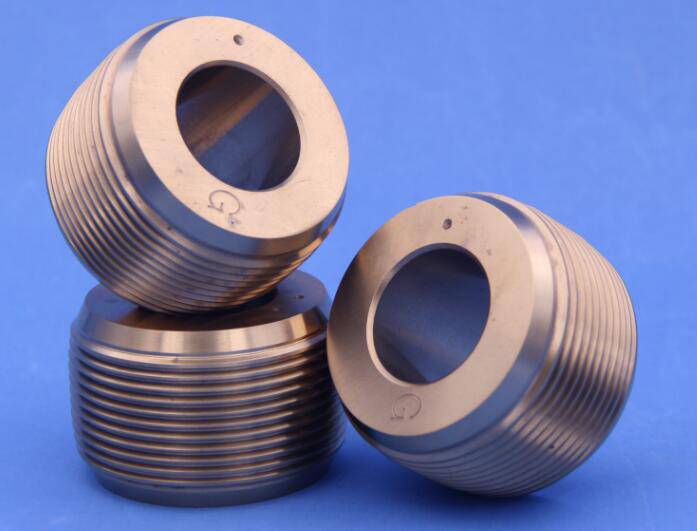

rolling roller for thread machine
the main spare parts for rebar parallel thread rolling machine
and rebar couplers
\
Steel Bar Rib Peeling and threading machine BGZL-40B3
1). the technical parameter for BGZL-40 steel bar rib peeling and threading machine
The Machine Model | BGZL-40B2 Machine | |||
Rolling Roller model | E | F | G | H |
Thread Pitch (mm) | 2.0 | 2.5 | 3.0 | 3.0 |
Steel Bar Standard | 16 | 18、20、22、25 | 28、32 | 36、40 |
The Whole Machine Weight | 535Kg | |||
The Power of Main Electric Motor | 5.5KW | |||
The Power Of Water Pump Electric Motor | 0．75KW | |||
The Work Voltage | 380V 50Hz 3Phase | |||
The Output Rotate Speed of Reducer | 62 | |||
Dimension(mm) | 1000╳180╳1000mm | |||
2).The Capacity and Usage
BGZL-40B2 steel bar straight screw thread processing rib peeling machine is the exclusive use rib peeling knurling machine for the straight screw thread connecting. It is mainly used in the processing of the top of the structural steel bar.

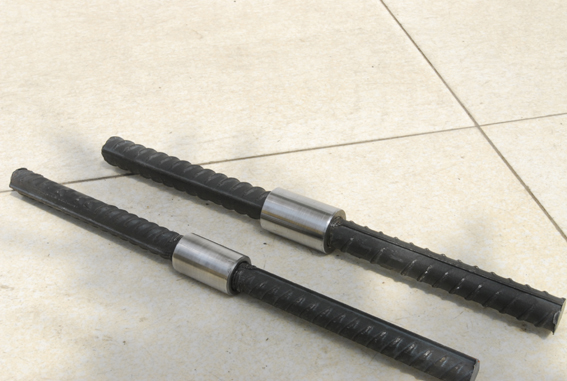

2．Rebar Coupler
The splicing couplers model is divided into 9 categories according to the Rebar Coupler. (Unit: mm)
1).The parameter of couplers

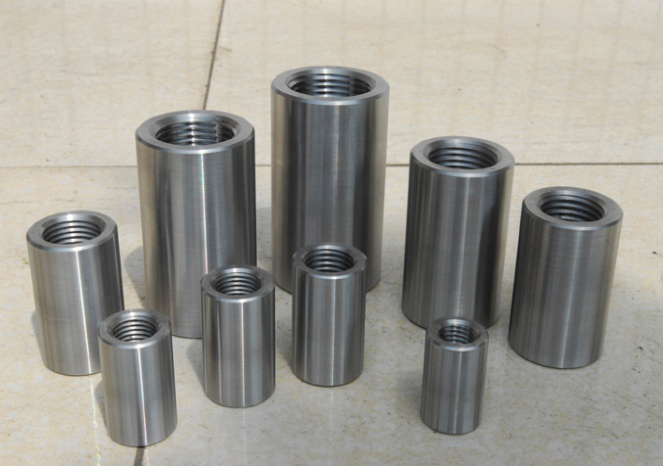

Size(mm) | O D±0.5（mm） | Thread（mm） | L±0.5 (mm) | Pitch | Rib peeling coupler weight/pc (kg) | Thread Angle |
Φ16 | 25 | M16.5 | 40 | 2.0 | 0.111 | 60 Degree |
Φ18 | 28 | M18.5 | 45 | 2.5 | 0.136 | |
Φ20 | 31 | M20.5 | 50 | 0.175 | ||
Φ22 | 33 | M22.5 | 55 | 0.203 | ||
Φ25 | 37 | M25.5 | 60 | 0.266 | ||
Φ28 | 41 | M28.6 | 70 | 3.0 | 0.375 | |
Φ32 | 47 | M32.6 | 75 | 0.533 | ||
Φ36 | 54 | M36.5 | 85 | 0.828 | ||
Φ40 | 59 | M40.2 | 95 | 1.085 |
2).The Characteristics of the Usage
Mode | usage occasion |
Standard Model | used in the occasion for connecting the steel bar in normal situation |
Different Diameter Model | used for connecting the steel bar in different diameters |
Flared Model | used for the steel bar which was hard to match |
Positive And Negative Screw Thread Model | Used in the occasion when the steel bar in the two sides both can not be turned but the lengths can be adjusted. |
Locking Nut Model | Used when the steel bar can not be turned, then it turns the splicing coupler to join the steel bar and then lock the splicing coupler with the locking nut. |
3).The material of the splicing coupler
The material of the splicing coupler is constructional quality steel of No.45 steel.
Working Principle:
1)Slice up the end of the rebar;
2)Peel the rib of the end of rebar with specialty rib peeling parallel thread rolling machine;
3)Connect the two ends of rebar with rib peeling thread coupler;

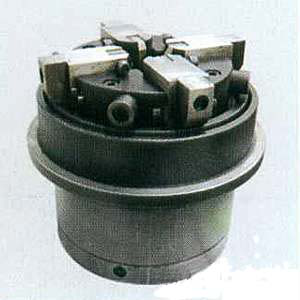

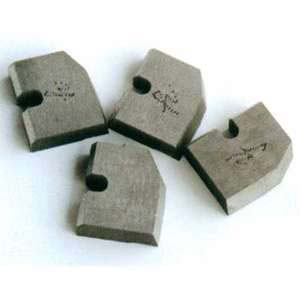

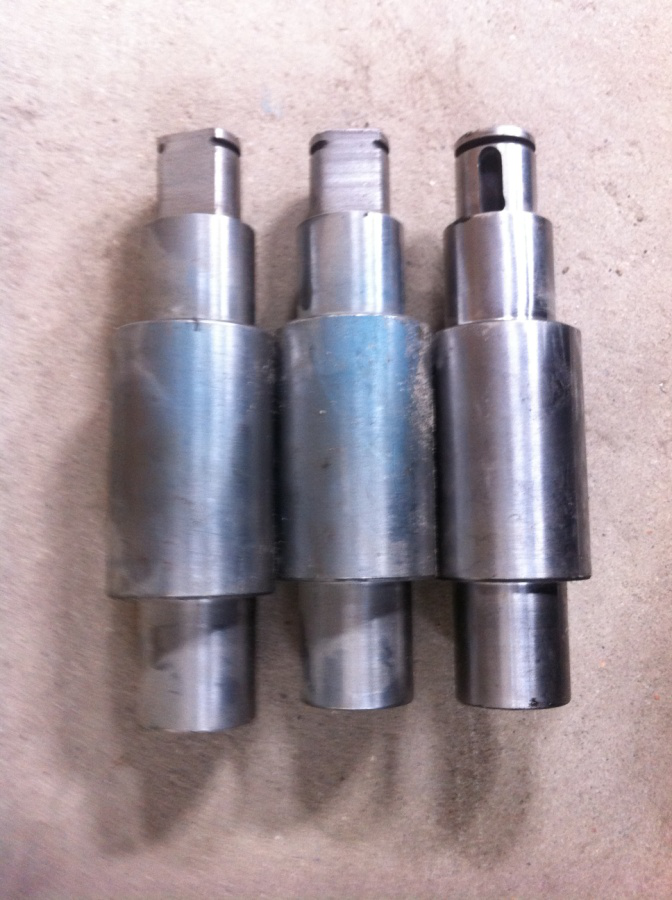

Main Spare Parts of BGZL-40B2 Rolling Machine:
