Vertical Insulating Glass Sealing Robot
Manufacturing & Processing Machinery General Industrial Equipment
MOQ:1 Piece(s)
Payment Method : L/C T/T
Keywords:Insulating Glass Sealing Robot Insulating Glass Sealing Line Insulated Glass Sealing Line Insulated glass sealing robot
| Product Category: | Manufacturing & Processing Machinery > General Industrial Equipment | Trademark: | |
| Product Package: | Specifications: | ||
| Place of Origin: | Port: | QINGDAO |

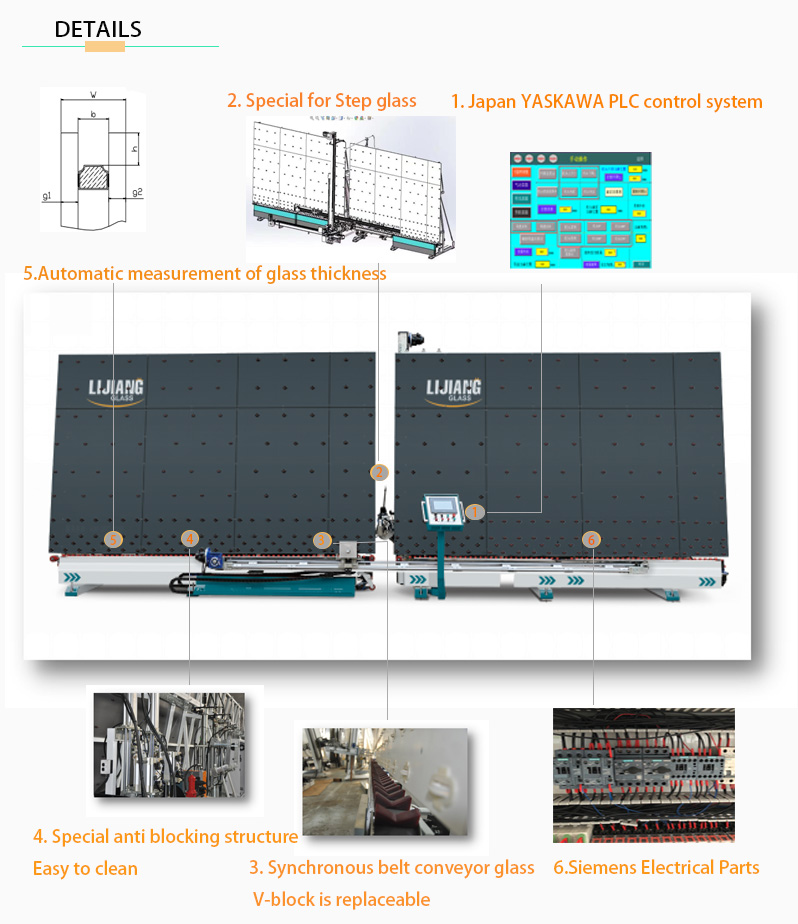

Main feature
? Can coat many shaped glass(triangle glass,hexagon glass,trapezoidal glass,arc glass,train glass and so on) stepped glass
? Can coat triple glass by one time
? Fast reacting and volume controlled dosing system for IG glass, 2-component sealant
? The glass edge and corner is full without air bubbles, smooth surface, no need to repair the corner
? Synchronous belt transmission to make the glass being transferred smoothly with accurate positioning
? Electric and compressed air switch valve:Ensure electrical automatic switch, stable performance and uniform coating.
? Japan YASKAWA servo motor and CPU,Siemens low-voltage electrical appliances.
Main technical parameter
Max.glass size | 2000*2500mm |
Min.glass size | 300*300mm |
Glass thickness | 12-56mm |
Working speed | 5-40m/min |
Air pressure | 0.5-0.7MPa |
Squeeze pressure | 32MPa |
Overall dimension | 8000*1500*2700mm |
Main components list
Servo motor | Japan Yaskawa |
Servo driver | Japan Yaskawa |
CPU | Japan Yaskawa |
Low voltage component | Siemens |
Guideway | Taiwan Hiwin |
Switching power supply | Taiwan MW |
Optoelectronic switch | Korea Autonics |
Pneumatic component | Taiwan Airtac |
Touch screen | Taiwan Wenview |
Travel switch | Taiwan Tiande |
