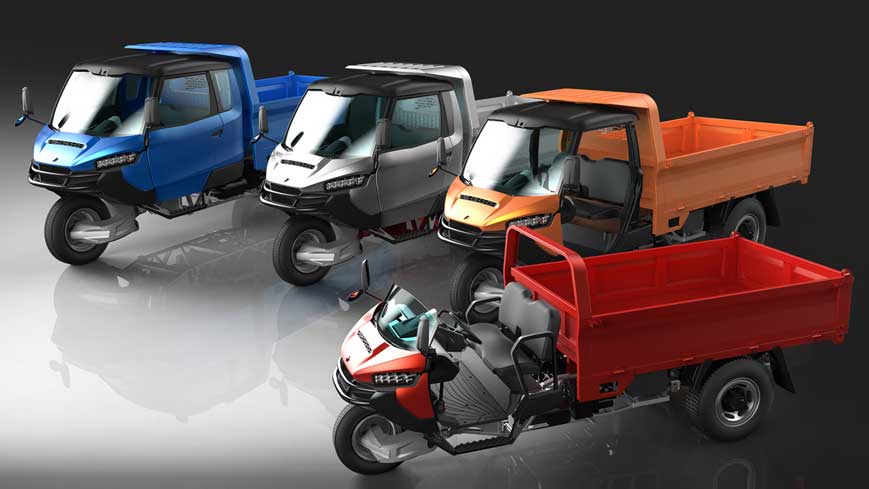

WUZHENG/WAW 3MX Diesel Tricycle with semi-cabin (Copy)
Auto,Parts & Accessories Automotive & Parts
MOQ:1 Piece(s)
Payment Method : L/C T/T
Keywords:Tricycles diesel tricycle Cargo Truck car
| Product Category: | Auto,Parts & Accessories > Automotive & Parts | Trademark: | WAW |
| Product Package: | nuded | Specifications: | 4400×1680×1815/4600×1680×1815(mm) |
| Place of Origin: | CHINA | Port: | Qingdao |
| Model | W3MXKD56302 | ||
| Cabin | Semi-enclosed | ||
| Main dimensions | Overall dimensions (LxWxH)mm | 4400×1680×1815 4600×1680×1815 | |
| Dimensions of the cargo body (LxWxH)mm | 2500×1600×500 2700×1600×500 | ||
| Wheel base (mm) | 3030 | ||
| Wheel track (front/rear) (mm) | 1400 | ||
| Min. ground clearance(mm) | 260 | ||
| Weight | Curb weight (kg) | 1480 | |
| Rated payload（kg） | 4000 | ||
| Persons in cab (persons) | 2 | ||
| Gross vehicle weight（kg） | 5640 | ||
| Overall performance | Max. speed（km/h） | 50 | |
| Max. slope of climb（%） | 15 | ||
| Min. turning radius（m） | 4.28 | ||
| Engine | Engine Type | CCZS1125B | |
| Displacement（L） | 1.473 | ||
| Rated horsepower（kg.m/rpm） | 27.2 | ||
| Steering gear Type | Recirculating Ball | ||
| Service brake and boostingType | Oil Brake+Vacuum Booster | ||
| Wheels and tyre size | Front wheel | 6.00-16/6.50-16 | |
| Rear wheel | 7.50-16/8.25-16 | ||
| Electric device | Rated voltage | 24V | |
| Battery | 6-QW-60MF×2 | ||
Details
| Contact Name: | Mrs Anna Wang | Contact Email: | wa****a@chinawuzheng.com |
| Contact Job Title: | Manager | Contact Mob: | 156***691 |
| Contact Tel: | Contact Fax: | ||
| Address: | Website: |
Wuzheng Group is originated from a tractor station, traced back to 1961.In past decades,Wuzheng Group has cultivated four major sector: agricultural vehicles,automobiles,agricultural equipment,sanitation equipment and modern agriculture.Up to now,Wuzheng Group has 13,000 employees and total assets of 13 billion yuan.Wuzheng Group has been awarded"Shandong Government Quality Management Award"“China Machinery Industry Modern Management Enterprise”"Shandong Governor Quality Award".
