Automatic Vertical Insulating Glass Production Line Machine
Manufacturing & Processing Machinery General Industrial Equipment
FOB Price:US$ 85,000.00 / Piece(s)
MOQ:1 Piece(s)
Payment Method : L/C T/T
Keywords:Insulating Glass Machine insulating glass processing insulating glass industry
| Product Category: | Manufacturing & Processing Machinery > General Industrial Equipment | Trademark: | |
| Product Package: | Specifications: | ||
| Place of Origin: | Port: | QINGDAO |

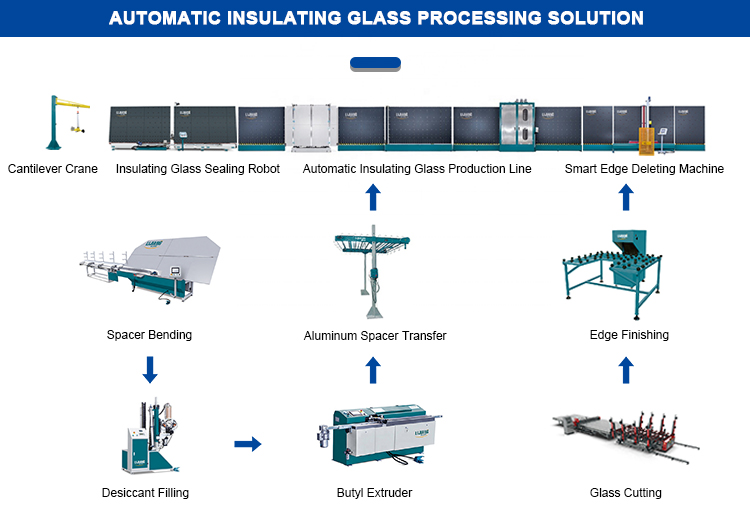

Jinan LIJIANG Glass focuses on providing high-quality production and processing equipment and services for the global insulating glass processing industry, and actively provides users with professional and intelligent summaries and solutions to common problems of insulating glass.

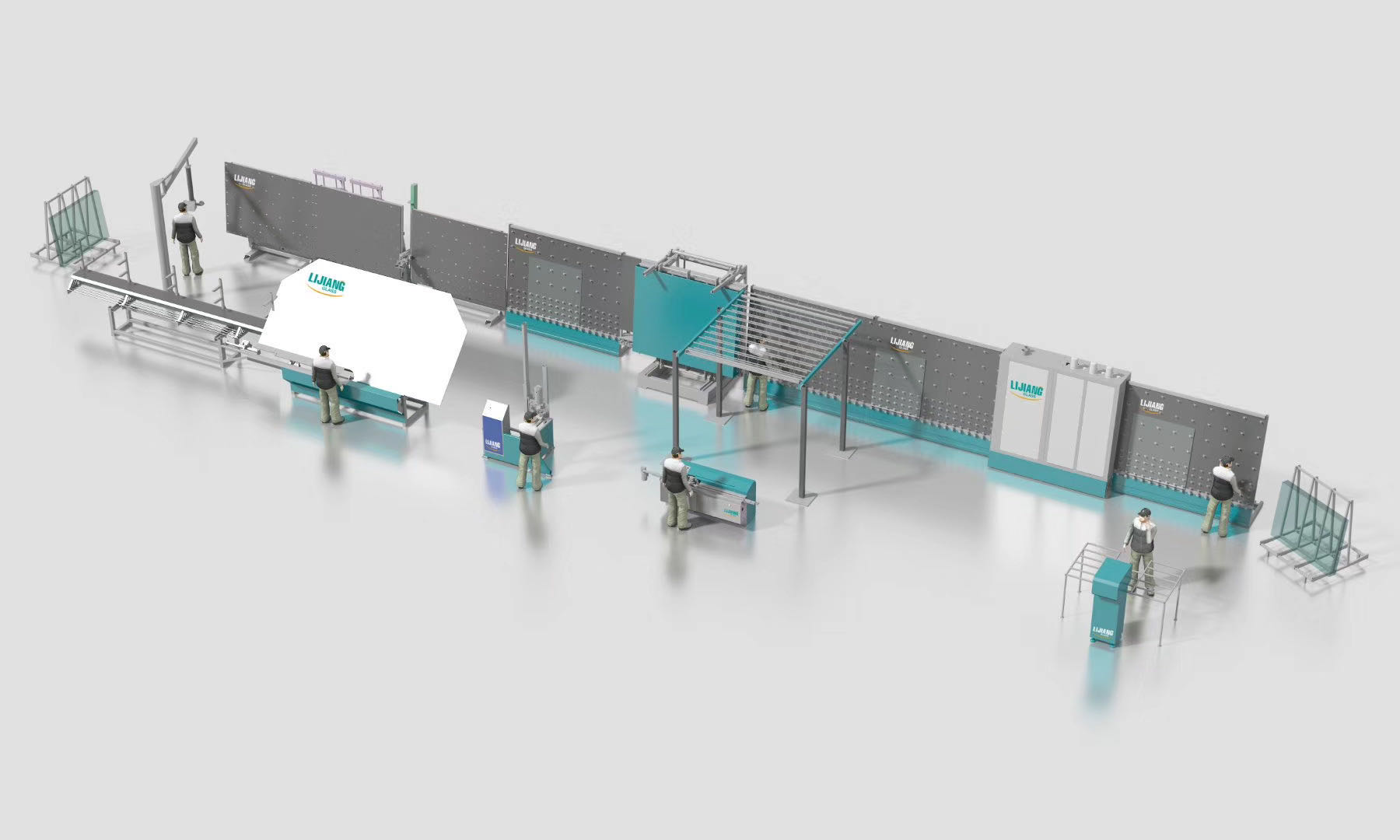

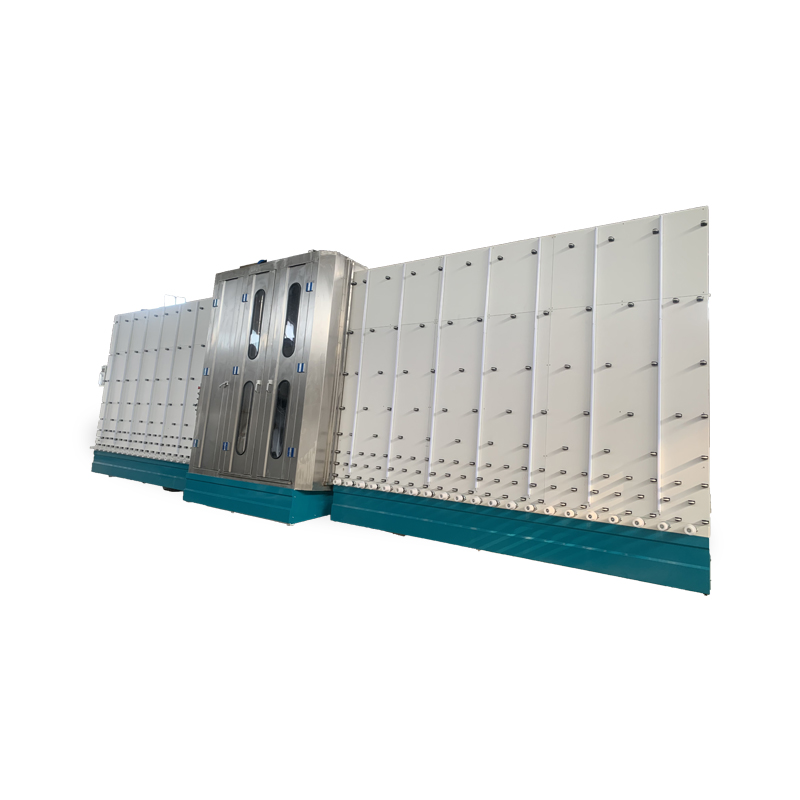

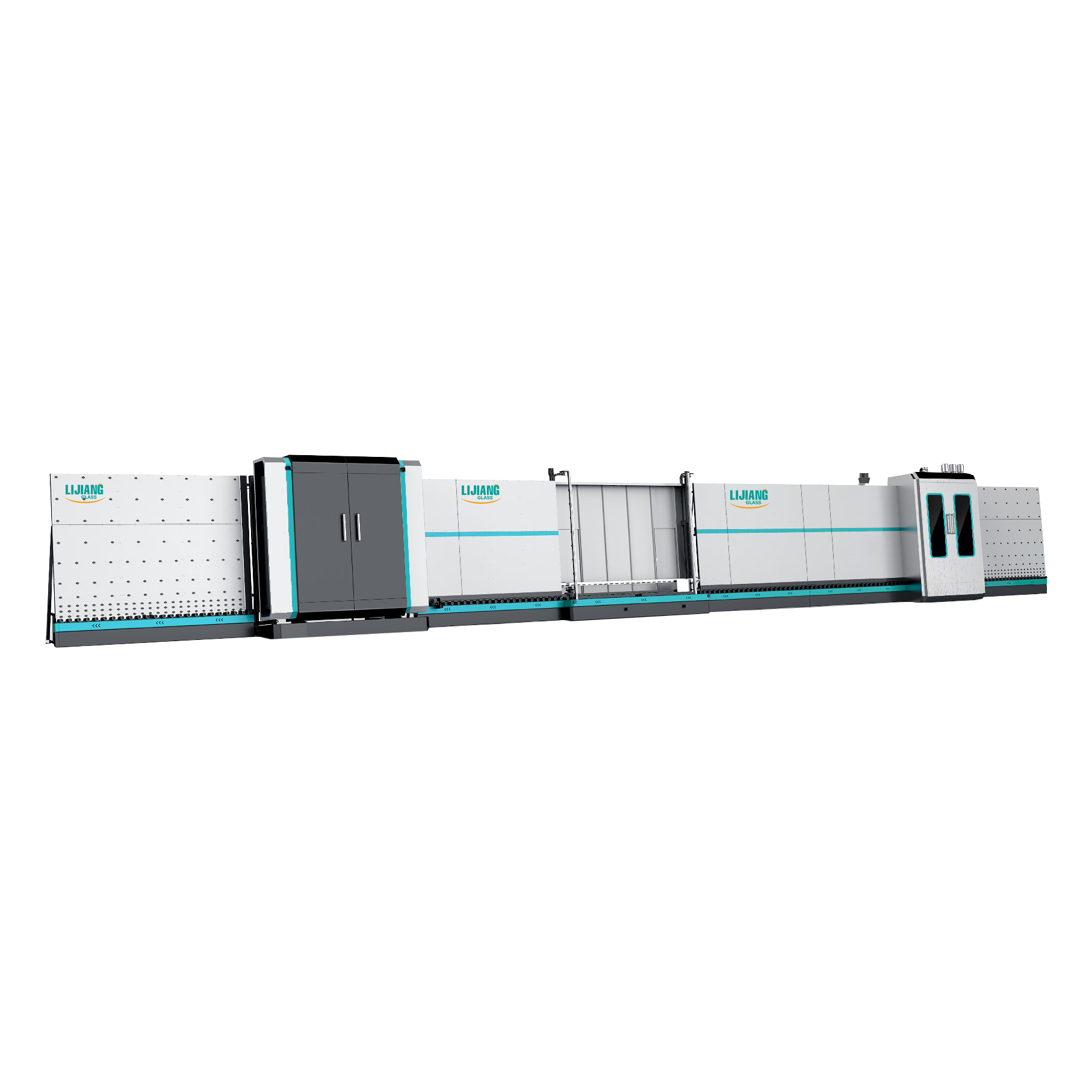

Product Name: Vertical Insualting Glass Production Line
Type: LJBZ2025 / LJBZ2535
Dimension (L*W*H): 19500mm*3500mm*3200mm / 23500mm*3500mm*3700mm / 27000mm*3500mm*3700mm
Flat glass thickness: 3~15mm (Customerized 3~30mm)
Washing brushes: 6 pieces
Max. thickness of insulating glass: 60 mm
Total gas consumption: 1200 L/min
Washing speed: 2~10 m/min
Max. working speed: 45 m/min
Min. glass size: 450*280 mm
Max. glass size: 2000*2500 mm / 2000*3000 mm / 2500*3200 mm / 2500*3500 mm / 2500*4500 mm
Voltage: 380V 50Hz 3P
Check the Product Details or Inquiry Now
Product Name: Vertical Insualting Air-floating Glass Production Line
Type: LJBZ2025GF / LJBZ2535GF
Dimension (L*W*H): 19500mm*3500mm*3200mm / 23500mm*3500mm*3700mm / 27000mm*3500mm*3700mm
Flat glass thickness: 3~15mm (Customerized 3~30mm)
Washing brushes: 6 pieces
Max. thickness of insulating glass: 60 mm
Total gas consumption: 1200 L/min
Washing speed: 2~10 m/min
Max. working speed: 45 m/min
Min. glass size: 450*280 mm
Max. glass size: 2000*2500 mm / 2000*3000 mm / 2500*3200 mm / 2500*3500 mm / 2500*4500 mm
Voltage: 380V 50Hz 3P
Check the Product Details or Inquiry Now
Product Name: Jinan LIJIANG Vertical Edge Deleting Machine
Type: LJCM2545
Min. glass processing size: 300*400mm
Max. glass processing size: 2500*4500mmGlass thickness: 3-15 mm
Edge deleting width: 10-500 mm
Glass conveying speed: 0-30 m/min
Grinding wheel width: 10/12/15 mm
Total power: 15Kw
Dimension: 9700*2500*3400mm
Weight: 2600Kgs
Check the Product Details or Inquiry Now

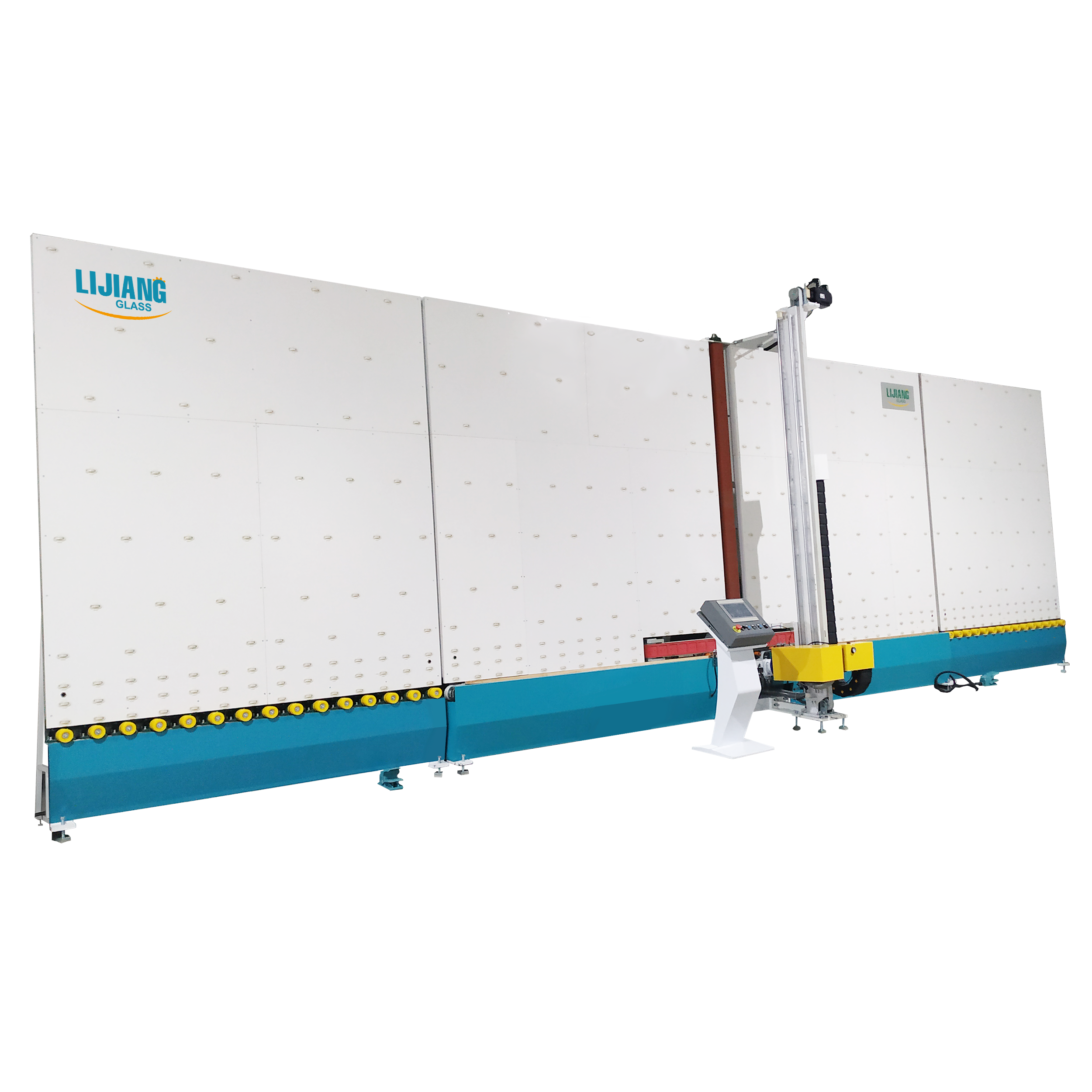

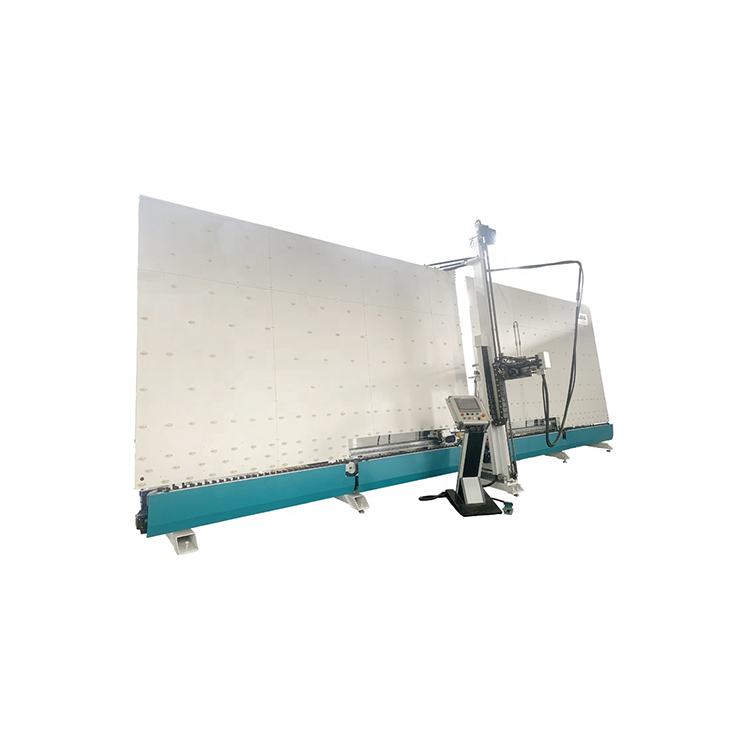

Product Name: Jinan LIJIANG Automatic Sealing Robot Machine
Type: LJTJ2030 / LJTJ2540
Overall dimension: 6700mm*2500mm*3000mm / 8700mm*2500mm*3500mm
Max. glass size: 2000*3000mm / 2500*4000mmMin. glass size: 400*300mm
Glass thickness: 12-56mm
Air pressure: 0.6-0.8 MPa
Squeeze pressure: < 35MPa
Voltage: 380V 50Hz 3P
Power: 15Kw
Weight: 4300Kgs / 5000Kgs
Check the Product Details or Inquiry Now

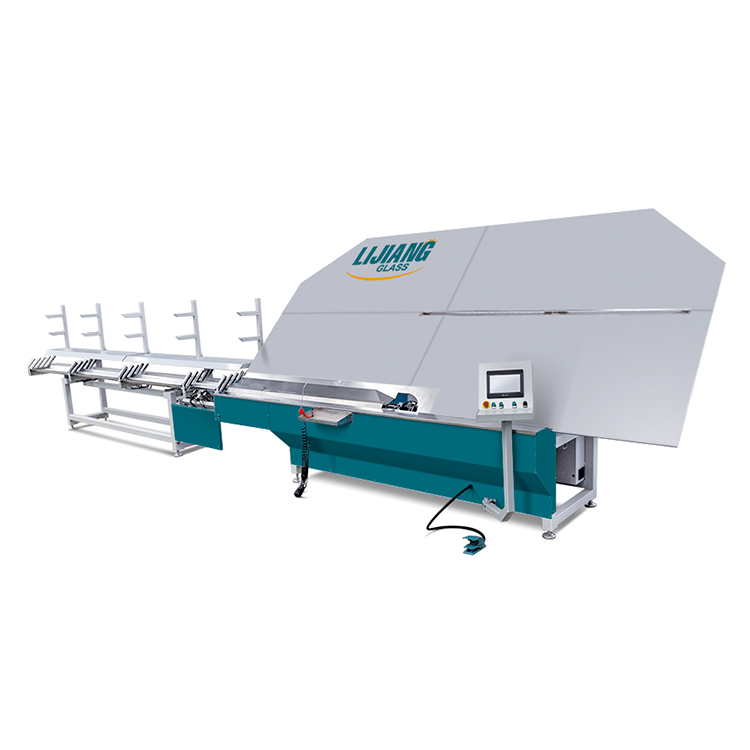

Product Name: Jinan LIJIANG Automatic Spacer Bending Machine
Type: LJZW2020 / LJZW2020A
Dimension: 10500mm*2200mm*2600mmMax. bending size: 1800*2000mm (in once) / 2500*4000mm (in twice)
Min. bending size: 150*300mm
Aluminum spacer width: 5.5-26.5mm
Spacers racks: 4 units
Spacer size error: ± 0.5mm
Angle error: ±1°
Conveying speed: 1250mm/s
Air supply: ≥ 0.65 MPa
Voltage: 380V 50Hz 3P
Total power: 2.5Kw
Weight: 1580Kgs
Check the Product Details or Inquiry Now

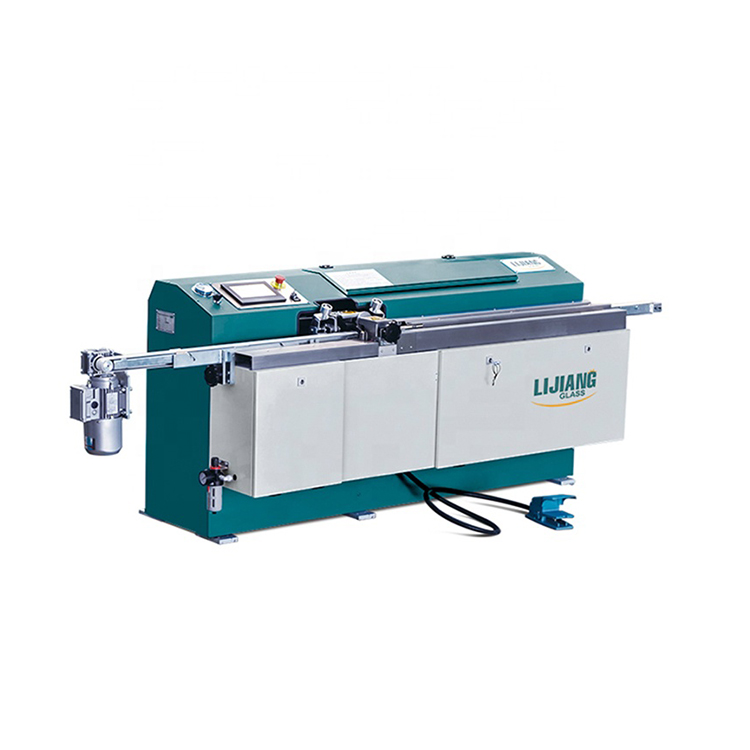

Product Name: Jinan LIJIANG Automatic Butyl Extruder Machine
Type: LJTB01
Glue thickness: 0.3-0.5mm
Glue width: 3.5mm
Aluminum spcer width: 5.5-26.5mm
Speed: 0-47m/min
Diameter of butyl cylinder: 200mm
Air supply: 0.4m3/min
Air pressure: ≥ 0.6MPa
Weight: 750Kgs
Check the Product Details or Inquiry Now

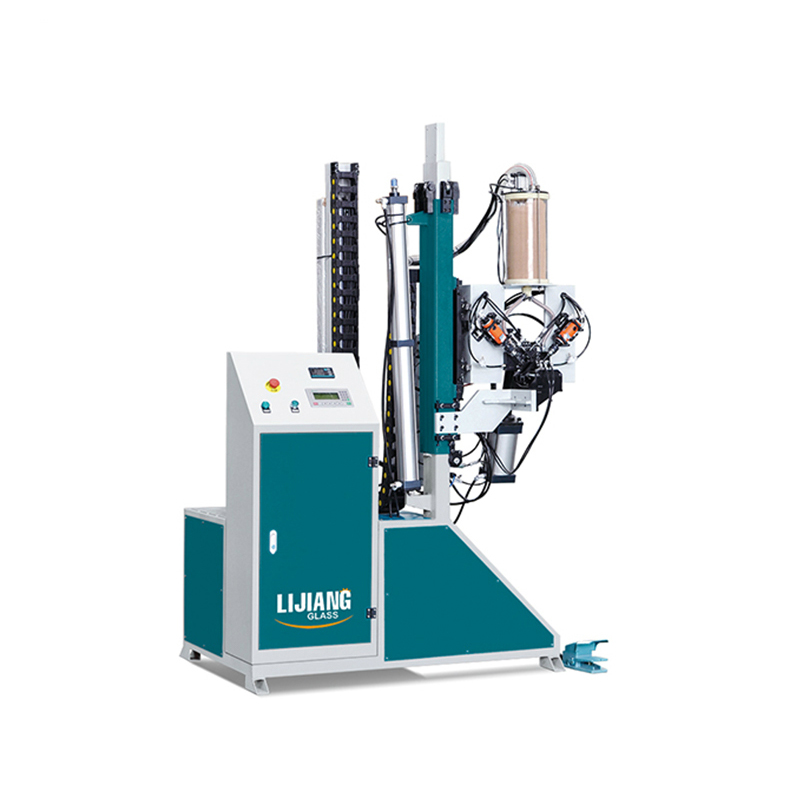

Product Name: Jinan LIJIANG Automatic Desiccant Filling Machine
Type: LJGZ2020/LJGZ2020A/LJGZ2020X/LJGZ2020S
Max. frame size: 2000mm*2000mm
Min. frame size: 300mm*250mm
Aluminum specifications: 5.5mm-26.5mm
Air source: ≥ 0.65MPa
Molecular sieve diameter needed: 0.5-0.9mm（Customerized 1.0-1.5mm）
Dimension: 1350mm*1050mm*3600mm
Weight: 300kgs
Check the Product Details or Inquiry Now

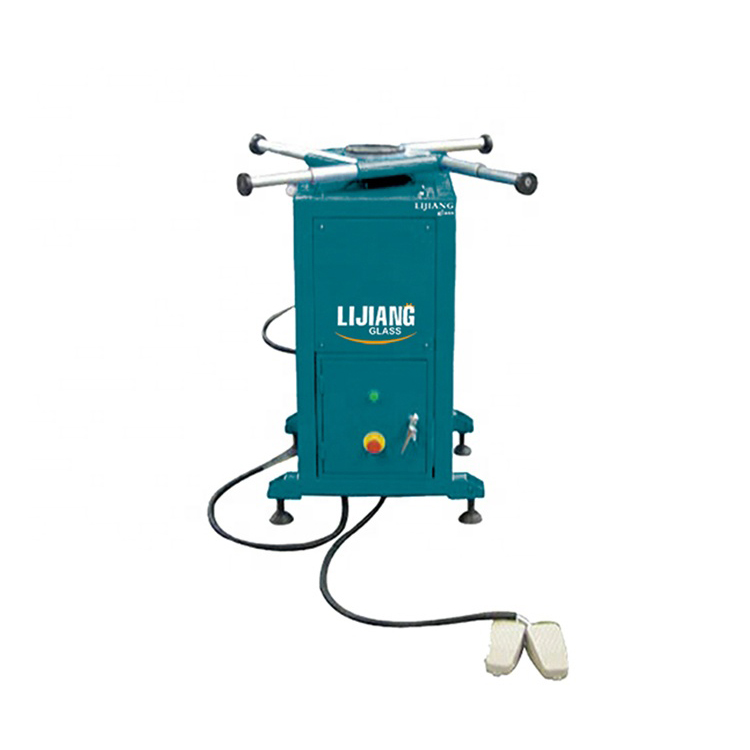

Product Name: Jinan LIJIANG Rotated Sealant Spreading Table
Type: LJZT02
Easy to operate, simple and flexible
It is used for fixing and rotating glass when sealing
Middle sucker for small pieces of glass
Operating dimension: 1500mm*1500mm
Dimension:600mm*550mm*985mm
Power supply: 380V 50Hz
Total power: 0.37kw
Weight: 75/48kgs
Check the Product Details or Inquiry Now

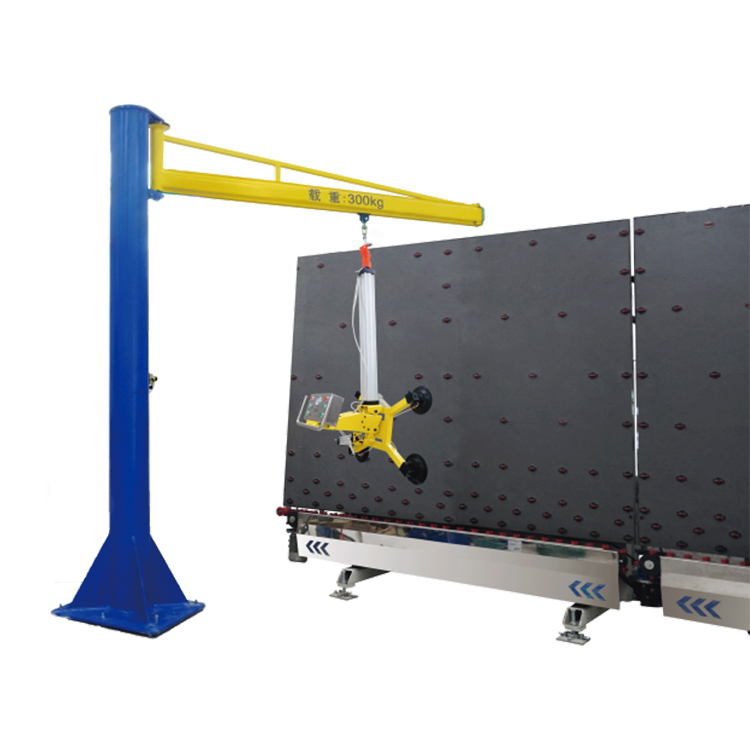

Product Name: Jinan LIJIANG Vacuum Glass Lifter
Type: LJ2510P 300Kg 500kg 800Kg Loading
Level and side rotary scope: 0-90°
Negative pressure: -40 to -80
Suction cups: Customerized 2/4/6/8/12 pieces
Working gas source: 5-8 Pa
Length dimension: Control cabinet: 0.3m;
Suckers: Optional 1-5m
Width dimension: Suckers: Optional 1-1.5m
Check the Product Details or Inquiry Now
Product Name: Jinan LIJIANG Vertical Glass Washing Machine
Type: LJVW 2500 Vertical Glass Washing Machine
Max. glass size: 2000mm*2500mm
Min. glass size: 280mm*400mm
Washing speed: 2~6m/min
Glass thickness: 3 - 15mm
Power: 18.5kw
Weight: 3600Kgs
Check the Product Details or Inquiry Now

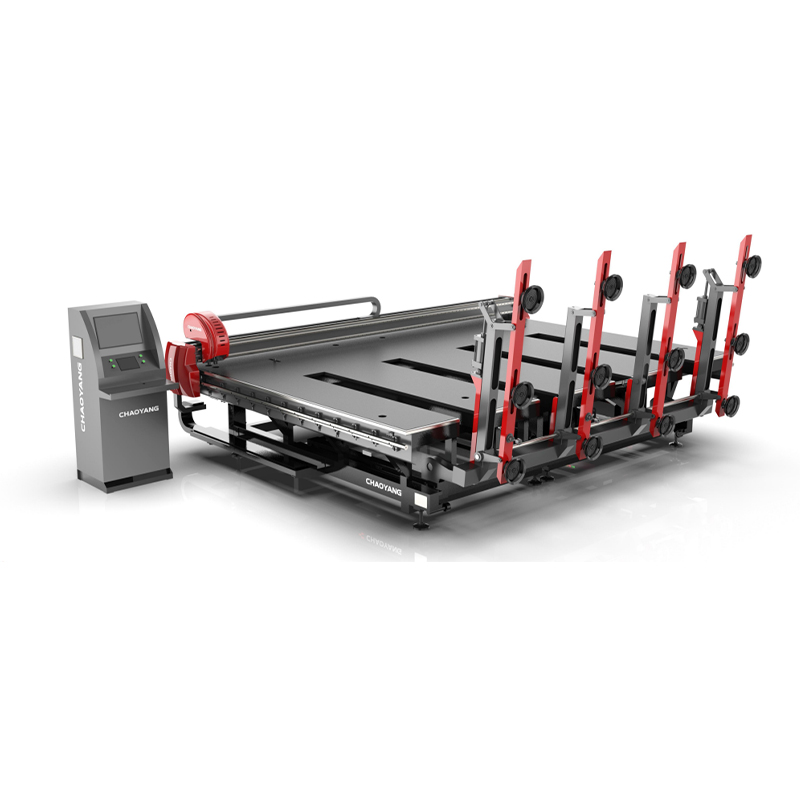

Product Name: Jinan LIJIANG CNC Intelligent Automatic Glass Cutting Line
Max. glass cutting size: 2800mm*4200mm
Glass thickness: 2-25mm
Cutting speed: 0-200m/min
Accurcy: ≤±0.20mm/m
Breaking bar: 1+2pcs
Total power: 3P 380V 50Hz
Dimension: 14200mm*3750mm*900mm±20mm

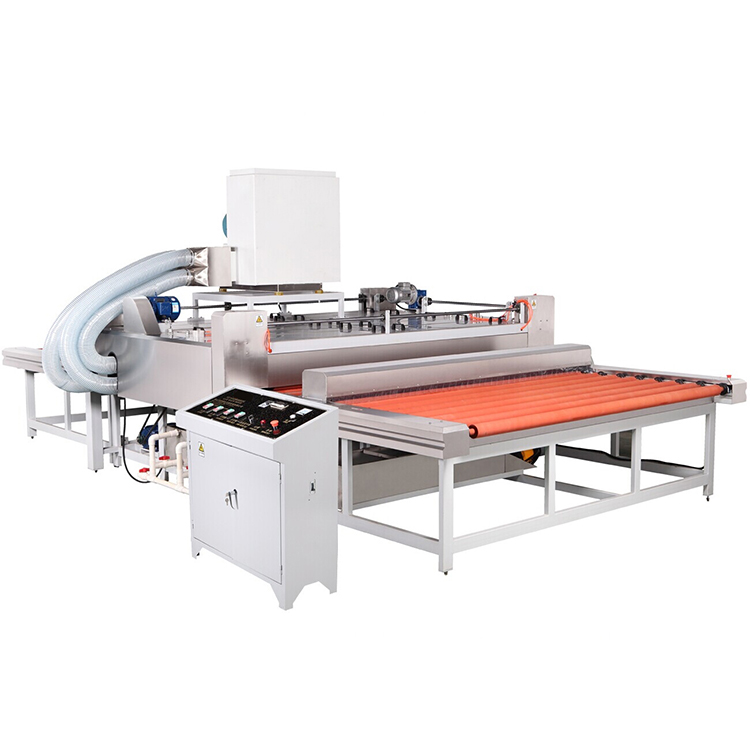

Product Name: Jinan LIJIANG Horizontal glass washing machine
Max. Width: 2500mm
Min. Size:400×400mm
Glass thickness:3~28mm
Working table height:900mm±30mm
Blower power: 22kw
Total power: 32kw
Weight: 3000kg
Dimension: 5700×3300×2500mm
Check the Product Details or Inquiry Now
Advantages & Features
Company Profile
The Brief Information
Founded in 2009, Kation-International Group specializes in R&D, production and sales of Insulating glass machinery and related auxiliary equipment for the glass deep processing industry and the door and window construction industry, which is the international group company including the Jinan LIJIANG Automatic Equipment Co,.Ltd. to producing the automatic insulating glass production line, and including the Jinan Kation International Trading Co,.Ltd. to export the automatic insulating glass processing machine around the world. Has the professional processing basis of insulating glass machinery, aluminum-plastic windows & doors machinery and the related auxiliary materials, etc. In this way, we provide the most comprehensive glass processing solution and windows & doors solution for domestic and foreign customers well. Until 2021, we exported glass machines and materials to America, South America, Europe, the Middle East, India and so on,nearly 30 countries and regions. We have established a perfect international business relationship with 10+ powerful agents and made an endeavor together to build a famous international brand to the world.
Kation-International Group, with craftsmanship, profession and honesty, wins the future with you together!
| Contact Name: | Miss Xuan Guo | Contact Email: | 31****6@qq.com |
| Contact Job Title: | Manager | Contact Mob: | 186***966 |
| Contact Tel: | Contact Fax: | ||
| Address: | Website: |
Jinan Kation Trading Co., Ltd. Founded in 2009, specializes in R&D , production and sales of Insulating glass machinery and related auxiliary equipment for the glass deep processing industry and the door and window construction industry . Has the professional processing basis of insulating glass machinery, aluminum-plastic windows & doors machinery and the related auxiliary materials, etc .
