chain conveyor
Manufacturing & Processing Machinery General Industrial Equipment
MOQ:1 Piece(s)
Payment Method : L/C T/T D/P Western Union Paypal Money Gram
Keywords:chain conveyor drag chain conveyor scraper conveyor small conveyor industrial conveyor drag conveyors coal conveyor heavy duty conveyor silo conveyor chain plate conveyor
| Product Category: | Manufacturing & Processing Machinery > General Industrial Equipment | Trademark: | Tianyi machinery |
| Product Package: | The normal package is iron cage (Size: L*W*H). We design the cage according to the product's size and weight & client's request. | Specifications: | |
| Place of Origin: | Hubei,China | Port: | Yichang, wuhan, shanghai |

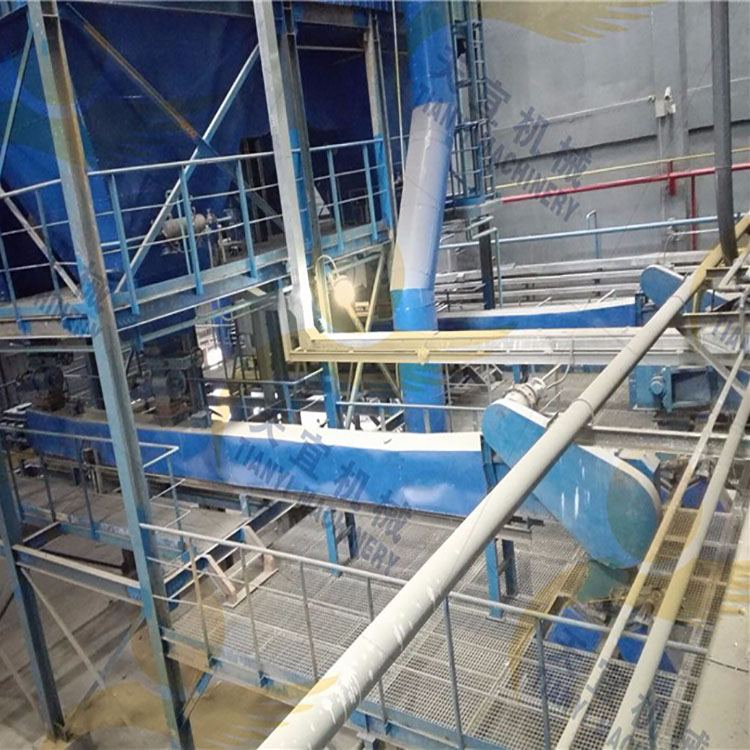

According to the bottom slag reuse and dry slag removal requirement of power plant currently in our country, we have developed a special power plant bottom slag (dust) conveying system:
When the slag amount is small, taking the combination of special wear-resistant type drag chain conveyor + power plant high reliability bucket elevator; when the slag quantity is large, taking the combination of seal type bucket chain conveyor + power plant high reliability bucket elevator. The bottom slag will be sent to slag tank by such combinations.
In the meanwhile, we are also qualified to handle the design, manufacture, installation and debugging and turn-key project of the full set of bottom slag conveying system from the cool slag outlet to bottom slag loading machine.The arrangement is as followings:
| Model | MSM20 | MSM25 | MSM32 | MSM40 | MSM50 | MSM63 | MSM80 |
| Trough Width（mm） | 200 | 250 | 315 | 400 | 500 | 630 | 800 |
| Load-bearing Depth（mm） | 200 | 248 | 288 | 370 | 476 | 476 | 476 |
| Chain Speed（m/s） | 0.05~0.1 | 0.05~0.1 | 0.05~0.1 | 0.06~0.12 | 0.08~0.016 | 0.08~0.016 | 0.08~0.016 |
| Max Conveying Length (m） | 60 | 60 | 70 | 50 | 45 | 45 | 35 |
| Capacity（t/h） | 3.15~6.3 | 5~10 | 6.3~12.5 | 12.5~18.5 | 20~40 | 25~50 | 30~100 |
| Power（kw） | 2.2~7.5 | 3.5~7.5 | 4~11 | 5.5~18.5 | 7.5~22 | 11~22 | 15~37 |
Main Features
1) Simple structure and easy to install and maintain.
2) Good air tightness, environmentally friendly.

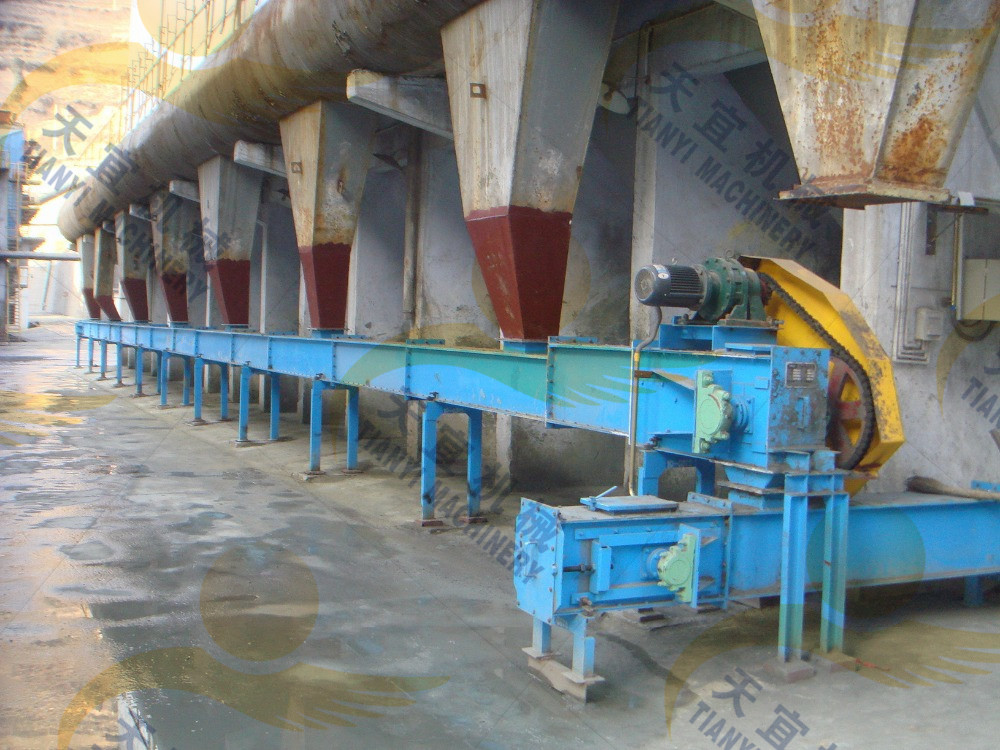

3) Remove ash or slag under the dust collector.
4) Multiple points for load and unload.5) Improve workers’ labor condition notably.
6) Be widely used in metallurgy and waste-to-power industries.
Certifications

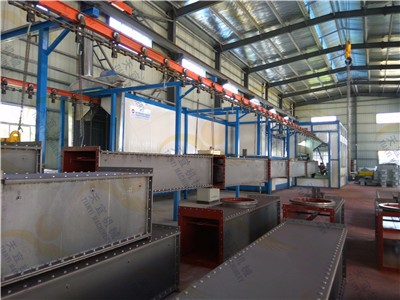

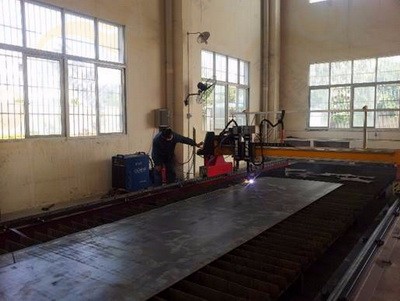

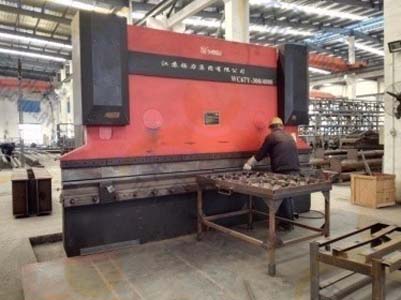

Workshop & Equipment
HU BEI TIANYI MACHINERY CO., LTD.( stock name: Tianyi machinery, stock code:832654) is a high-tech enterprise, which specialized in designing & producing & installing the specific equipment such as the conveying machine, crush equipment, screening machines and dedusting equipment. Our company is located in Yidu City, Hubei Province; it is only 50 kilometers far from the Three Gorges Dam &20 kilometers apart from Three Gorges Airport. Our company covers an area of 70,000 square meters currently; the Capital asset reaches nearly 89 million and we have 200 staffs, including 65 professional engineers. Our main fields: smelting, thermal power industry, waste disposal and building aterials industry. Our main products: conveying equipment, crushing equipment, screening equipment and dust removal equipment. Integrated system: material conveyor system and dust removal system. Tianyi Machinery has strong technical force, with research and development center, technical department, and we have got 65 national patent technologies.
