Ductile Iron Pipe C class or K9 T type Socket and Spigot joint
Metallurgy,Chemicals & Energy Casting
MOQ:100 Piece(s)
Payment Method : L/C T/T D/P Others
Keywords:ductile iron pipe water solution Casting Iron pipe water pipe C25 K9 pipe Tyton pipe
| Product Category: | Metallurgy,Chemicals & Energy > Casting | Trademark: | |
| Product Package: | By bundles | Specifications: | DN100-DN2600 |
| Place of Origin: | China | Port: | Lianyun Gang, Tianjin |

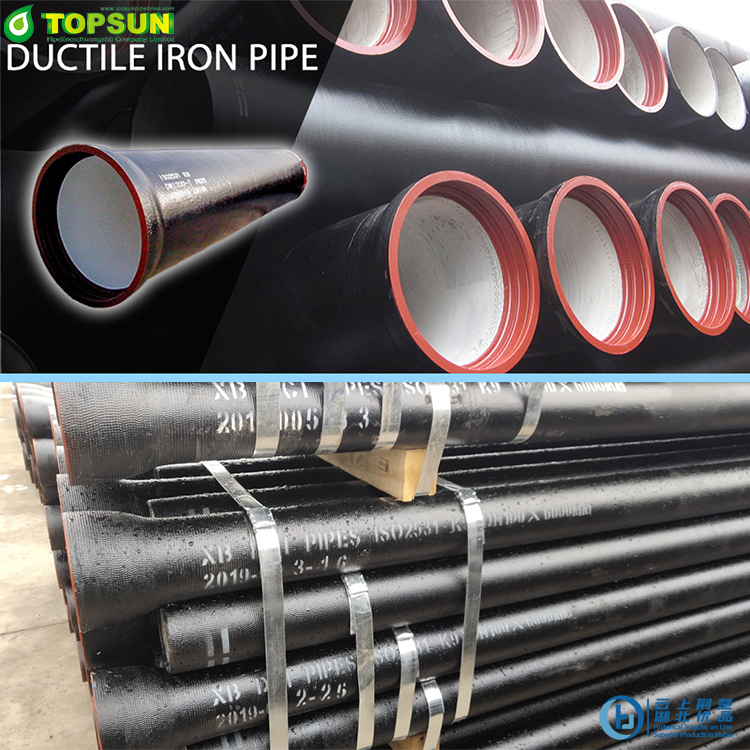

TOPSUN ductile iron pipe dopts the domestic and foreign advanced water cooling casting equipment and technology, through the ISO9001 international quality system certification, the products in strict accordance with ISO2531 international standard organization production and inspection, to ensure that each cast pipe has good mechanical properties and long service life.

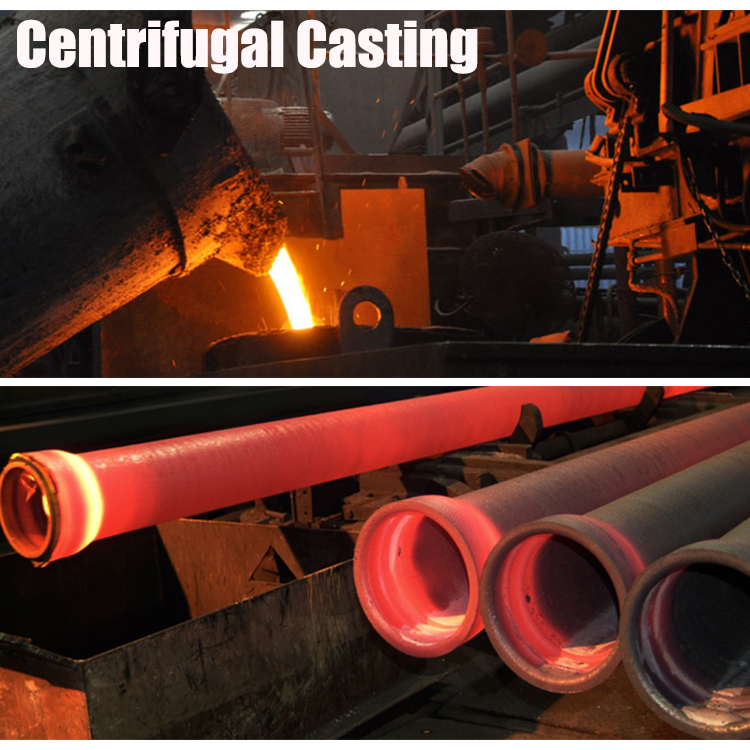

The centrifugal ductile iron pipes and fittings supplied by the company have excellent properties such as high strength, high elongation, smooth appearance and corrosion resistance.The products are mainly used for urban water conveyance, tap water, urban pipe network, fire control engineering, garden community and other main fluid pressure pipelines.
Ductile iron pipe specification (DN80-DN1600).

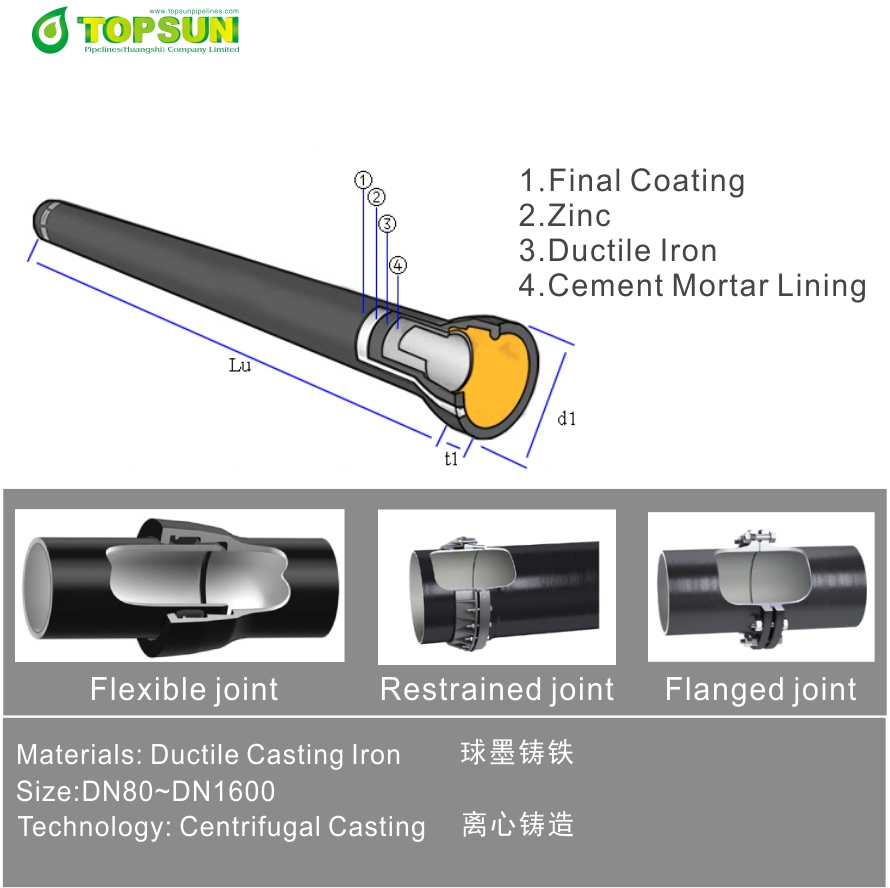

Connection method of ductile iron pipe fittings: flanged joint, Flexible joint (Tyton pipe), Restrained joint
Internal lining: Pipes are centrifugally cement mortar lined with blast furnace cement as per the requirement of BS EN 545.
External coating: Zinc coating with a finishing layer of black bitumen or blue、red、green color epoxy.
Minimum tensile strength: 420/Mpa,
Minimum elastic strength: 300/Mpa,
Minimum ductility: 7%（DN＞1000）， 10% （DN≤1000） .
Standard： ISO2531, GB/T13295, EN545/598, AWWA-C151, KSD4311, AS2280.
EN545:2010 For drinking water or EN598 for sewage water system .
Weight List of T Joint Ductile Iron Pipe (Class K9-effective length: 6 meters)
Size (mm) | Straight pipe | Socket Weight | Total Weight | ||
DN | Wall Thickness (mm) |
| Weight per meter | (kg) | (kg) |
DN80 | 6.0 | -1.30 | 12.2 | 3.4 | 77 |
DN100 | 6.0 | -1.30 | 15.1 | 4.3 | 95 |
DN125 | 6.0 | -1.30 | 18.3 | 5.7 | 119 |
DN150 | 6.0 | -1.30 | 22.8 | 7.1 | 144 |
DN200 | 6.3 | -1.50 | 30.6 | 10.3 | 194 |
DN250 | 6.8 | -1.55 | 40.2 | 14.2 | 255 |
DN300 | 7.2 | -1.60 | 50.8 | 18.9 | 323 |
DN350 | 7.7 | -1.65 | 63.2 | 23.7 | 403 |
DN400 | 8.1 | -1.70 | 75.5 | 29.5 | 482 |
DN450 | 8.6 | -1.75 | 89.0 | 38.3 | 577 |
DN500 | 9.0 | -1.80 | 104.3 | 42.8 | 669 |
DN600 | 9.9 | -1.90 | 137.3 | 59.3 | 882 |
DN700 | 10.8 | -2.00 | 173.9 | 79.1 | 1123 |
DN800 | 11.7 | -2.10 | 215.2 | 102.6 | 1394 |
DN900 | 12.6 | -2.20 | 260.2 | 129.0 | 1691 |
DN1000 | 13.5 | -2.30 | 309.3 | 161.3 | 2017 |
DN1100 | 14.4 | -2.40 | 362.8 | 194.7 | 2372 |
DN1200 | 15.3 | -2.50 | 420.1 | 237.7 | 2758 |
DN1400 | 17.1 | -2.70 | 547.2 | 385.3 | 3669 |
DN1500 | 18.0 | -2.80 | 619.1 | 460.4 | 4175 |
DN1600 | 18.9 | -2.90 | 690.3 | 526.2 | 4666 |
Weight List of T Joint Ductile Iron Pipe(Class C-effective length: 6 meters)
DN | Pressure Class | Min Wall Thickness (mm) | Nominal wall thickness (mm) | Weight |
DN80 | C40 | 3 | 4.4 | 58 |
DN100 | C40 | 3 | 4.4 | 71 |
DN125 | C40 | 3 | 4.5 | 90 |
DN150 | C40 | 3 | 4.5 | 106 |
DN200 | C40 | 3.2 | 4.7 | 146 |
DN250 | C40 | 3.9 | 5.5 | 210 |
DN300 | C40 | 4.6 | 6.2 | 282 |
DN350 | C30 | 4.6 | 6.3 | 335 |
DN400 | C30 | 4.8 | 6.5 | 394 |
DN450 | C30 | 5.1 | 6.9 | 472 |
DN500 | C30 | 5.7 | 7.5 | 565 |
DN600 | C30 | 6.8 | 8.7 | 783 |
DN700 | C25 | 6.8 | 8.8 | 931 |
DN800 | C25 | 7.5 | 9.6 | 1164 |
DN900 | C25 | 8.4 | 10.6 | 1446 |
DN1000 | C25 | 9.3 | 11.6 | 1758 |
Key words：Ductile iron pipe， Casting iron pipe, Cast iron pipe, K9 pipe, Socket spigot pipe, Tyton pipe, ISO2531, EN545 , EN598, Cast iron pipe fitting, ductile iron pipe fitting, Ductile Iron pressure pipes
