Forged aluminum alloy truck wheel rim 22.5*8.25
Auto,Parts & Accessories Wheels & Tires Accessories
MOQ:100 Piece(s)
Payment Method : L/C T/T
Keywords:forged aluminum wheels aluminum alloy truck rims alloy wheel rims Commercial Truck Wheels
| Product Category: | Auto,Parts & Accessories > Wheels & Tires Accessories | Trademark: | |
| Product Package: | Specifications: | ||
| Place of Origin: | Port: | qingdao |
1. Name: Forged alloy truck wheel 22.5X8.25
2. Brand: JOYOWAY
3. Application: suitable for medium and long distance trucks and bus.
4. Detailed introduction: Forged alloy truck wheel 22.5X8.25 use 6061 aluminum bar as raw material, which is sawed and cut after flaw detection and tensile test of raw material. After three times of forging and pressing, it is sent to German Leifeld vertical automatic spinning machine for spinning into semi-finished products. After strict heat treatment, the semi-finished products enter the automatic processing production line. Finally, detection, cleaning, packaging and warehousing.
5. Advantages:
A. Light weight: 24.8KG, only half weight of the same type of steel wheel.
B. High strength: bearing capacity is three times of the same type of steel wheel.
C. Fast heat dissipation to extend tire service life. Compared with the steel wheel, the heat dissipation coefficient of aluminum is greater.
D. Beautiful appearance: metal primary color, polishing, color ion plating and other surface treatment for users to choose.
E. Easy to clean: smooth surface, can be washed with water, after a long time, can be polished again and take on a new look.
F. Excellent dynamic balance: due to the processing of one machine, high dynamic balance accuracy, smooth driving, tire is not easy to abnormal wear.
G. Long service life
6. The parameters are attached separately.
| 产品编号PART NO. | 规格 SIZE | 螺栓数PCD HOLES | 螺孔直径 STUD HOLE DIA. (mm) | 分布圆P.C.D (mm) | 中心孔C.B(mm) | 外偏距OUTSIDEOFFSET (mm) | 内偏距INSIDE OFFSET (mm) | 重量WEIGHT (kg) | 载重MAXLOAD(KG) | 气门嘴VALVE | 配套轮胎TIRE |
| ZYAL228501 | 22.5X8.25 | 10 | 26.5 | 335 | 281.2 | 167 | 142.5 | 25.9 | 3650 | 70MS-7 | 11R22.5 |
| ZYAL228502 | 10 | 32.5 | 335 | 281.2 | 167 | 142.5 | 25.7 | 3650 | |||
| ZYAL228503 | 10 | 32.5 SR22 | 335 | 281.2 | 167 | 142.5 | 25.5 | 3650 | |||
| ZYAL228504 | 10 | 26.5 | 285.75 | 221 | 169 | 145 | 25.3 | 3650 | |||
| ZYAL228505 | 10 | 32.5 | 285.75 | 221 | 169 | 145 | 25 | 3650 | |||
| ZYAL228506 | 10 | 32.5 SR22 | 285.75 | 221 | 169 | 145 | 24.8 | 3650 | |||
| ZYAL228507 | 8 | 32.5 SR22 | 285 | 220 | 169 | 145 | 25.7 | 3650 | |||
| ZYAL228508 | 8 | 32.5 SR22 | 285 | 221 | 169 | 145 | 25.7 | 3650 |

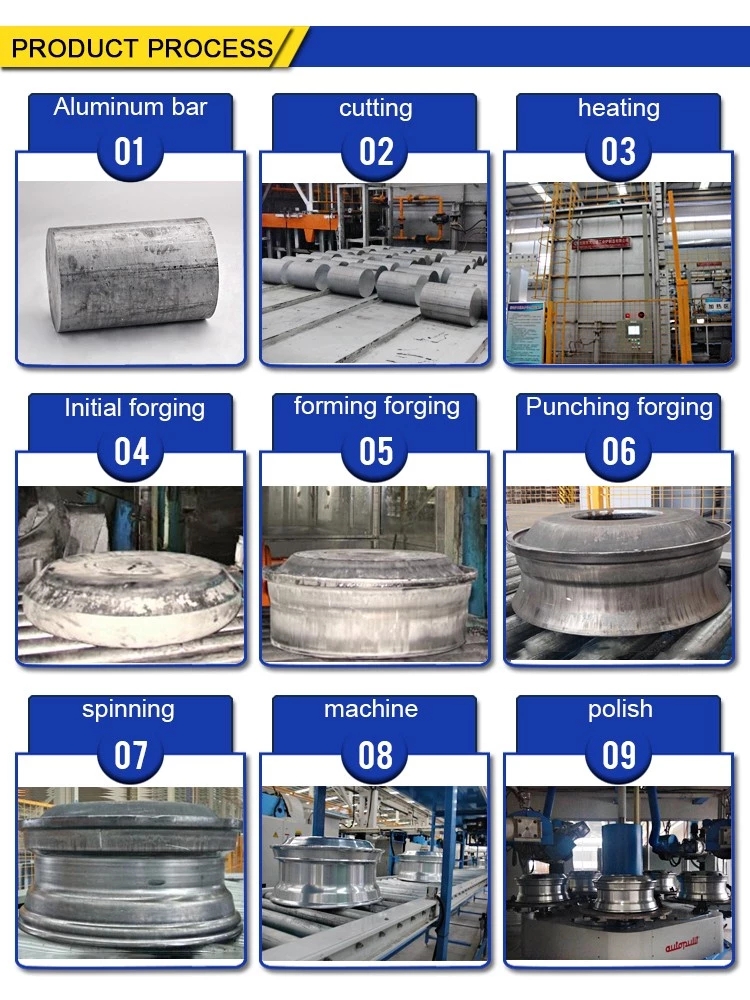

7.Production Process
8.Load and shipping
9. Contact information
| Contact Name: | Mrs Lisa Wang | Contact Email: | li****a@joyowheel.com |
| Contact Job Title: | Manager | Contact Mob: | 159***218 |
| Contact Tel: | Contact Fax: | ||
| Address: | Website: |
Our company is a sales company of Shandong Zhengyu Aluminium Industry Co., Ltd and Shandong Yujie Wheel Co., Ltd. Our company was established in 2004. It is mainly engaged in the production of truck and bus wheels with an annual output of 1.2 million pieces light and heavy truck steel wheels. In 2012, we built two production lines of forged aluminum magnesium alloy wheels with an annual output of 1 million pieces.
