产品简介

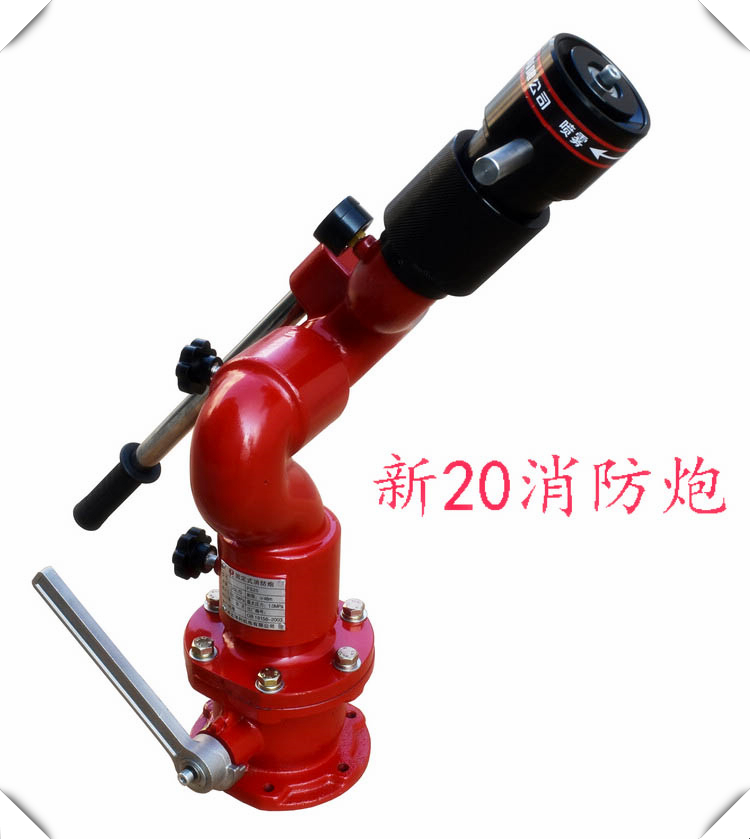

PS20,PL24,PS30,PL32,PS40,PL48消防炮为可调节流量的泡沫与水两用炮，主要由炮筒、炮头、炮体、球阀和操作手柄等部件组成。喷射泡沫时，调节位于炮头的流量调节环可调节4档流置，调节炮筒扩散則可选择直流和扁平扩散流；移开炮筒后，可喷射水流灭火，调节流量调节环同样可调节4档流量，调节射流变换调节环还可调节直流、开花射流形态，真正实现一 炮多用。操作手柄操纵俯仰和水平回转，并设有螺纹锁紧定位装置。

使用范围

消防泡沫炮PS20,PL24,PS30,PL32,PS40,PL48是产生和喷射泡沫，远程离扑救甲、乙、丙类液体火灾或喷射水远距离扑救固体物质火灾的消防炮。

消防泡沫炮PS20,PL24,PS30,PL32,PS40,PL48型船用消防炮不仅适用于各类泡沫消防车、消防艇、高平台、固定消防炮塔和消防管路、石油化工企业、储罐区、飞机场、仓库、港口码头，而且适用于船舶和海上固定平台等设施。

结构特点

消防泡沫炮PS20,PL24,PS30,PL32,PS40,PL48消防炮为单炮筒，通过炮筒简易拆加即可喷射泡沫有可喷射水，操作手柄实现炮仰、俯、回转；炮身可旋转并可定位锁紧。

Product introduction

 PS20, PL24, PS30, PL32, PS40 and PL48 fire monitors are dual-purpose foam and water monitors with adjustable flow. They are mainly composed of barrel, head, body, ball valve and operating handle. When the foam is sprayed, the four-gear flow can be adjusted by adjusting the flow adjusting ring at the gun head, and the direct flow and flat diffusion flow can be selected by adjusting the diffusion of the gun barrel; after the gun barrel is removed, the water flow can be sprayed to extinguish the fire, the four-gear flow can also be adjusted by adjusting the flow adjusting ring, and the direct flow and blooming jet flow forms can also be adjusted through adjusting the jet flow conversion adjusting ring, so that one gun with multiple purposes is really realized. The operating handle controls the pitching and horizontal rotation, and is provided with a thread locking and positioning device.

Range of use

 Fire foam monitors PS20, PL24, PS30, PL32, PS40 and PL48 are fire monitors that generate and spray foam to remotely extinguish Class A, B and C liquid fires or spray water to remotely extinguish solid material fires.

Fire foam monitor PS20, PL24, PS30, PL32, PS40, PL48 marine fire monitors are not only suitable for various foam fire engines, fire boats, high platforms, fixed fire turrets and fire pipelines, petrochemical enterprises, storage tank areas, airports, warehouses, ports and wharfs, but also suitable for ships and offshore fixed platforms and other facilities.

Structural characteristics

 Fire foam monitors PS20, PL24, PS30, PL32, PS40 and PL48 are single-barrel fire monitors, which can spray foam and spray water through simple disassembly and assembly of the barrel. The operating handle can realize the elevation, pitch and rotation of the monitor; the gun body can be rotated.
