Bucket elevator
Manufacturing & Processing Machinery General Industrial Equipment
MOQ:1 Piece(s)
Payment Method : L/C T/T D/P Western Union Paypal Money Gram
Keywords:z bucket elevator bucket conveyor elevator elevator bucket belt conveyor china coal bucket elevator grain elevator buckets belt bucket elevator gravel bucket elevator round chain bucket elevator vertical bucket elevator silo seed bucket elevator
| Product Category: | Manufacturing & Processing Machinery > General Industrial Equipment | Trademark: | Tianyi machinery |
| Product Package: | The normal package is iron cage(Size: L*W*H). we design the cage according to the product's size and weight&client's request. | Specifications: | |
| Place of Origin: | Hubei,China | Port: | Yichang,Wuhan, Shanghai |

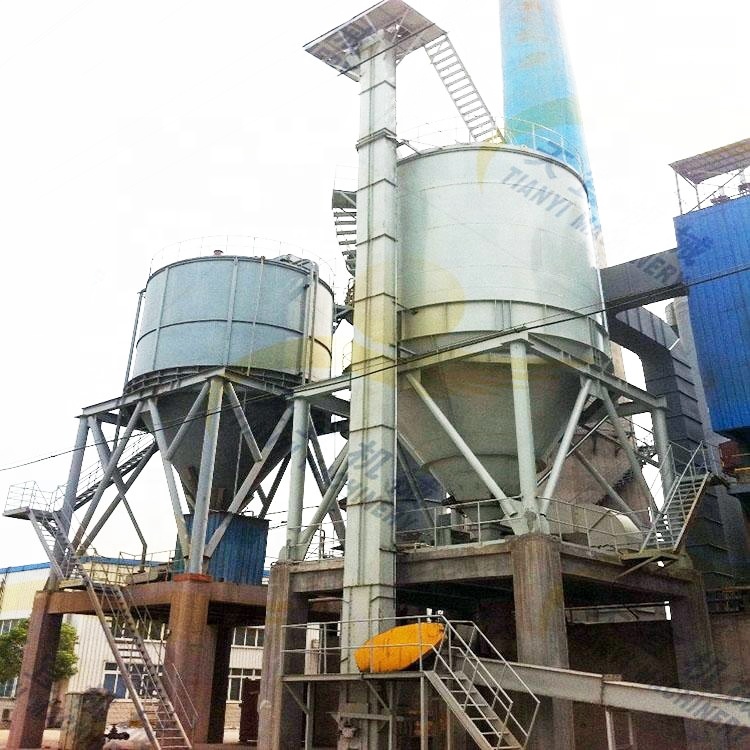

Heavy Duty Silo Sand Vertical Bucket Elevator
Bucket chain conveyor, TB (NE) Series Bucket elevator, the full name is plate sleeve roller chain bucket elevator (Plate chain bucket elevator for short),with the plate sleeve roller chain, it suits for conveying those dry, loose and easy to throw materials such as coal, gravel, ore, pebbles, etc., the temperature of the material is no more than 250℃.
Capacity of this model is 16 ~ 480 m3/h, lifting height is 5 ~ 40 m.
| Model | TB250 | TB315 | TB400 | TB500 | TB630 | TB800 | TB1000 |
| Bucket type | J | T | T | T | T | T | T |
| Bucket Width (mm) | 250 | 315 | 400 | 500 | 630 | 800 | 1000 |
| Bucket Volume (L） | 3 | 6 | 12 | 25 | 50 | 100 | 200 |
| Bucket Pitch(mm） | 200 | 200 | 250 | 320 | 400 | 500 | 630 |
| Chain pitch（mm) | 100 | 100 | 125 | 160 | 200 | 250 | 315 |
| No. of Chain | 1 | 2 | 2 | 2 | 2 | 2 | 2 |
| Single broken load （KN） | 112/160 | 112/160 | 160/224 | 224/315 | 315/450 | 450/630 | 630/900 |
| Sprocket diameter（mm） | 386.37 | 386.37 | 386.37 | 618.19 | 772.74 | 965.92 | 1217.06 |
| Bucket running speed（m/s） | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 |
Main Features
2 Large capacities for conveying in a compact space .
3 Completely enclosed for dust-tight operation,improve the working conditions and prevent the environmental from being polluted.
4 Reliable electrical device and mechanical safety device .
5 Flexible installation and maintenance .
6 Construction available in carbon steel, stainless steel .
7 Engineered and manufactured to meet specific customer requirements .
Certifications

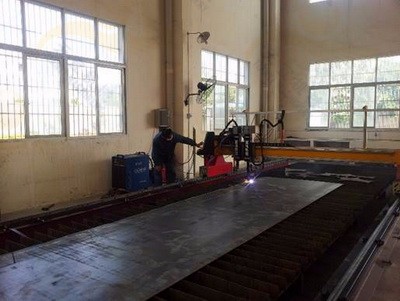

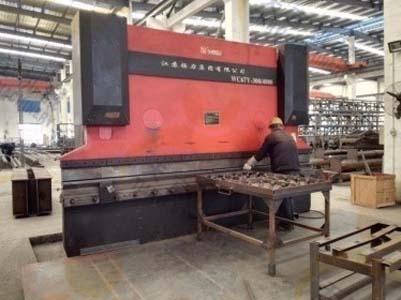

Workshop & Equipment

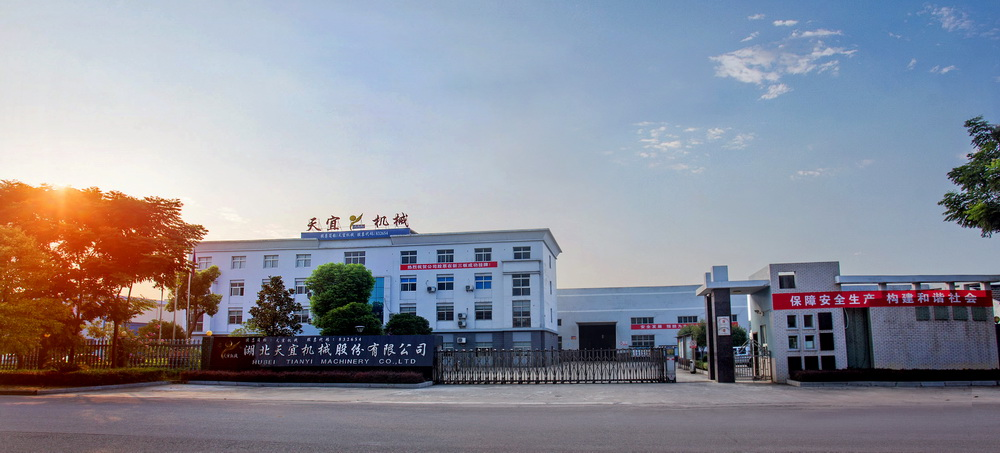

HU BEI TIANYI MACHINERY CO., LTD.( stock name: Tianyi machinery, stock code:832654) is a high-tech enterprise, which specialized in designing & producing & installing the specific equipment such as the conveying machine, crush equipment, screening machines and dedusting equipment. Our company is located in Yidu City, Hubei Province; it is only 50 kilometers far from the Three Gorges Dam &20 kilometers apart from Three Gorges Airport. Our company covers an area of 70,000 square meters currently; the Capital asset reaches nearly 89 million and we have 200 staffs, including 65 professional engineers.
Our main fields: smelting, thermal power industry, waste disposal and building materials industry. Our main products: conveying equipment, crushing equipment, screening equipment and dust removal equipment.
Integrated system: material conveyor system and dust removal system. Tianyi Machinery has strong technical force, with research and development center, technical department, and we have got 65 national patent technologies.
