Automatic Vertical Insulating Glass Sealing Robot

Manufacturing & Processing Machinery General Industrial Equipment

FOB Price:US$ 60,000.00 / Piece(s)

MOQ:1 Piece(s)

Payment Method : T/T

Keywords:IG Sealing Robot  IGU sealing line Insulated glass sealing Insulated glass sealing line

Inquire


Add to Favorites

Product Category: Manufacturing & Processing Machinery > General Industrial Equipment Trademark:
Product Package: Specifications:
Place of Origin: Port: QINGDAO
Automatic Vertical Insulating Glass Sealing Robot
Product Description

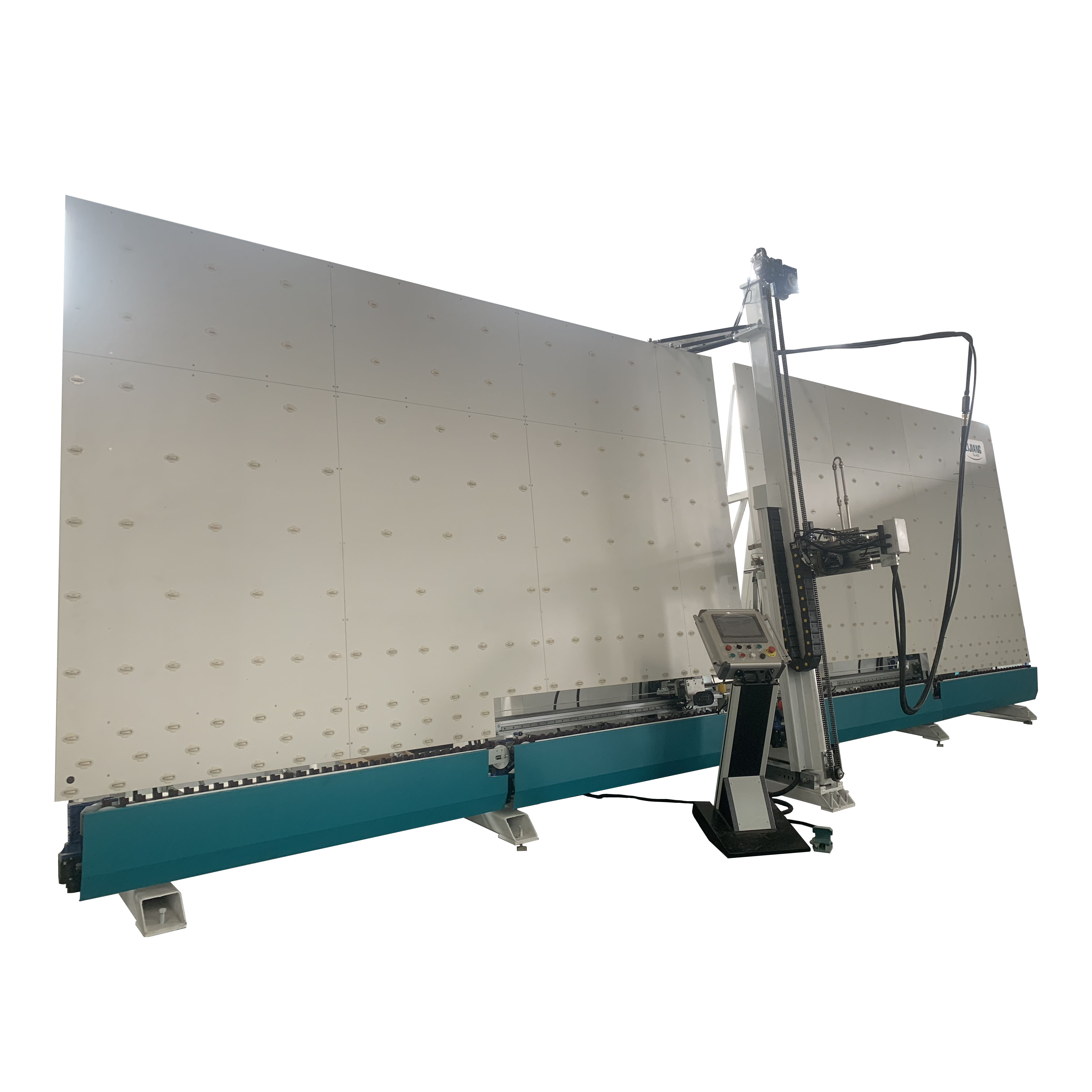

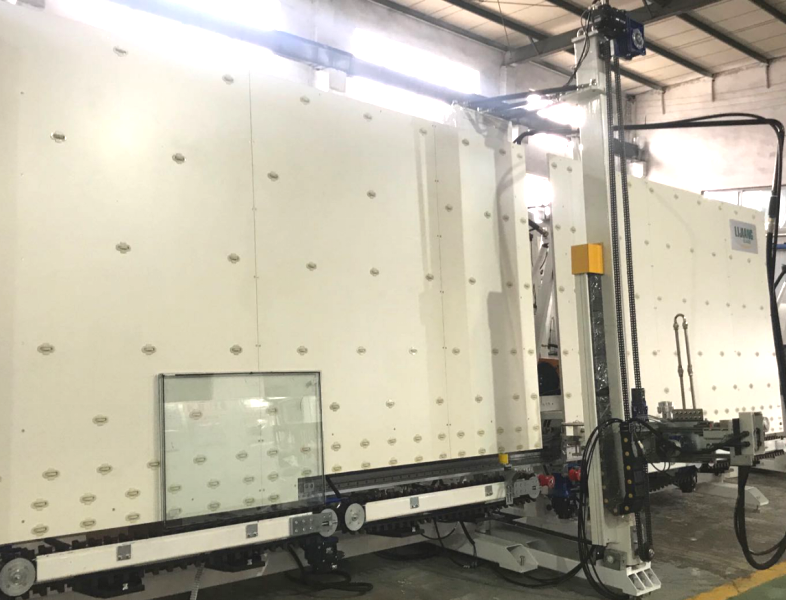

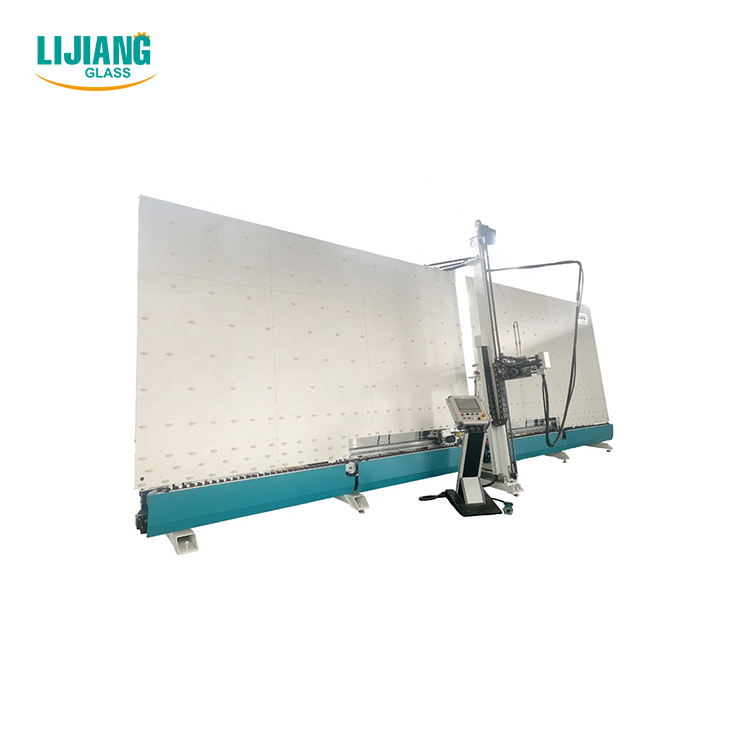

Automatic Vertical Insulating Glass Sealing Robot
Automatic Insulating Glass Sealant Sealing Machine can apply the mixed sealant evenly to the outer channel of the insulating glass through the servo mechanism to help the sealing and bonding performance of the insulating glass. Automatic Vertical Insulating Glass Sealing Robot can apply the mixed sealant evenly to the outer channel of the insulating glass through the servo mechanism to help the sealing and bonding performance of the insulating glass.
Advantages & Features


Benefits & Advantages


* Min & Max glass sizes can be optional * Adopt 8 servo motors * Adopt Japan ANCHUAN servo control systemwith stable performance * Automaticallymeasure glass size, glue depth and glue speed with linear adjustment * Adopt timingbelt to keep smooth convey with accurate position * Sparesare produced with high standardization and high precision, ensure the machine can be used with long-term working * The glass cornersare full without air bubbles, smooth surface. * Full automatic and high-efficiencymachine * New scraper design, especially for making train IG with very even sides and corners, without any bubbles. * Automatically repair glass corners with beautiful surface * Smooth convey without scratchand pollution * Single-function partsare equipped with manual functions, easy adjustment * Shaped IG units (Optional) * Stepped IG units with four sides (Optional) * Double and Triple IG units

The Smooth Glue Surface

After applying glue, It will ensure that the corners of the glass are full, without bubbles and other impurities, and the glue surface is so smooth.

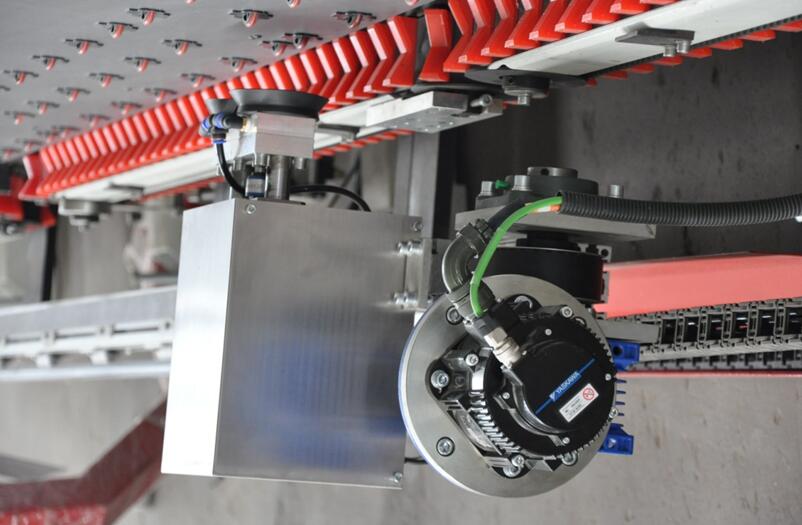

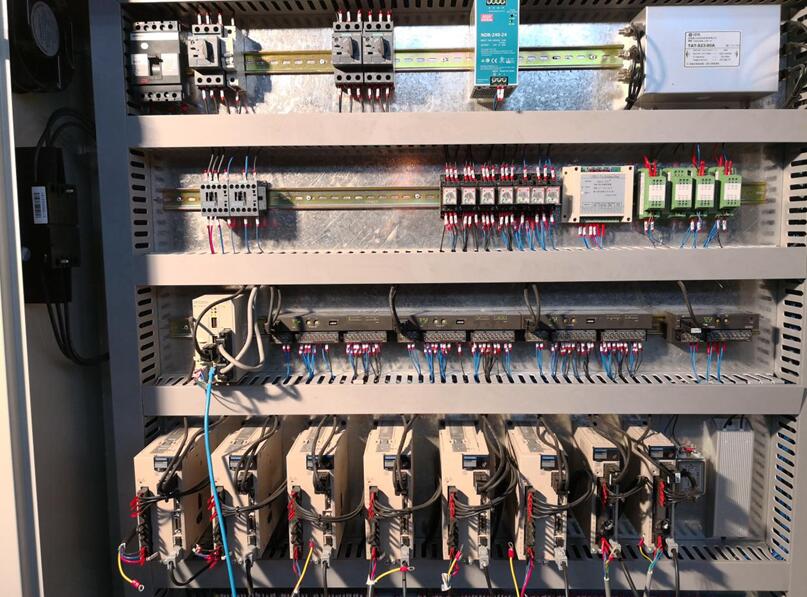

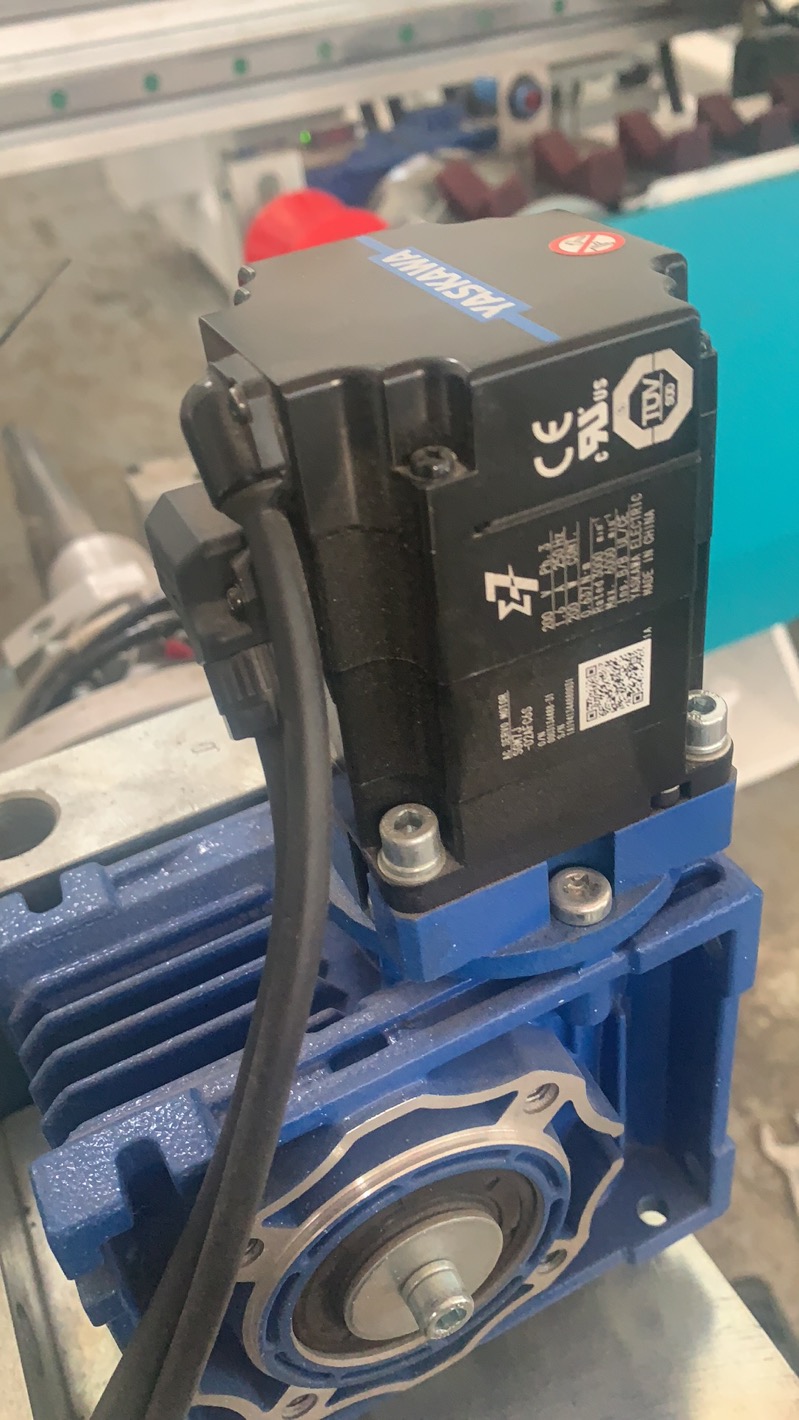

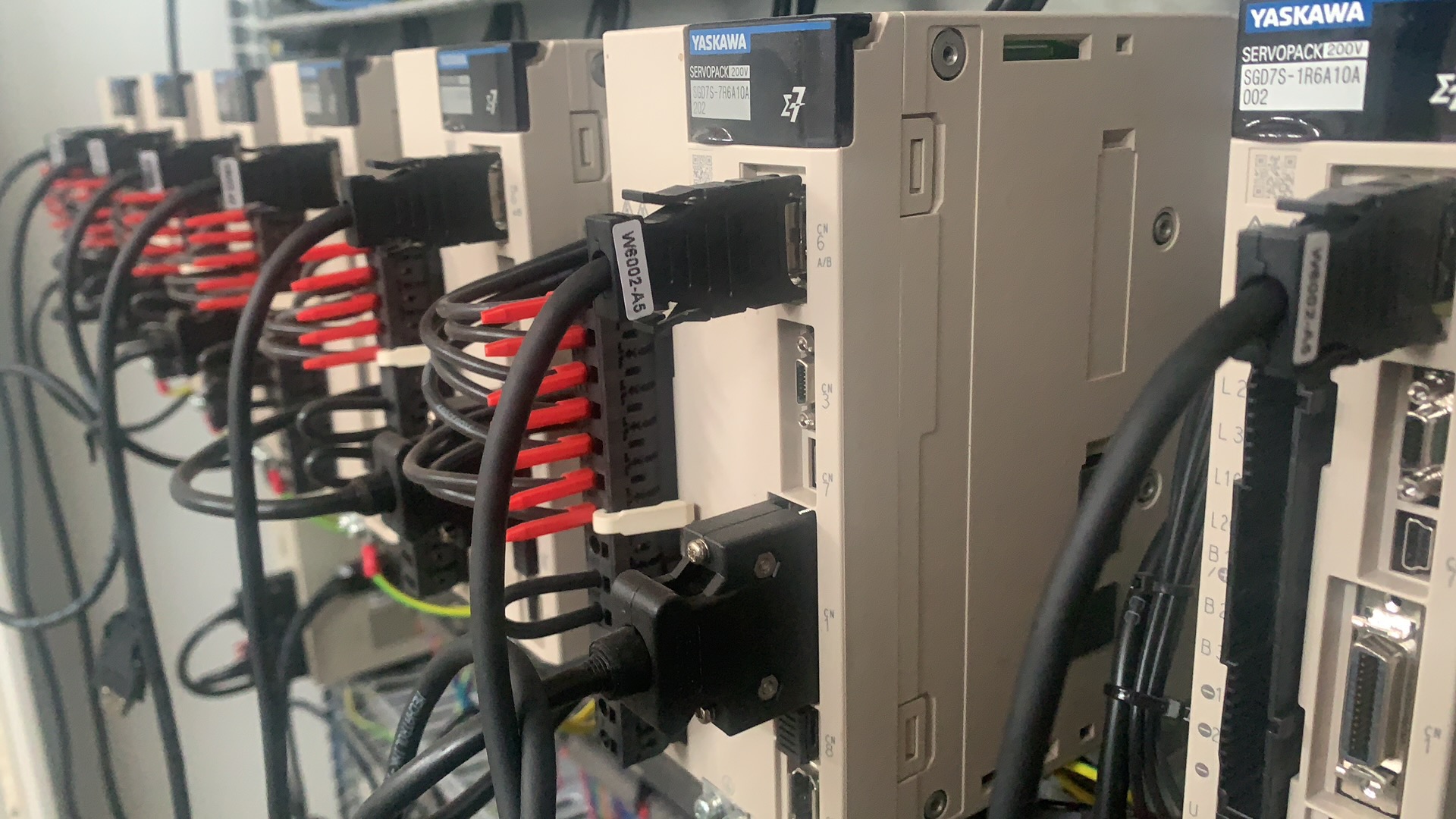

The High-precision Servo Control System

It adopts Japanese Yaskawa servo control system with clear wiring layout to ensure stable overall performance of the equipment.

The Glass Coating

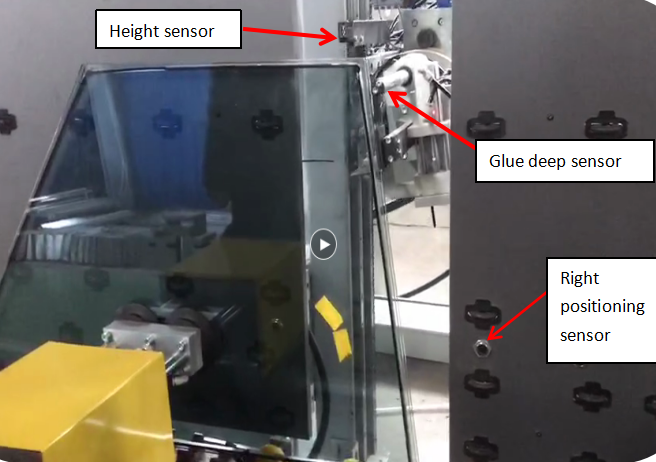

Automatically measure glass size, glue depth and glue speed through linear adjustment to ensure the stability of insulating glass coating quality.

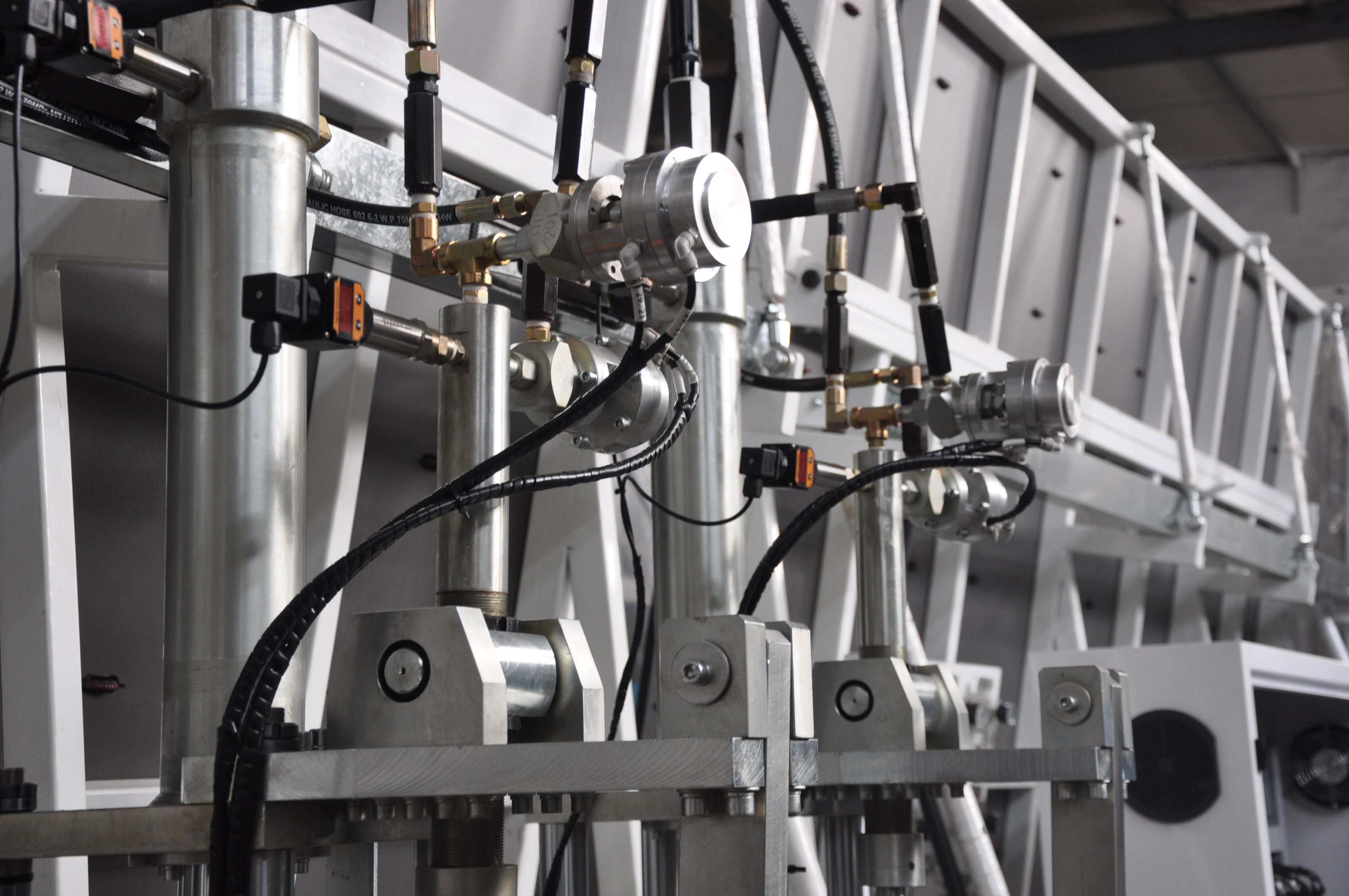

Glue Pump A and Glue Pump B

Equipped with a single A component and a single B component, mixed and glued. When applying glue, glue pump A and glue pump B are automatically mixed to realize automatic proportioning.
Main Technical Parameter
Item.
Spec.
Max glass size
2500*4000mm
Min glass size
280*400mm
Glass thickness
12 - 50mm
Glue depth
≤22mm
Glue width
26.5mm
Working speed
5 - 40m/min
Air pressure
0.6MPa
Squeeze pressure
32MPa
Voltage Power
380V 50Hz 12KW
NAME
ORIGIN
BRAND
Servo motor
Taiwan
TAIDA
PLC
Taiwan
TAIDA
Pneumatic component
Taiwan
AAIRTAC
Low pressure electricity
Germany
SIEMENS
Circuit breaker
Germany
SIEMENS
Sensor switch
Korea
AUTONICS
Approach switch
Korea
AUTONICS
Limit switch
Taiwan
TEND
Connector
Germany
SIEMENS
Frequency converter
France
SCHNEIDER
Main Button
France
SCHNEIDER
Intermediate relay
Japan
OMRON
Company Introduction



Contact Name: Miss Xuan Guo Contact Email: 31****6@qq.com
Contact Job Title: Manager Contact Mob: 186***966
Contact Tel: Contact Fax:
Address: Website:

Jinan Kation Trading Co., Ltd. Founded in 2009, specializes in R&D , production and sales of Insulating glass machinery and related auxiliary equipment for the glass deep processing industry and the door and window construction industry . Has the professional processing basis of insulating glass machinery, aluminum-plastic windows & doors machinery and the related auxiliary materials, etc .
