5 Ton Traveling Type Steel Electric Wire Rope Hoist Single Lifitng Speed
Manufacturing & Processing Machinery Industrial Processing Machinery
MOQ:1 Piece(s)
Payment Method : L/C T/T Others
Keywords:electric hoist single speed
| Product Category: | Manufacturing & Processing Machinery > Industrial Processing Machinery | Trademark: | Kaung Yuan |
| Product Package: | Carton | Specifications: | CD |
| Place of Origin: | Henan China | Port: | Qingdao ,Tianjin |
5 Ton Traveling Type Single Lifitng Speed Steel Wire Rope Electric Hoist
Product description of single lifting speed electric wire rope hoist:
Single lifting speed Model electric wire rope hoist can provide a stable speed, it can do precise loading and unloading, mounding of sand box, maintenance of machine tools, etc. It can meet the needs of ordinary jobs and is cheap.It is widely used in factories, mines, harbours, warehouse, cargo storage areas and shops, essential in raising working efficiency and improving working conditions.
Product feature of single lifting speed electric wire rope hoist:
1.Lifting speed: Single lifting speed
2.Trolley travelling speed: 20m/min
3.Working class: M3~M4
4.Control method: pendant control+ remote control
5, Full safety system as follows:
Weight overload protection
Emergency stop system
Over current protection
Short-circuit protection
Phase sequence protection
Zero position protection
Voltage loss protection
Overhigh lift and overlow lift limit swit
Main Product:
Henan Mine Cranes meet the factory, workshop, port, mining, waste disposal, goods scattered, petrochemical, aerospace, military and other industries of universal bridge crane, overhead crane price 20 ton 5ton, eot crane, door crane, universal gantry crane, rubber tyre and rail mounted container gantry crane, four link type portal crane, quayside container crane, crane, crane hook, mining grab crane, gantry crane, ship loader, grab bucket ship unloader, stacker reclaimer, dredger, mobile platforms and other types of hydraulic crane technical requirements.
Advantages:
The 2,700-plus-member factory covers over 680,000 square meters and has a total asset of 660 million CNY. The 1,200-plus equipment enable the company to independently conduct over 20 technological flows, including lathing, milling, planning and grinding. The 180-plus intermediate and senor technical staff are responsible for R&D and production of all the products. The products have passed CE SGS TUV BV and CU-TR verification, and factory passed ISO9001-2008 international certification, IS014001:1996 environmental and ISO28001-2001 quality, health and safety certification. Our company has perfect quality-control system, strict and comprehensive management system, strong production capability and advanced test measures, guaranteeing high quality, output, competitiveness and market share.
Technical parameters:
| Type | CD MD | ||||
| Lifting weight(t) | 1,2,3,5 | 10 | 16 | ||
| Lifting height(m) | 6/9/12/16/24/30 | 9/12/18/24/30 | 9/12/16/20/24/30 | ||
| Hoisting speed(m/min) | 8(0.8/8) | 7(0.7/7) | 3.5(0.35/3.5) | ||
| Running speed(m/min) | 20 | 20 | 20 | ||
Steel wire rope type | specification | 6×37+1 | |||
| H beam orbit model | 16-45c | 30T-45c | 30T-45C | ||
| Minimum curvature radius(m) | 1.5-6 | 3.5-9 | 3.5-6 | ||
| Hoisting motor | Type | ZD1(ZDS1) | ZDI(ZDS1) | ZD1(ZDS1) | |
| Power(KW) | 1.5/3/4.5/7.5 | 13(1.5/13) | 18.5(2.2/18.5) | ||
| Rotation speed(r/min) | 1380 | 1380 | 1380 | ||
| Current(A) | 4.3,7.6,11,18 | 30 | 30 | ||
| Running speed | Type | ZDY11,12,21-4 | ZDY21-4 | ZDY21-4 | |
| Power(KW) | 0.2,0.4,0.8 | 1.5*2 | 0.8*2 | ||

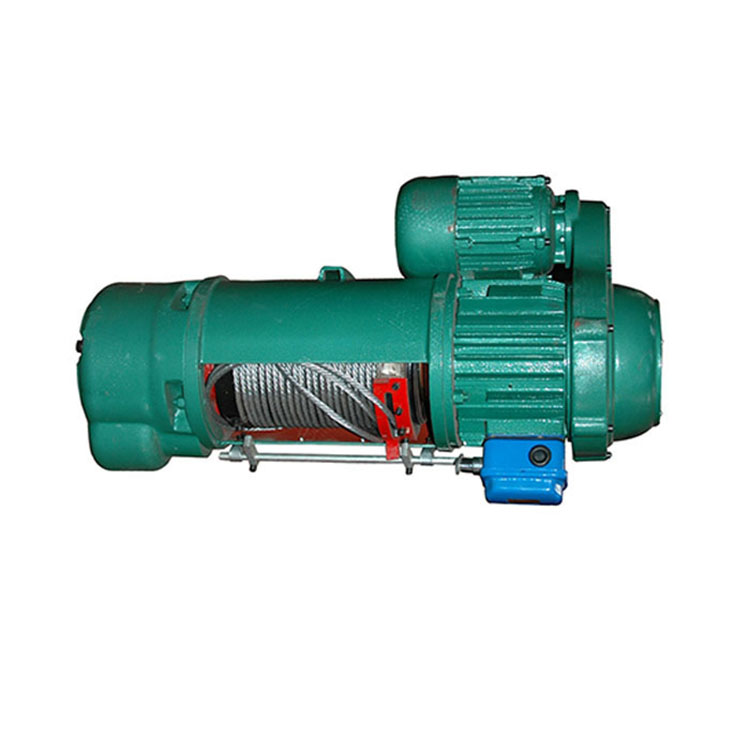

Product picture:
