JK1.6 Electric Wire Rope Winch Used for Tracton the Weight Droop
Manufacturing & Processing Machinery General Industrial Equipment
MOQ:1 Piece(s)
Payment Method : L/C T/T Western Union
Keywords:JK fast series Winch
| Product Category: | Manufacturing & Processing Machinery > General Industrial Equipment | Trademark: | kuangyuan |
| Product Package: | Standard export packaging | Specifications: | JK |
| Place of Origin: | China | Port: | any china port |

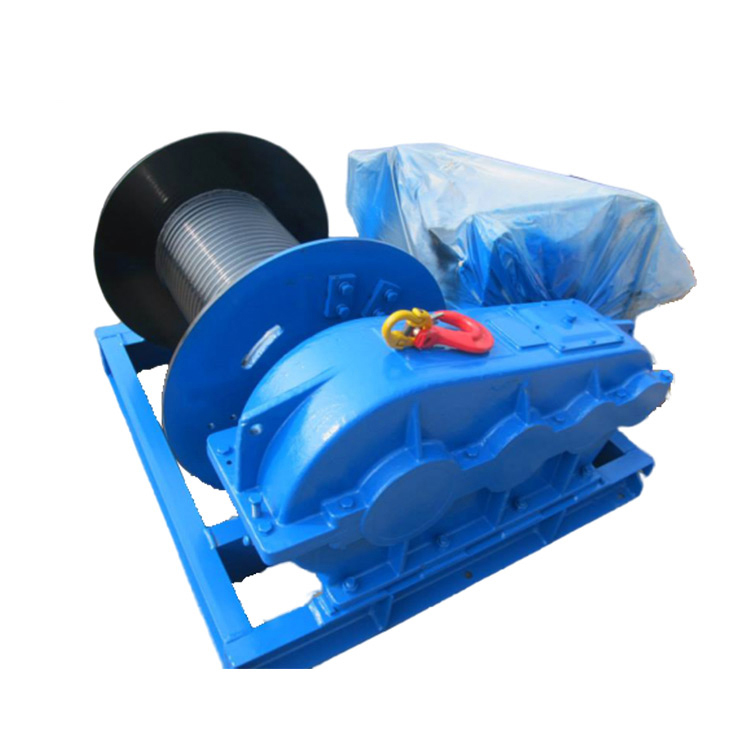

JK1.6 Electric Wire Rope Winch Used for Tracton the Weight Droop
JK fast series Winch mainly used for materials lifting and tracton the weight droop during construction.It also used for crane as main hoist.
| Y brand winch | WINCH TECHNIQUE PARAMETER | |||||||||||
| Rated load (KN) | Rated speed (m/min) | Rope capacity (m) | Rope Diameter (mm) | Motor type | Motor power (KN) | Overall dimension (mm) | Weight(Kg) | Type | ||||
| JK MODEL FAST SPEED ELECTRONIC CONTROL WINCH | JK0.5 | 5 | 22 | 190 | 7.7 | Y100L-4 | 3 | 620*701*417 | 200 | / | ||
| JK1 | 10 | 22 | 100 | 9.3 | Y112M-4 | 4 | 620*701*417 | 300 | / | |||
| JK1.6 | 16 | 24 | 150 | 12.5 | Y132S-4 | 5.5 | 945*996*570 | 500 | / | |||
| JK2 | 20 | 24 | 150 | 13 | Y132M-4 | 7.5 | 945*996*570 | 550 | / | |||
| KK3.2 | 32 | 25 | 290 | 15.5 | YZR180L-6 | 15 | 1325*1335*840 | 1011 | / | |||
| JK3.2B | 32 | 30 | 250 | 15.5 | YZR200L-6 | 22 | 1900*1738*985 | 1500 | / | |||
| JK5 | 50 | 30 | 300 | 21.5 | YZR225M-6 | 30 | 1900*1620*985 | 2050 | / | |||
| JK5B | 50 | 25 | 210 | 21.5 | YZR225M-8 | 22 | 2250*2500*1300 | 2264 | / | |||
| JK8 | 80 | 25 | 160 | 26 | YZR280S-8 | 45 | 1533*1985*1045 | 3000 | / | |||
| JK10 | 100 | 30 | 300 | 30 | YZR315S-8 | 55 | 2250*2500*1300 | 5100 | / | |||
1. motor.
2. Reduction gear box.
3. winch drum.
4. Brake.
5. electric control system.
6. optional rope guider.
If you interest,contact us anytime.
