1t 2t Customized electric wire rope hoist with motorized trolley for Sale
Manufacturing & Processing Machinery General Industrial Equipment
MOQ:11 Piece(s)
Payment Method : L/C T/T Western Union
Keywords:HOIST
| Product Category: | Manufacturing & Processing Machinery > General Industrial Equipment | Trademark: | Kuangyuan |
| Product Package: | Standard export packaging | Specifications: | CD/MD |
| Place of Origin: | China | Port: | any china port |

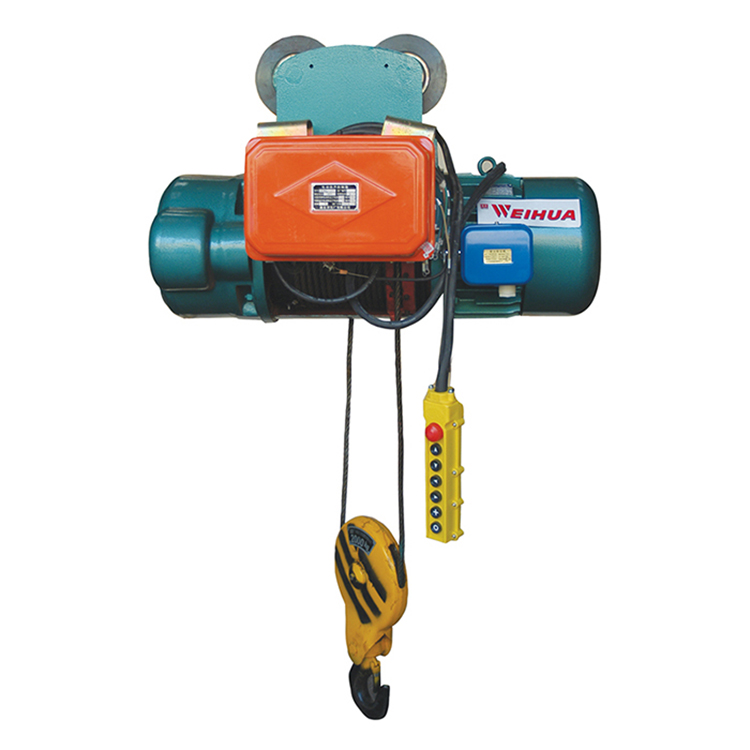

1t 2t Customized electric wire rope hoist with motorized trolley for Sale
CD/MD Model electric wire rope hoist provides two speeds: normal speed and low speed. At a low speed, it can do precise loading and unloading, mounding of sand box, maintenance of machine tools, etc. It is widely used in factories, mines, harbours, warehouse, cargo storage areas and shops, essential in raising working efficiency and improving working conditions.
| Lifting weight(t) | 1,2,3,5 | 10 | 16 | ||
| Lifting height(m) | 6/9/12/16/24/30 | 9/12/18/24/30 | 9/12/16/20/24/30 | ||
| Hoisting speed(m/min) | 8(0.8/8) | 7(0.7/7) | 3.5(0.35/3.5) | ||
| Running speed(m/min) | 20 | 20 | 20 | ||
Steel wire rope type | specification | 6×37+1 | |||
| H beam orbit model | 16-45c | 30T-45c | 30T-45C | ||
| Minimum curvature radius(m) | 1.5-6 | 3.5-9 | 3.5-6 | ||
| Hoisting motor | Type | ZD1(ZDS1) | ZDI(ZDS1) | ZD1(ZDS1) | |
| Power(KW) | 1.5/3/4.5/7.5 | 13(1.5/13) | 18.5(2.2/18.5) | ||
| Rotation speed(r/min) | 1380 | 1380 | 1380 | ||
| Current(A) | 4.3,7.6,11,18 | 30 | 30 | ||
| Running speed | Type | ZDY11,12,21-4 | ZDY21-4 | ZDY21-4 | |
| Power(KW) | 0.2,0.4,0.8 | 1.5*2 | 0.8*2 | ||
| Rotation speed(r/min) | 1380 | 1380 | 1380 | ||
| Current(A) | 0.72,1.25,2.4 | 2.4 | 2.4 | ||
| Power source | Three-phase, 380V, 50 HZ or 400~440V/50-60Hz, | ||||
| Working system | Intermediate FC=25% | ||||
Henan mine cranes are universal bridge cranes, 20 and 5-ton overhead cranes, eot cranes, door cranes, universal crane cranes, rubber tires and container cranes, 4-link portal cranes, thread cranes. hooks, mining cranes, cranes, forklifts, bucket loaders, bucket loaders, stack regenerators, draggers, mobile platforms and other types of hydraulic cranes.
Photos:
Structural features:
The components of wire rope electric hoist are: motor, transmission mechanism, reel and wire rope. The motor and the reel can be roughly divided into four types based on the different positions of each other. (1) The electric hoist whose motor axis is perpendicular to the axis of the drum adopts worm gear transmission, which is large in width, heavy in structure, low in mechanical efficiency, and difficult to process. No manufacturer produces products of this type of structure anymore. Wire rope electric hoist
