JINHUA GAOBO MACHINERY CO.,LTD

Business Type:Manufacturer

Main Products: .Full automatic exercise book making machine(high speed flexo printing and saddle stitching production line for exercise book)

view on mobile

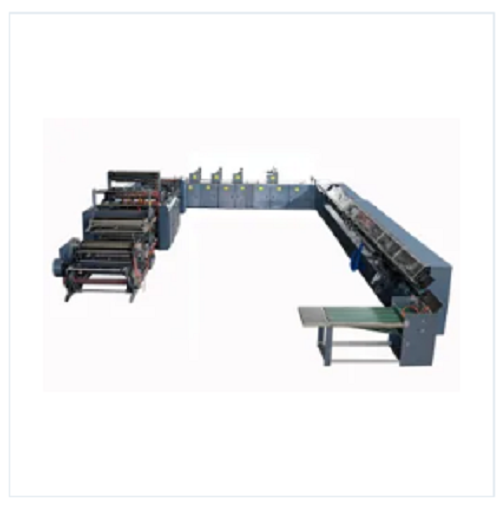

Note Book Making Machine

Manufacturing & Processing Machinery Packaging & Printing Machine

FOB Price:US$ Customizable price / Set(s)

MOQ:1 Set(s)

Payment Method : T/T

Keywords:Note Book Making Machine

Add to Favorites

Product Category: Manufacturing & Processing Machinery > Packaging & Printing Machine Trademark: GAOBO MACHINERY
Product Package: Specifications:
Place of Origin: zhejiang china Port: ningbo

Performance and features:
This new machine .which has been developed by our company recently .is of stable quality and high efficiency.and it applies to processing this kind of  notebook with 2 different inner sheets or 4-color printing.it adopts techniques.such as microcomputer control.electro-optical tracking .gas-liquid interaction.smart touch screen operation and ink flexo printing (ink flexo printing is environmentally-friendly and scientific).this production line is an ideal choice of mass production of staple-binding notebooks.with a perfect combination of 15processes :from  reel paper unwinding.high speed flexographic printing.ruling.segmenting.folding.crosscutting.counting.2-feeding-covers.turning.gluing.drying.covering edge.collecting.and to cutting finished notebook.

Main specifications:
Model NO:GB-670
Web width:580-1020mm
Covered edge thickness:4-12mm
Back strip range:40-60mm
Printing speed(Max):250m/min
Reprinting range:300-670mm
Covered edge width:20-35mm
Conveying speed(Max):25m/min
Crosscutting width:300-670mm
Drying temperature setting:0-400celsius
Counting:5-50sheets
Sheet weight:45-180g
Book width:130-300mm
Cover weight:80-400g/m2
Main power:30kw
Web diameter(Max):1200mm
Gross power:45kw
Overall size:15.5*8.35*2.3m
Machine weight:25000kgs


Contact Name: Miss. kellen min Contact Email: ke****n@outlook.com
Contact Job Title: Export Manager Contact Mob: 189***267
Contact Tel: Contact Fax:
Address: Website:
