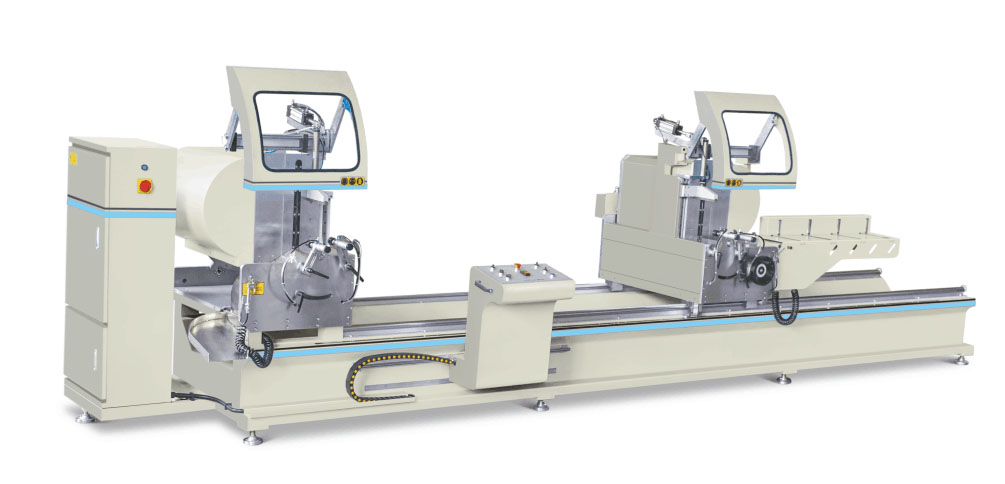

CNC Aluminum Double-head Cutting Saw JZS-600*5000
Manufacturing & Processing Machinery Industrial Processing Machinery
MOQ:1 Piece(s)
Payment Method : L/C T/T D/P Western Union Paypal Money Gram
Keywords:Double head Cutting Saw CNC Aluminum Cutting Saw JZS-600*5000 CNC Cutting Saw CNC Aluminum Saw CNC Double head Cutting Saw CNC Aluminum Double head Saw Double head Cutting machine aluminum Cutting machine Cutting machine
| Product Category: | Manufacturing & Processing Machinery > Industrial Processing Machinery | Trademark: | MINGMAI |
| Product Package: | 6620mm x 1950mm x 1700mm | Specifications: | |
| Place of Origin: | CHINA | Port: | QINGDAO |
Main Feature
1). High quality carbide tipped saw blades.
2). Two heads adopt cylinder transmit can achieve head sawing separately, can sawing 90 and outer 45 degree.
3). Have the function of chose clamping press, vertical and horizontal clamp can control in separately also can clamping together.
4). Head sawing adopt program control, make the complicate circuit integration, and reduce the fault about electric components.
5). High precision linear bearing to keep the repositioning precision.
6). Right head conveyor is 1200mm.
7). Head is moved by handle wheel.
8). The min cutting scope is 230mm when 90°,can cut 5000mm when 45°
9). Safety protection system, heavy duty unibody steel construction.
10). Vertical and horizontal clamping cylinder.
11). Spraying cooling system.
12). CNC system CAN put in, it can make the cutting much more precise, and the operating more visualized.
Technical Parameters
Brand Name | Mingmei |
Power supply | 380V 50Hz or customized |
Main motor power: | 4.0kw*2 |
Air pressure | 0.6-0.8M pa |
Air consumption | 200L /min |
Main motor rotation speed: | 2840r/min |
Saw blade dimension: | Φ600×Φ30 |

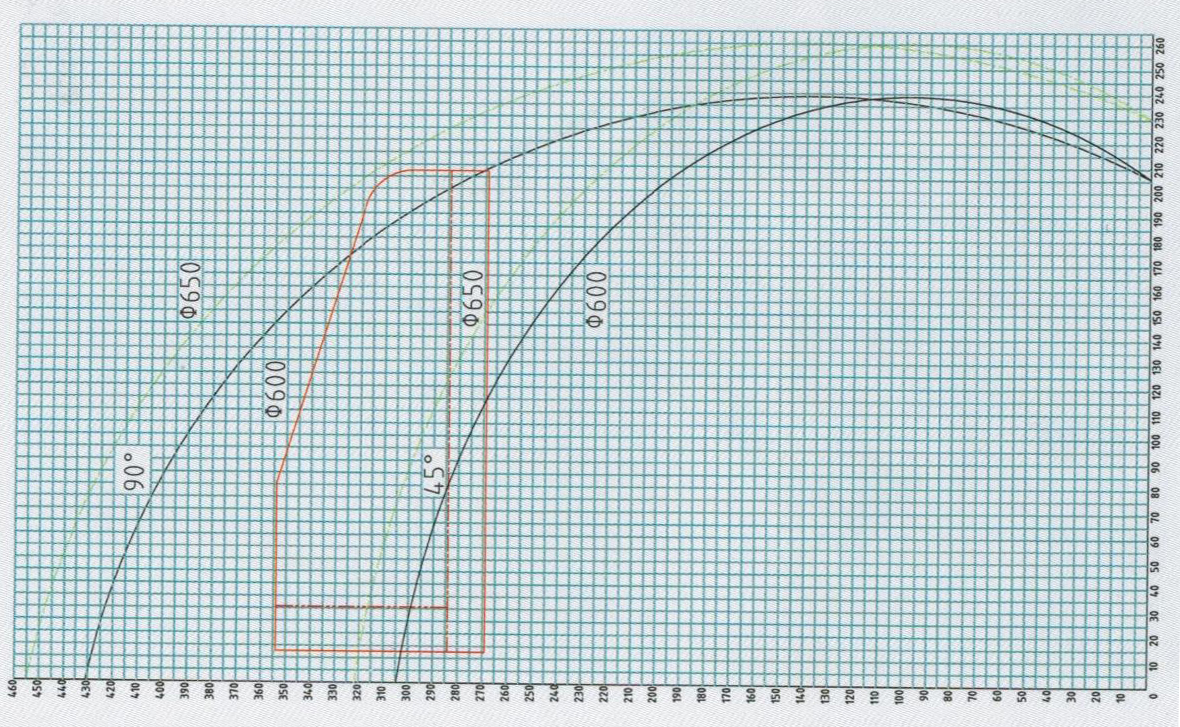

Cutting Scope | 90°min430mm; Outer 45°,max5000mm |
Cutting W x H | 200x200mm |
Repeat locating length | ≤0.3mm |
Angle cutting tolerance | ±5′ |
Plane of cutting surface | ≤0.10 |
Cutting profile surface roughness | Ra12.5μm |
Size: (width × high × long) | 6620mm × 1950mm × 1700mm |
Weight: | 2700Kg |

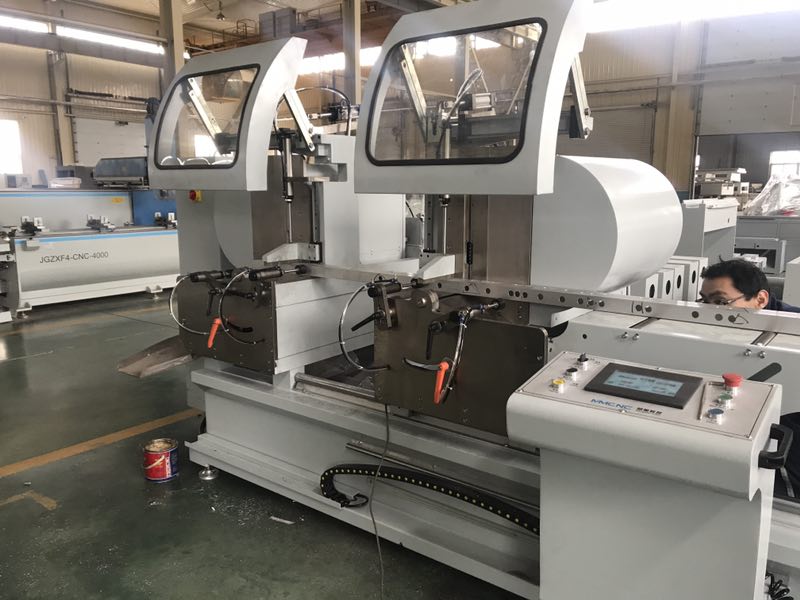

Machine Details:

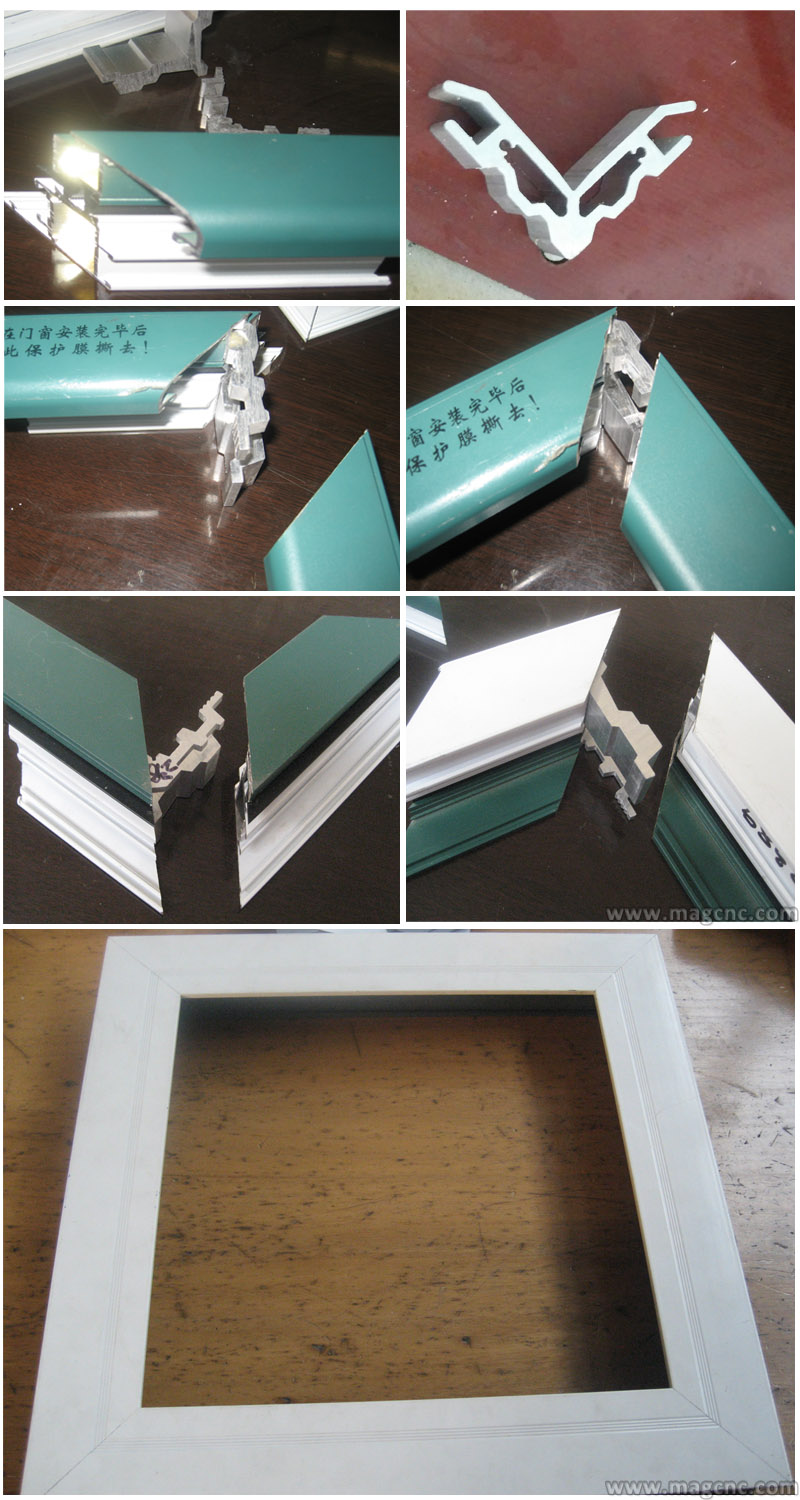

Cutting Samples:
Certification

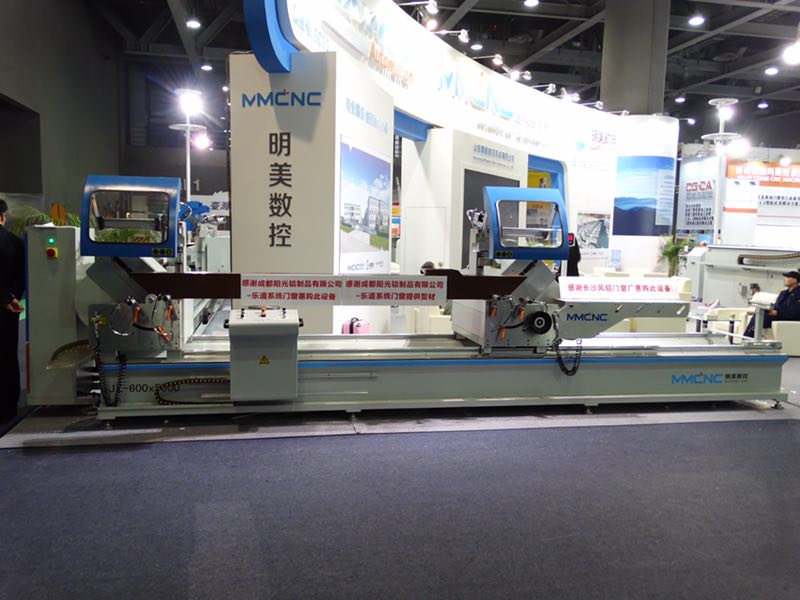

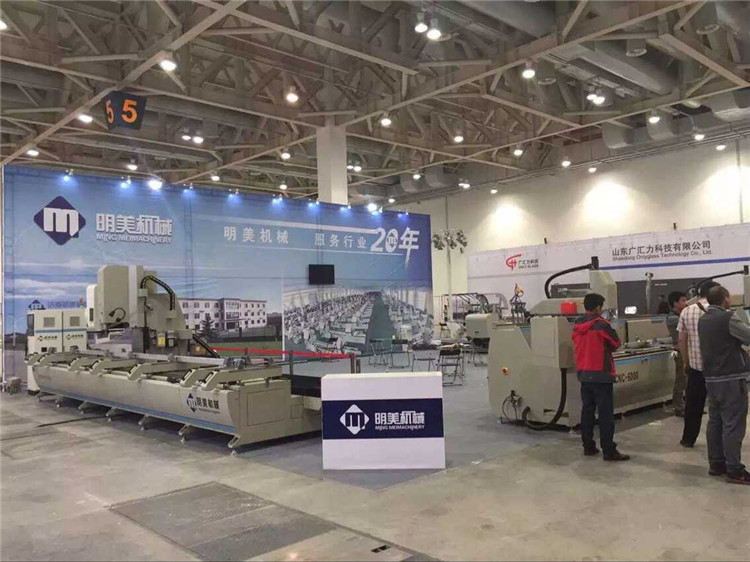

Exhibition:

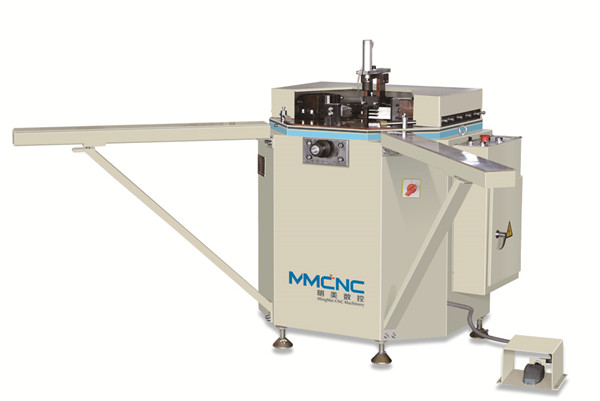

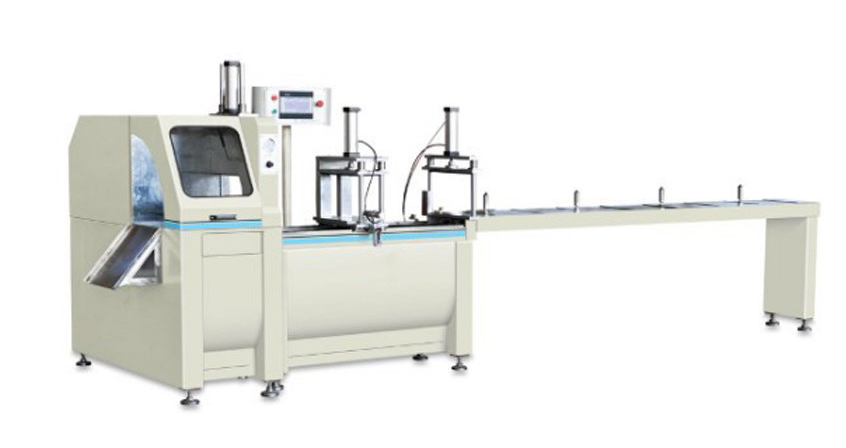

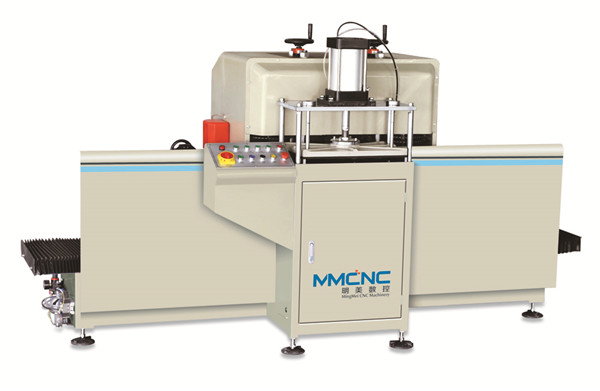

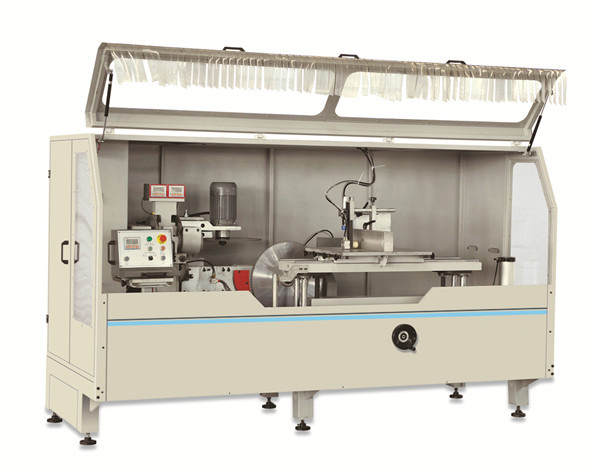

Related Machines:
Our service:
1). 7*24 online technical support;
2). Design drawing of the factory workshop;
3). Skilled engineer install the machine;
4). Training workers for you;
5). Local technical support or Spare parts support
Kindly note:
Before you buy the machine, please make sure then tell me your local power supply,then we can make the right according to your true voltage.
Kindly and friendly inform:
We have skilled engineers with well English ability in this field about 20 years, they can directly to give you any help on machines by calling or by video link or by email in short time, and before our machine reach your workshop, if you need we help you to design a drawing that tell you all machines should how to place in your workshop,for example, welding machine should put which proper place is better, cutting saw should put which proper place is better, your air compressor should put which place is better etc..., we can help you to give you a drawing to give you suggestion in short minutes; and if you need we suggest you how many Squaremeters workshop is better for you, you can tell us your plan production, then we can tell your how many machines you needs, then tell you how much Squaremeters workshop is better for you.
| Contact Name: | Mrs Judy Zhu | Contact Email: | jn****e@163.com |
| Contact Job Title: | Manager | Contact Mob: | 133***529 |
| Contact Tel: | 0086 531 87515560 | Contact Fax: | 0086 531 87515561 |
| Address: | Website: | www.magcnc.com |
