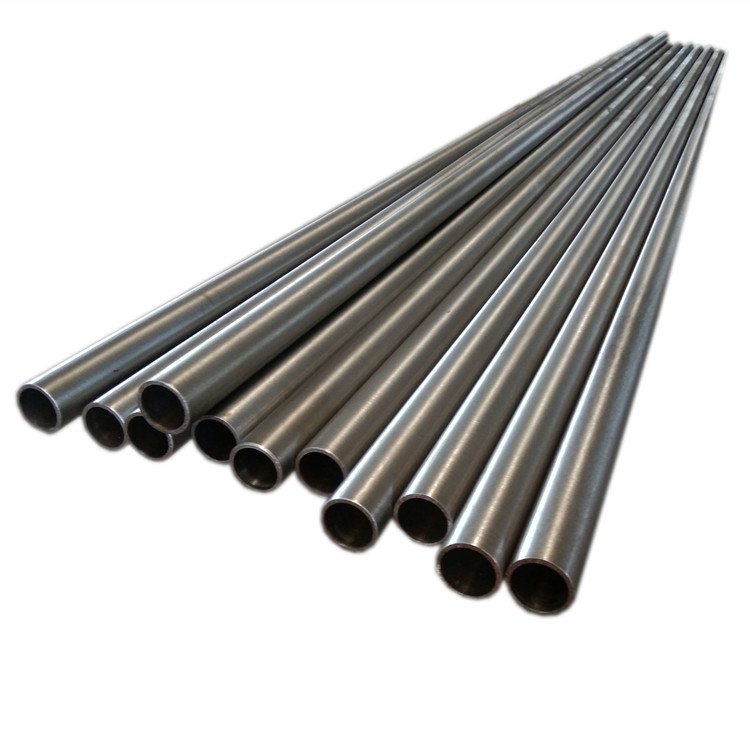

Precision Seamless DIN2391 CK45 Cylinder using BK Cold rolled Tube
Construction & Decoration Building Structural Material
MOQ:5 Ton(s)
Payment Method : L/C T/T
Keywords:cold rolled tube CK45 cold rolled tube cylinder tube
| Product Category: | Construction & Decoration > Building Structural Material | Trademark: | YTXP |
| Product Package: | bundle package with woven bat ouside or as request | Specifications: | size 95*80 70*57 95*80 86*75 140*120 141*115 139*115 146*125* 176*150 and so on |
| Place of Origin: | yantai shandong | Port: | qingdao |
Xinpeng Have passed ISO9001:2015 verified, all products are in strict quality Control.
We have the own laboratory to test the mechanical property. Our quality team can do roughness test, UT test, flattening test, hardening test in our own company. Straightness test, semi-product test, finished products test is 100% carry on in Xinpeng.
We always believe the Quality is life, quality is the basic.
Our quality target is 600PPM.
OD | GB/T3639 | DIN2391 (EN10305) | Our Tolerance | Best Quality |
31-40mm | ±0.15mm | ±0.15mm | ±0.05mm | ±0.03mm |
41-50mm | ±0.20mm | ±0.20mm | ±0.05mm | ±0.03mm |
51-60mm | ±0.25mm | ±0.25mm | ±0.08mm | ±0.03mm |
61-70mm | ±0.30mm | ±0.30mm | ±0.10mm | ±0.05mm |
71-160mm | ±0.30mm | ±0.30mm | ±0.10mm | ±0.05mm |
160mm-230mm | ±0.50mm | ±0.50mm | ±0.40mm | |
Tolerance in WT | ±0.12mm | ±0.10mm | ±0.05mm | ±0.03mm |
MECHANICAL PROPERTIES (we do much better than this)
Condition | Material Grade | T.S (MPa) lowest | Y.S (MPa) lowest | Elongation (%) |
BKS | ST35 (10#) | ≥420 | ≥315 | ≥14 |
BKS | ST45(20#) | ≥520 | ≥375 | ≥12 |
BKS | ST52(16Mn) | ≥580 | ≥420 | ≥10 |
GBK | ST35 (10#) | ≥315 | ≥35 | |
GBK | ST45(20#) | ≥390 | ≥32 | |
GBK | ST52(16Mn) | ≥490 | ≥30 | |
NBK | ST35 (10#) | 340-470 | ≥235 | ≥32 |
NBK | ST45(20#) | 440-570 | ≥255 | ≥30 |
NBK | ST52(16Mn) | 490-630 | ≥335 | ≥28 |
Size available in stock, other size can do customized
Size | ID*OD | (mm) | These sizes have stock, | ||
40*50 | 90*110 | 140*170 | 60*45 | 120*140 | 180*205 |
40*55 | 95*110 | 145*170 | 70*57 | 125*140 | 90*105 |
50*60 | 95*115 | 150*170 | 90*80 | 125*145 | 70*85 |
50*65 | 100*110 | 150*175 | 102*90 | 125*150 | 70*90 |
55*70 | 100*114 | 150*180 | 50*40 | 130*150 | 75*90 |
60*70 | 100*115 | 155*180 | 55*40 | 130*155 | 140*165 |
60*75 | 100*120 | 160*175 | 180*210 | 130*160 | 70*80 |
60*78 | 100*125 | 160*180 | 180*215 | 135*160 | 70*82 |
63*73 | 105*125 | 160*185 | 180*220 | 140*160 | 165*205 |
63*75 | 110*125 | 160*190 | 185*205 | 80*100 | 170*200 |
63*76 | 110*130 | 160*195 | 185*215 | 80*92 | 85*100 |
63*78 | 115*130 | 165*190 | 185*220 | 80*95 | 180*200 |
65*80 | 115*135 | 165*140 | 140*120 | 146*125 | 30*25 |
Our workshop
Our factory is equipped with cold drawn machine set, cold rolling machine sets, advanced CNC SRB machines, honing machines,
combined cold drawn, cold rolling, heat treatment and SRB process to produce the better quality products according to customer requirement.
Our Factory has passed the international Quality System ISO 9 0 0 1: 2 0 1 5 verified. We are equipped with various advanced testing machines which can exhaustive analysis of the products and promise the quality.
PACKAGE
1) Minimum order quantity: 5 tons
2) Price: FOB or CIF or CFR at Qingdaoport inShandong
3) Payment: 30% deposit in advance, the balance against the copy of B/L; or 100% L/C, etc
4) Lead Time: within 15-35 workdays normally
5) Packing: Standard seaworthy packing or as per your request. (As pictures)
6) Sample: Free sample(LESS THAN 2KG) is available, freight stand by clients.
20ft GP: 5898mm (Length) x2352mm (Width) x2393mm (High)
40ft GP: 12032mm (Length) x2352mm (Width) x2393mm (High)
40ft HC: 12032mm (Length) x2352mm (Width) x2698mm (High)
20 feet container load 25 tons square tube /square tube 100x100/steel square tube whose length is less than 5.8m
40 feet container load 25 tons square tube /square tube 100x100/steel square tube whose length is less than 11.8m
