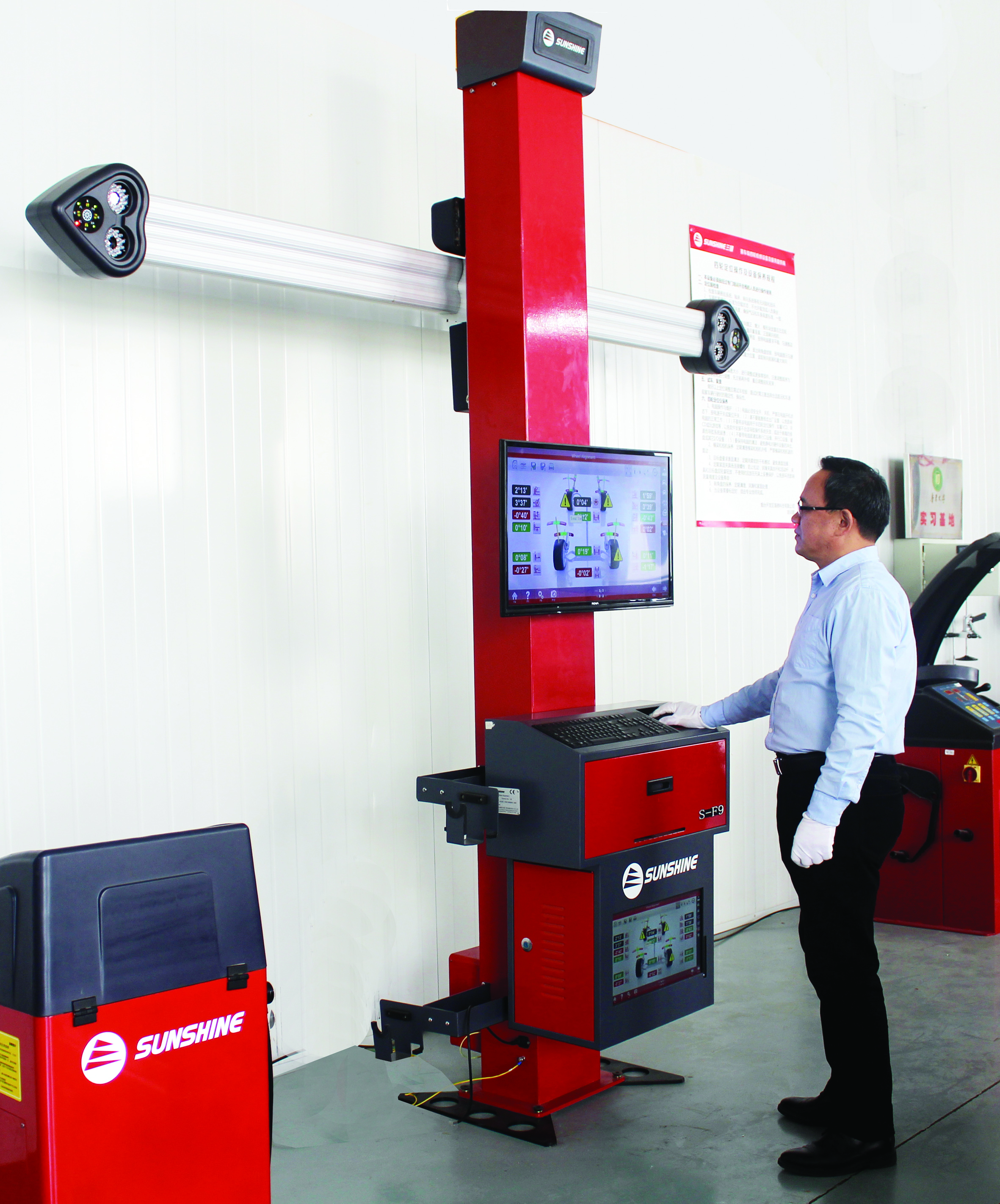

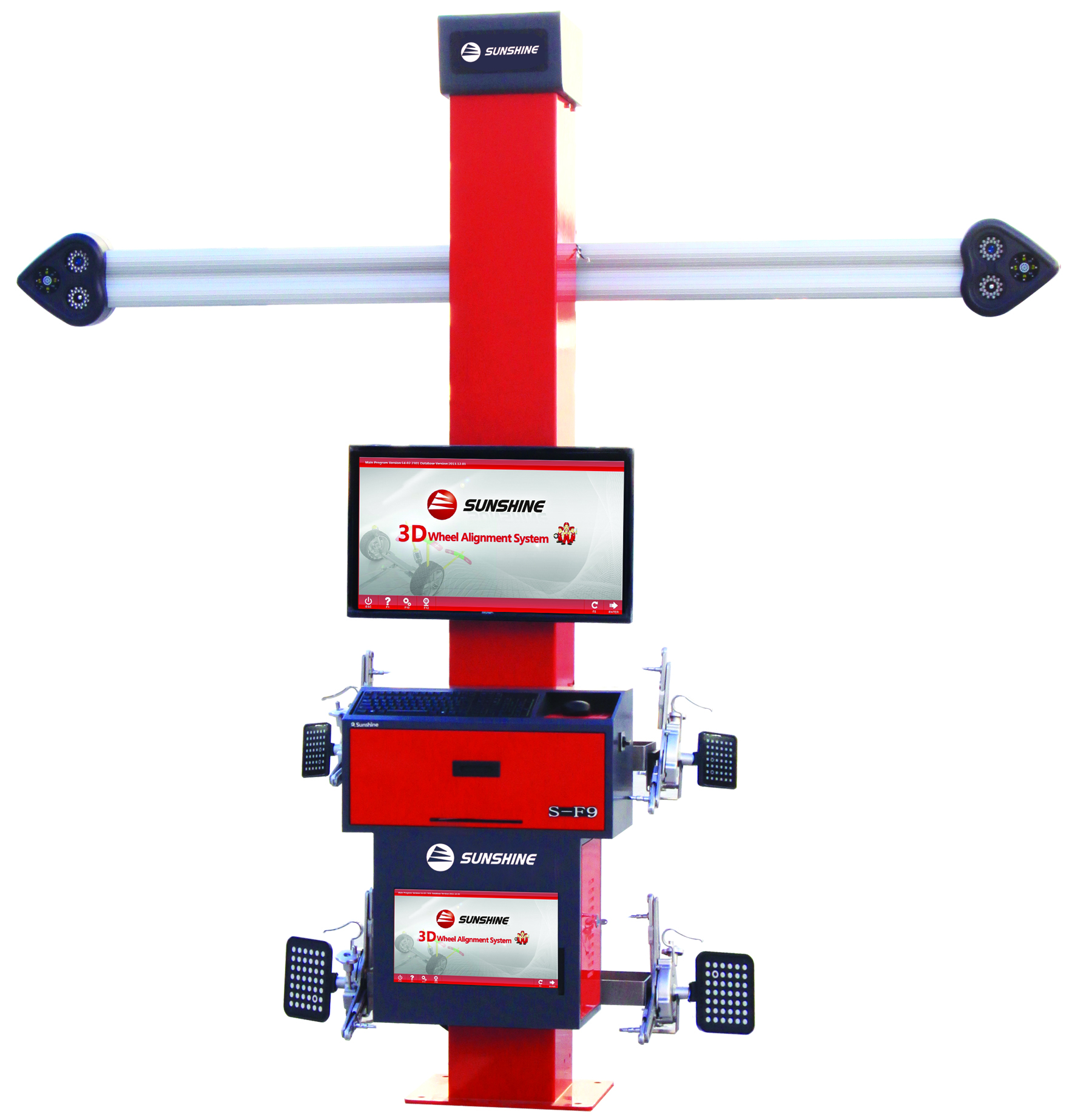

3D Wheel Alignment S-F9
Service Supplier Service Equipment
MOQ:1 Piece(s)
Payment Method : L/C T/T
Keywords:3D Four-Wheel Aligner Wheel Alignment
| Product Category: | Service Supplier > Service Equipment | Trademark: | SUNSHINE |
| Product Package: | Packed in export plywood case | Specifications: | S-F9 |
| Place of Origin: | China | Port: | Qingdao |

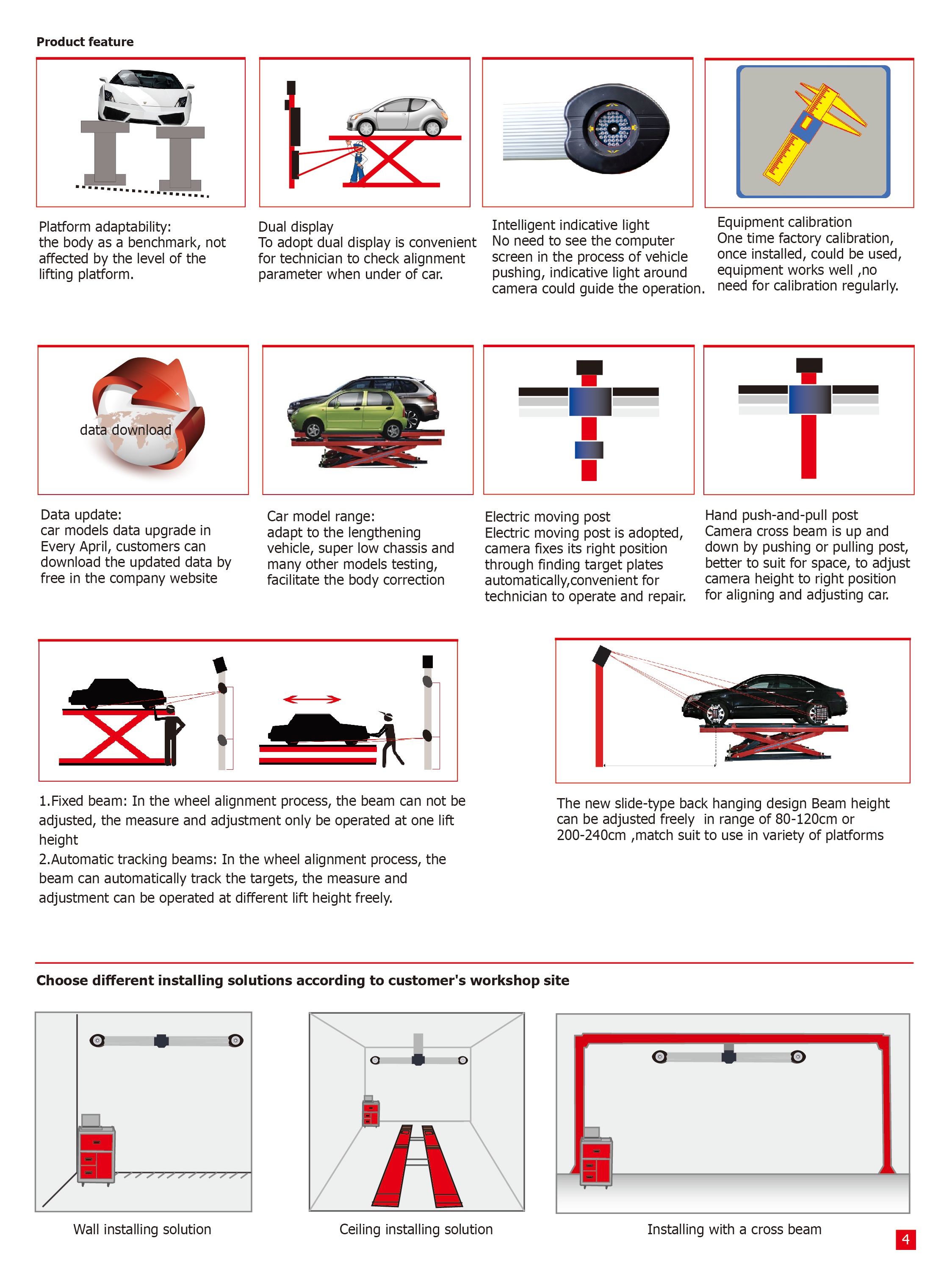

Platform Choice:

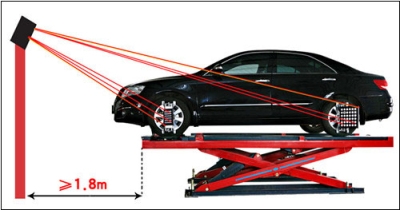

1.scissor lift(recommend):The ideal platform for 3D alignment,the length is more than 4000mm;
2.Four post lift:require the distance between the left and right posts is more than 2700mm.
Products Advantages:

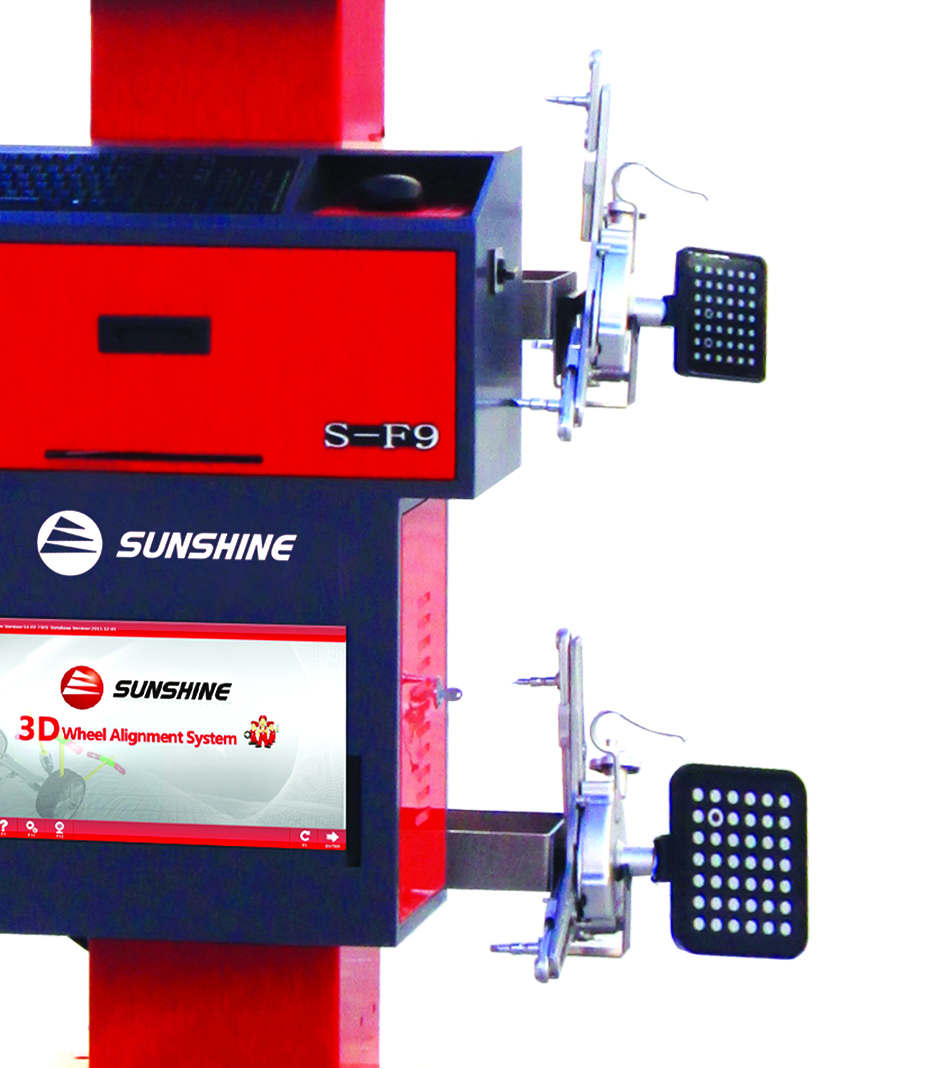

Automatic tracking beam

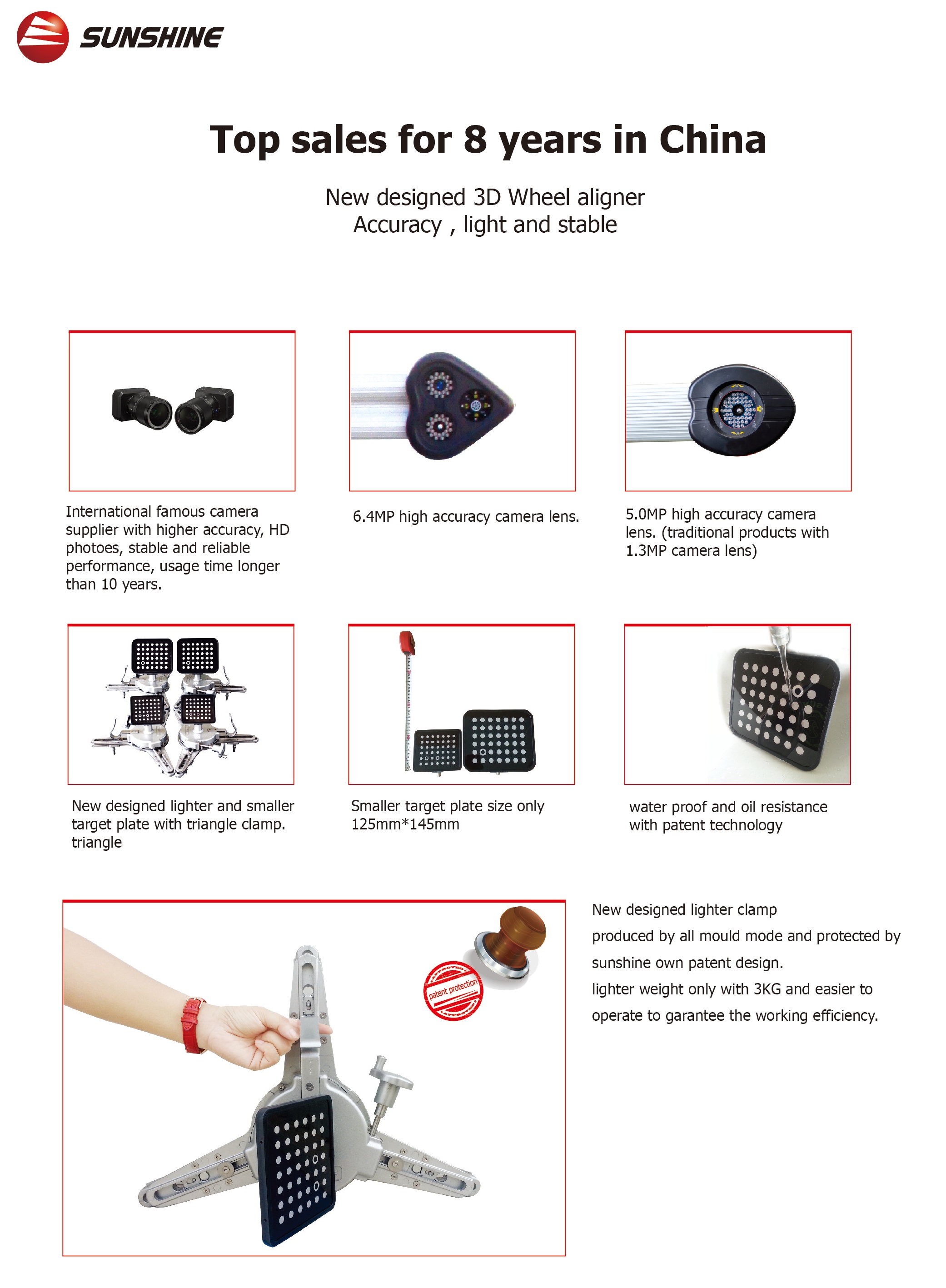

Camera automatic tracking,automatic tracking beam,technician can make measurement and adjustment on different of lifting levels.6.4 MP high accuracy camera with double display,fully shows glamour of 3D technology.Self-developed ultimate 3D software,showing honour of high-level customer.Adopt exclusive height target plate,precise measurement of vehicle body height,suitable for checking plenty of vehicle models.
Standard configuration:

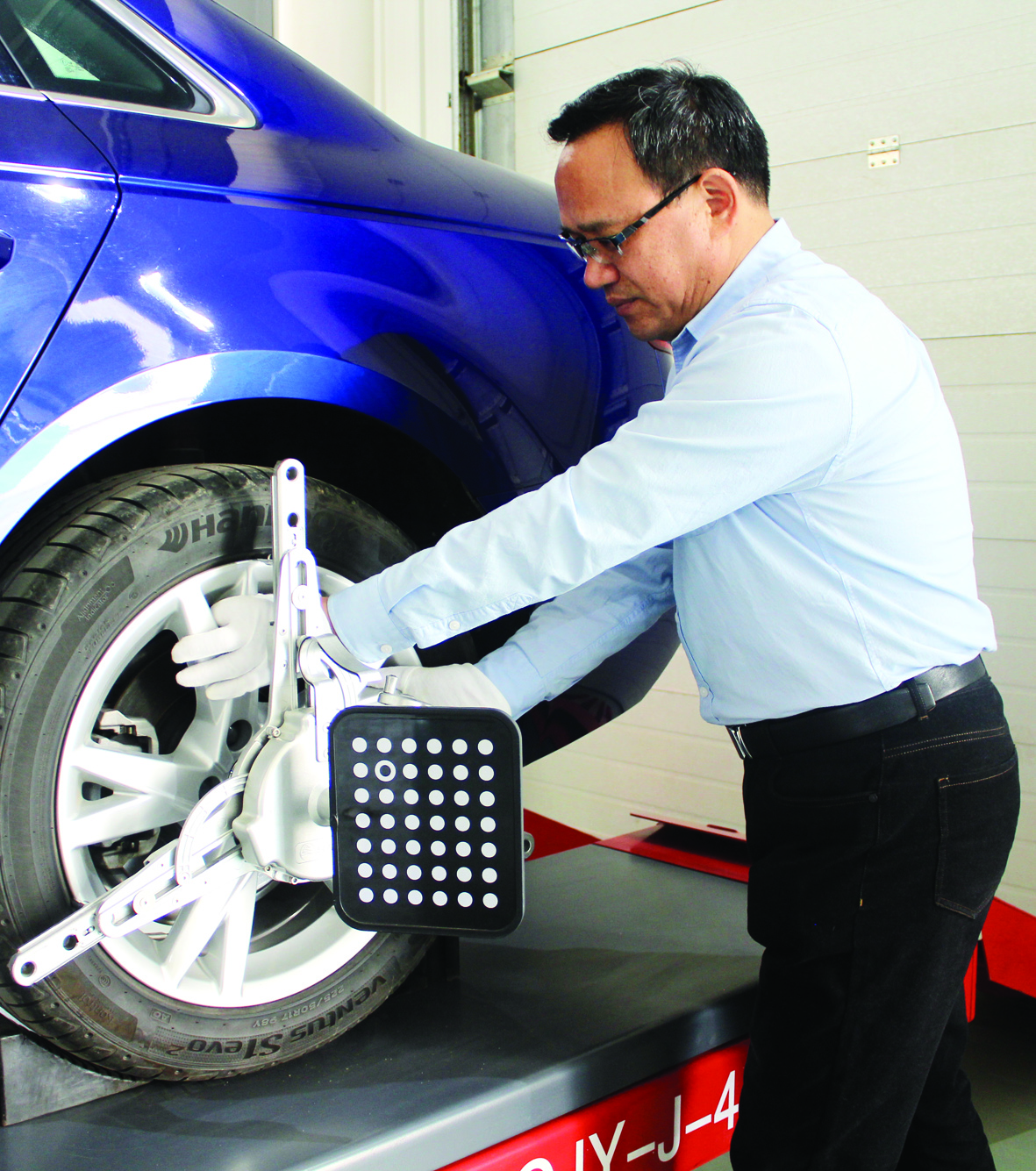

Deluxe cabinet,Electric movable post,DELL computer,Mini target plates,3-points clamp,Brake fixer,Steering wheel fixer,Wedge pads,Aluminum alloy turntables,Turntable transition blocks,Exclusive height target plate.
Parameters measurement such as Camber,Caster,Kingpin inclination,Toe-in&Toe-out,Set back,Thrust angle.
Extension Functions:
Removing Tire Adjustment(Purchasing Rim adapter).Body Dimension Measurement,Steering Wheel Adjustment,Engine Bay Adjustment,Toe Curvature Measurement,(Purchasing B5 Tool Kits),Lock Toe Adjustment,Camber Measurement of Zero Toe,Scrub Radius Measurement,Rolling Radius Measurement,Body Height Measurement.

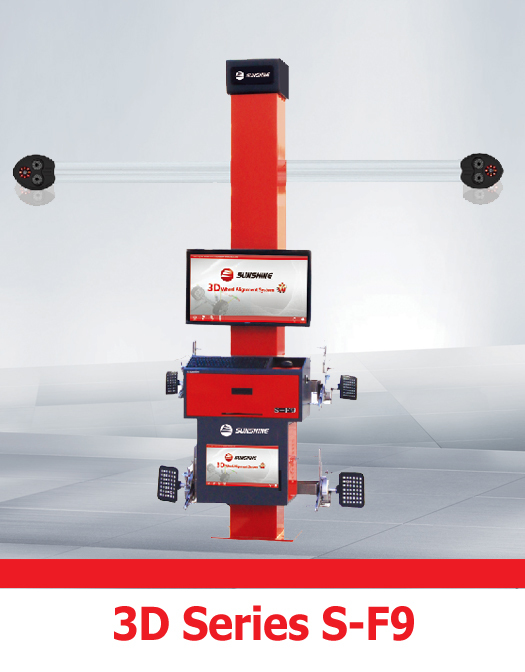

Specifications of 3D Series S-F9:
Measurement Item | Display Accuracy | Camber | Caster | Kingpin Incination | Toe-in＆Toe-out | Set Back | Thrust Angle | Wheel Deviation | Axis Deviation |
Accuracy | 1′/0.01°/0.1mm | ±2′ | ±6′ | ±6′ | ±2′ | ±2′ | ±2′ | ±2mm | ±2mm |
Measurement Range | ±10° | ±20° | ±23° | ±20° | ±5° | ±5° |

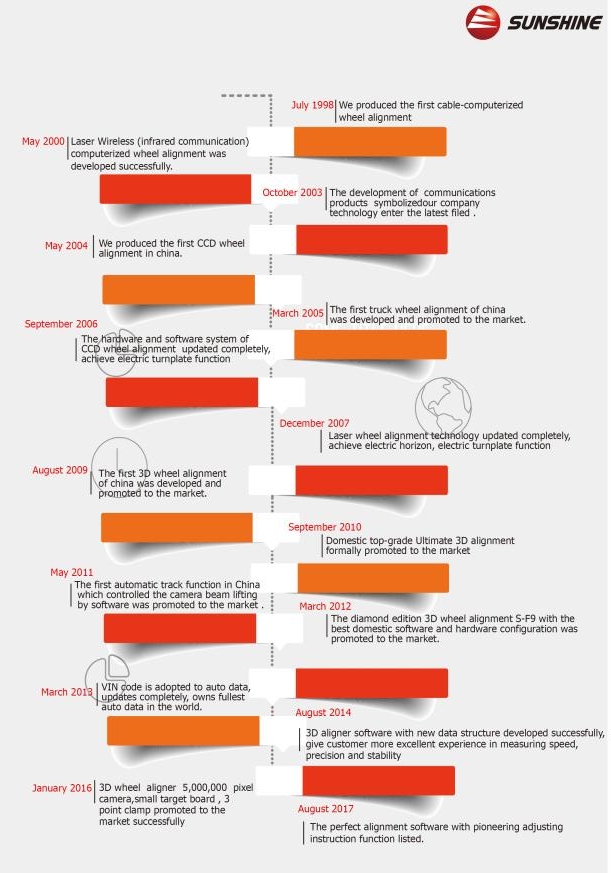

Yantai haide science and technology co.,ltd. is a joint-stock enterprise specializing in manufacturing and marketing of four-wheel alignments,lifts,tire changer,wheel balancer and other auto inspection instruments. Since founded in August,1998,our company has built a reputation for innovation and visionary leadership in the application of the newest technologies to automotive car service equipment.

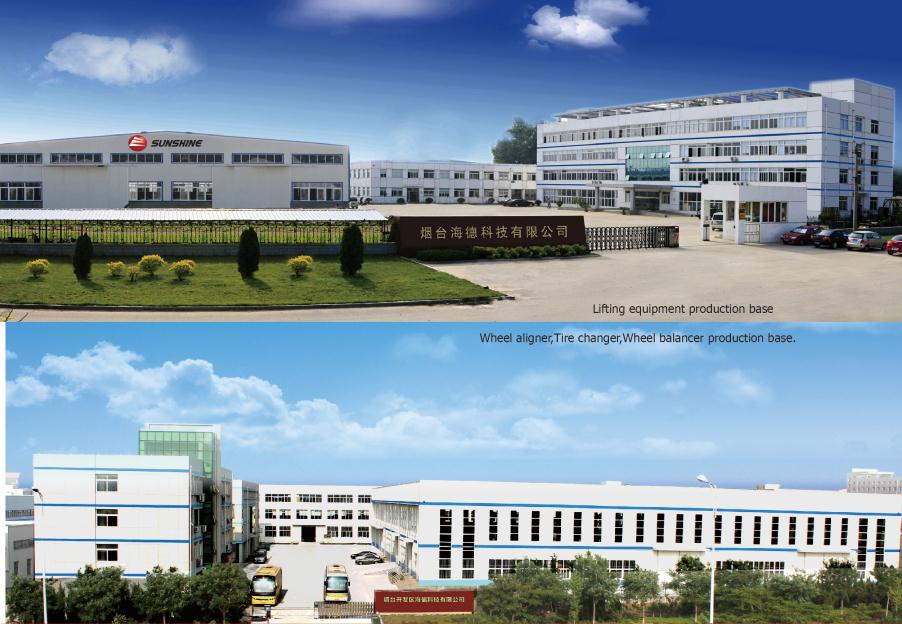

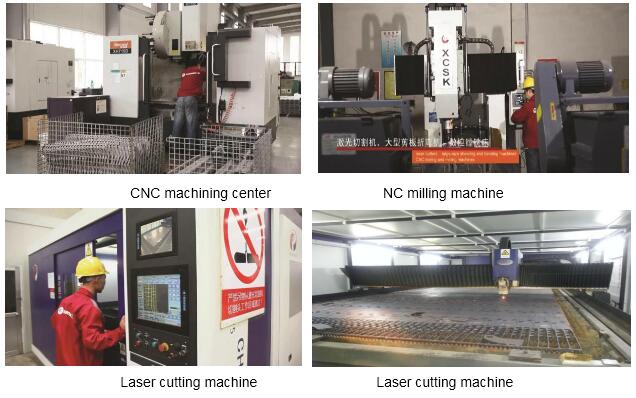

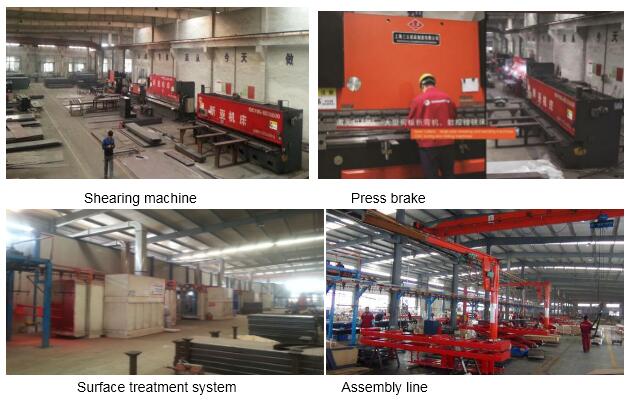

Our company,which has three production bases for wheel alignment,car lift and tire service equipment,covered a ground area of 45,000 square meters,with a completed building area of 30,000 square meters including two manufacturing bases.The newly introduced equipment,together with advanced surface processing production line,has provided the guarantee for its super quality.It is the first national company that has established its own training base.
Our company adheres to long-term independently developed, independent production, has complete independent intellectual property rights. Our products include the whole range of wheel alignment and car lift, tire changer,wheel balancer. Wheel alignment include car wheel alignment, truck wheel alignment, special vehicle alignment,and car alignment has three series: 3D, CCD and laser. Car lift types include two post lift,four post lift,scissor alignment lift and small scissor lift. Now our company is a primary supplier for major car manufacturers and 4S shops and is all highly appreciated by our customers, while many products have been exported to Australia, India, Japan,Italy, Russia ,Sweden ,Saudi Arabia and other countries.
