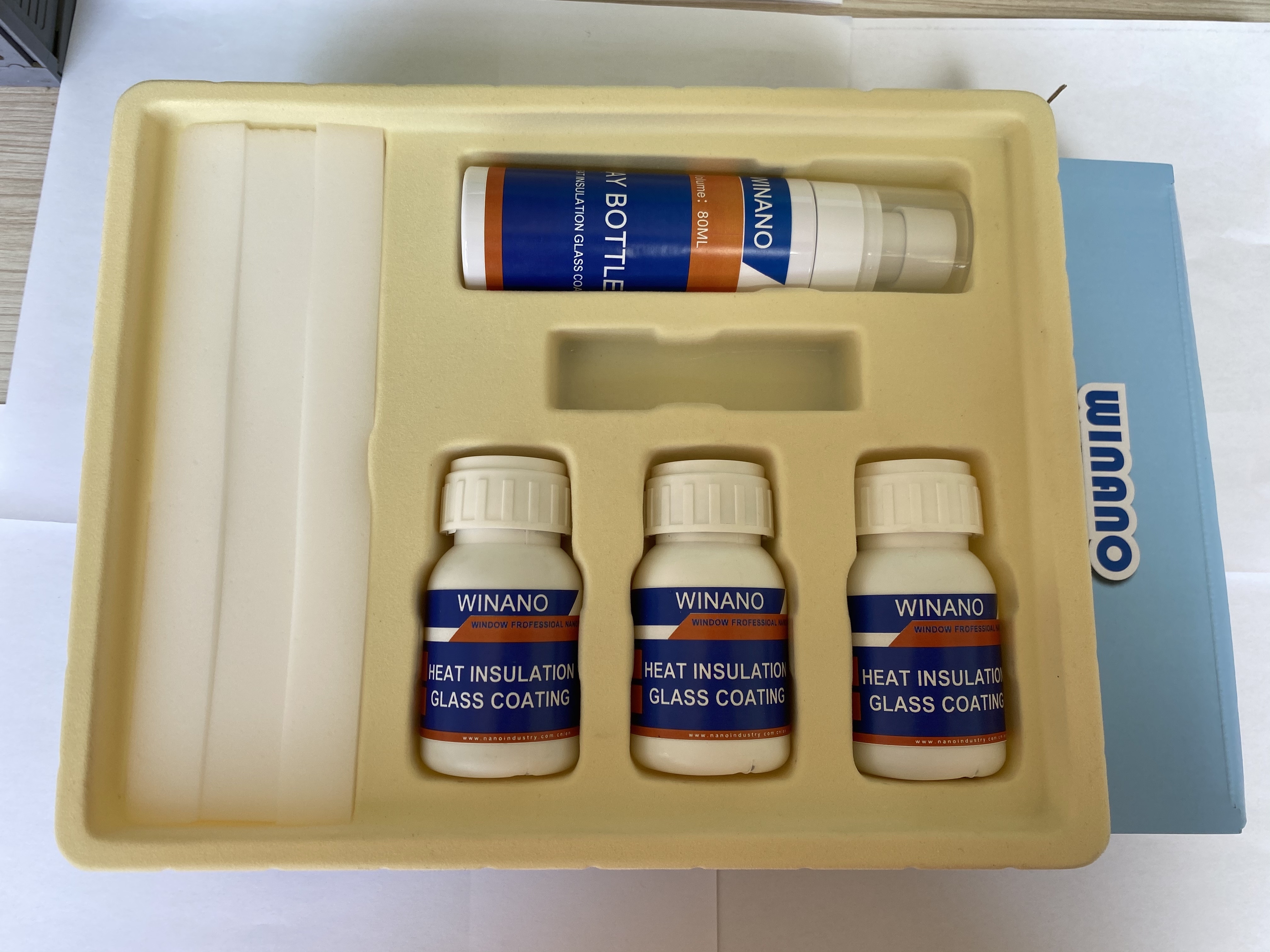

WINANO Heat Insulation Glass Coating Spray Kit

Construction & Decoration Door,Window & Accessories

FOB Price:US$ 30.00 / Set(s)

MOQ:5 Set(s)

Payment Method : L/C T/T Western Union

Keywords:Heat Insulation Glass Coating  Thermal Cut Glass Coating Winano Coating for Heat Cut Spray Glass Coating

Add to Favorites

Product Category: Construction & Decoration > Door,Window & Accessories Trademark: Winano
Product Package: 150ml/set Specifications: 150ml/set
Place of Origin: China Port: QINGDAO

Product Description

PRODUCT INTRODUCTION

     Nalybol Transparent Liquid Glass Coating is an Alternative to traditional window tint film. The patent nanotechnology coating is  engineered for durability, resulting in a long-lasting smooth and transparent finish that is virtually invisible on your windows.
    Once applied, the micro-thin coating layer could block more than 90% IR, 95% UV with VLT above 75%.
All these make it ideal for window ENERGY-SAVING RETROFIT in institutional, commercial and hospitality buildings where patrons’  comfort and energy efficiency are priorities.

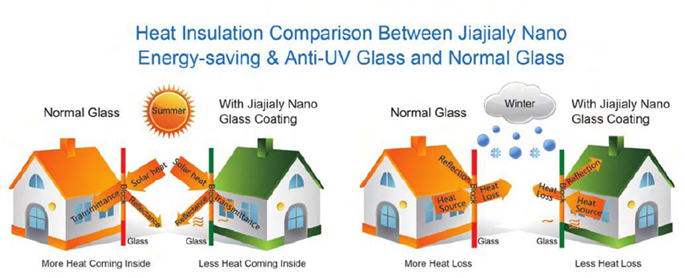

     It is suitable for both hot and temperate climates. When applied to windows, the glass coating could block the exterior summer  heat from entering and prevents indoor heating from escaping in the winter. Lower demand on your air conditioning system could help you reduce your carbon footprint and save money on electricity. Typical space energy saving would be around 30%.

PRODUCT PARAMETERS

Ultraviolet Transmittance
95%

Infrared Transmittance
10%
Visible Light Transmittance
75%
Shading Coefficient
0.67
VOC (g/L)
633
Free formaldehyde content (g/L)
0.02
Heavy Metals Content (g/L)
0-0.4
Pencil hardness
4-6H
Film adhesion
0 grade
Water resistance (168hrs)
0 grade adhesion, no peeling off and bubbling
Temperature resistance(-40~80℃)
0 grade adhesion, no peeling off and bubbling
Abrasive resistance (200r/750g)
0.005g
Acid resistance
(168hrs, diluted hydrochloric acid)
no peeling off and bubbling
Aging resistance (1000hrs)
0 grade adhesion, no peeling off and bubbling no significant performance changes
Coverage
12-15s.q.m(more or less depending on local temperature and humidity)

PRODUCT FEATURES

1. Increase Interior Comfort--thermal coating reduces peak heat gain or loss, maintaining a comfortable interior temperature.
2.Energy and Cost Saving--lower interior temperatures an average of 5℃ and reduces peak load energy consumption. Typical energy  cost savings of 20-40%.
3. High Transparency--virtually invisible with above 40% visible light transmittance. Won’t compromise the beauty of your windows or alter architectural features.
4. Protect People and Furnishings--blocks damaging UV radiation and extends life of furnishings.
5.Durable--engineered not to bubble, peel off or change color, one coating for 10 years.
6. Environment-friendly--water-based solution makes no harm to people and environment.
7. Seamless coating layer superior to typical window tint films.
8. No influence on GSM signal or WIFI.

APPLICATION AREAS

Due to its high transparency, it can be widely used in many areas, but not limited to, e.g.:
1.  Office Buildings
2.  Commercial & Residential Buildings
3.  Institutional Buildings(Government, University, School, etc)
4.  Hospitals
5.  Resorts & Restaurants & Hotels
6.  Shopping Malls
7.  Exhibition Centers
8.  Public Transportation Vehicles

ABOUT US

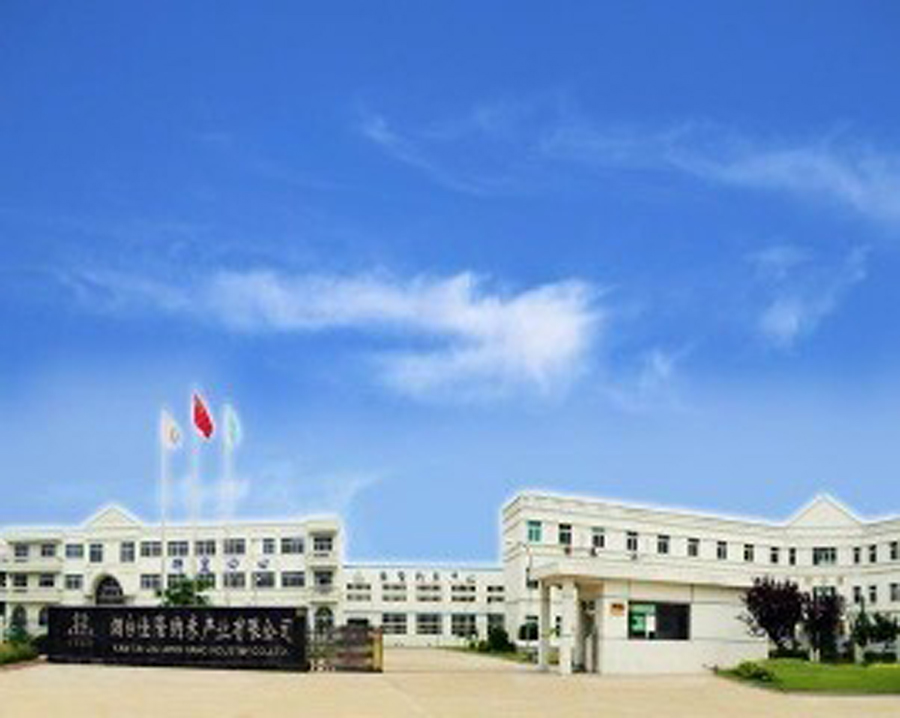

      Yantai Jialong Nano Industry Co., Ltd was founded in 1998 with total area of 33333 square meters.
      We are one leading high-tech enterprise that engaged in the R&D of nanotechnology coatings and functional materials, integrating  R&D, production, operation and management together.
      Approved by National Personnel Department, we have established “Postdoctoral Workstation”, having professional R&D center and a  team of scientific talents with abundant experiences and high education as well as advanced experimental apparatus, imported   inspection instruments and world-class production lines.
    Up to now, we have launched our products successfully to more than 40 countries and areas such as North America, Southeast Asia,  Middle East, Europe, Australia, South America, etc.

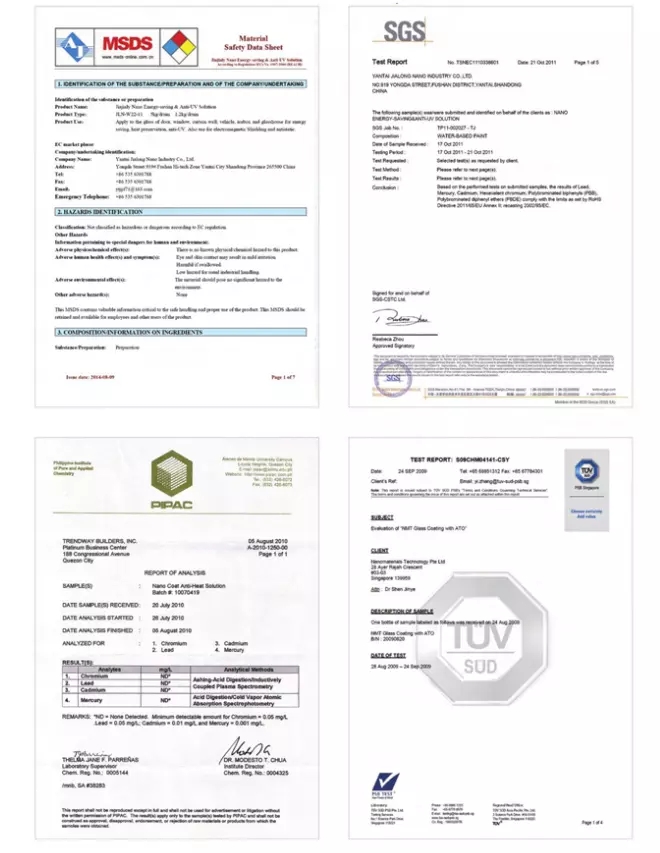

Certificates and Test Reports

Contact Name: Miss Nancy Sui Contact Email: na****r@163.com
Contact Job Title: Manager Contact Mob: 130***210
Contact Tel: +86 535 6305923 Contact Fax:
Address: No.919 Yongda Street, Fushan District, Yantai, China Website: http://www.nanoindustry.com.cn/en

Yantai Jialong Nano Industry Co., Ltd., a member of Jialong Group, is a high-tech enterprise engaged in the R&D of nano-technology and nano-functional materials, certified as the National 863 Program Achievement Industrialization Base by Chinese Ministry of Science & Technology, and State's Key High-tech Enterprise of Torch Program. We are the main supporting unit for "Shandong Nano-Coating Engineering & Technology Research Center" and "Yantai Nano Engineering & Technology Research Center". Our company is located in Yantai Fushan High-Tech Industrial Park with pleasant climate, beautiful scenery and convenient transportation, covering an area of 33,333sqm, with a building area of over 10,000 square meters and 87 million RMB registered capital.
