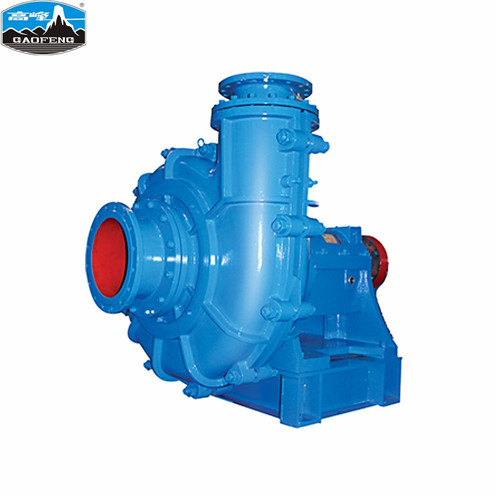

Wear Resistant Slurry Pump
Manufacturing & Processing Machinery Valves & Pumps & Compressors
MOQ:1 Piece(s)
Payment Method : L/C T/T
Keywords:anti-wear pump slurry pump
| Product Category: | Manufacturing & Processing Machinery > Valves & Pumps & Compressors | Trademark: | |
| Product Package: | wooden case | Specifications: | |
| Place of Origin: | Sichuan,China | Port: | Shanghai |
Product Description
Abrasion Resistant Mineral Slurry pump/Anti-Abrasive Industrial Mining Pump/Weir Slurry Pump/GAOFENG Slurry Pump
Brief introduction:
ZZ slurry pump is the achievement of decades R&D,it gained the prize of Science & Technology Progress of Zigong City in 2009.It is optimized solid - liquid two phase flow design of high efficiency. There are several sealing types, transmission methods,and anti-abrasion materials for different applications. It is suitable to pump corrosive or abrasive slurries contains solids,like concentrates,tailings,coal ash,coal cinder,mud,sediment...And it can work in series if necessary.
Parameters:
Flow rate:Q=10~5000(m3/h)
Total head:H=20~120 (m)
Speed:n=490~2900rpm
S.g.:γ ≤1.5
Temperature:T=0~120oC
Pump diameter:50~450mm
Features:
Optimized solid and liquid hydraulic model design of high efficiency and energy-saving.
Thickened wetted parts design to improve the anti-abrasive ability and prolong pump life.
Heavy duty shaft design,with better performance in strength.
Reasonable bearing configuration and fully lubricated design ensures the long time and continuous operation.
Suitable to pump corrosive or abrasive slurries contains solids,the mixture density of solids and liquid can be up to 60%.
Various sealing types to meet different requirements.
According to the requirements of clients,it can work in series.
Sturcture:
Axial split bracket and double layer casing structure.
Outer casing is vertical split structure;pump outlet is able to be set on 8 different direction at 45° interval.
Horizontal installation of big loading capacity.
The jacket and guard plate as the lining,pump casing and pump cover is the frame.
Shaft sealings: dynamic seal,packing seal and mechanical seal.
Transmission: Direct coupled,V-belt drive,variable frequency drive,hydraulic coupling.

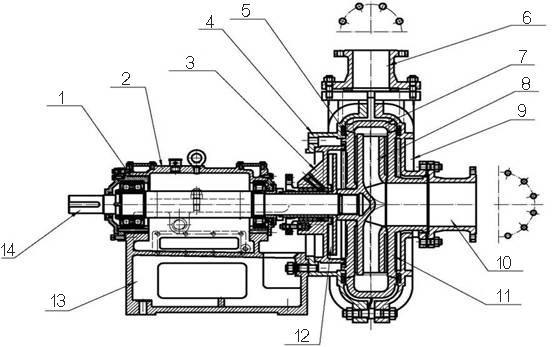

Structure drawing is as below
1. Bearing box 2. Bracket cover 3. Vice impeller chamber 4. Pump casing 5. Back guard board 6. Outlet pipe
7. Jacket 8. Impeller 9. Pump cover 10. Inlet pipe 11. Front guard board 12. Vice impeller 13. Bracket 14. Shaft
Configuration:
Application:
Mineral separation and tailings slurry conveying.
Slurry conveying during the producing process of aluminum oxide.
Conveying sewage contains solids in industries of thermal power,cement,steel,non-ferrous metal...
Sewage and slurry conveying of other industries.

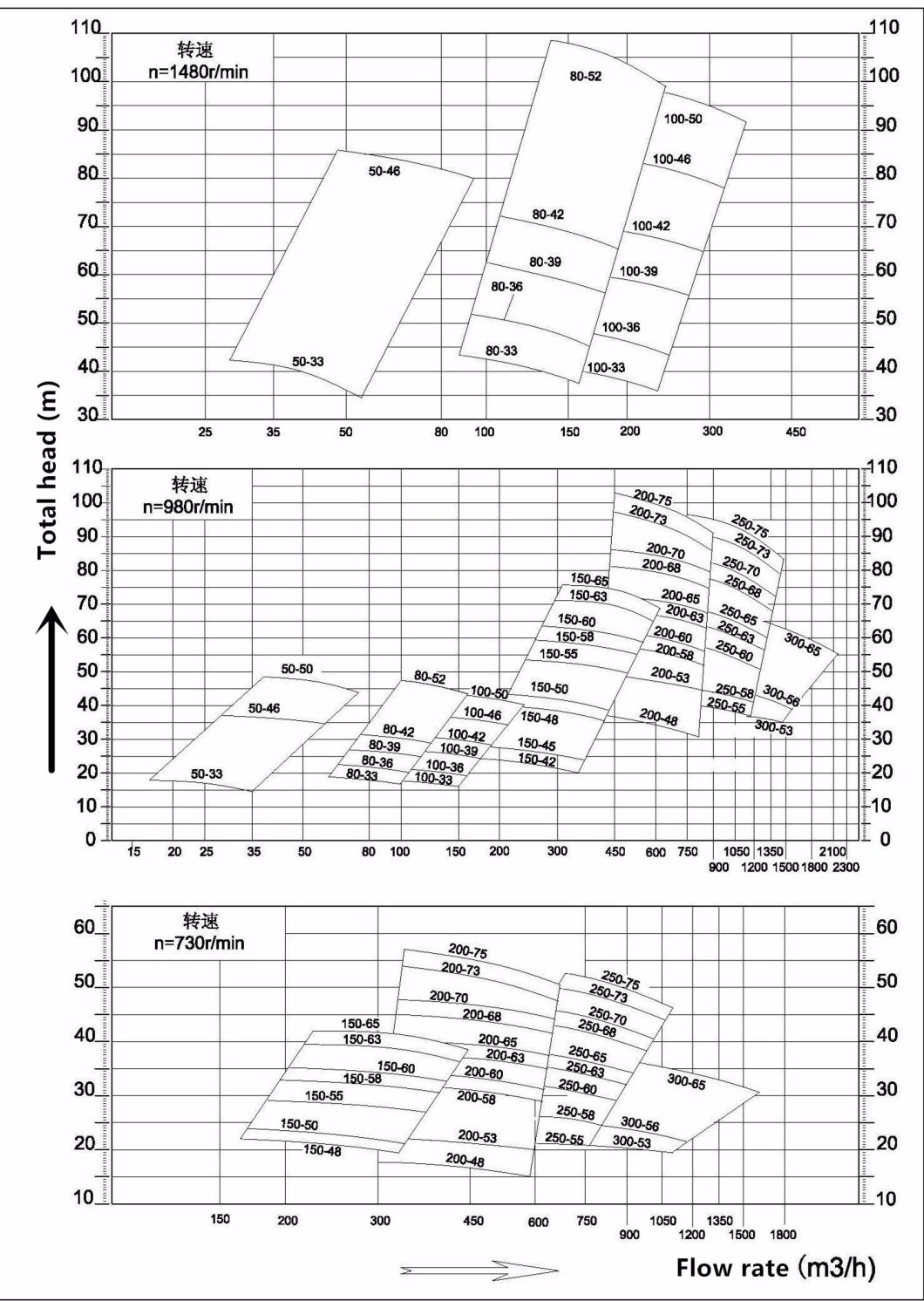

Performance:

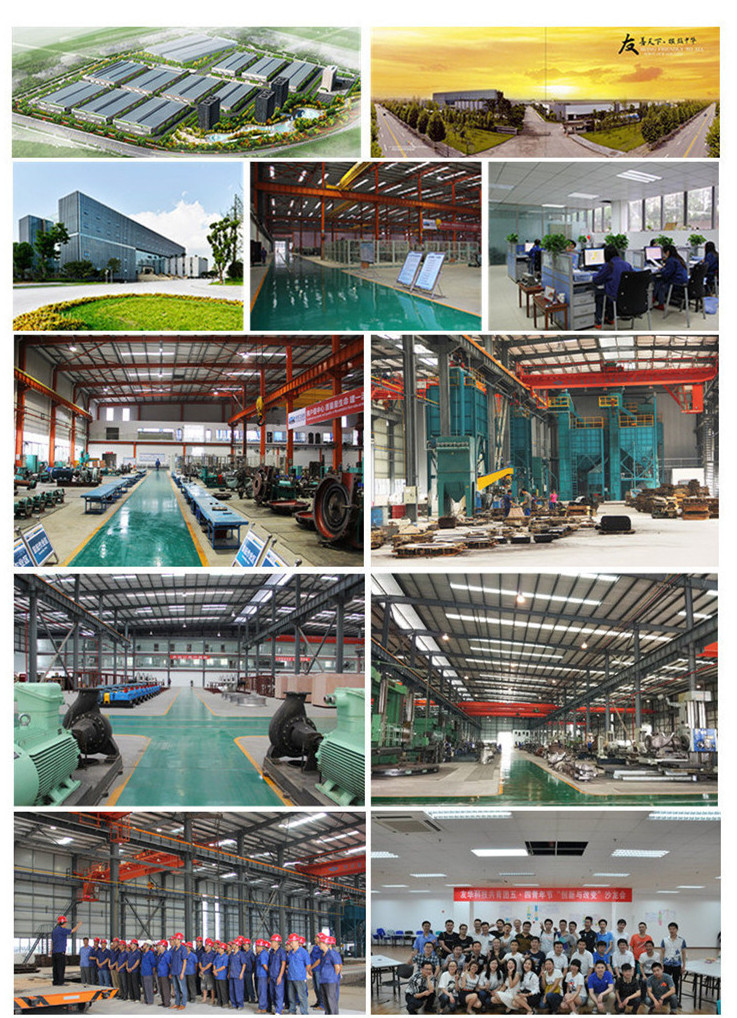

Company View
Looking for ideal Anti-Abrasive Industrial Mining Pump Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the Weir Slurry Pump are quality guaranteed. We are China Origin Factory of GAOFENG Slurry Pump. If you have any question, please feel free to contact us.
| Contact Name: | Miss Yuxiu Gong | Contact Email: | zg****s@gmail.com |
| Contact Job Title: | Sales Manager | Contact Mob: | 139***504 |
| Contact Tel: | 0086-813-8269991 | Contact Fax: | |
| Address: | No.66 Jinchuan Road,Hi-tech Industrial Park, Zigong city, Sichuan | Website: | http://www.zg-pump.com |
Sichuan Zigong Industrial Pump Co., Ltd. (referred to Zigong Pump ) is established in 1967, once was the key enterprise of the Ministry of Mechanical Industry for manufacturing trash pump and anti-corrosion pump and now is the key enterprise and the council member of China Pump Industry Association. It is located in Zigong national hi-tech industrial development zone with the area of 270 thousand square meters and registered capital 200 million, is the core enterprise of Sichuan Youhua Technology Group. It has the production capacity of 8 thousand sets of industrial pump and 6 thousand tons of alloyed wear-resisting cast iron and plain cast iron, and the main products are trash pump, chemical pump, clean water pump and oil pump, totally 41 series and over 600 kinds. Our products are widely used in many fields like petroleum, metallurgy, chemical industry, mining, light and textile industry, environment protection, power industry and public facilities, etc. playing an important role for national economic construction in many fields. Since 2010 our company has done large-scale technical reform to promote independent R&D ability, including establishing technology center, purchasing hardware and software for product design and performance analysis, doing university-industry cooperation and importing technical personnel. It owns some high precision processing equipment and uses numercial control lathe and miller equipment to improve processing precision and quality, also our production level. And it built a 3500m3 pump test center to improve our test level and qualified pump. Our company is the National Hi-tech Enterprise and owns Provincial Enterprise Technology Center, and is the students practice and employment base of Xihua University thermal energy and power engineering major and established graduate workstation of Xihua University fluid machinery and engineering. She has decades of manufacturing pumps, and dozens of patents and proprietary technologies, and
