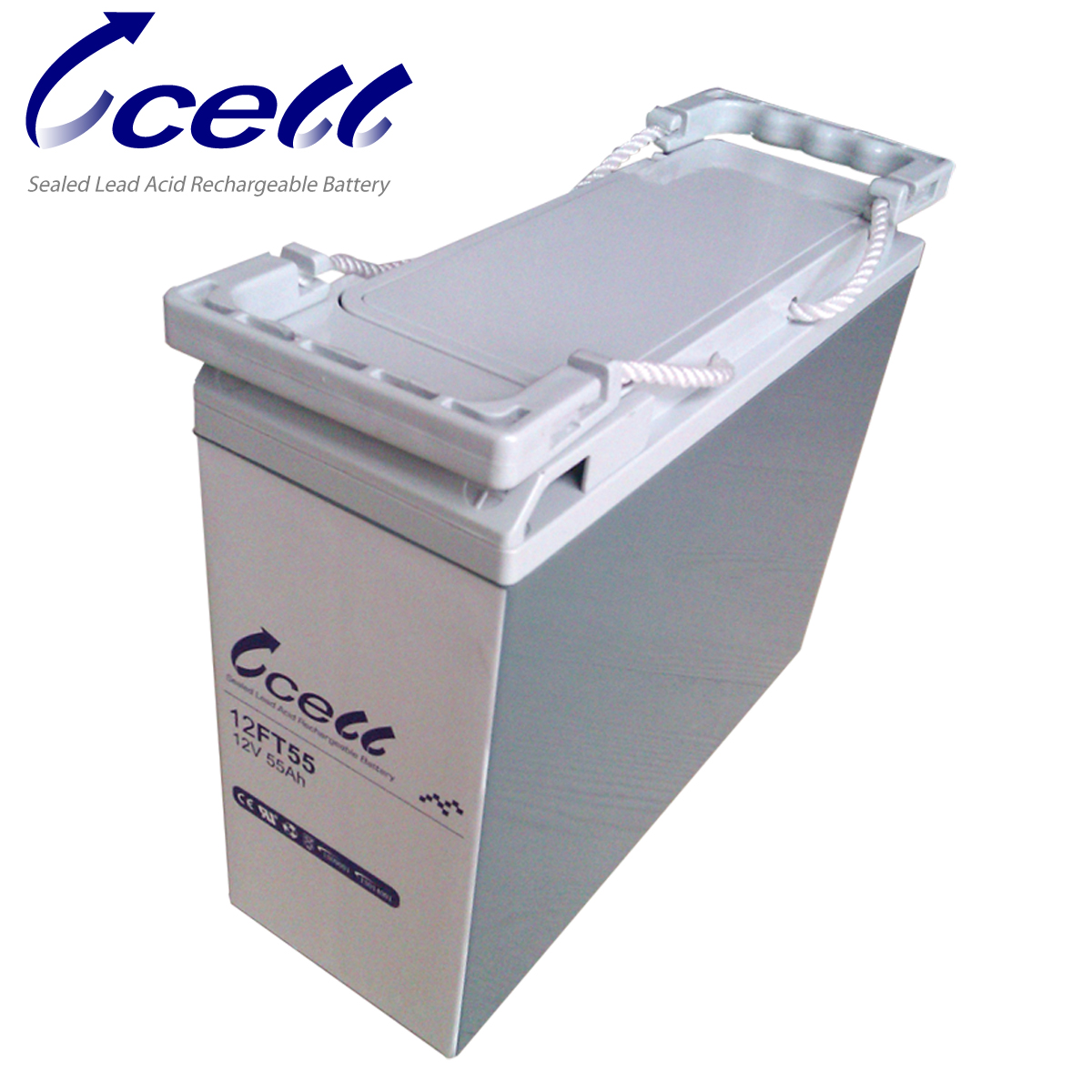

Battery Front Terminal AGM GEL VRLA Battery 12V 55AH 100AH 150AH 200AH
Electrical & Power Energy Batteries
MOQ:50 Piece(s)
Payment Method : L/C T/T D/P Western Union Paypal
Keywords:Front Terminal AGM Battery Front Terminal GEL Battery Front Terminal Battery
| Product Category: | Electrical & Power Energy > Batteries | Trademark: | VCELL |
| Product Package: | Front Terminal Battery: Standard PVC bag, Carton, Pallet | Specifications: | 277*106*222*222mm |
| Place of Origin: | China | Port: | China port |
Battery Front Terminal AGM GEL VRLA Battery 12V 55AH 100AH 150AH 200AH
Specification
| NORMINAL VOLTAGE :12V |
| NORMINAL CAPACITY(10hr) :55Ah |
| DIMENSIONS TOTAL HEIGHT :222mm(8.74inches) CONTAINER HEIGHT :222mm(8.74inches) LENGTH :277mm(10.9inches) WIDTH :106mm(4.17inches) |
| WEIGHT :APPRO×17.6Kg(38.8lbs) |
| CONTAINER MATERIAL :UL94HB ABS :UL94V-0ABS |
| INTERNAL RESISTANCE(25°C, 77°F):-9m |
| DISCHARGE CAPACITY UNDER DIFFERENT TEMPERATURES 40°C :-102% 25°C :-100% 0°C :-85% |
Characteristics
| CAPACITY 25°C/77°F 20hr at 28.6A :57.2Ah 10hr at5.5A :55Ah 3hr at 14.8A :44.4Ah 1hr at 36A :36Ah |
| CHARGING VOLTAGE(25°C, 77°F) STANDBY USE :13.65V±0.15V CYCLE USE :14.7V±0.3V |
| MAX DISCHARGE CURRENT :500A(5 sec) |
| MAX CHARGING CURRENT :20A SELF-DISCHARGE RESIDUAL CAPACITY(25°C, 77°F) AFTER 3 MONTHS :-90% AFTER 6 MONTHS :-82% AFTER 12MONTHS :-70% |
| Cycle Life (25°C, 77°F) 30%DOD :>1800TIMES 50%DOD :>800TIMES 100%DOD :>350TIMES |
Odering Guide
| Series | Capacity | Opinions | Terminal Type |
| 12FT | 55AH | FR(Flame Retardant) | RT-02 |
| ~(Non Flame Retardant) |
Features and Benefits:
10 Year Design Life
*Flame Retardant Poly Propylene Case and Cover
Impact resistance, self-extinguishing material with standard Underwriters Laboratories(UL) 94V rating
*Tank Formed Plate Construction
100% capacity on shipment
Plate consistency and matching dependable performance
* Copper Threaded Insert Post
High conductivity
Retains required torque values and allows for easy installation
*Epoxy Post Seal
Elimination of acid egress for trouble-free service life
* Ceramic Disc Flame Arrestor
Prevent any errant spark or flames from entering the battery
*Transportation
Non-hazardous for air/sea/rail/road transportation
*Applicable Standards
UL Recognized
UL 1778 4th edition -UPS equipment certification
IEC 60896 Part 21-VRLA methods of testing
IEC 60896 Part 22-VRLA requirements
BS 6290 Part 4-Specifications for VRLA classification
*VCELL Manufacturing
ISO 9001 Quality Management System
ISO 14001Environmental Management System
OHSAS 18001 Workplace Safety & Health
| Constant Power Discharge Rating - Watts per Cell @ 77°F(25°C) Operating Time to End Point Voltage(in minutes) | |||||||||||
| End Point Volts/Cell | 1.0 | 3.0 | 5.0 | 10.0 | 15.0 | 30.0 | 60.0 | 180.0 | 300.0 | 600.0 | 1200.0 |
| 1.60 | 475.0 | 350.0 | 285.0 | 231.0 | 170.0 | 108.0 | 64.3 | 27.1 | 18.1 | 10.5 | 5.8 |
| 1.65 | 445.0 | 330.0 | 270.0 | 220.0 | 169.0 | 107.0 | 64.3 | 27.0 | 18.0 | 10.4 | 5.7 |
| 1.70 | 425.0 | 315.0 | 258.0 | 207.0 | 168.0 | 106.0 | 64.2 | 26.9 | 17.9 | 10.3 | 5.7 |
| 1.75 | 400.0 | 300.0 | 248.0 | 198.0 | 164.0 | 104.0 | 64.2 | 26.8 | 17.8 | 10.2 | 5.6 |
| 1.80 | 385.0 | 290.0 | 240.0 | 192.0 | 165.0 | 102.0 | 64.2 | 26.6 | 17.6 | 10.1 | 5.6 |
| Constant Current Discharge Rating - Amperes @ 77°F(25°C) Operating Time to End Point Voltage(in minutes) | |||||||||||
| End Point Volts/Cell | 1.0 | 3.0 | 5.0 | 10.0 | 15.0 | 30.0 | 60.0 | 180.0 | 300.0 | 600.0 | 1200.0 |
| 1.60 | 275.0 | 198.0 | 158.0 | 125.0 | 91.0 | 58.1 | 34.0 | 13.9 | 9.2 | 5.2 | 2.8 |
| 1.65 | 253.0 | 184.0 | 148.0 | 118.0 | 88.6 | 57.5 | 33.5 | 13.8 | 9.1 | 5.1 | 2.7 |
| 1.70 | 235.0 | 173.0 | 140.0 | 111.0 | 86.0 | 56.9 | 33.5 | 13.7 | 9.0 | 5.1 | 2.7 |
| 1.75 | 221.0 | 164.0 | 133.0 | 106.0 | 83.5 | 56.3 | 33.0 | 13.6 | 9.0 | 5.1 | 2.7 |
| 1.80 | 209.0 | 156.0 | 128.0 | 101.0 | 81.0 | 55.7 | 33.0 | 13.5 | 8.9 | 5.1 | 2.7 |
Charge Characteristics&Discharge Characterics
Packing Details:1pc/ carton box packing, can pack on client's demand
Delivert Details: 30~45days upon receipt of the offical order.
Minimum Order Quantity : 200Piece/Pieces for Flame Retartant. If for normal case, there's no minimum order quantity.
