Wheat Flour Material Vermicelli Production Hanging Noodle Making Line

Manufacturing & Processing Machinery Food & Beverage Machinery

FOB Price:US$ 100,000.00 / Set(s)

MOQ:1 Set(s)

Payment Method : L/C T/T Western Union

Keywords: vermicelli machine Noodle line automatic noodle producing wheat flour noodle flour noodle processing line home vermicelli making machine vermicelli production process  vermicelli roll  wheat vermicelli dry vermicelli production line

Add to Favorites

Product Category: Manufacturing & Processing Machinery > Food & Beverage Machinery Trademark: G-Young
Product Package: Export Standard Package/Customized. Specifications: set
Place of Origin: Wuhan,China Port: Wuhan/Tianjin/Shanghai
Product Description

Product Application

The low-temperatured noodle production line adopt vvvf, electro-optical tracking, PLC control, and achieve coordinated control of full synchronization. The noodle rolling machine adopts 7-10 pairs of chilled alloy roller, drying uses low-temperatured slow drying process; The section uses the aerodynamic cross-section technology(or automatic hob cut technology.
SPECIFICATIONS FOR 7 TON CAPACITY
Early part
Brine mixing machine and measuring device
Power: 0.75kw
Motor power: 1.5 KW*2
 volume:1000L
the surface touched with the water is SS, measuring device capacity 110 L,with liquid level showing,round tank body,SS,pump 0.75kw

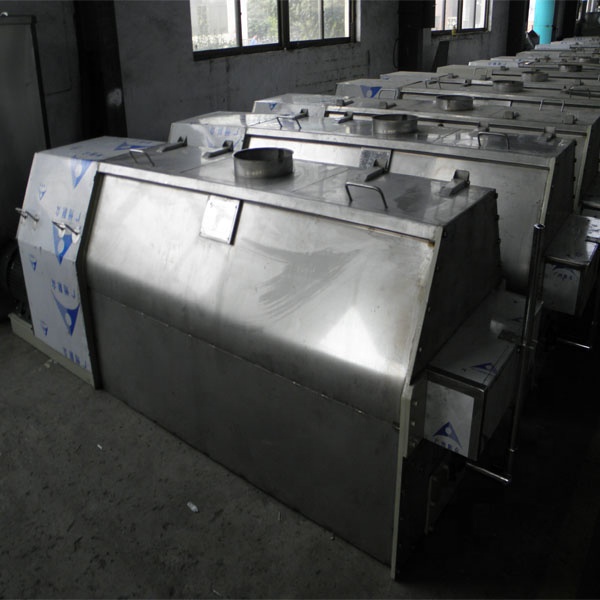

Double speed flour mixing machine
Motor power: 9/11kw
300kg/batch,door opening by manual, the surface touched with flour is Stainless Steel

belt type Feeder
Motor:0.75kw (frequency conversion timing)+ 1.5KW
the surface touched with flour is SS
Main part
SINGLE SHEET
continuous press machine
Roller width 650mm, power 11kw+18.5kw (frequency conversion timing)
10pairs of steel roller, twin wheel device to adjust the tickness of flour sheet, the Dia. of the roller isφ
395*1,300*2,248*2,216*2,180*2,162*1
Bar feeding machine
Power2.2KW(frequency conversion timing)
the orderliness of two sides of noodle can be adjusted,length of noodle is adjustable
Auto hanging device
Main driven 1.5kw(frequency conversion timing),the length of box is 16 meters,Single row, housing is SS.
Power from bar feeding machine,carbon steel frame

              Last part
Cutting and arranging machine
ZJQ65
Power 1.1kw

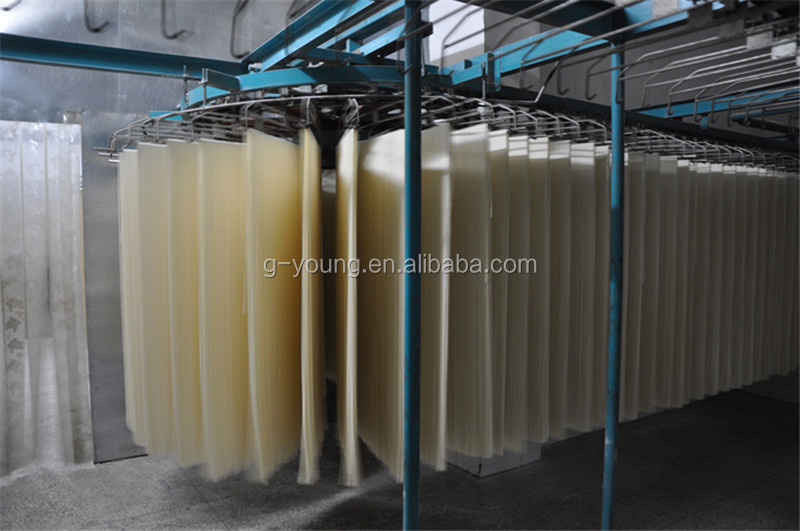

Drying machine (moving horizontally)
Drying time ~4hours,main drive power 4kw(frequency conversion adjustment) power of industry fan~0.75kw*30 units
Drying fan 5.5 kw*2unit,fan 2.2kw*2 units,5 rows of bars,length~60m,ss hanging bars 5000 pcs.
Auto cutting machine
The length of the noodle can be adjusted from 120~290mm
Power ~0.8kw

Main Features

1.The high automation can make sure that one man control several machines at the same time.
2.It is environmental and healthy.
3.High cutting efficiency and low fault rate.
4.It is practical, stable, safe and easy to operate.
5.The roller can be changed, it can produce varies of noodles as your request.

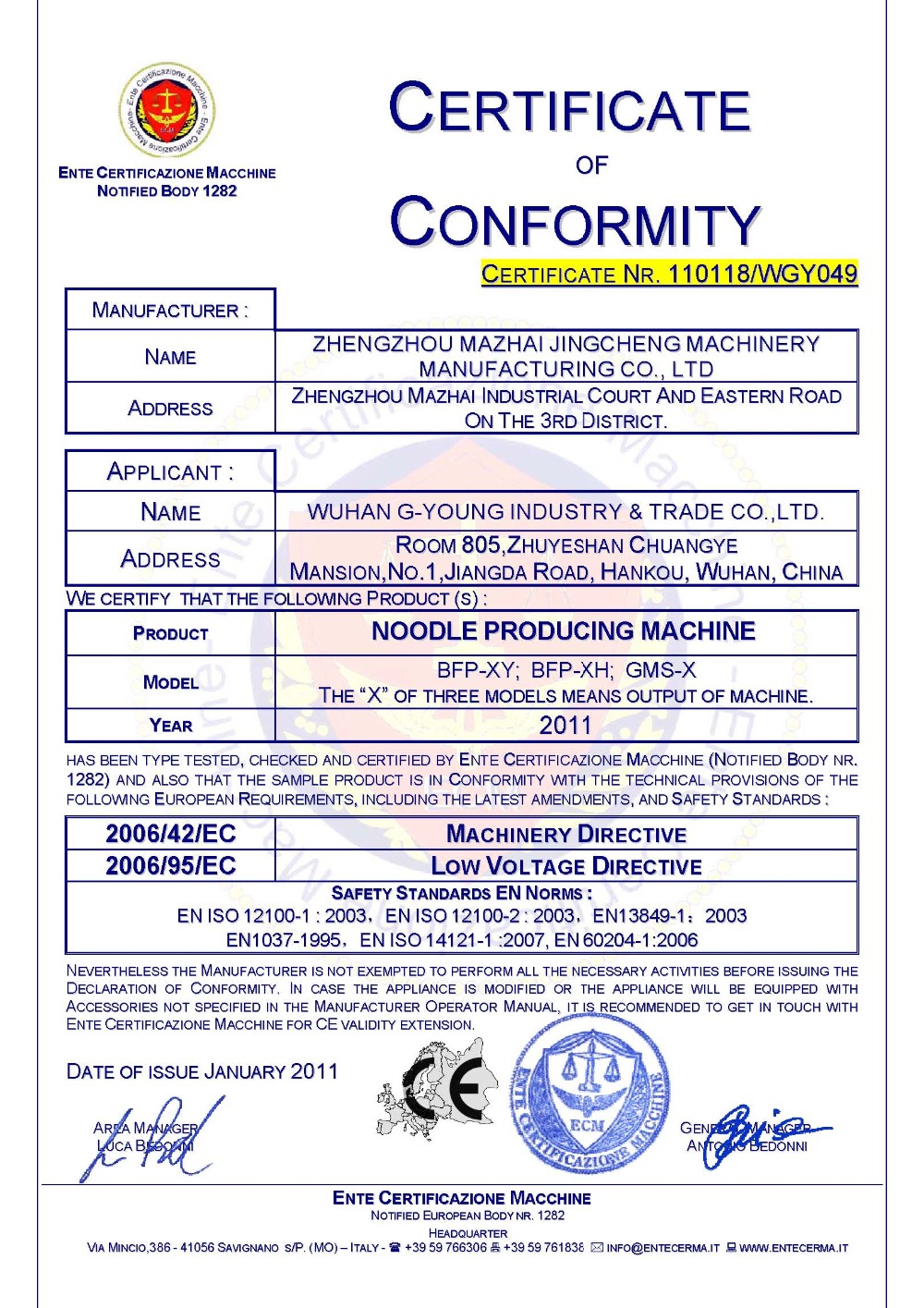

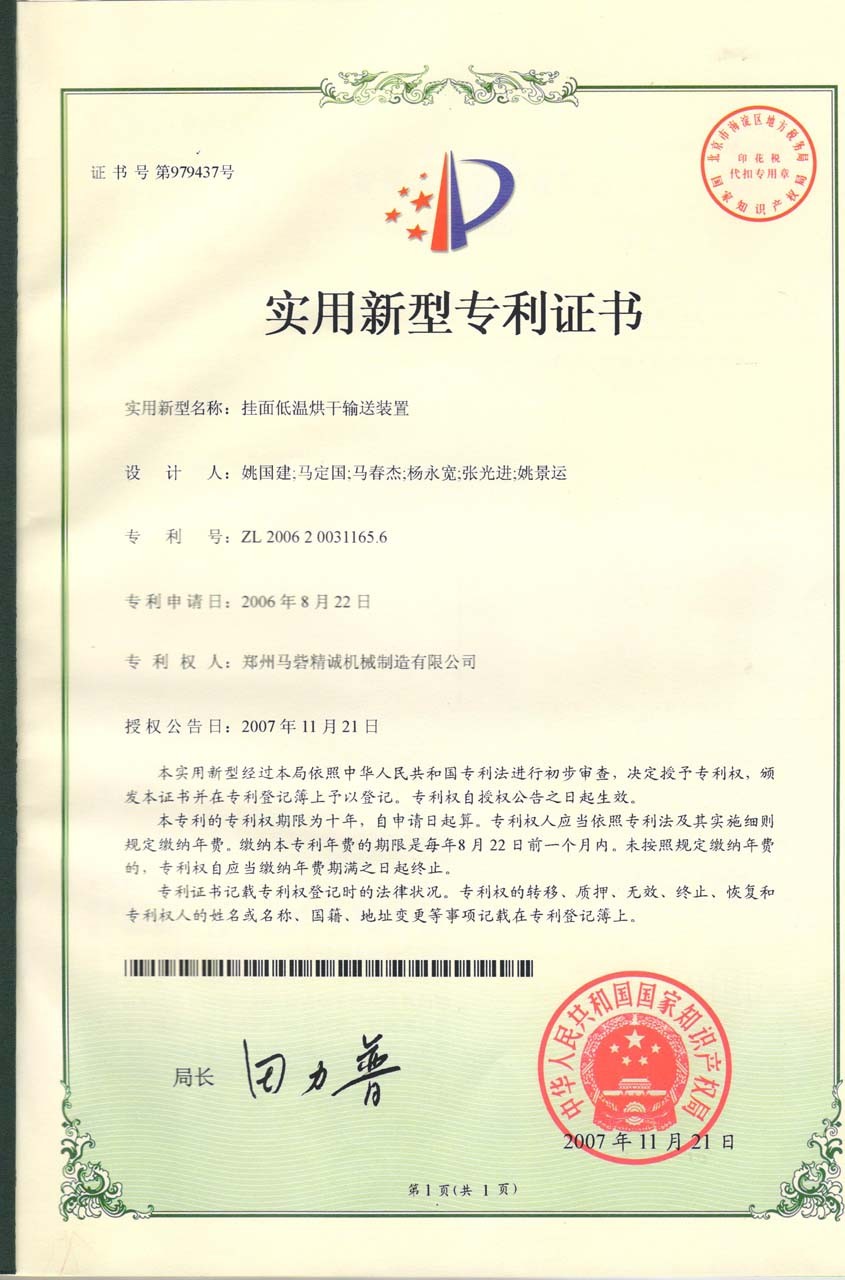

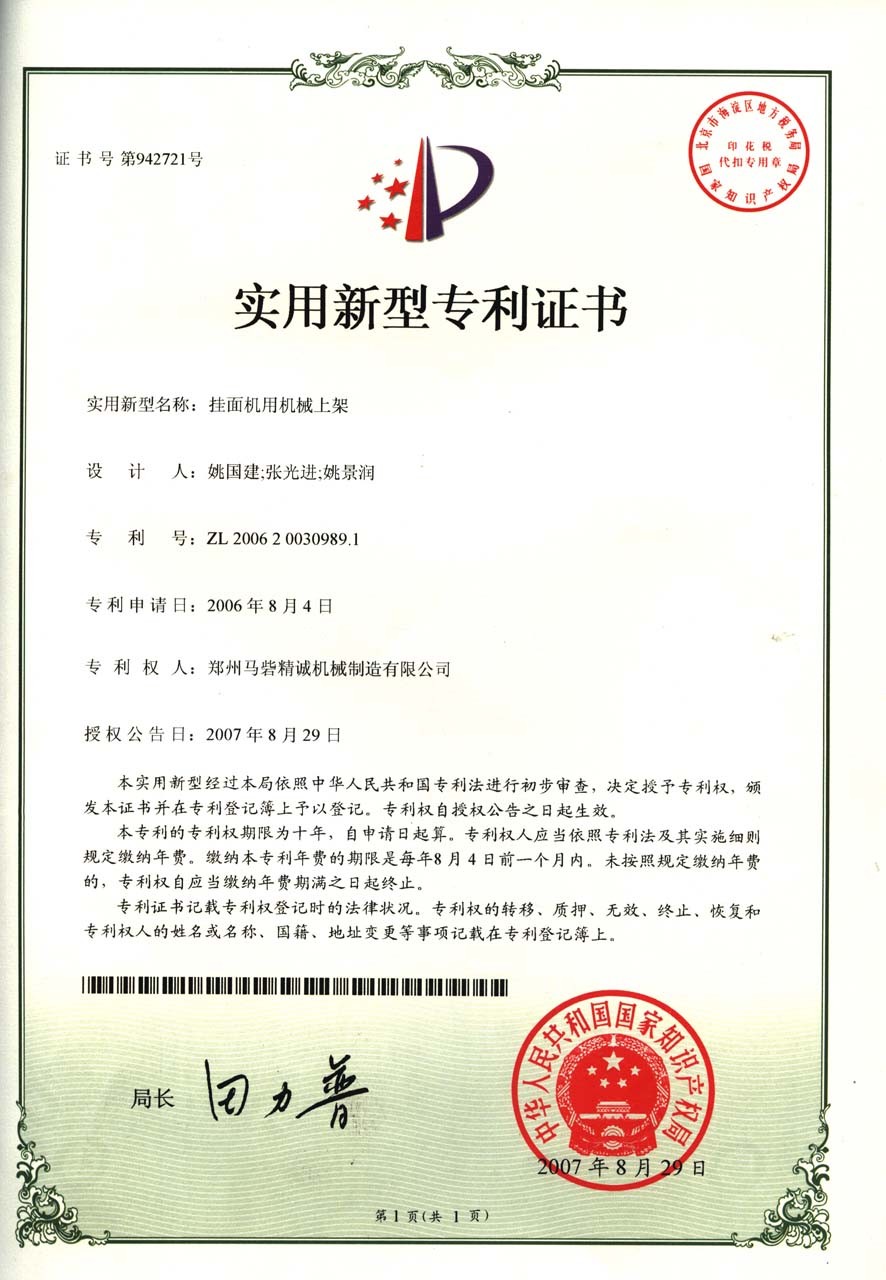

Certifications
Detailed Images

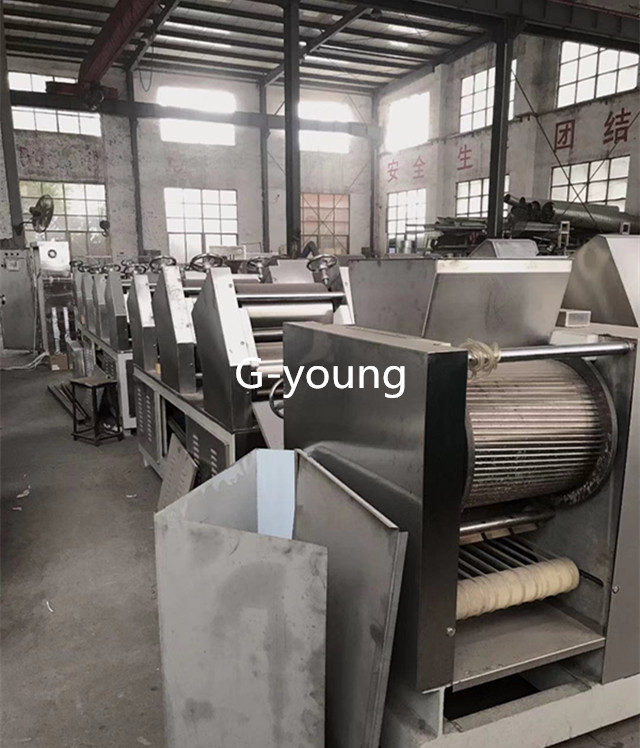

Machine Part

Name: Compound Pressing

Brand: G-young

Original: China


Adopts advanced technologies and is of high automation, safety and easy maintenance.

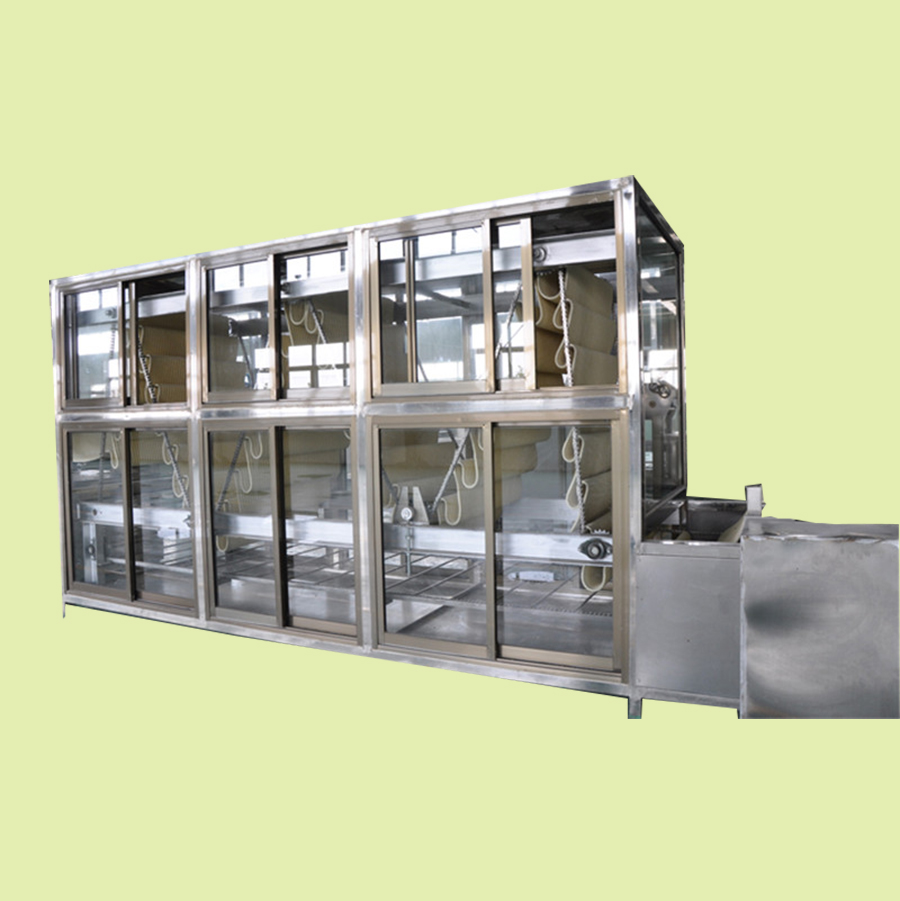

Main Part

Name: Curing Machine
Brand: G-young
Original: China

Adopts advanced technologies to strengthen the dough and disinfect dough sheet.

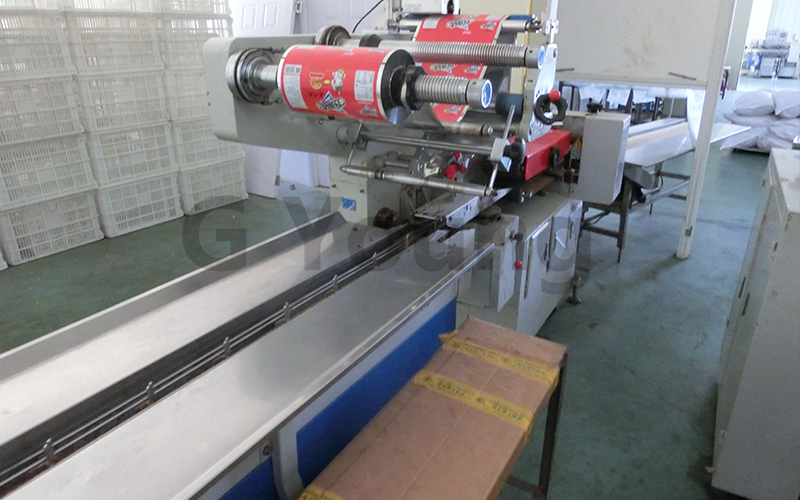

Machine Parts

Name: Finished product conveyor
Brand: G-young
Original: China


Main drive 0.37 kw*2(speed adjusted by mechanism), SS304 panel

Our Service

1. Professional OEM & ODM customized service.
2. Strict quality control system to guarantee superior goods.
3. Controlling of the cost and quality and delivery time to reach win-win cooperation.
4. Detailed pictures of every process to make customer feel safe.
5. Tracking the parcels everyday to make sure arrive in time.
2. We provide 12 months warranty after goods arrive.
