6YZ-180 Oil Press Machine/sesame Oil Press/Small Cocoa Butter hydraulic oil press machine
Agricultural Agricultural Machinery
MOQ:1 Set(s)
Payment Method : L/C T/T D/P Wesstern Union Paypal Money Gram
Keywords:
| Product Category: | Agricultural > Agricultural Machinery | Trademark: | HDC |
| Product Package: | Wooden Case | Specifications: | 800*950*1050mm |
| Place of Origin: | China | Port: | Shanghai |
6YZ-180 Oil Press Machine/sesame Oil Press/Small Cocoa Butter hydraulic oil press machine
Introduction for hydraulic oil press :
Small oil press machine manual operation , low price, widely used in family and small oil factory. This hydraulic oil press machine is suitable for cold pressing or hot pressing many oil seeds ,Especially for pressing sesame, pine nut, walnut, and so on valuable oil seeds.
Advantage of hydraulic oil press machine
1) Both cold press and hot press are available;
2) Higher oil yield, lower residue in oil cake;
3) Stable production performance;
4) less occupied area
Hydraulic oil press machine can also use for cocoa liquor press with very good effect.
Step 1: Before running, clean the oil tank, feed enough clean hydraulic oil, check every bolts if they are loose, check circuit if they connect well. Then pre-heating, 50-70℃ in summer and autumn, 70-90℃ in winter and spring. Finally run 1-2 minutes. When the oil changes thick in winter and spring, then run 5-10 minutes.
Step 2: Exhaust lampblack from the cooked oilseed, put it into the basket, then put the mat and separation board.
Step 3: Lift the hand shank of the manual valve, turn on to press. There must be a person when the main engine boosts. When reaching 55Mpa, it stops.
Step 4: When the pressure drops to 45MPa, the electric controlling system will turn on itself and the pressure will rise back. When there is no oil exuding, then finish the pressing.
Step 5: Turn off, press the hank shank downward to make the squeezing tank away 10mm. Then lift the hand shank and open the top plate.
Step 6: Turn on, oil cake rises to make the top plate tower above 5mm. Then turn off and take out separation board and mats and oil cake.
Step 7: Press the hand shank down, the plunger declines and start to press second time.

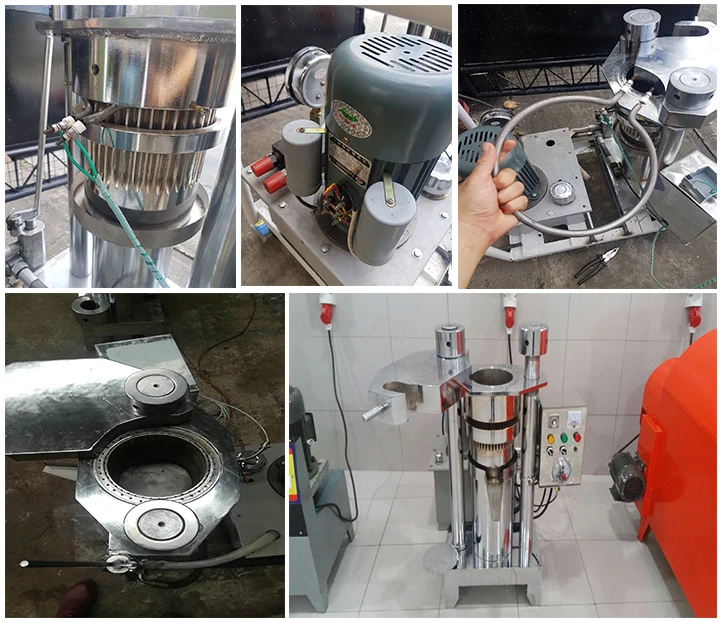

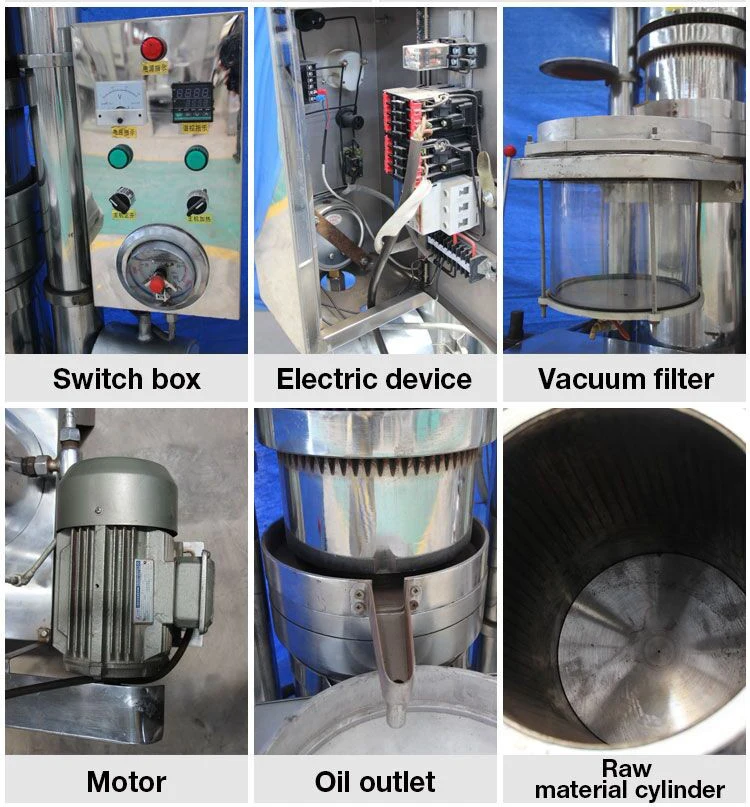

Hydraulic sesame cocoa liquor walnut oil press machine details

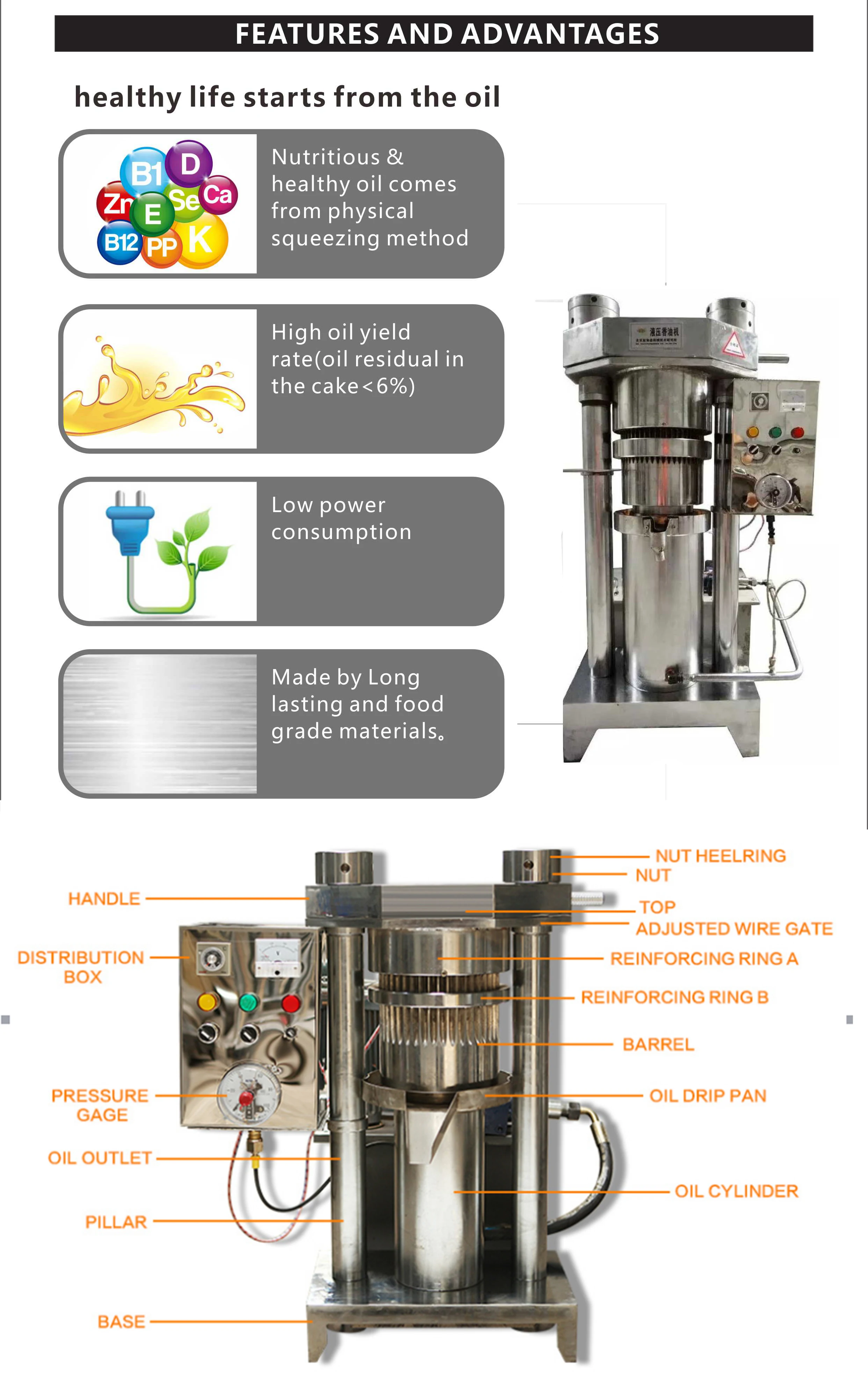

Structure of hydraulic oil press machine
Hydraulic sesame cocoa liquor walnut oil press specification:
| Model | oil outout | power | Voltage | Size | Weihgt |
| 6YZ-150 | 10kg/h | 0.75KW | 220V/50HZ/Single phase | 700*800*780mm | 240kg |
| 6YZ-180 | 20kg/h | 1.5KW | 220V/50HZ/Single phase | 800*950*1050mm | 550kg |
| 6YZ-230 | 40kg/h | 1.5KW | 220V/50HZ/Single phase | 900*1000*1400mm | 950kg |
| 6YZ-260 | 50kg/h | 1.5KW | 220V/50HZ/Single phase | 1050*1100*1550mm | 1200kg |
| 6YZ-320 | 90kg/h | 2.2KW | 220V/50HZ/Single phase | 1120*1200*1650mm | 1700kg |
Q1: What is the Material?
A2: Carbon steel or stainless steel suitable for pressing.
Q2: When can I get the price?
A2: Within 24 hours, if urgent, please directly call us.
Q3: Whether the machine price can be more discount?
A3: In general, our MOQ is 1set with very reasonable price, but if large order, we also can apply to our manager to appropriately give you a little discount.
Q4: Is the machine suitable for different raw material ?
A5: Yes, but we recommend no more than 3 different types.
