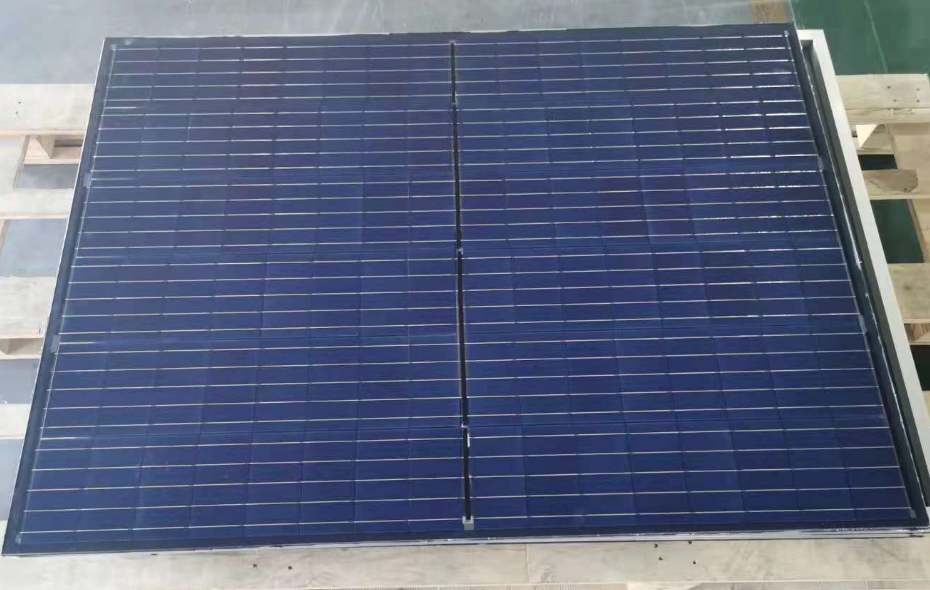

High Efficiency 235W BIPV Double Glass Poly Crystalline Solar Panels For House
Metallurgy,Chemicals & Energy Solar Energy,Environment & Recycling
MOQ:1 Piece(s)
Payment Method : L/C T/T Others
Keywords:Solar Cells,Solar Panel Solar Energy Systems Solar Module Mounting Structure
| Product Category: | Metallurgy,Chemicals & Energy > Solar Energy,Environment & Recycling | Trademark: | Rixin solar |
| Product Package: | 33pcs/carton | Specifications: | 1360mm*992mm*5mm |
| Place of Origin: | Wuhan, China | Port: | Wuhan |
High Efficiency 235W BIPV Double Glass Poly Crystalline Solar Panels For House
Main Features
1. Solar power generation, supply clean energy for buildings.
2. Completely according with national standard for building materials.
3. Higher strength, wind resistance, strike resistance, safer.
4. Sound insulation, heat insulation, effectively resist outside environment intrusion.
5. Intelligentized & humanized, regulating light, comfortable and convenient.
6. Provide a new aesthetics decoration effect for modern construction.
7. Integrating multiple functions, energy conservation and cost reduction.
8.Half-cut cell technology, increase power ouput, reduce cracking risks, impove module reliability.
Performance parameters
| High Efficiency BIPV Double Glass Poly Crystalline Solar Panels For House | ||
| Model | MDN235 | |
Electrical parameters | maximum power Pm (Wp) * | 235 |
| power tolerance (%) | ± 5 | |
| maximum power voltage Vmp (V) * | 25.5 | |
| maximum power current Imp (A) * | 9.2 | |
| open circuit voltage Voc (V) * | 30.25 | |
| short circuit current Isc (A) * | 10.18 | |
| maximum system voltage (V) | 1500 | |
| Efficiency(%) | 17.4 | |
| working temperature (℃) | -40~85℃ | |
| temperature coefficient of Pm Tk (Pm) | -0.31%/K | |
| temperature coefficient of Voc Tk (Voc) | -0.41%/K | |
| temperature coefficient of Isc Tk (Isc) | +0.05%/K | |
Mechanical parameters | fault structure (mm) | 2mm tempered glass + 0.76PVB + poly cells + 0.76PVB + 2mm tempered glass |
| cable | 4mm2/1200mm | |
| product dimension | 1360mm*992mm*5mm | |
| product weight | 15kg | |
| wind loads resistance | 2.4KN/m2 | |
| Cells No. | 6*8*2 | |
Quality and Advantages :
1. Low voltage-temperature coefficient allows higher power output at high-temperature condition
2. High efficient, high reliable solar cells ensure our product output stability
3. Full products certified with certificate ISO 9001:2008 and ISO 14001:2004
, CE , TUV, IEC/EN61215 IEC/EN61730
4. we offer 10 years product warranty ,25 years power linear warranty
Drawing(mm)
Quality Warranty
30-year power output guarantee
50-year operation lifetime
| Contact Name: | Mrs Hui Cao | Contact Email: | ca****i@rixinsolar.com |
| Contact Job Title: | Sales Manager | Contact Mob: | 155***035 |
| Contact Tel: | Contact Fax: | ||
| Address: | PV Park, Wuhan Rixin Technology Co., Ltd, No.6, Maodianshan Middle Road, East Lake Development Zone | Website: | www.rixinsolar.com |
Founded in 2001 in Wuhan, China, Rixin Technology operates as a global solar power provider, as well as one of the China’s leading crystalline silicon PV modules manufacturer, has been committed to developing clean energy. Rixin Technology has over 180000m2 manufacturing bases, 3 wholly owned subsidiaries and over 10 holding companies, more than 500 employees. Through its rational investment and industrial, Rixin Technology has formed an entire chain including R&D of core technology, PV module production, to “photovoltaic +” project development, design, construction, intelligent operation and maintenance, investment and financing. Its technological strength is shown through its title of National Hi-tech Enterprise and Hubei province PV Research Center.
After 19 years development, Rixin Technology has completed more than 1500 PV power plants, and built good business relationship with the clients all over the world. The full range of Rixin Technology’s products cover BIPV, PV modules, PV street lights, Household power generation system, commericial distributed generation system, and utility-scale power system. Rixin Technology’s products have obtained TUV, CE, ISO14001, ISO9001, OHSAS18001 etc. international certificates.
At present, Rixin Technology’s PV technology has been widely used in the fields of construction, agriculture, transportation etc. “PV + Integrated Applications”, supporting the construction of beautiful villages in the world.
The most nationally competitive and popular module is bifacial mono dual-glass PV module, high-efficient N type bifacial mono or PERC bifacial mono cells bring more than 30% additional power gain, no LID and PID, 30-year linear power warranty which guarantees high power output.
BIPV PV components, supplying clean energy for buildings, 30-year high efficient power output, 50-year operating lifetime guarantee, energy conservation and cost reduction, which provide a new aesthetics decoration effect for modern construction. More than 19 years of technology expertise, ongoing innovation, which makes Rixin Technology own the most advanced technology in BIPV area.
In 2040, the world's renewable energy growth will exceed 400%, accounting for more than 50% of the growth of electricity generation.
Solar energy resources are inexhaustible and widely distributed on the earth. Rixin Technology commits itself to change the world by solar energy. Where the sun shines, there is Rixin Technology.
