Moreday Factory Price Dc 1-4string 1000v Ip66 Panel Array Power Solar Pv String Combiner Box

Electrical & Power Energy Solar Power System

FOB Price:US$ 55.00 / Piece(s)

MOQ:1 Piece(s)

Payment Method : L/C T/T D/P Western Union Paypal Money Gram Others

Keywords:combiner box solar box string box solar array box mcb box solar junction box

Add to Favorites

Product Category: Electrical & Power Energy > Solar Power System Trademark: MOREDAY
Product Package: carton Specifications: 1pc/carton
Place of Origin: WENZHOU Port: NINGBO/SHANGHAI

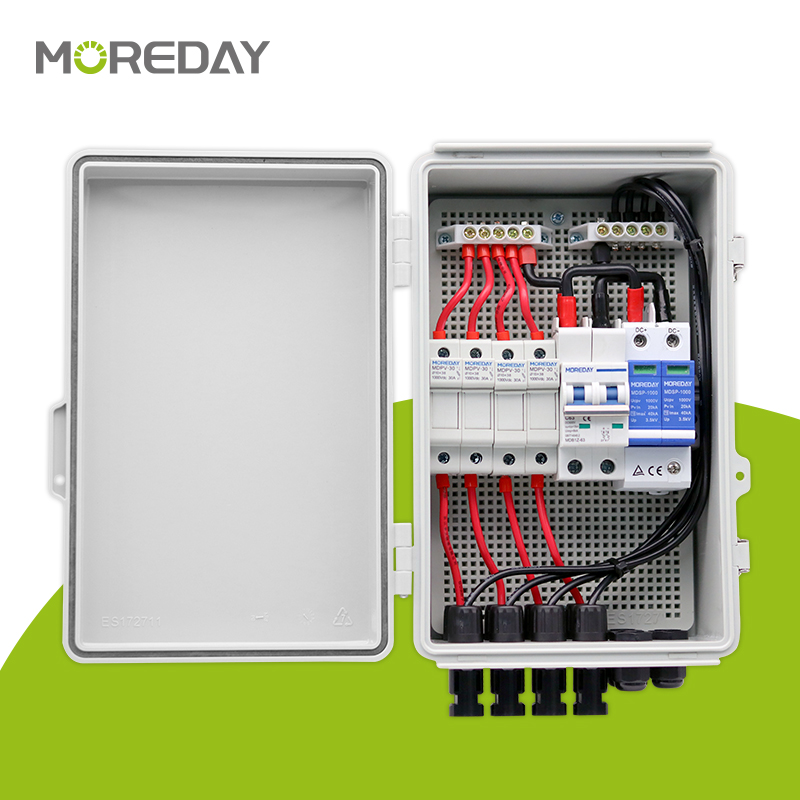

MOREDAY NEW DESIGN PV COMBINER BOX FOR HOUSEHOLD

Details Images

System maximum dc voltage
550/1000
Maximum input strings
4
Maximum input current for each string
15A
Maximum output switch current
20A/32A
Number of inverter MPPT
1
Number of output strings
1
Nominal discharge current
20KA
Maximum discharge current
40KA
Voltage protection level
2.8KV/3.8KV


Maximum continuous operating voltage Uc
630V/1050V

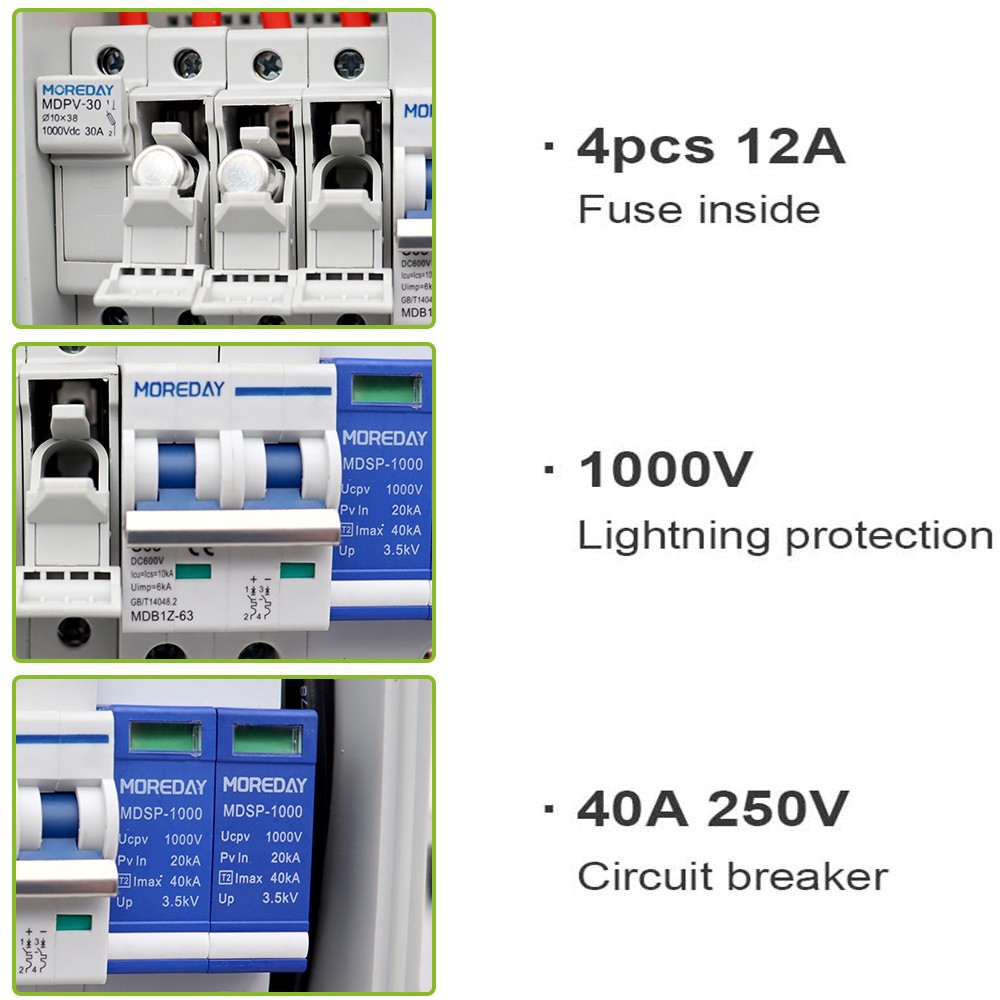

SMC4 Connectors/dc fuse/dc surge protector
Standard
Monitoring module/Preventing diode
Optional
Box material
PC/ABS
Installation method
Wall mounting type
Operating Temperature
-25℃--+55℃
Permissible relative humidity
0-95%, no condensation



Contact Name: Mr. Derek Ke Contact Email: in****o@moreday.com
Contact Job Title: Manager Contact Mob: 157***011
Contact Tel: Contact Fax:
Address: malujiao industrizal zone,beibaixiang town,yueqing ,zhejiang,china Website: http://www.moredaydc.com

Founded in 2009, Moreday Solar is a R&D and manufacturing company integrating photovoltaics and new energy industry. The original intention of Moreday Solar is to bring more clean energy to the world and enjoy a better life. The company's main products: photovolta-ic convergence and grid-connected prod-ucts, low-voltage electrical, energy storage and application products, solar power transmission and distribution products and solar system manufacturing. The company takes solar energy sharing as its vision, technological innovation as its driving force, customer-oriented, and has obtained more than 30 national patents.  Its products have passed CQC, CE, CB, TUV, ROHS and other certifications, and IS09001 quality system certification, with more than 1,000 services. Customers, the products are exported to more than 50 countries in Europe, America, Southeast Asia, the Middle East and other regions. We hope to work with more partners to bring solar energy to every region of the world, promote the widespread use of green and clean energy, and leave more day for the earth
