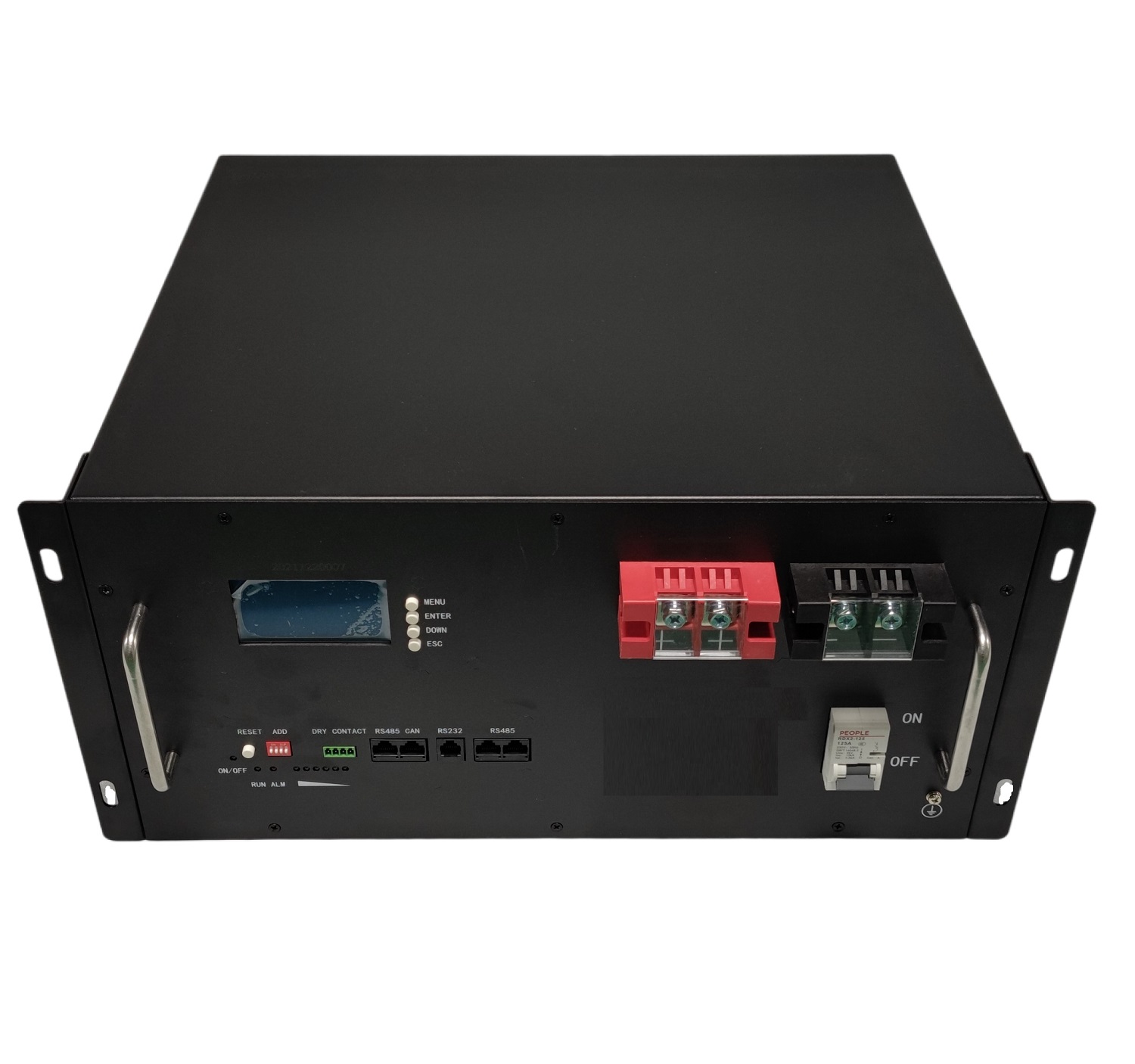

ZN100-48 Household Energy Storage LiFePO4 Battery Pack 48V 100AH
Electrical & Power Energy Batteries
MOQ:5 Piece(s)
Payment Method : T/T
Keywords:Household Energy Storage LiFePO4 Battery 48V 100AH Solar energy storage
| Product Category: | Electrical & Power Energy > Batteries | Trademark: | ZNB |
| Product Package: | Wooden packaging+Carton Packaging | Specifications: | 1Pcs /Ctn |
| Place of Origin: | XIANNING CHINA | Port: | Nansha New Port |
Product Features
①. The battery is made of lithium iron phosphate (LiFePO4) material system, which has good safety performance and long cycle life.
②.The battery system adopts the high-performance BMS battery management module. The BMS has the protection functions such as overdischarge, overcharge, over-current and temperature, and makes the battery system communicate well with the host.
③. Flexible configuration: multiple modules in parallel can extend backup time for the system.
④Support matching energy storage inverter communication
ITEM | SPECIFICATION | Remark |
Normal capacity | 100Ah | |
Minimum capacity | 98Ah | / |
Nominal voltage | 48V | Options 51.2V |
Delivery Voltage | 48V | / |
Max Charging voltage | 52.5V | Options 56V |
Charging current | 50A | / |
Discharging Current | 50A | / |
Maximum Continuous Discharging Current | 100A | / |
Discharge ending voltage | 42V | / |
Recommended charge and discharge battery environmental temperature | Charge:：0~45℃ Discharge:：-20~55℃ | / |
Humidity range | 0 ~ 75 % RH | / |
Battery dimension | Max: 450*442*222mm | / |
Weight | 48kg±2kg | / |
Shell Material | SECC | / |
Charging current limiting | / | |
LCD display | / | |
Communication interface | RS485、RS232、CAN | / |
Dry contact | 2 | / |
Protection grade | IP20 | / |
Cycle life | 4000次 | / |

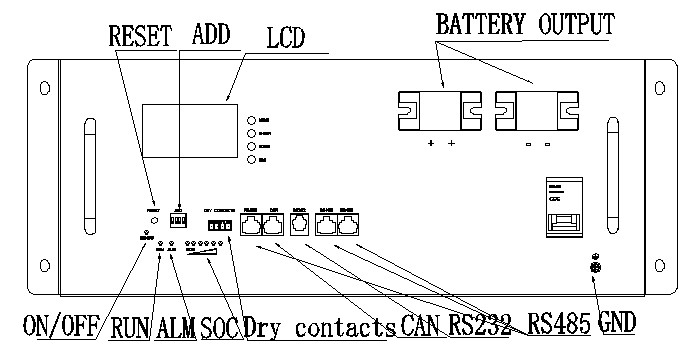

Panel diagram
For more information, please contact us.
| Contact Name: | Mrs Helen xiong | Contact Email: | xl***@cnznb.cn |
| Contact Job Title: | Manager | Contact Mob: | 152***916 |
| Contact Tel: | Contact Fax: | ||
| Address: | Development Road, Jiayu County，Hubei， China | Website: | www.cnznb.cn |
Xianning Times China Energy Li-ion Battery Co.,Ltd.(ZnB) is a professional R&D centre which combines producing and sales of PACK production together, focusing on lithium-ion power battery modules, energy storage battery modules and 3C digital battery packs etc. The products are widely used in new energy for e-bike, motorcycle, scooters etc., solar and base station energy storage, UPS power supply, outdoor lamps and solar street lamps, etc.
