12V100Ah AGM VRLA Rechargeable Solar Battery
Electrical & Power Energy Batteries
MOQ:50 Piece(s)
Payment Method : L/C T/T
Keywords:12V100Ah Solar Battery 12V100Ah AGM Battery Rechargeable Solar Battery Maintenance free
| Product Category: | Electrical & Power Energy > Batteries | Trademark: | VCELL |
| Product Package: | Solar Battery 12V 100ah: Standard PVC bag, Carton, Pallet | Specifications: | Battery |
| Place of Origin: | China | Port: | China port |
12V100Ah AGM VRLA Rechargeable Solar Battery
1. PRODUCT INFORMATION
SPECIFICATION
Model | 12VHC100 |
Voltage(V) | 12 |
Capacity(20°C) | 100Ah @ 10HR-rate |
Dimensions | 331*173*216*222mm |
Weight(KG) | 30.0 |
Teiminal | RT-08 |
12V100Ah AGM Solar Battery
2. FEATURES AND BENEFITS
1. Designed floating charging service life: 15years (25oC)
2. Safety valve installation for explosion proof ,Sealed and maintenance free operation
3. By using strong grids, high purity lead and patented Gel electrolyte
4. Extremely low self-discharge characteristic
5. Wide operating temperature range from -20oC~55oC
6. Lead Aluminum calcium Tin alloy high energy, prevent corrosion
3. Characteristics
More technical datas about 12V Battery 100AH, welcome to contact us.
4. APPLICATION
1. Photovoltaic systems
2. Renewable Energy Systems
3. Railroad Utilities
4. Outdoor control Equipments
5. Electric Utilities
6. Solar/Wind/Hybrid power systems
7. DC power supply
8. Security and fire alarm systems
9. Emergency lighting systems

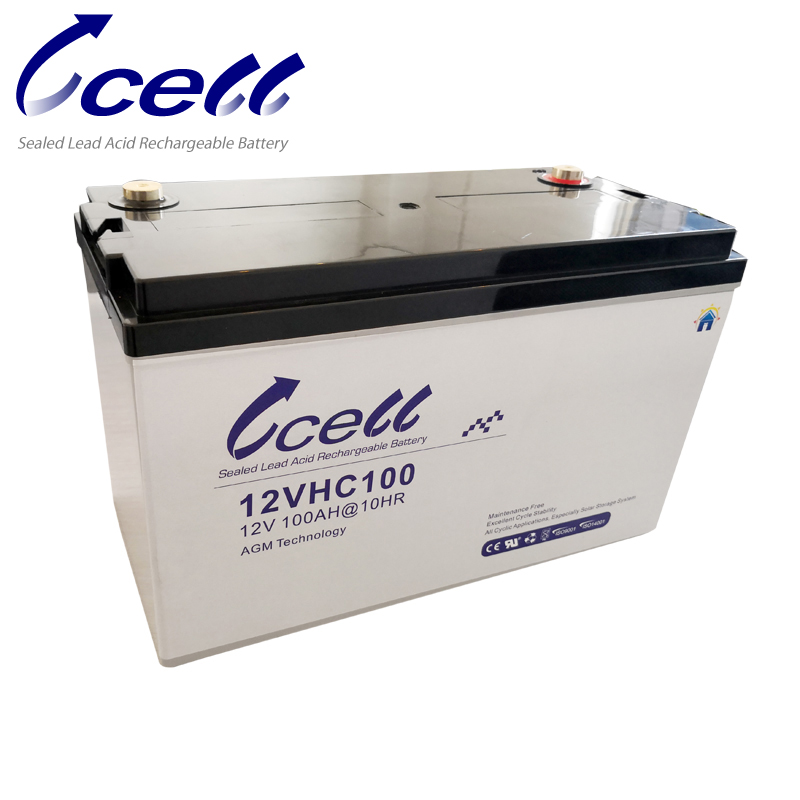

5. PRODUCT PHOTO
12V100Ah AGM VRLA Rechargeable Solar Battery
Model: 12V100Ah solar battery
6. More related models for VHC series
| Model | Nominal Voltage (V) | Rated Capacity @ 10HR (Ah) | Dimensions (in) mm | Weight (Lb) kg | Terminal Type | |||
| Length | Width | Height | Overall Height | |||||
| "VHC" SERIES, DEEP CYCLE FOR SOLAR (12-15 Year Design Life for Floating Charge or 500 Cycles @ 80% DOD) | ||||||||
| 12VHC38 | 12 | 38 | (7.76)197 | (6.54)166 | (6.69)170 | (6.69)170 | (25.35)11.50 | RT(M6) |
| 12VHC45 | 12 | 45 | (7.76)197 | (6.54)166 | (6.69)170 | (6.69)170 | (29.76)13.50 | RT(M6) |
| 12VHC50 | 12 | 50 | (9.06)230 | (5.43)138 | (8.31)211 | (8.50)216 | (33.07)15.00 | RT(M6) |
| 12VHC55 | 12 | 55 | (9.06)230 | (5.43)138 | (8.31)211 | (8.50)216 | (34.83)15.80 | RT(M6) |
| 12VHC65 | 12 | 65 | (13.78)350 | (6.57)167 | (6.81)173 | (6.81)173 | (42.77)19.40 | RT(M8) |
| 12VHC70 | 12 | 70 | (10.24)260 | (6.61)168 | (8.35)212 | (8.58)218 | (48.50)22.00 | RT(M6) |
| 12VHC80 | 12 | 80 | (12.09)307 | (6.61)168 | (8.31)211 | (8.46)215 | (56.22)25.50 | RT(M6) |
| 12VHC90 | 12 | 90 | (12.09)307 | (6.61)168 | (8.31)211 | (8.46)215 | (57.76)26.20 | RT(M6) |
| 12VHC100 | 12 | 100 | (13.03)331 | (6.81)173 | (8.50)216 | (8.74)222 | (66.14)30.00 | RT(M8) |
| 12VHC120 | 12 | 120 | (12.98)406 | (6.81)173 | (8.23)209 | (9.33)237 | (78.04)35.40 | RT(M8) |
| 12VHC135 | 12 | 135 | (13.43)341 | (6.77)172 | (11.06)281 | (11.30)287 | (94.14)42.70 | RT(M8) |
| 12VHC150 | 12 | 150 | (19.09)485 | (6.69)170 | (9.45)240 | (9.45)240 | (97.00)44.00 | RT(M8) |
| 12VHC180 | 12 | 180 | (20.98)533 | (8.15)207 | (8.46)215 | (8.62)219 | (116.84)53.00 | RT(M8) |
| 12VHC200 | 12 | 200 | (20.59)523 | (9.41)239 | (8.58)218 | (8.74)222 | (131.18)59.50 | RT(M8) |
| 12VHC230 | 12 | 230 | (20.47)520 | (10.55)268 | (8.66)220 | (8.82)224 | (169.91)68.00 | RT(M8) |
| 12VHC250 | 12 | 250 | (20.47)520 | (10.55)268 | (8.66)220 | (8.82)224 | (156.53)71.00 | RT(M8) |
| 2VHC100 | 2 | 100 | (6.73)171 | (2.83)72 | (8.07)205 | (8.43)214 | (12.90)5.85 | RT(M8) |
| 2VHC200 | 2 | 200 | (6.77)172 | (4.37)111 | (12.95)329 | (14.37)365 | (28.88)13.1 | RT(M10) |
| 2VHC300 | 2 | 300 | (6.73)171 | (5.94)151 | (13.15)334 | (14.37)365 | (41.45)18.8 | RT(M10) |
| 2VHC400 | 2 | 400 | (8.31)211 | (6.89)175 | (12.91)328 | (14.37)365 | (54.67)24.8 | RT(M10) |
| 2VHC500 | 2 | 500 | (9.53)242 | (6.85)174 | (12.95)329 | (14.37)365 | (68.12)30.9 | RT(M10) |
| 2VHC600 | 2 | 600 | (11.89)302 | (6.93)176 | (12.99)330 | (14.37)365 | (80.69)36.6 | RT(M10) |
| 2VHC800 | 2 | 800 | (16.14)410 | (6.93)176 | (12.99)330 | (14.37)365 | (108.03)49 | RT(M10) |
| 2VHC1000 | 2 | 1,000 | (18.70)475 | (6.89)175 | (12.95)329 | (14.37)365 | (133.16)60.4 | RT(M10) |
| 2VHC1500 | 2 | 1,500 | (15.79)401 | (13.82)351 | (13.46)342 | (15.08)383 | (203.27)92.2 | RT(M10) |
| 2VHC2000 | 2 | 2,000 | (19.29)490 | (13.78)350 | (13.58)345 | (15.08)383 | (270.07)122.5 | RT(M10) |
| 2VHC3000 | 2 | 3,000 | (27.95)710 | (13.90)353 | (13.50)343 | (15.04)382 | (418.88)190 | RT(M10) |
| 6VHC150 | 6 | 150 | (10.24)260 | (7.09)180 | (9.69)246 | (9.92)252 | (51.81)23.50 | RT(M10) |
| 6VHC160 | 6 | 160 | (11.77)299 | (6.77)172 | (8.94)227 | (9.09)231 | (55.12)25.00 | RT(M8) |
| 6VHC180 | 6 | 180 | (12.05)306 | (6.61)168 | (8.66)220 | (8.90)226 | (58.86)26.70 | RT(M8) |
| 6VHC200 | 6 | 200 | (12.72)323 | (7.01)178 | (8.90)226 | (9.06)230 | (67.24)30.50 | RT(M8) |
7. FACTORY VIEW
8. COMPANY REVIEW
Energy, The Source Of Power
Wuhan V-cell Energy Technology Co.,LTD. was established in 2005 and specializes in the research, development, manufacture and sale of Vcell brand batteries. The full battery range includes VRLA ( Valved Regulated Lead Acid ) batteries, lithium ion batteries and Primary lithium batteries, which are widely used in telecom, intellectual meters, emergency lighting, alarm systems, security, medical field, cordless devices and wheelchair industries. Our experience and technical excellence are acclaimed in China and world telecom industry.
| Contact Name: | Mr. Susanna Jiang | Contact Email: | su****a@v-cell.com |
| Contact Job Title: | Business Development Manager | Contact Mob: | 180***801 |
| Contact Tel: | 0086 27 83636686 | Contact Fax: | 0086 27 83639466 |
| Address: | Website: | http://www.v-cell.com/ |
Vcell was founded in 2005. We can provide professional solar system design, manufacturing and installation services. We have a complete solar energy product line, including: energy storage battery (lead acid gel energy storage battery and lithium iron phosphate energy storage battery), solar panel, inverter, controller, UPS power supply, and small electrical appliances with solar energy as energy source. Through modular design, our products are very easy to install and secure connections. Our products have passed UL and CE certification and quality assurance system has passed ISO9001 certification. Our products and services are acclaimed in Australia, Africa, Southeast Asia, etc.
