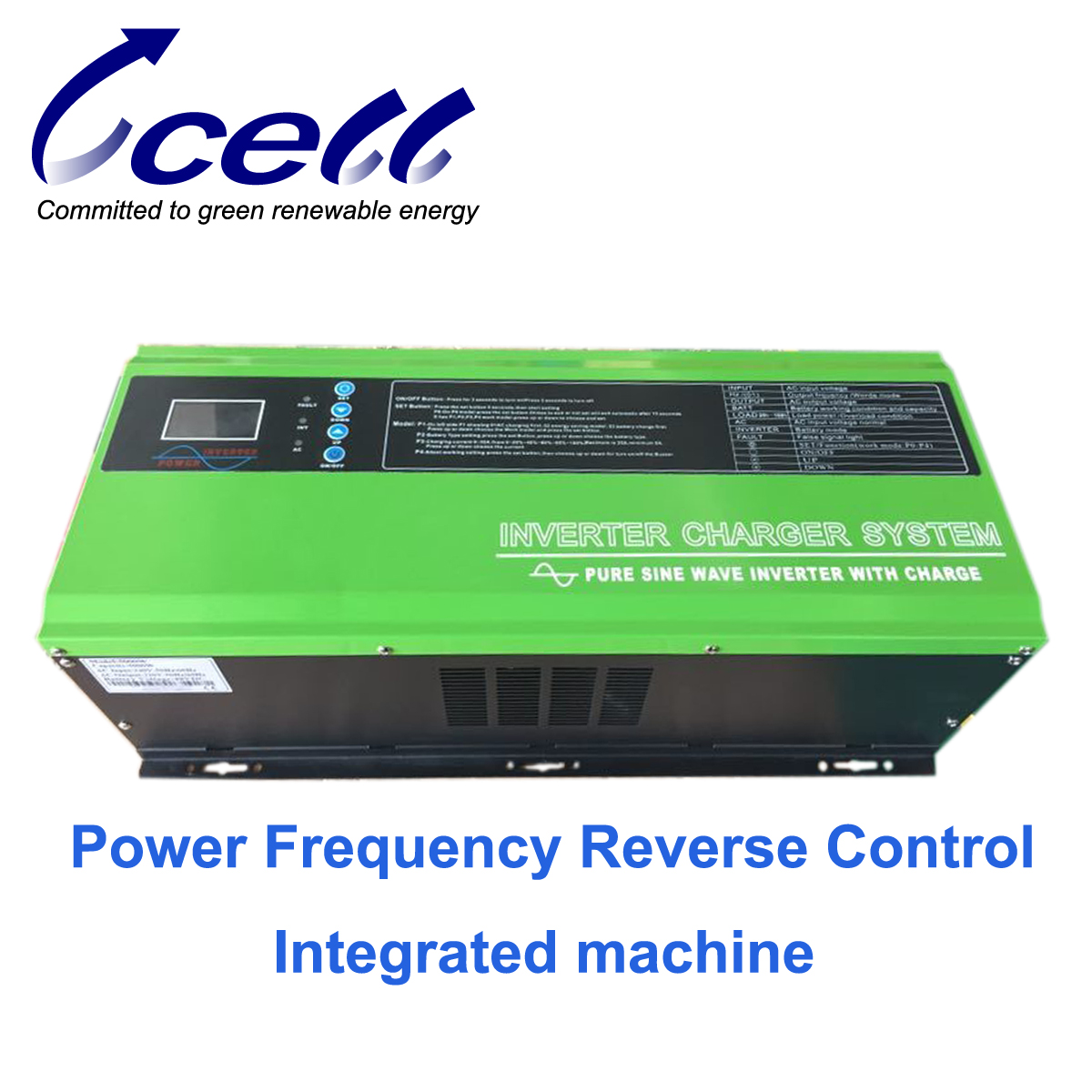

3000watt Power Frequency Reverse Control Integrated machine
Electrical & Power Energy Solar Power System
MOQ:5 Piece(s)
Payment Method : L/C T/T D/P Western Union Paypal
Keywords:Controller Inverters & Converters Inverters Solar inverter
| Product Category: | Electrical & Power Energy > Solar Power System | Trademark: | VCELL |
| Product Package: | 1 set/carton | Specifications: | 425x200x335mm |
| Place of Origin: | China | Port: | China port |
Vcell was founded in 2005. We can provide professional solar system design, manufacturing and installation services. We have a complete solar energy product line, including: energy storage battery (lead acid gel energy storage battery and lithium iron phosphate energy storage battery), solar panel, inverter, controller, UPS power supply, and small electrical appliances with solar energy as energy source. Through modular design, our products are very easy to install and secure connections. Our products have passed UL and CE certification and quality assurance system has passed ISO9001 certification. Our products and services are acclaimed in Australia, Africa, Southeast Asia, etc.
| Model XPNK | 350W-500W | 700W-1000W | 1500W-2000W | 3000W-3500W | 4000W-6000W | 7000W-10000W | |
| Photovoltaic controller | Control mode | Direct charge/PWM | |||||
| Recharging current | 10A | 20/20/50A | 30A | 50A | 30/50/25/50A | 50A | |
| Rated charging voltage | 12VDC | 24VDC | 24VDC | 48VDC | 48/96VDC | 96VDC | |
| Strong charging voltage | 14.8V | 29.6V | 29.6V | 59.2V | 59.2/118.4V | 118.4V | |
| Equalizing charging voltage | 14.4V | 28.8V | 28.8V | 57.6V | 57.6/115.2V | 115.2V | |
| Float voltage | 13.8V | 27.6V | 27.6V | 55.2V | 55.2/110.4V | 110.4V | |
| Recovery charging voltage | 13.3 | 26.6V | 26.6V | 53.2V | 53.2/106.4V | 106.4V | |
| Battery overvoltage protection/recovery | 16.5V/15V | 33V/30V | 33V/30V | 66V/60V | 66/60/132/120V | 132V/120V | |
| Protective function | Protections such as reverse connection, short circuit, overcharge, and anti-reverse charge | ||||||
| Display method | LED | ||||||
| Photovoltaic inverter | Rated Capacity | 350/500W | 0.7/1/1.2KW | 1.5/2KW | 3/3.5 KW | 4/5/6 KW | 7/10 KW |
| DC voltage | 12V | 24V | 24V | 48V | 48/96V | 96V | |
| Undervoltage protection | 10.5V | 21V | 21V | 42V | 42/84V | 84V | |
| Inverter structure | Power frequency structure | ||||||
| Commercial power input | 100V/110V/120V/127V/220V/230V/240V (±25%) | ||||||
| Inverter output | 100V/110V/120V/127V/220V/230V/240V (±2%) | ||||||
| Commercial power input charging current | 0A-10A (adjustable) | ||||||
| Working mode | Commercial power priority/solar power priority (optional) | ||||||
| Conversion time | <4ms | ||||||
| Overload capacity | The machine will automatically shut down in 30 seconds when overload is 110%; it will shut down in 2 seconds when overload is 120%; it will not shut down when the mains mode is overloaded. | ||||||
| Conversion efficiency | >80% | ||||||
| Output waveform | Pure sine wave | ||||||
| Working environment | Temperature 0-40℃, humidity 10-90% | ||||||
| Cooling method | Forced air cooling | ||||||
| Protective function | Commercial power over high/under voltage, DC over high/under voltage, inverter output short circuit | ||||||
| Display method | LCD | ||||||
| Output waveform distortion | <3% | ||||||
| Input and output frequency | With the grid | ||||||
| Machine specifications | Machine size (mm) | 345x210x122 | 420x145x215 | 405x180x320 | 425x200x335 | 465x245x465 | 485*300*655 |
| Machine weight | 9/10KG | 13/15/17KG | 19/22KG | 30/32KG | 46/52/52/54KG | 57/87KG | |
| Remarks | Specifications are subject to change without notice | ||||||
