Glow plasma nitriding furnace for stainless steel

Manufacturing & Processing Machinery Industrial Processing Machinery

FOB Price:US$ 20,000.00 / Set(s)

MOQ:1 Set(s)

Payment Method : L/C T/T

Keywords:glow plasma nitriding furnace plasma nitriding furnace stainless steel nitriding glow ion nitriding furnace ion nitriding furnace  nitriding furnace vacuum nitriding furnace glow ion nitrogen furnace glow ionic nitriding furnace

Inquire


Add to Favorites

Product Category: Manufacturing & Processing Machinery > Industrial Processing Machinery Trademark:
Product Package: Wrapping film Specifications: LDMC-25A, LDMC-50A, LDMC-75A, LDMC-100A, LDMC-150A
Place of Origin: China Port: Any port of China

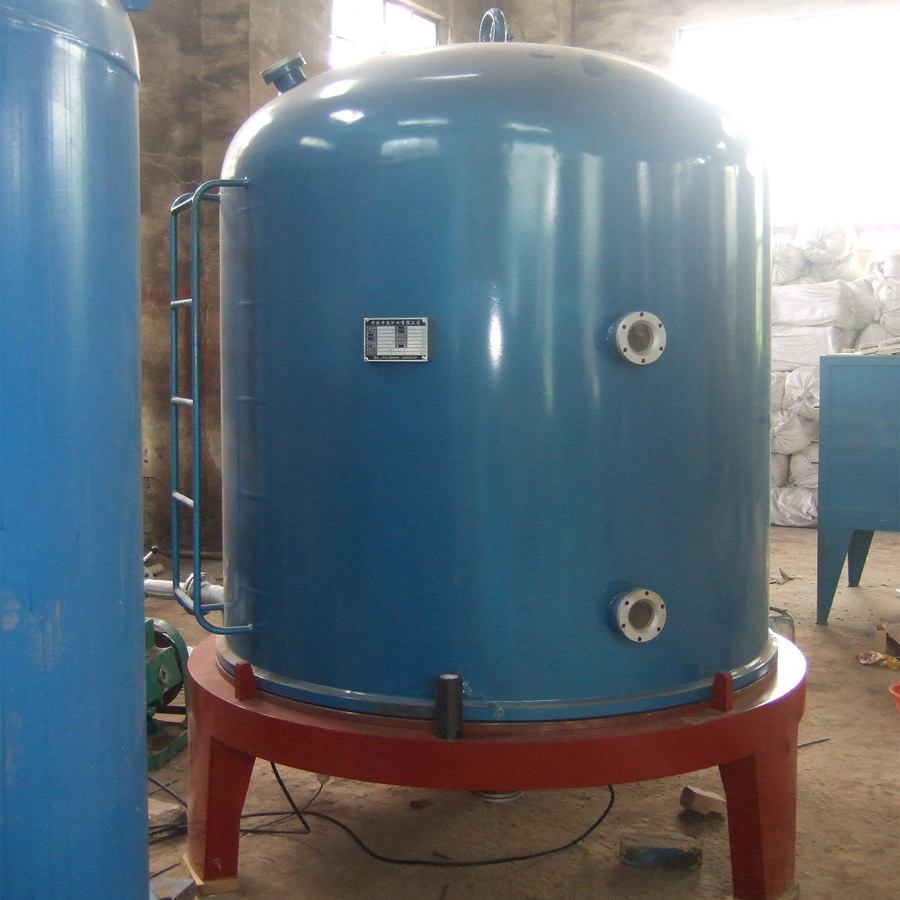

Plasma Nitriding Furnace

Application

LDMC Series plasma nitriding furnace is mainly used for rapid shallow layer nitriding of alloy steel, stainless steel, high-speed steel and tool steel.

Structure

LDMC Series plasma nitriding furnace consist of furnace body, transmission equipment, vacuum pumping systems, power supply system, gas supply system and measure temperature, etc.

Advantages

1.Compared with gas nitriding furnace,has the advantages of fast nitriding, nitriding layer organization is easy to control, need only 3 to 10h;

2.After nitriding treatment, surface hardness can reach up to HV900(HRC64),nitriding depth can be controlled in 0.09-0.87mm,can significantly improve the surface hardness, wear resistance and corrosion resistance.

Heating method: electric

Main technical parameters

Model

LDMC-25A

LDMC-50A

LDMC-75A

LDMC-100A

LDMC-150A

Final vacuum (Pa)

6.67

Pressure rising rate(Pa/min)

0.13

Vacuum pump

2x-4

2x-8

2x-8

2x-8

2x-15

2x-4

2x-8

2x-8

2x-15

2x-30

Heating power(kw)

25

50

75

100

150

Working area(mm)

Φ660*800

Φ1060*950

Φ920*1200

Φ1200*1200

Φ1500*1500

Max heating area(cm2)

1.25*104

2.5*104

3.5*104

5*104

7.5*104

Loading capacity(kg)

500

800

1000

1200

2000

working temp.(℃)

650

650

650

650

650

Cooling water consumption(m3/h)

0.7

0.8

0.9

1.0

1.0

Overall dimension(mm)

Φ1240*2000

Φ1557*2350

Φ1417*2600

Φ1875*2600

Φ2175*2900

Weight(t)

1.6

2.73

2．96

3.55

3.95


Contact Name: Mrs Jane Sun Contact Email: ad****n@heat-treatingfurnace.net
Contact Job Title: Manager Contact Mob: 185***990
Contact Tel: +86-373-3030857 Contact Fax:
Address: Rongxiao Road and Dongming Road Southeast,XinxiangCity,HenanProvince,China Website: http://www.heat-treatingfurnace.net

         Henan MTL Metallurgy Materials Co.,Ltd is a professional supplier of heat treatment furnace and melting furnace. We are specialized in furnace designing, developing, manufacturing and after sales services, supply a full range of heat treatment equipment, melting equipment, auxiliary equipment and accessories.
