Vertical Circulation Mechanical Parking Equipment For 12 Cars
MOQ:1 Piece(s)
Payment Method : T/T
Keywords:smart car parking system Mechanical Parking Equipment car parking
| Product Category: | Construction & Decoration > | Trademark: | |
| Product Package: | Specifications: | ||
| Place of Origin: | Port: | Wuhan |

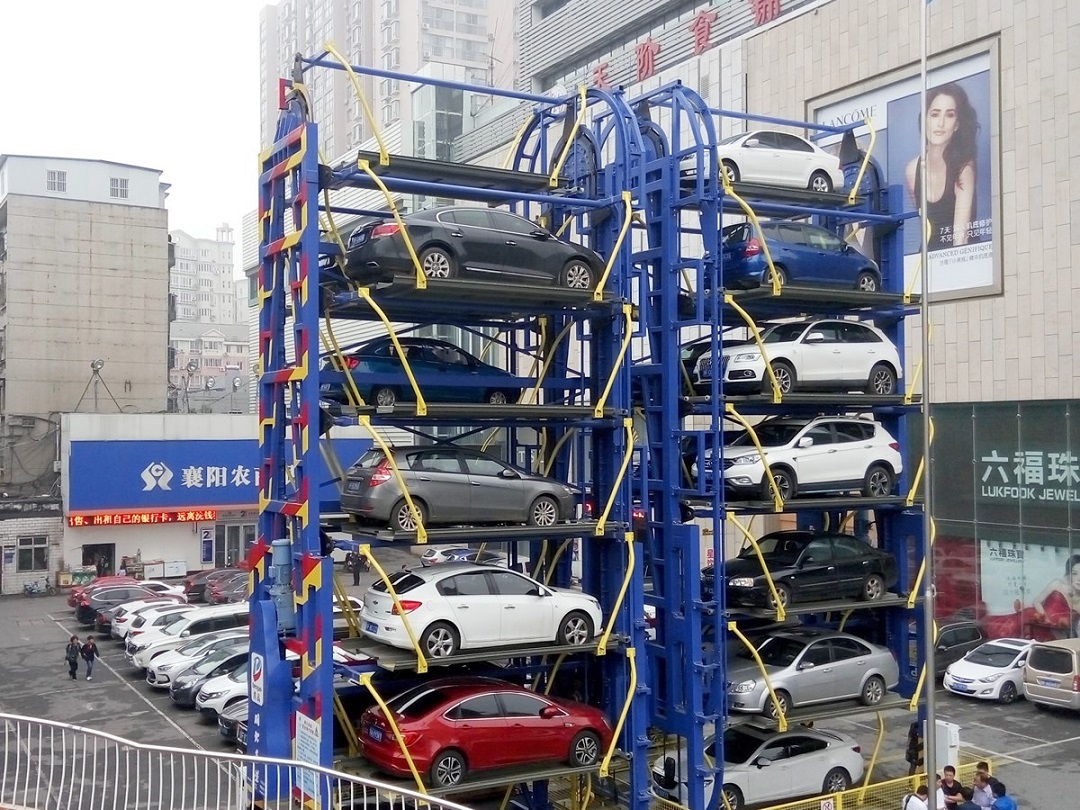

Vertical Circulation Mechanical Parking Equipment For 12cars
NO. | Item | Specification |
1 | Equipment name | Vertical rotary mechanical parking equipment |
2 | Item NO. | PCX10D-B、PCX12D-B、PCX14D-B、PCX16D-B |
3 | For dimensions of sedan cars: | Length 5200mm×Width 1950mm× Height 1750mm |
4 | surface treatment of packing equipment | Polishing + anodizing + same painting as sedan cars |
5 | Equipment Driving mode: | "engine" + "chain transmission" |
6 | Electric system: | using brand "Schneider" from France |
7 | main steel column: | “CE” approved material Q345 steel with thickness 8mm, dimension 220 mm * 220 mm. |
8 | Engine voltage: | AC380V、50Hz |
9 | Engine power | 11 KW or 22 KW |
10 | Controlling system | PLC control |
11 | User controlling: | “LCD touch screen” + “ID card” |
12 | Time of parking or getting vehicle : | ≤ 90 seconds. |
13 | Chain transmission speed | 5.2- 6.0 Meters /min |
14 | Sound level | ＜65dB |
15 | Required land area for installation: | Concrete ground area, around 7.0 meters x 5.3 meters. |
1. Car size. The height of the car-carrying device of Qixing standard three-dimensional parking equipment can reach 1750mm, which can meet the storage of most SUV vehicles on the market. One type of storage can park small cars or SUV vehicles.
2. Using ultra-quiet motor, low noise. Using ultra-quiet motor, the noise value can be controlled below 65 decibels, which is much better than national standards.
3. Material advantages The steel structure of the equipment is made of Q355b section steel, which is far better than the Q235 ordinary carbon steel of other similar products. After multi-step anti-corrosion treatment, special shot blasting machine, electrophoretic primer, and excellent anti-corrosion performance. The entire frame is connected by high-strength bolts, and the equipment is stable and reliable.
4. Use robot automatic welding production line production. The whole production process adopts robot automatic welding production line operation. The welding quality and welding consistency are better than traditional manual welding, and the appearance is beautiful. And each position only needs to be responsible for the production of the same parts to avoid production errors; the production of parts has special tooling to ensure the quality of the produced parts.
| Contact Name: | Mr Michael Hu | Contact Email: | Hu****l@qixingauto.com |
| Contact Job Title: | Manager | Contact Mob: | 139***747 |
| Contact Tel: | Contact Fax: | ||
| Address: | 湖北省随州市经济技术开发区 | Website: | www.cnqixinggroup.com，www.qixingauto.com |
Hubei Qixing Group is a large-scale enterprise group with state-owned shares, founded in 1980, it is a company that mainly produces truck cabins, EV?truck, SKD/CKD?trucks,?fuel tank trucks and LPG/CNG tankers, intelligent?Parking?system,?Solar power,?jigs, dies, casting parts, integrating with?photovoltaics, semiconductor materials, and green new energy industry and other national-level high-tech enterprise groups with integrated diversified development of science, industry and trade that there are?14 subsidiaries, more than 2,600 employees, covering an area of 1,800 acres, and total assets of more than 5 billion yuan.
