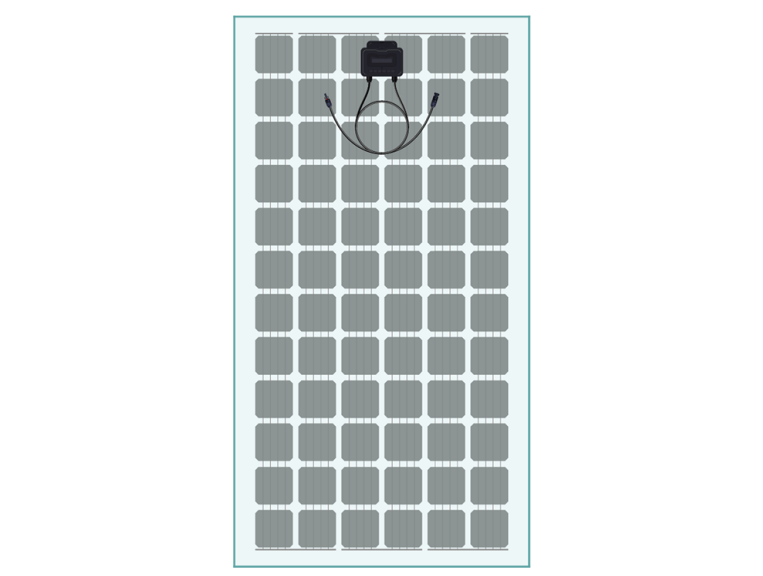

polycrystalline dual glass solar panel / 330W / 72cells / 24V / white
Metallurgy,Chemicals & Energy Solar Energy,Environment & Recycling
MOQ:1 Piece(s)
Payment Method : L/C T/T
Keywords:Solar Cells,Solar Panel double glass solar panel polycrystalline
| Product Category: | Metallurgy,Chemicals & Energy > Solar Energy,Environment & Recycling | Trademark: | Manufacturer |
| Product Package: | 30pcs/carton, 22cartons/40HQ, 660pcs/40HQ | Specifications: | 1968*992*6mm |
| Place of Origin: | Wuhan, China | Port: | Wuhan / Shanghai |
polycrystalline dual glass solar panel / 330W / 72cells / 24V / white
Main Features
1. Outstanding module performance
Anti PID
High hot-spot resistance
Double semi-tempered glasses strengthen cracking resistance
Improve heat dissipation
2. Ensure fire safety performance
Replace polymer back plate with tempered glass, to improve fire safety performance
Passed fire safety test grade A
3. System cost reduction makes more efficiency
Maximum system voltage enhanced to 1500V
System overall cost reduced greatly, compared with 1000V system
30-year linear power warranty, only 0.5% annual linear degradation
4. Harsh environment adaptation
High transmittance, anti reflection, self-cleaning coated glass
No aluminum alloy frame, no PID
Excellent performance on wind & sand resistance, salt mist resistance, ammonia corrosion resistance
Electrical performance parameters
| polycrystalline dual glass solar panel / 330W / 72cells / 24V / white | |
| Electrical performance parameters | |
| STC (AM1.5, 1000W/m2, cell temperature 25℃) | |
| Model | MDG330(W) |
| Maximum power (Pm/Wp) | 330 |
| Maximum power voltage (Vmp/V) | 37.63 |
| Maximum power current (Imp/A) | 8.77 |
| Open circuit voltage (Voc/V) | 45.61 |
| Short circuit current (Isc/A) | 9.54 |
| Module efficiency (%) | 16.9 |
General performance parameters
| Mechanical performance parameters | |
| Cell Nos & array | 72(6*12) |
| Diode Nos | 3 |
| Cells dimension(mm) | 156.75*156.75 poly |
| Cable | 4mm2/negative 150mm, positive 300mm |
| Module weight (kg) | 28 |
| Module dimension (L*W*H) (mm) | 1968*992*6(junction box thickness 16mm) |
| Packing | 30pcs/pallet, 22cartons/40HQ, 660pcs/40HQ |
| Quality parameters | |
| Module working temperature range (℃) | -40~+85 |
| Power tolerance (W) | 0~+5 |
| Maximum system voltage (V Dc) | 1500DC |
| System maximum protection current (A) | 15 |
| Normal operating cell temperature (NOCT) | 45±2℃ |
| Maximum wind loads/maximum snow loads (Pa) | 2400/5400 |
| Hot spot | 100% hot spot free |
| Temperature coefficient (STC) | |
| Temperature coefficient of Voc | -0.31%/℃ |
| Temperature coefficient of Isc | 0.05%/℃ |
| Temperature coefficient of Pm | -0.41%/℃ |
Drawing(mm)
Quality Warranty
10-year materials&workmanship warranty
30-year linear power warranty
