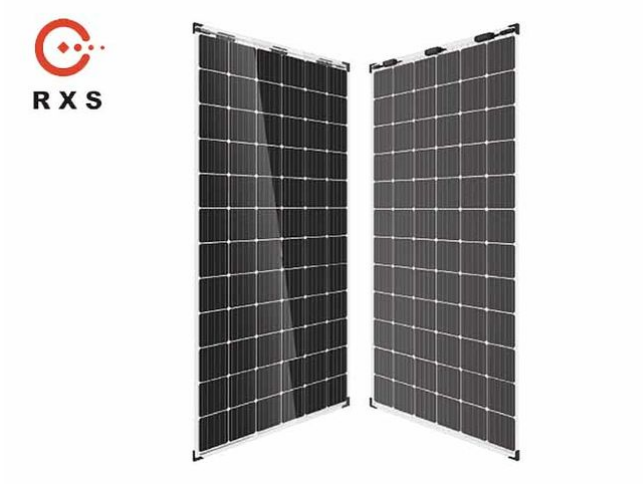

Perc monocrystalline bifacial dual glass solar panel with frame / 385W / 72cells / 24V
Metallurgy,Chemicals & Energy Solar Energy,Environment & Recycling
MOQ:1 Piece(s)
Payment Method : L/C T/T
Keywords:Solar Cells,Solar Panel bifacial solar panel
| Product Category: | Metallurgy,Chemicals & Energy > Solar Energy,Environment & Recycling | Trademark: | Manufacturer |
| Product Package: | 30pcs/carton, 22cartons/40HQ, 660pcs/40HQ | Specifications: | 1992x996x30mm |
| Place of Origin: | China | Port: | Wuhan/Shanghai |
Perc monocrystalline bifacial dual glass solar panel with frame / 385W / 72cells / 24V
Main Features
1. High module conversion efficiency.
2. Better energy yield with excellent low irradiance performance and temperature coefficient.
3. First year power degradation <2%.
4. Bifacial technology enables additional energy harvesting from rear side.
5. Glass/glass ensures 30 year product life span, with annual power degradation <0.45%.
6. Frameless design, no PID.
Electrical performance parameters(front side)
| Electrical performance parameters(front side) | |
| STC(Standard Testing Conditions) (irradiance 1000W/m2, cell temperature 25℃, spectra at AM1.5) | |
| Model | DDG(P)385(K) |
| Maximum power (Pm/Wp) | 385 |
| Maximum power voltage (Vmp/V) | 38.7 |
| Maximum power current (Imp/A) | 9.95 |
| Open circuit voltage (Voc/V) | 48.4 |
| Short circuit current (Isc/A) | 10.3 |
| Module efficiency (%) | 19.4 |
General performance parameters
| Mechanical performance parameters | |
| Cell Nos & array | 72(6*12) |
| Diode Nos | 3 |
| Junction box | IP68, split |
| Cable | 4mm2, 300mm, length custom |
| Module weight(kg) | 28 |
| Dimension (L*W*H) (mm) | 1992x996x30mm |
| Packing | 30pcs/carton, 22cartons/40HQ, 660pcs/40HQ |
| Temperature coefficient (STC) | |
| Temperature coefficient of Voc | -0.30%/℃ |
| Temperature coefficient of Isc | +0.059%/℃ |
| Temperature coefficient of Pm | -0.38%/℃ |
| Quality parameters | |
| Working temperature range (℃) | -40~+85 |
| Power tolerance (W) | 0~+5 |
| Maximum system voltage (V) | DC1500 |
| System maximum protection current (A) | 20 |
| NOCT(℃) | 45±2℃ |
| Front/rear static loads(Pa) | 5400/2400 |
Drawing(mm)
Quality Warranty
10-year materials&workmanship warranty
30-year linear power warranty
| Contact Name: | Mrs Ivy Cheng | Contact Email: | ch****g@rixinsolar.com |
| Contact Job Title: | Sales Manager | Contact Mob: | 159***403 |
| Contact Tel: | +86 027-87801237 | Contact Fax: | |
| Address: | Rixin Technology PV Industrial Park, No.6, Middle Maodianshan Road, East Lake Development Zone, Wuhan, Hubei, China | Website: | www.rixinsolar.com.cn |
Founded in 2001 in Wuhan, China, Rixin Technology operates as a global solar power provider, as well as one of the China’s leading crystalline silicon PV modules manufacturer, has been committed to developing clean energy. Rixin Technology has over 180000m2 manufacturing bases, 3 wholly owned subsidiaries and over 10 holding companies, more than 500 employees. Through its rational investment and industrial, Rixin Technology has formed an entire chain including R&D of core technology, PV module production, to “photovoltaic +” project development, design, construction, intelligent operation and maintenance, investment and financing. Its technological strength is shown through its title of National Hi-tech Enterprise and Hubei province PV Research Center.
After 19 years development, Rixin Technology has completed more than 1500 PV power plants, and built good business relationship with the clients all over the world. The full range of Rixin Technology’s products cover BIPV, PV modules, PV street lights, Household power generation system, commericial distributed generation system, and utility-scale power system. Rixin Technology’s products have obtained TUV, CE, ISO14001, ISO9001, OHSAS18001 etc. international certificates.
At present, Rixin Technology’s PV technology has been widely used in the fields of construction, agriculture, transportation etc. “PV + Integrated Applications”, supporting the construction of beautiful villages in the world.
The most nationally competitive and popular module is bifacial mono dual-glass PV module, high-efficient N type bifacial mono or PERC bifacial mono cells bring more than 30% additional power gain, no LID and PID, 30-year linear power warranty which guarantees high power output.
BIPV PV components, supplying clean energy for buildings, 30-year high efficient power output, 50-year operating lifetime guarantee, energy conservation and cost reduction, which provide a new aesthetics decoration effect for modern construction. More than 19 years of technology expertise, ongoing innovation, which makes Rixin Technology own the most advanced technology in BIPV area.
