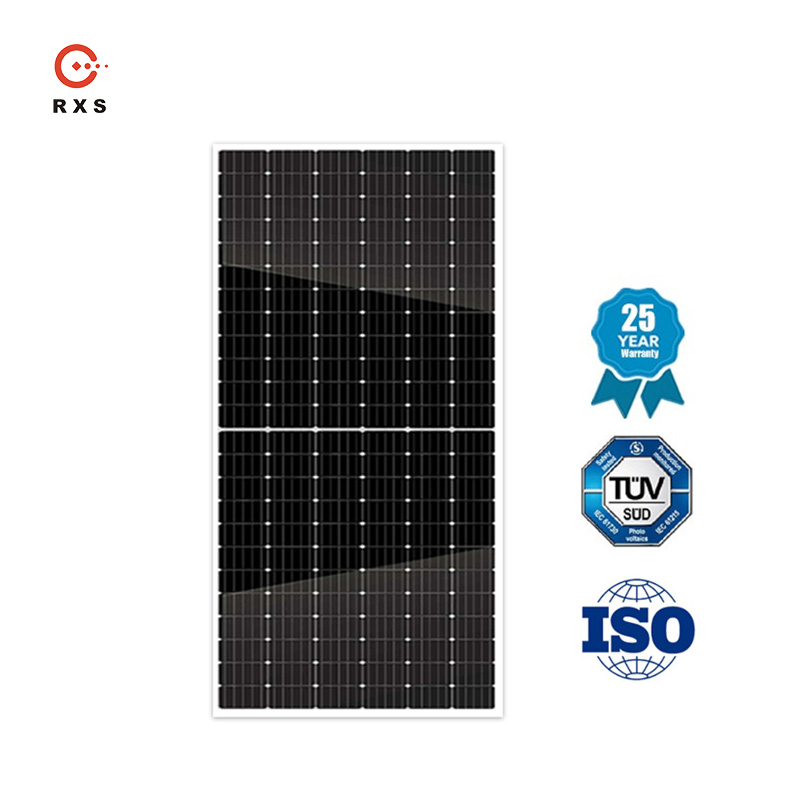

Rixin High Efficiency Mono Bifacial Double Glass Solar Module DDG(P)530-550(k)

Electrical & Power Energy Solar Power System

FOB Price:US$ 138.00 / Piece(s)

MOQ:33 Piece(s)

Payment Method : L/C T/T Paypal Money Gram

Keywords:Solar Cells,Solar Panel pv module roof solar panel

Add to Favorites

Product Category: Electrical & Power Energy > Solar Power System Trademark: Rixin
Product Package: Wooden carton Specifications: 33pcs/pallet
Place of Origin: Wuhan, China Port: Shanghai, Guangzhou, Shenzhen ,Ningbo

Mono Bifacial Double Glass Module DDG(P)530-550(k)

Model

DDG(P)530(k)

DDG(P)535(k)

DDG(P)540(k)

DDG(P)545(k)

DDG(P)550(k)

Maximum power(Pm/Wp)

530

535

540

545

550

Maximum power voltage(Vmp/V)

41.64

41.87

42.09

42.32

42.54

Maximum power current(lmp/V)

12.73

12.78

12.83

12.88

12.93

Open circuit voltage(Voc/V)

49.65

49.78

49.91

50.12

50.34

Short circuit current(Isc/A)

13.48

13.53

13.58

13.63

13.68

Module efficient(%)

20.45

20.64

20.83

21.03

21.22

Test condition:irradiance=(1+0.1BiFi)1000W/,ambient temperature=25,AM=1.5



Mechanical performance parameters

Cell Nos & array

Mono half-cut cells 144 pcs

Cell size (mm)

182*91

Glass thickness (mm)

2.0

Frame

Anodized alaminum alloy

Cable

4m㎡  negetive300mm, positive300mm

Module weight (kg)

32.1

Module dimension (L*W*H)(mm)

2285*1134*35mm

Packing

31pcs/pallet



Quality parameters

Module working temperature range ()

-40~ +85

Power tolerance(W)

0~+5

Maximum system voltage(V)

DC1500

System maximum protection current(A)

25

NOCT()

45±2

Front/rear static loads(Pa)

2400 / 5400

Junction box/Connector

Ip68,split / MC4 compatible



Temperaturecoefficient(STC)

Temperature coefficient of Voc

-0.3%/

Temperature coefficient of Isc

+0.06%/

Temperature coefficient of Pm

-0.39%/

Test condition:irradiance=(1+0.1BiFi)1000W/,ambient temperature=25,AM=1.5



Quality warranty

12-year material & workmanship warranty

30-year linear power warranty


Contact Name: Mrs Ivy Cheng Contact Email: ch****g@rixinsolar.com
Contact Job Title: Sales Manager Contact Mob: 159***403
Contact Tel: +86 027-87801237 Contact Fax:
Address: Rixin Technology PV Industrial Park, No.6, Middle Maodianshan Road, East Lake Development Zone, Wuhan, Hubei, China Website: www.rixinsolar.com.cn

Founded in 2001 in Wuhan, China, Rixin Technology operates as a global solar power provider, as well as one of the China’s leading crystalline silicon PV modules manufacturer, has been committed to developing clean energy. Rixin Technology has over 180000m2 manufacturing bases, 3 wholly owned subsidiaries and over 10 holding companies, more than 500 employees. Through its rational investment and industrial, Rixin Technology has formed an entire chain including R&D of core technology, PV module production, to “photovoltaic +” project development, design, construction, intelligent operation and maintenance, investment and financing. Its technological strength is shown through its title of National Hi-tech Enterprise and Hubei province PV Research Center.



After 19 years development, Rixin Technology has completed more than 1500 PV power plants, and built good business relationship with the clients all over the world. The full range of Rixin Technology’s products cover BIPV, PV modules, PV street lights, Household power generation system, commericial distributed generation system, and utility-scale power system. Rixin Technology’s products have obtained TUV, CE, ISO14001, ISO9001, OHSAS18001 etc. international certificates.



At present, Rixin Technology’s PV technology has been widely used in the fields of construction, agriculture, transportation etc. “PV + Integrated Applications”, supporting the construction of beautiful villages in the world.



The most nationally competitive and popular module is bifacial mono dual-glass PV module, high-efficient N type bifacial mono or PERC bifacial mono cells bring more than 30% additional power gain, no LID and PID, 30-year linear power warranty which guarantees high power output.



BIPV PV components, supplying clean energy for buildings, 30-year high efficient power output, 50-year operating lifetime guarantee, energy conservation and cost reduction, which provide a new aesthetics decoration effect for modern construction. More than 19 years of technology expertise, ongoing innovation, which makes Rixin Technology own the most advanced technology in BIPV area.



In 2040, the world's renewable energy growth will exceed 400%, accounting for more than 50% of the growth of electricity generation.



Solar energy resources are inexhaustible and widely distributed on the earth. Rixin Technology commits itself to change the world by solar energy. Where the sun shines, there is Rixin Technology
