Asphalt sprayer
Manufacturing & Processing Machinery Engineering & Construction Machinery
MOQ:1 Piece(s)
Payment Method : L/C T/T D/P Western Union Paypal Money Gram Others
Keywords:Asphalt sprayer Asphalt distributor Asphalt Mixers Bitumen sprayer road oil tanker asphalt machine asphalt plant asphalt heater Road constraction machine Bitumen distributor truck
| Product Category: | Manufacturing & Processing Machinery > Engineering & Construction Machinery | Trademark: | XCMG |
| Product Package: | Nude | Specifications: | 5161 |
| Place of Origin: | China | Port: | Shanghai |
ZZM series Intelligent Asphalt Distributor

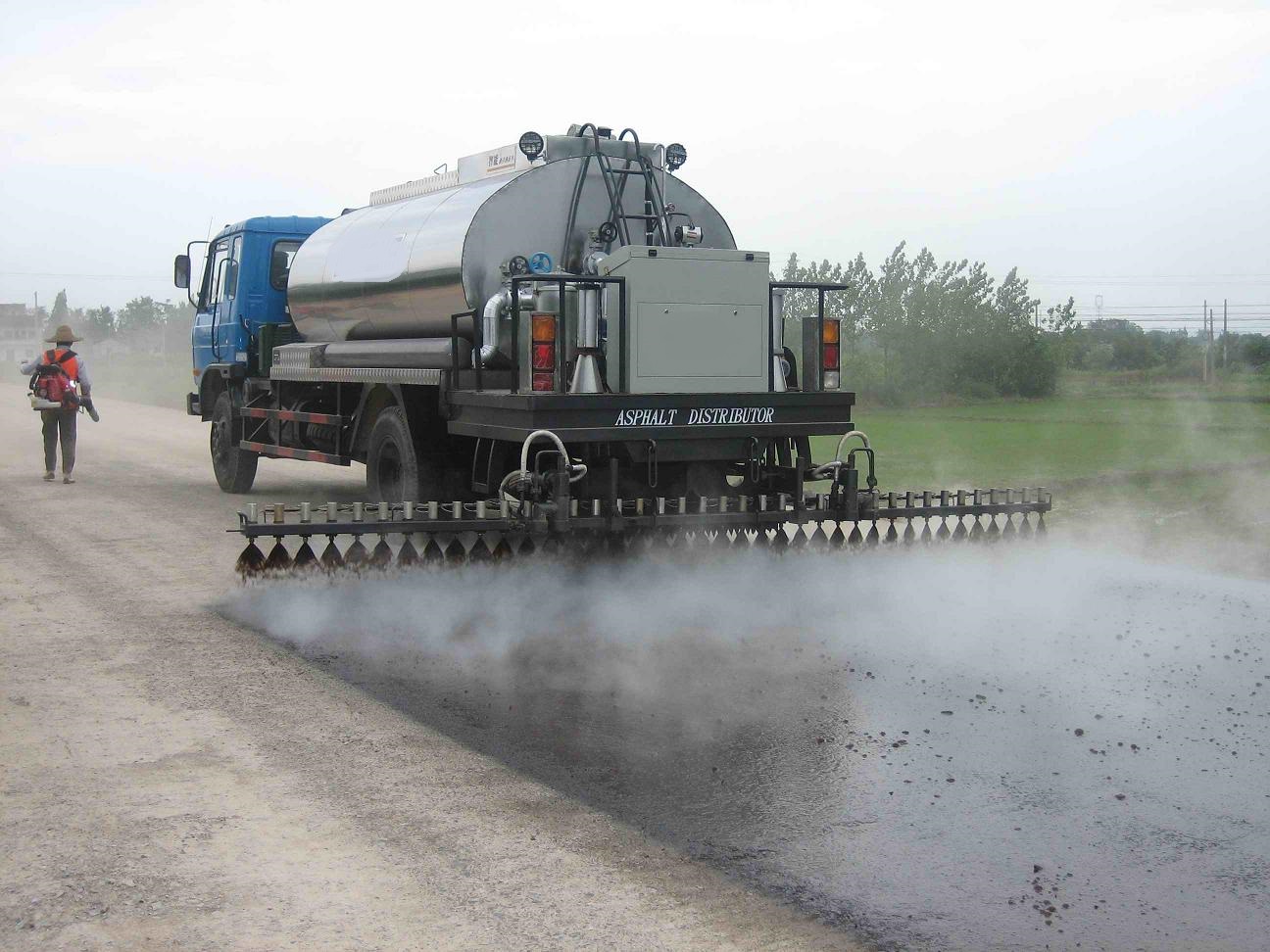

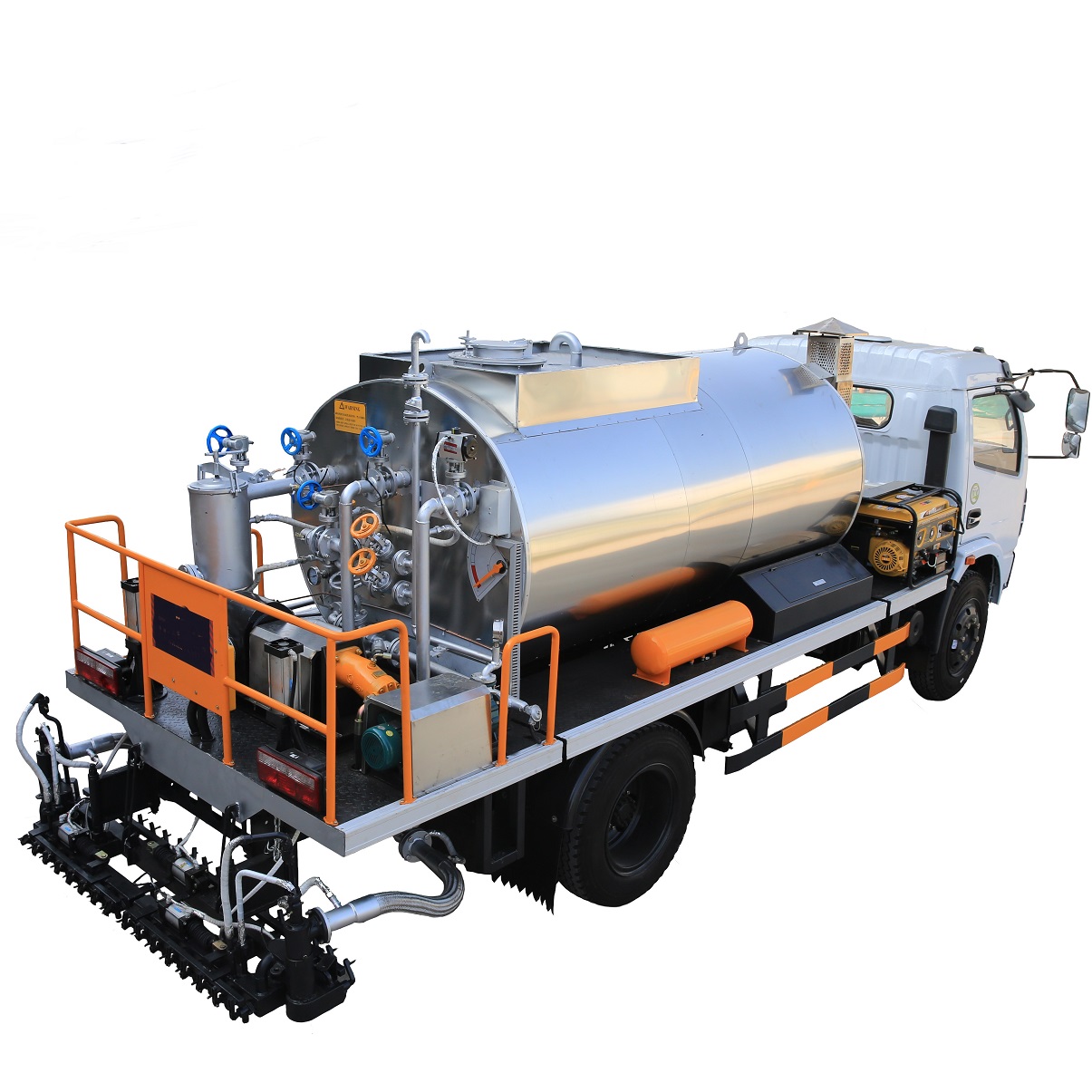

Asphalt Sprayer / Bitumen Sprayer is the suitable machine for spraying bitumen on road when doing the road Construction. Ellipse shape tank capacity5,000 L -12,000 L constructed of mild steel, rock wool insulation layer, outer sealed layer & cover with stainless steel. Manhole diameter 500 mm and equipped with thermometer and calibrated dipstick. The tank is fixed at the truck by supporting feet.
Model | ZZM5161GLQ | ZZM5251GLQ |
Shipping dimension(mm) | 8540×2450×3300 | 10500×2480×3350 |
I. Chassis | ||
Chassis model | SHACMAN 4X2 | SHACMAN 6X4 |
GVW (kg) | 16000 | 25000 |
Engine | / | / |
Power (HP) | / | / |
Chassis optional | SHACMAN | |
II. Tank and spray | ||
Tank capacity | 8000L | 12000L |
Material | Q235 carbon steel coated with stainless steel | |
Insulate thickness | 50mm Fiberglass | |
Asphalt spray rate (L/m2) | 0.25-3.0 | |
Nozzles number | 39 | |
Spray width(mm) | 6000 | |
III. Hydraulic and transmission system | ||
Power take off | from the gearbox | |
Hydraulic pump | CBQ/G550 | CBQ/G563/CFH |
Hydraulic motor | L2F63W2P2 | |
Asphalt pump | QGB680 | QGB950 |
IV. Control system | ||
PLC | Siemens
| |
Display | TFT color touch screen | |
Nozzles control | Each pneumatic cylinder control by solenoid valve | |
V. Heating system | ||
Generator | YANGBEN 5KW | |
Heating transfer oil Tube | Transfer the heating in tank, asphalt pump and spray bar | |
Temperature control | E5AZ Omron, Japan
| |
Burner | RIELLO G20, Italy | |
| Large size of rear platform, leave more space for construction operation

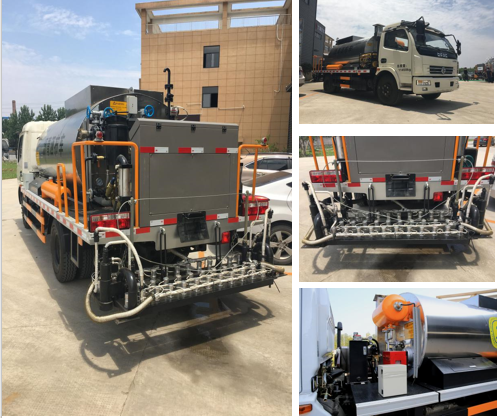

Folding type rear spray bar, up to 39 automatic control nozzles and Spray width 6m, each nozzle can be any combination
Add rear bumper to Protect spray bar. |

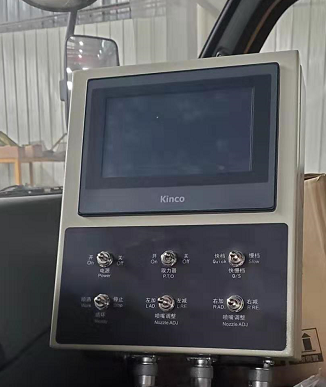

| Front operation platform：Siemens PLC (one person can complete all operations in the cab), Can set the spraying rate，display truck speed, Asphalt pump flow, asphalt speed , asphalt temperature, liquid level etc.
Rear operating platform ： Each nozzle can operate separately according to the work environment and easy to maintain. |

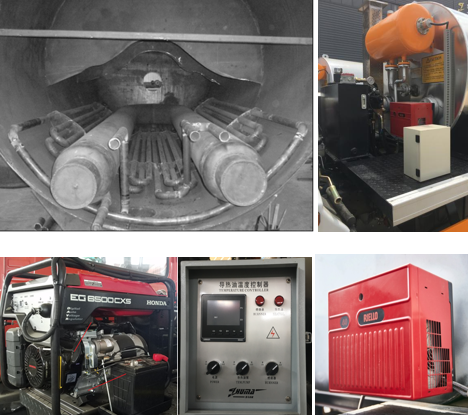

| U type burner tube, Lining with heat transfer oil coil, transfer the heat to asphalt tank, asphalt pump and spray bar, to avoid block in these parts.
The Italy burner is driven by the 5KW generator, so the heating system is separated with the truck, can save 70% of the fuel.
The Omron control panel and temperate sensor can operate the heat oil temperature precisely. |
| Pneumatic cylinder control system.

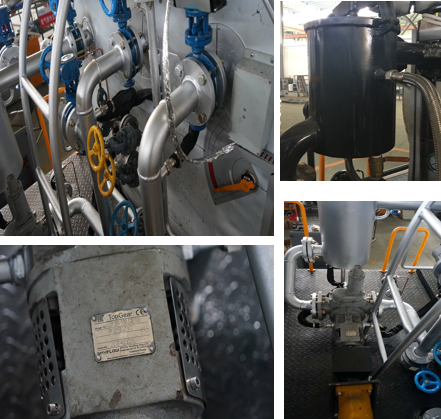

Asphalt filter(with thermal oil system)：Filtration before asphalt enters the asphalt pump, Asphalt pump protection
Pipeline with 2 circulate systems ： Increase heating speed and connect with hand spray lance system. (5M).
High viscosity QGB Series asphalt pump （ with thermal oil system ） |
|
Equipped with the toolbox on the both sides of the asphalt tank

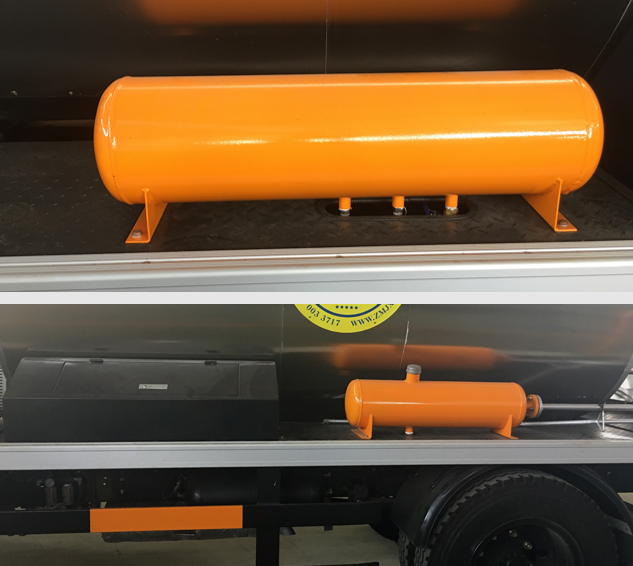

Air cleaning system
Diesel cleaning system |
