ORBITA E4031 Smart Hotel Lock with LCD Display

Security, Fire & Safety Safety Supplies

EXW Price:US$ 85.00 / Piece(s)

MOQ:1 Piece(s)

Payment Method : L/C T/T D/P Western Union Paypal Money Gram Others

Keywords:hotel lock Door Locks Smart Locks padlock Access Locks lock digital lock lock mortise smart door lock hotel door lock

Add to Favorites

Product Category: Security, Fire & Safety > Safety Supplies Trademark: ORBITA
Product Package: 355*255*160mm Specifications: Smart hotel door lock with LCD display
Place of Origin: China Port: Shenzhen


Key  Features

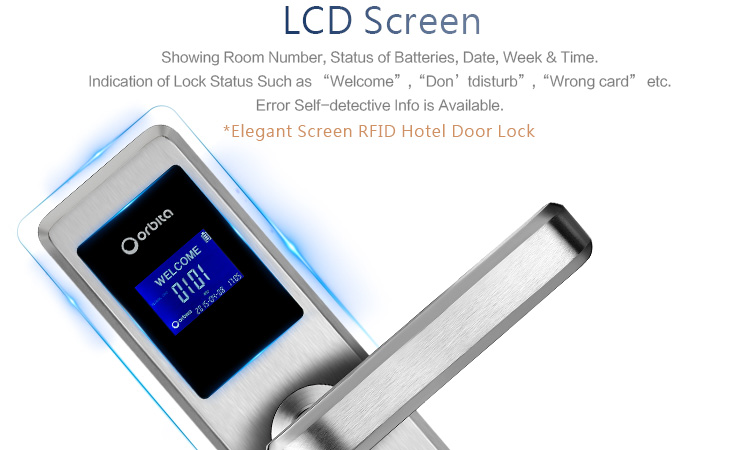

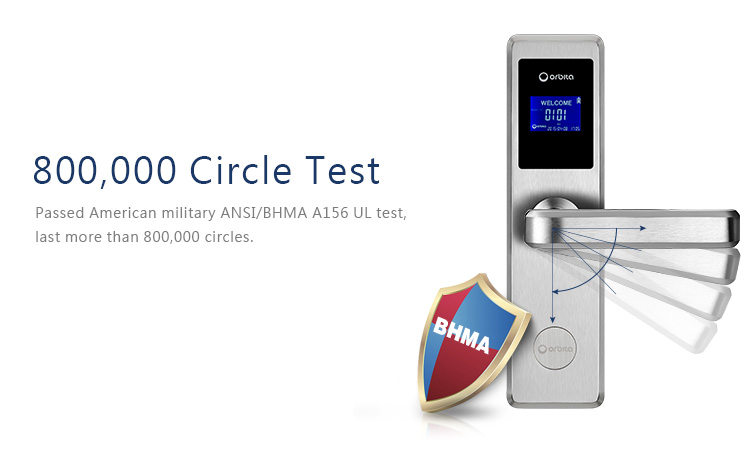

LCD screen showing:"welcome",room number,data, time,weekday, battery status, wrong operation indication; Fireproof;Pass the BHMA certificate that can be unlock 800,000 times.

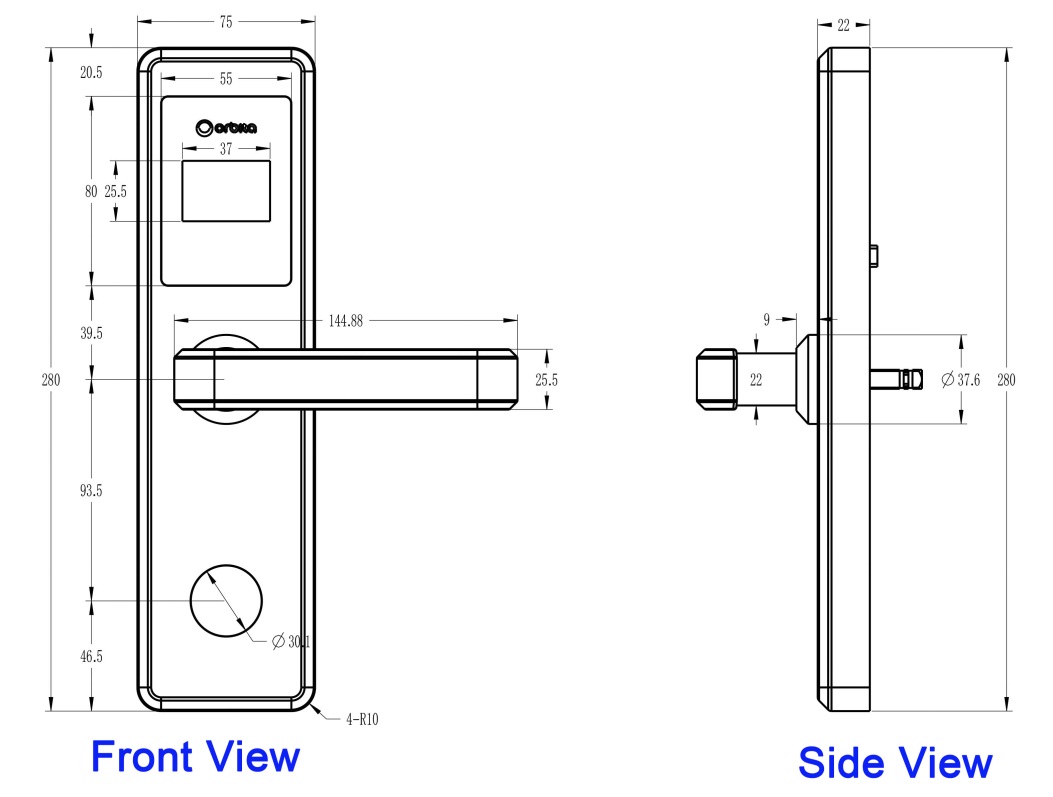

External Panel Dimension
L280mm×W75mm×H22mm

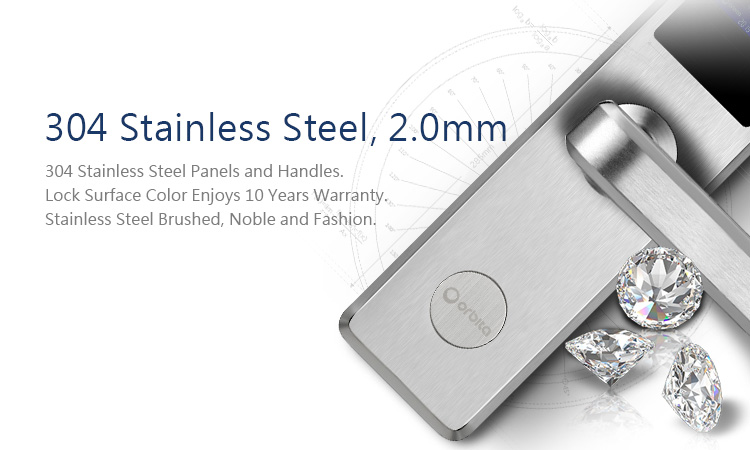

Material
Pure 304 stainless steel,2.0mm

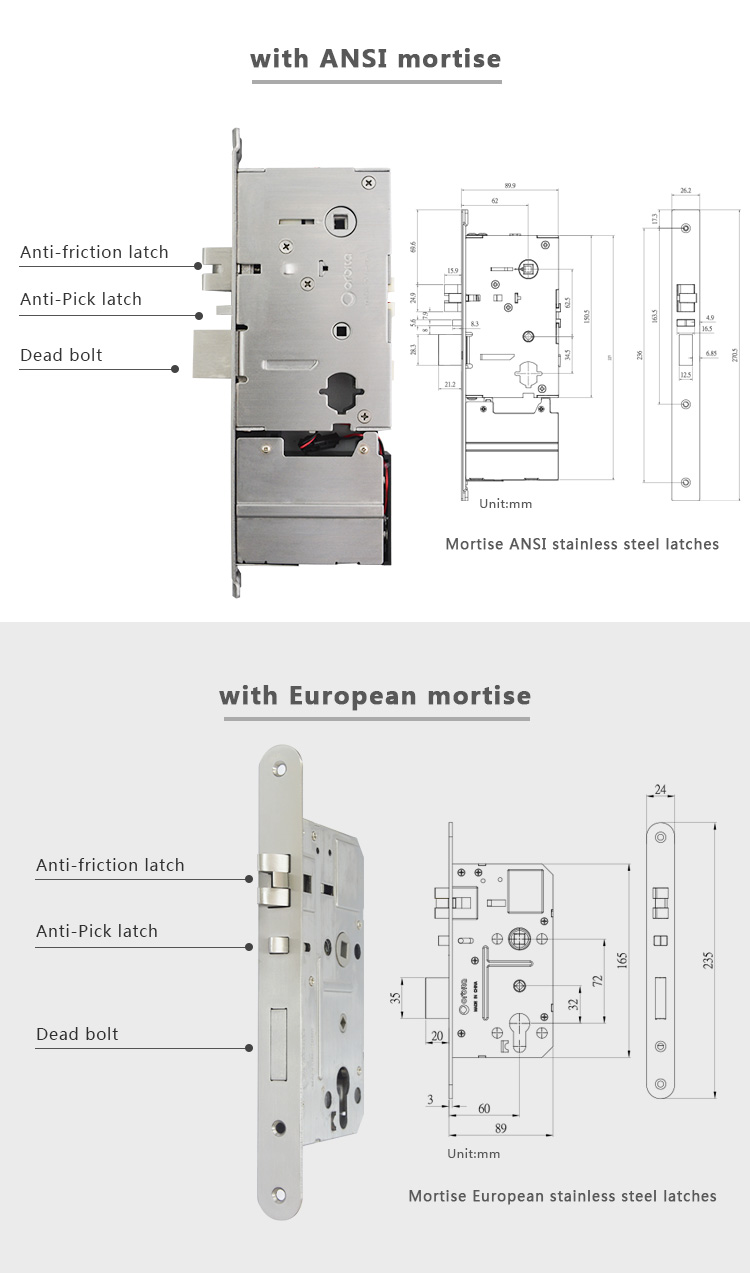

Mortise

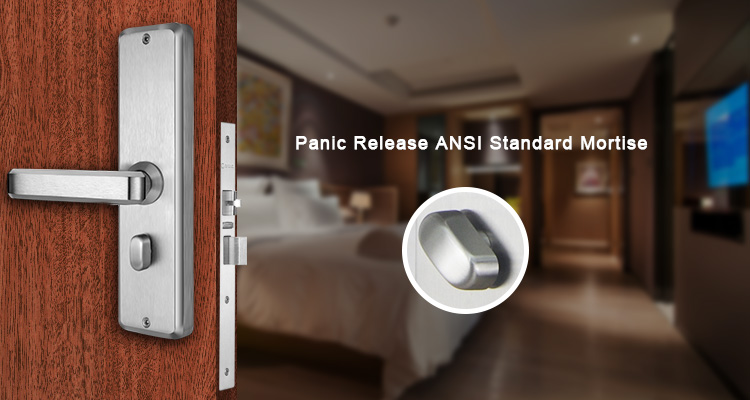

Ansi Standard Mortise or European Stand mortise 72 mm/85 mm hole distance
Keycard Type
Mi 1(S50) or Temic
Power supply
4pcs AA Alkaline batteries,12-18 months duration
Working environment
Working Humidity:20%~90%Working Temperature:-50℃~60℃
Certificates
CE,FCC,IP54 Waterproof,68 minutes Fireproof,BHMA,Fidelio/Opera registered.
PMS System
Interface with most of the PMS systems, Fidelio/Opera registered.
Color optional
Silver,Gold(PVD),Black
Application
Hotel,Resort,Apartment,Dormitory,Guesthouse etc.


Fancy Features:


Suitable For Moist and Foggy Environment

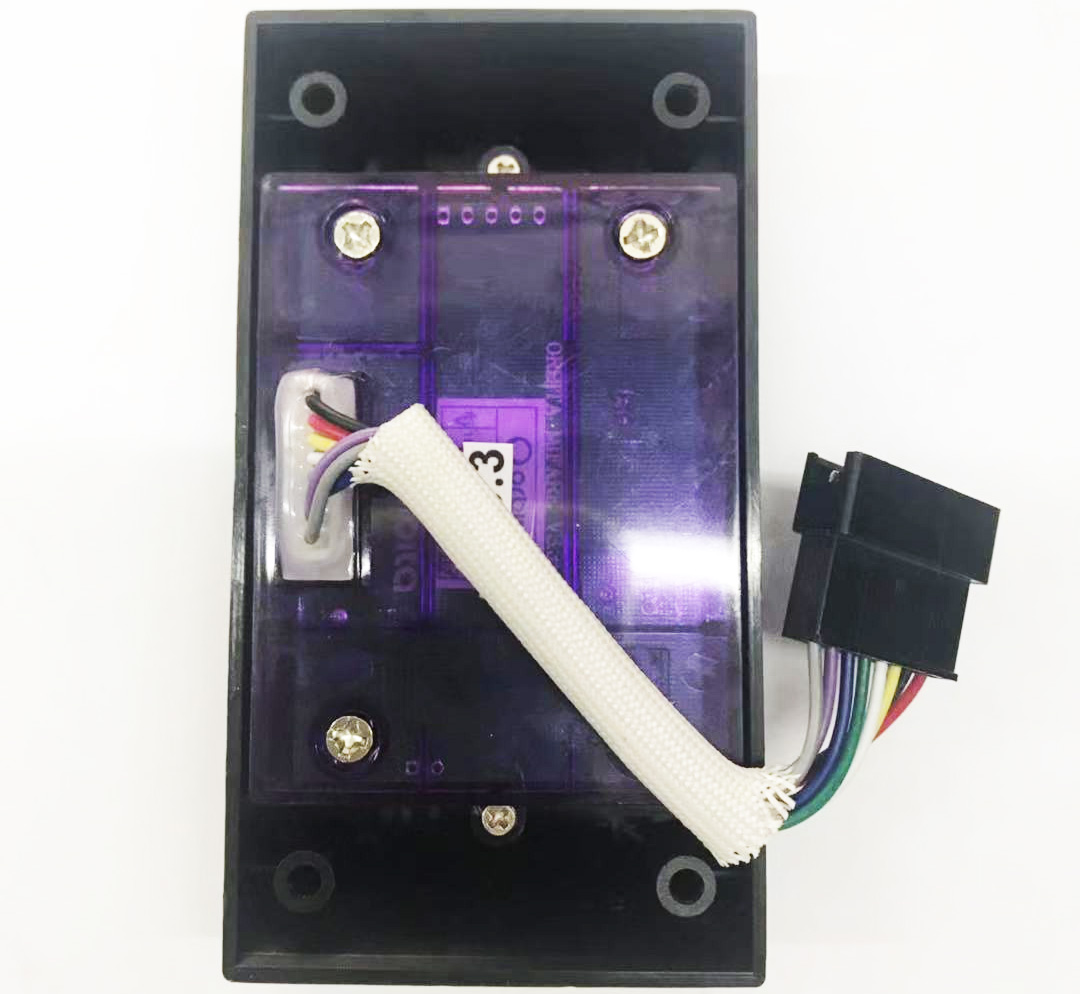

The PCB was dealed with silicon encapsulated treatment that make it waterproof and moistureproof.

The PCB was assembled with imported brand components.

After a variety of surface treatment,the panel sealed glaze treatment at last.

Experienced 90 minutes aging test and 96 hours salt spray test.

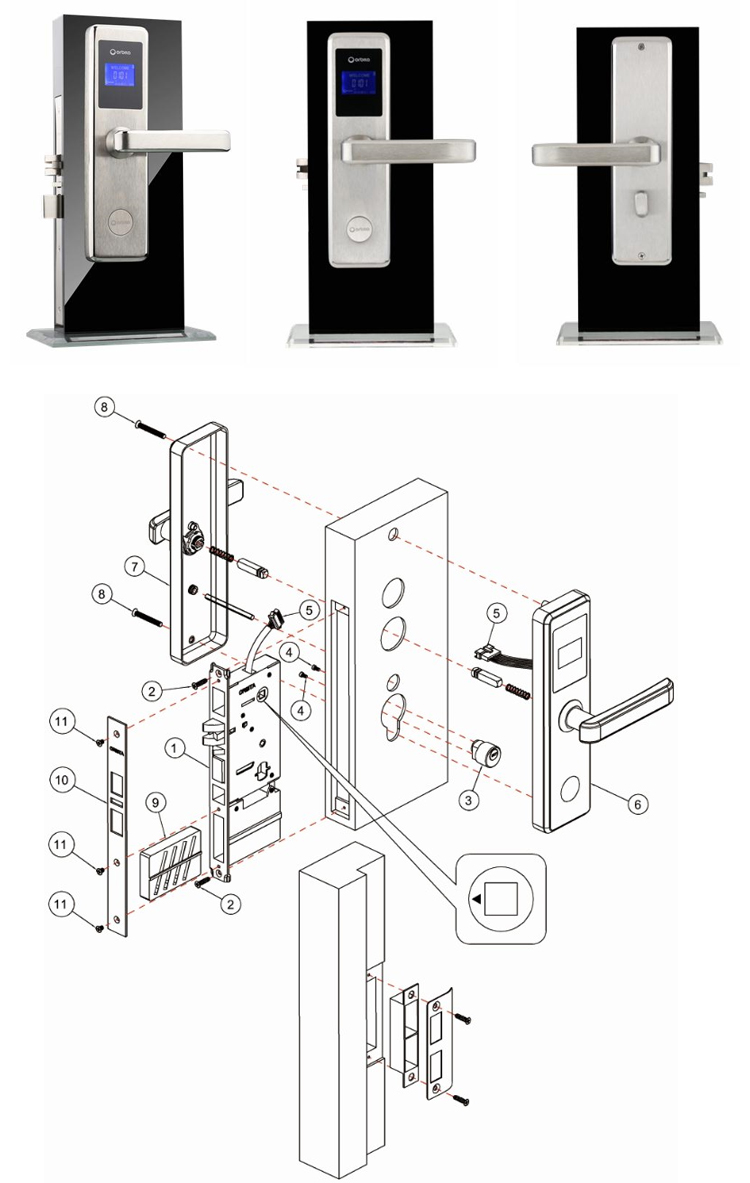

The detailed photos of the door lock and the installation diagram

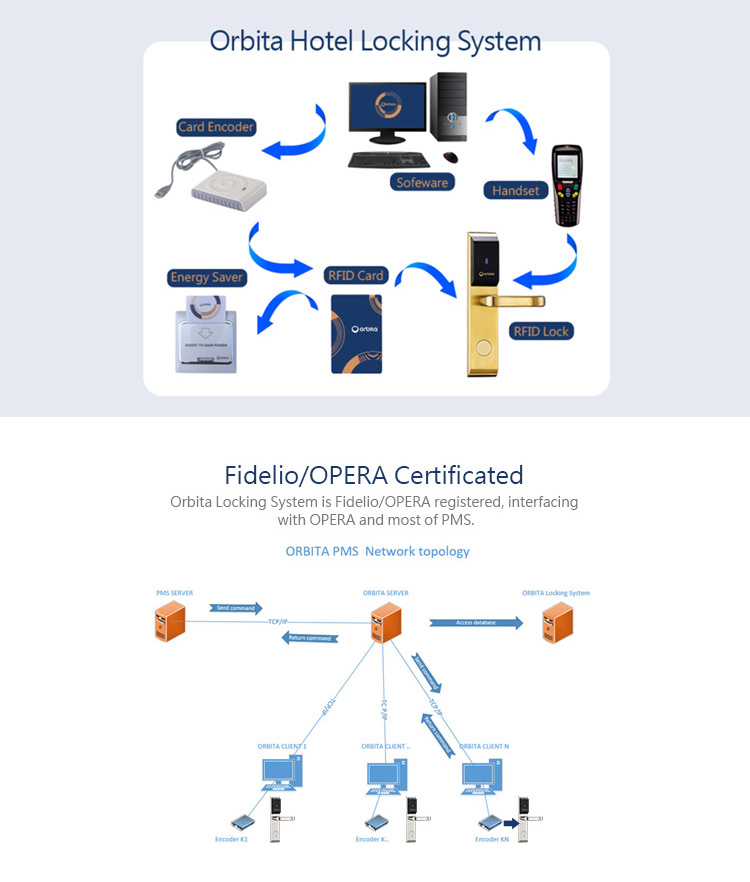

How ORBITA LCD screen fashion smart hotel door lock system works?(It can be updated with bule tooth lock system that open by mobile phone;Our software can support multi-language,such as English,Germany,French,Spanish etc.)

1.Hotel card lock (Installed on the hotel room door)
2.PC(usually located on the reception desk of hotel lobby)
3.Hotel lock management software(Download to PC,setting the software system )
4.Encoder (Connect to PC,Issue the cards)
5.Cards (Open doors)
Electronic hotel card lock system for 1 hotel need following accessories
Accessories                   Name
Suggestion Qty
Function
Lock
Same as door qty
Locking the door
Cards
5~10 times of door qty
Openning the lock
Encoder
1~2pcs/hotel
Issuing all kinds of cards
Data Cards
1~2pcs/hotel
Getting the records of the door's opening
Software System
1 disk, free of charge
Setting the program the whole system

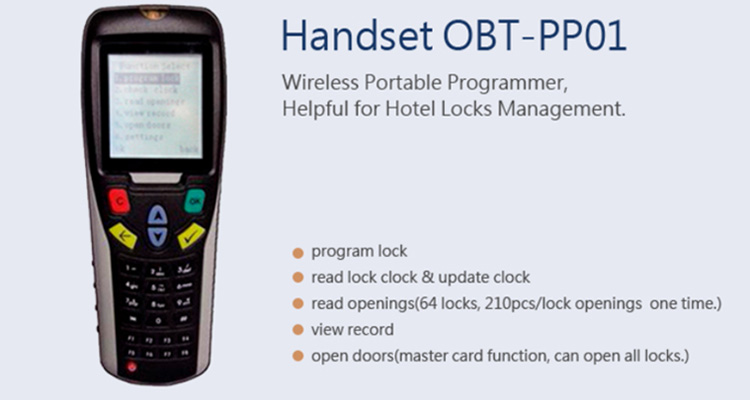

Handset
1~2pcs/hotel,                           optional
Program locks,use as master cards ,check clock,check openning records...
Energy Saver Switch
Same as door qty
Getting power

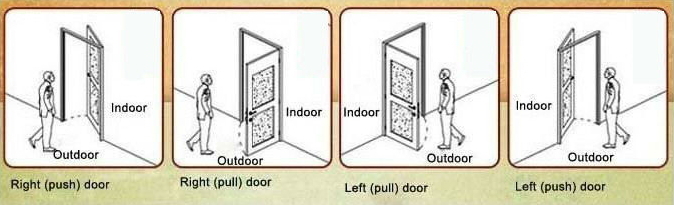

We will make the lock according to your door thickness and door open way!

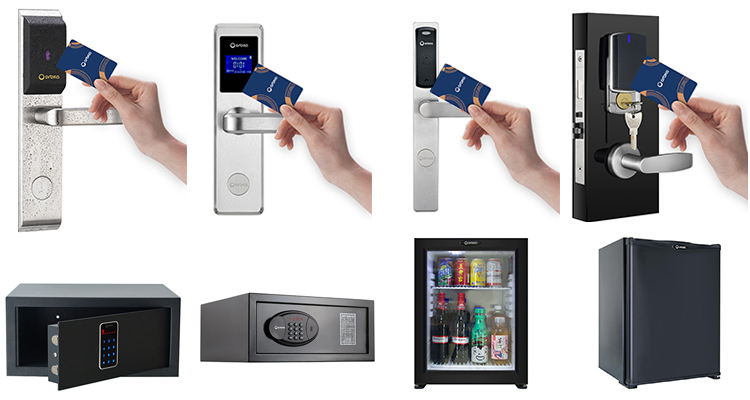

Other Products of Orbita(You can click below products picture for more detailed information)

Product Package:

1.Packing Size(W*D*H):490*360*450mm
2.Package sort:PP  bag+foam
3.Net/Gross Weight(KGS):17.5/17.8
4.Qty/Carton:6 pieces in one carton
Company Profile

Why chose ORBITA company:

1.Professional:18 years in hospitality industry.
2.Factory scale: 45000 square meter garden factory, No. 1 in this industry in China.
3.Production Facility: In house molding, punching, injection, die casting, polishing, assembling.
4.Fast Delivery: delivery within 1-3 weeks operated by professional logistic staff.
5.International Certificate: ISO, BHMA, SIRIM, CE, FCC, IP54 Waterproof,Fireproof,SASO, SONCAP.
6.Compatibility: PMS interface with Opera Fidelio and other popular PMS.
7.OEM, ODM facility: Can accept OEM, ODM .
8.Concentration: 100% exporting.
9.World wide reference: more than 10,000 hotels covering most of the international hotel chains in 100 countries.
10.Quality: Best material plus model test equipment by most experienced management team.
11.After service: Professional service people offer online 24 hours or onsite support and service. World wide support network.Overseas office and service center available in some countries
Our Factory & Exhibition:
Successful Hotel Project Case:
Our Certifications:
FAQ
1.What is the main advantage of your products?
1)since we are manufacturer, we control every detail of production and always try whatever we can to improve the quality for long term based business.

2)Since we are the manufacturer and there is no middle man, we are able to sell our products at the competitive price.

2.What is the quality difference between your products and other Chinese products?
Our products are overseas market-oritated and all the products are designed for overseas market WHILE other suppliers are mainly for China’s domestic market.For overseas market, there is a higher demand of product quality and system stability.

3.Are your product as good as European products?
In recent years, the quality difference between Chinese and European products get smaller and smaller while the price difference remain big. Usually European products price are 2-5 times more expensive then our products.

4.What certificate do you have?
We have maintained ISO9001/2008, CE, FCC, BHMA,IP54 waterproof,68 minutes Fireproof Fidelio/Opera, SASO, SONCAP,etc.

5.What is the warranty of your products?
We give 1 year warranty for our products, fee maintenance and spare parts will be offered during the first year except manual damage.We offer 2 years warranty for our minibars and telephones.After two years, spare parts and technical support will be offered at a reasonable price.
