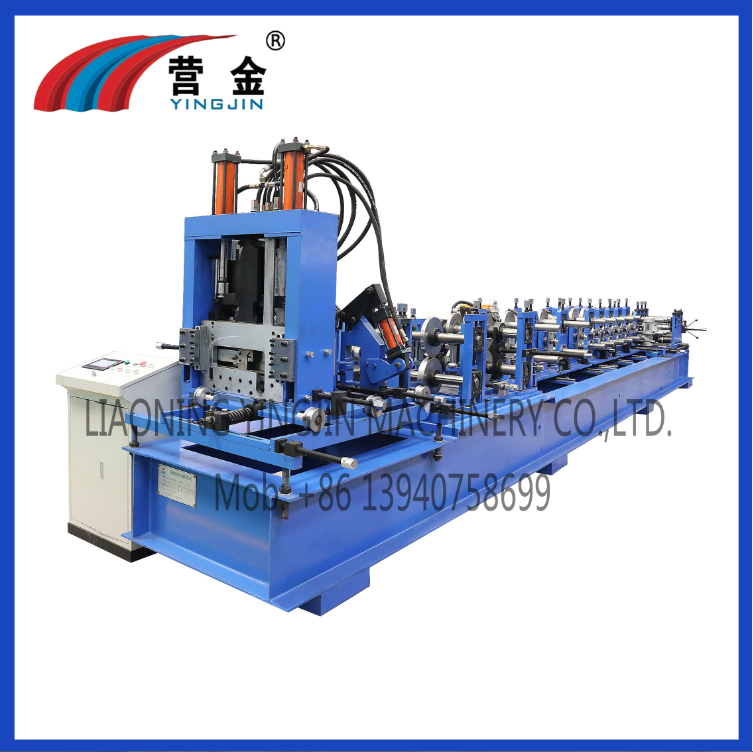

C\/Z Profile Steel Forming Machine

Business Type:Manufacturer

Main Products: Roll Forming MachineArch roof building machine

view on mobile

FOB Price:US$ 40,000.00 / Set(s)

MOQ:1 Set(s)

Payment Method :

Keywords:Roll forming machine C/Z purline machine

Inquire

Product Category:	Manufacturing & Processing Machinery > Engineering & Construction Machinery	Trademark:
Product Package:		Specifications:
Place of Origin:		Port:	Dalian

No.	Item		Parameter
1.		Material Thickness	2 - 3 mm
1.		Product Size	As Above Sizes
2.	De-coiler Specs	Type	Manual Cantilever type
		Max. Capacity	3Tons
		Coil ID	425mm-525mm
		Max. Coil OD	≤500mm
		Max. Coil Width	≤175mm
3.	Machine Specs	Forming Speed	6 - 8M/Min
		Forming Stations	18 Stations
		Roller Material	GCr15 Steel
		Shaft Diameter	80 mm
		Shaft Material	40Cr
		Forming Structure	Guiding Column
		Base Frame	H-Section Steel Welding
		Driven System	Chain
		Motor Power	22 KW------------1Set
		Cutting Tolerance	±2mm
		Installation Dimension	20~25M*2M
		Machine Weight	About 10 Tons
4.	Computer Box	PLC	Delta
		Frequency Converter	Delta
		Encoder	Omron
		Touch Screen	10 inch
		Button	Emergency Stop
5.	Paint	Base Paint	Anti-rust
5.	Paint	Surface Paint	Blue + Yellow
6.	Others	Electric motor overloads protection
		Short circuit protection
		380V/50HZ/3Phase (depend on clients’ need )
