Technical Characteristics

a.Type and Material:

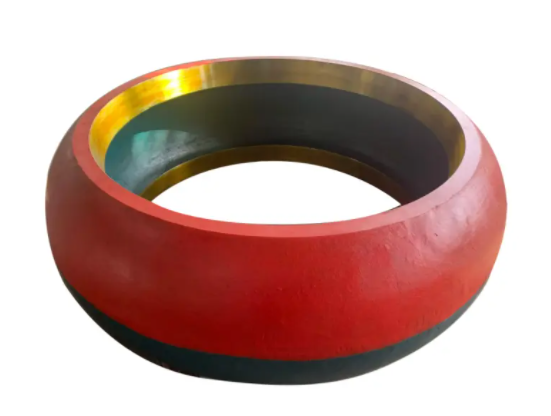

Vertical mill is an ideal large-scale grinding equipment, widely used in cement, power, metallurgy, chemical, non-metal mining and other industries. It integrates crushing, drying, grinding and graded transportation, with the characteristics of high grinding efficiency, large energy saving range, reliable operation and convenient maintenance, and can grind the block, granular and powder raw materials into the required powder materials. The roller sleeve is the most important part of vertical mill which mainly responsible for grinding materials. The shape of roller sleeve has two types: tire roller and conical roller. The material is high chromium cast iron, with strong hardness and wear resistance which can be used for the grinding of limestone, pulverized coal, cement, slag and other materials.

b. Advanced manufacturing process：
● Customized design: Sand casting, can be cast according to the user drawings.
● Manufacturing process: The heat treatment process is controlled by the computer program which make the roller sleeve with uniform texture and excellent performance. The fitting surface is fine turning by the CNC lathe, which has high precision and finish and maximum ensures the good contact with the roller center.
● Quality Control: Smelting steel water shall be discharged after qualified spectral analysis; the test block for every furnace shall be heat treatment analysis, and the next process shall proceed after the test block is qualified.

c. Strict inspection：
● Flaw detection should be performed for each product to ensure that there are no air holes, sand holes, slag inclusions, cracks, deformation and other manufacturing defects.
● Each product is inspected prior to delivery, including material tests and physical performance tests to ensure functional performance and provide laboratory test sheets.

Performance index

Material hardness, impact resistance: hardness 55HRC-60HRC;

Impact toughness Aa≥ 60j /cm2.

Application

It is widely used in the vertical mill of power, building materials, metallurgy, chemical, non-metal mining and other industries.
