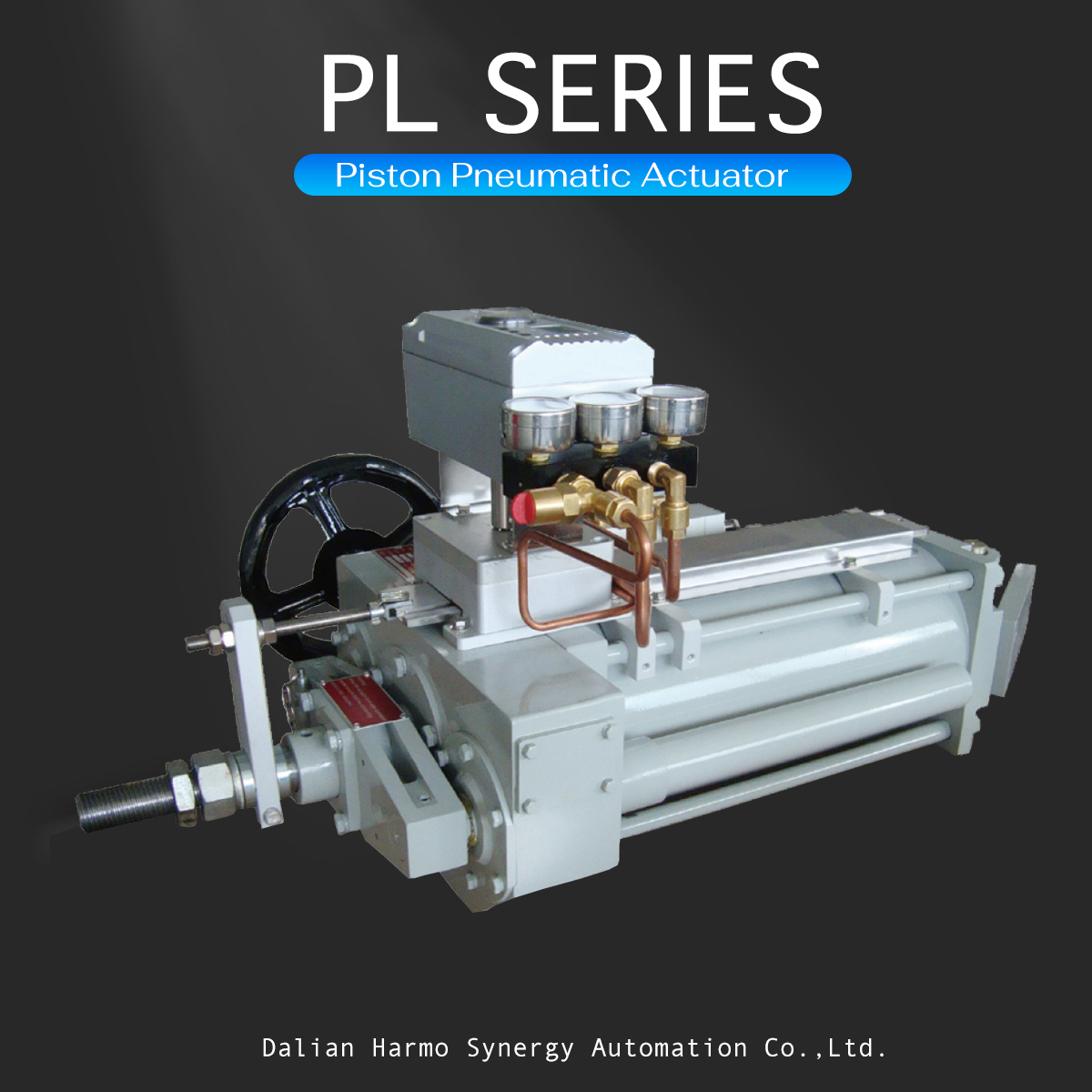

PL Series Piston Pneumatic Actuator
Manufacturing & Processing Machinery Valves & Pumps & Compressors
MOQ:0 Piece(s)
Payment Method : L/C T/T D/P Western Union Paypal Money Gram Others
Keywords:PL Piston Pneumatic Actuator co-energy
| Product Category: | Manufacturing & Processing Machinery > Valves & Pumps & Compressors | Trademark: | HSA |
| Product Package: | wooden case | Specifications: | on request |
| Place of Origin: | China | Port: | DalianPort |
PL Series straight stroke piston pneumatic actuators are designed and manufactured specifically to drive the windshield or insert door.
The output of the actuator is straight stroke and can be mounted as a hinged mount for the windshield to drive the rocker arm of the windshield to rotate the main shaft of the windshield.
Direct drive of the insert plate in straight line when used for the insert door.
PL series pneumatic actuators are designed with the advantages of light weight, strong function and easy installation, as well as a lifetime maintenance-free piston self-lubrication system for a long service life.
The stroke of PL series pneumatic actuator and its feedback drive accessories can be designed and machined directly according to the required stroke.
In this way, there is no reactive volume in the fully open or fully closed position and the control deviation is minimized.

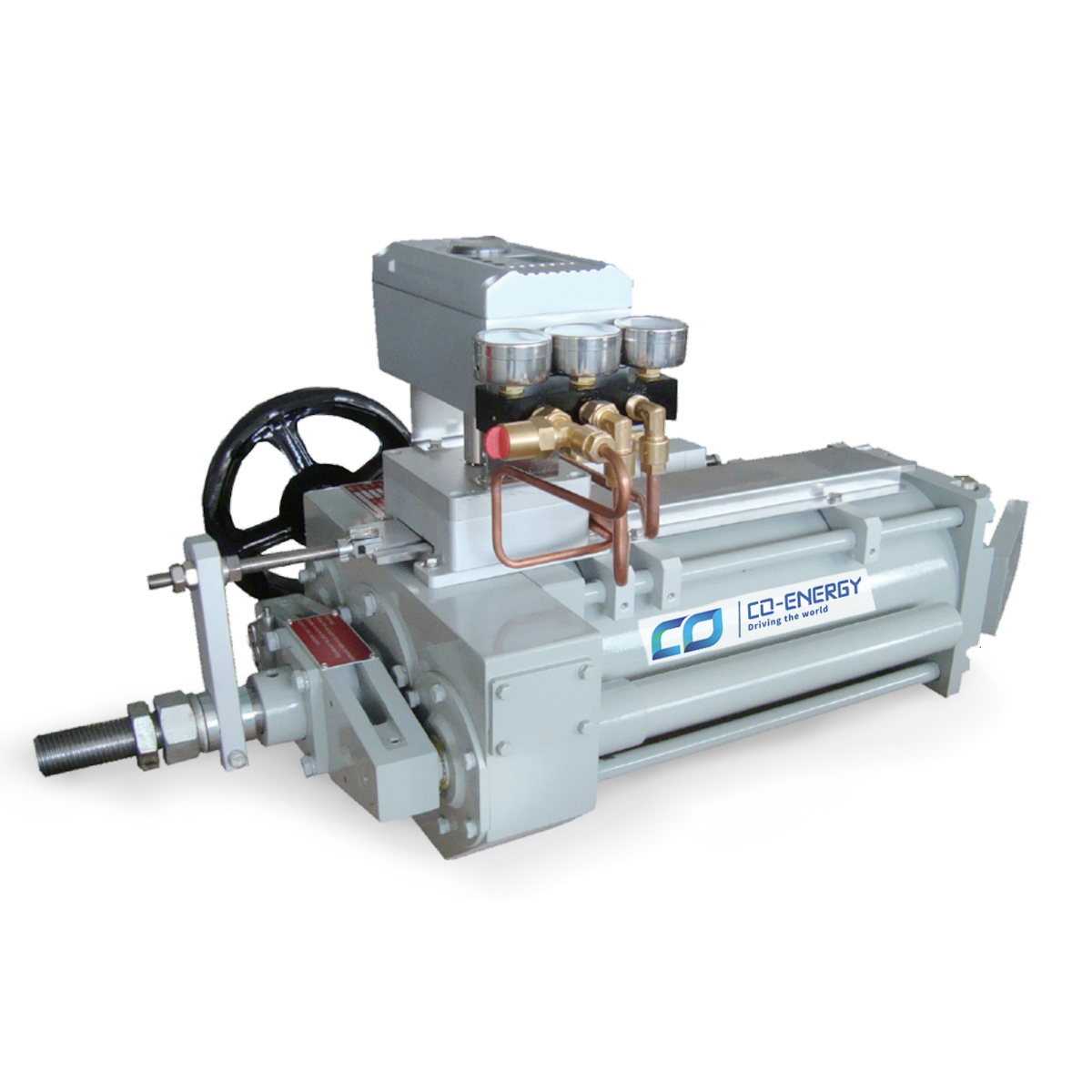

PL series pneumatic actuators are optionally equipped with HW series manual actuators for emergency manual operation.
HW series handwheel mechanism adopts double worm gear and double screw structure, and the size of handwheel is not affected by the stroke length.
main features：
>Different materials can be selected for different working environments.
>Cylinder design with piston self-lubrication system for lifetime maintenance-free.
>Accessories and cylinders are modular and integrated assembly designs.
>Patented feedback drive, excellent intelligent positioner.
>Patented manual operation mechanism for perfect manual operation of long stroke cylinders.
>Optimize innovative triple-break protection design and quick-action design.
>Control loops and production control cabinets can be designed according to the special needs of users.
Technical specification:
>Diameter: 63 ~ 600 mm
>Thrust: See table behind for details
>Stroke: Customized as required
>Cylinder operating pressure: max. 10 bar
>Cylinder Temperature Resistance: -20~150 C (other temperature environments can be customized)
>Stroke Time: Design control circuit as required
>Triple break protection: hold/full open/full close
>piping and joints: copper or stainless steel
>cylinder material: aluminium alloy or carbon steel
